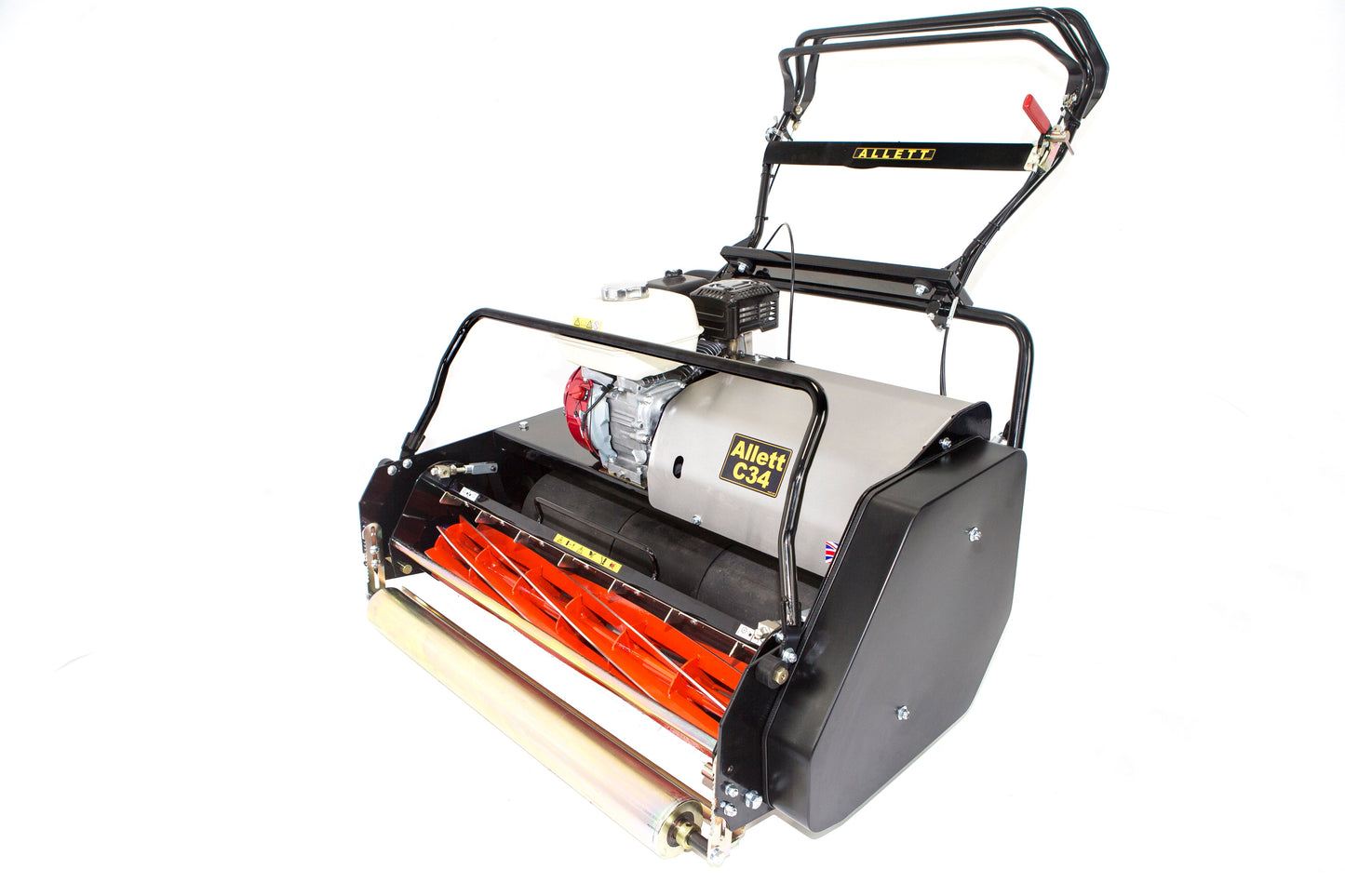

C34
Professional Cylinder Mower with Interchangeable Cartridge and Turf Maintenance System.
Free Demo • Specialist Advice • Dealer Installation
Speak to Product Specialist
Speak to Product Specialist
Go to Contact Page
Contact Your Local Dealer
Contact Your Local Dealer
Visit our Global Dealer Locator
- A wide range of interchangeable cartridge heads available for a variety of turf maintenance tasks for large areas
- One machine capable of performing up to 8 different turf maintenance operations

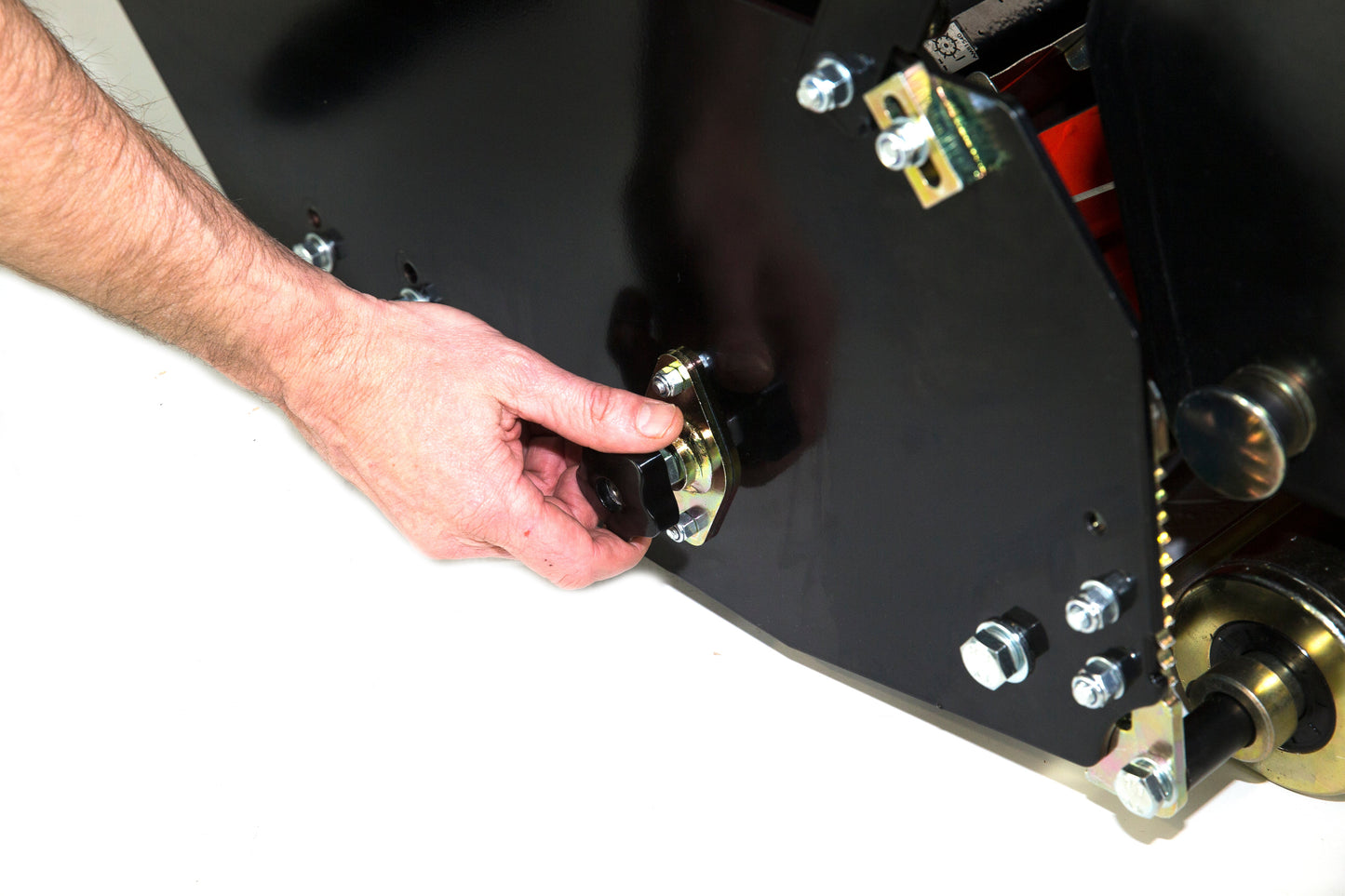

- Fast, simple micro cutting height adjustment from 8mm – 55mm (0.32” to 2.17”)
Share

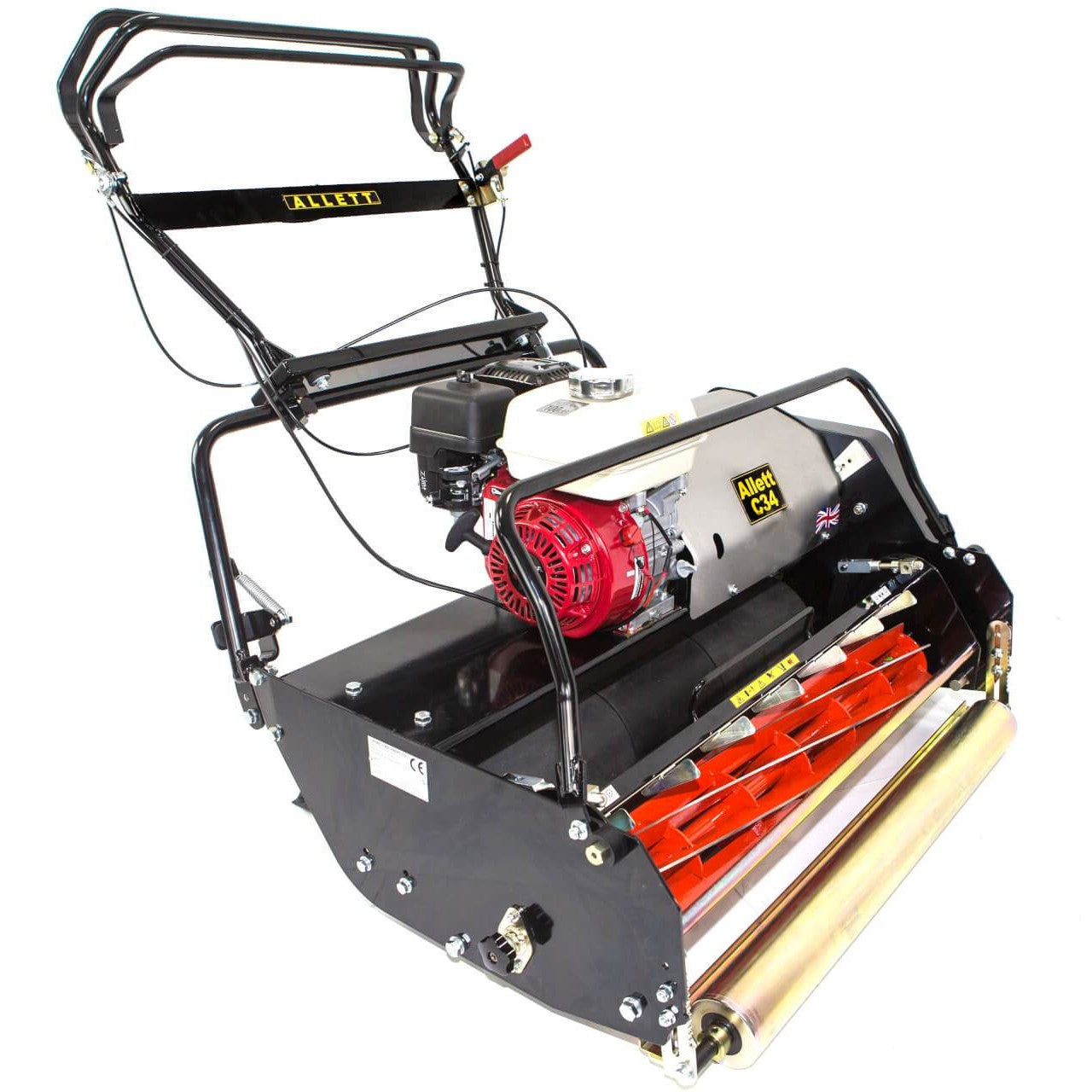

C34 Technical Data
C34 | |
---|---|
Working width | 864mm (34in) |
Overall width | 1120mm (45in) |

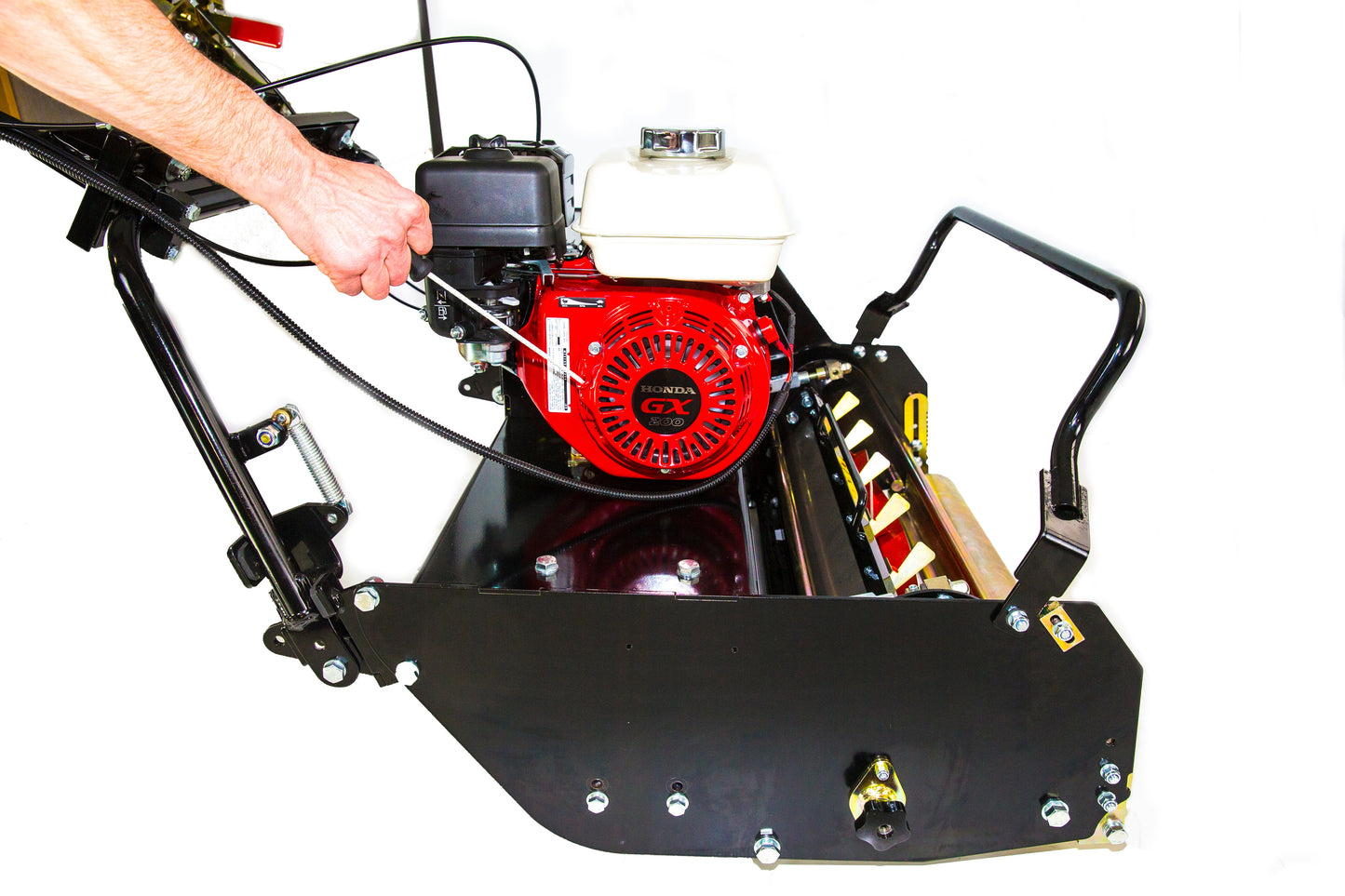

Power Source | Honda GX200 |
Power output (net) | 4.1kW (5.5hp) @ 3,600 rpm |

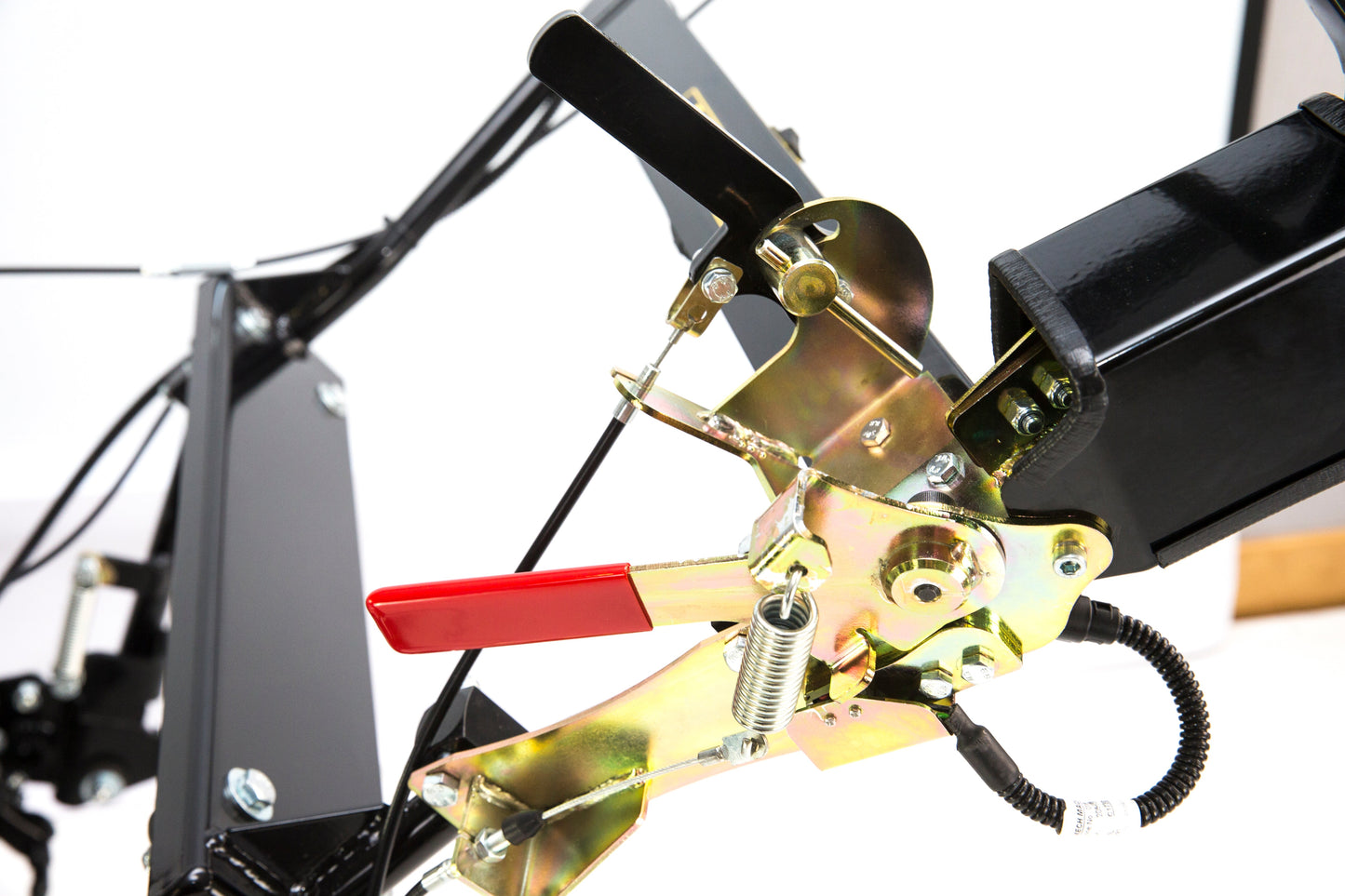

Cylinder drive | Handle-mounted lever engaging V belt via cable |

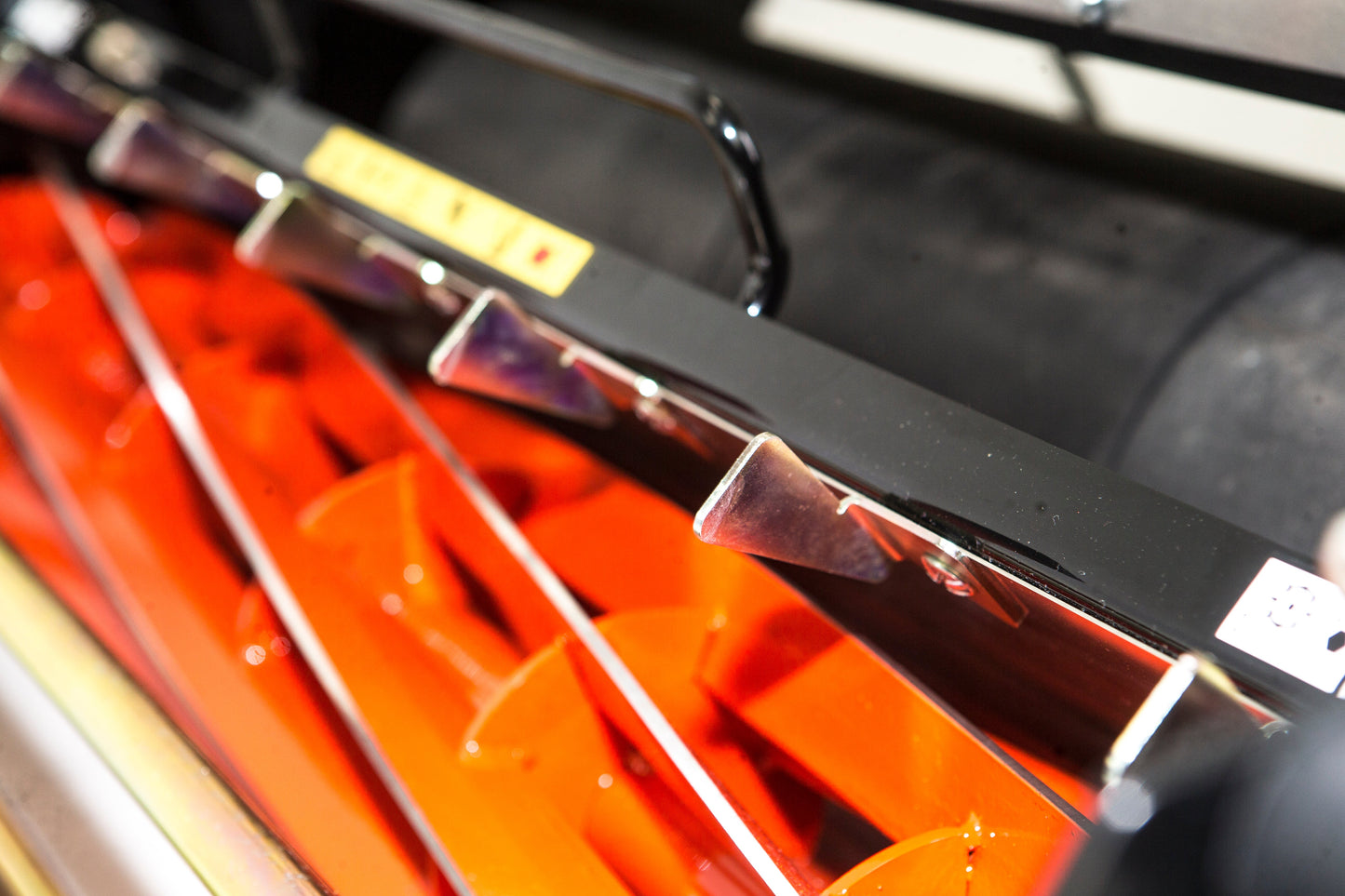

Cuts per Metre | 6 blade: 111 cuts per metre, 8 blade: 148 cuts per metre |
Height of cut | 8mm-55mm (0.31in-2.17in) |
Handlebar | Adjustable with anti-vibration mountings |
Drive engagement | Handle-mounted lever engaging V belt via cable |
Cartridge head engagement | Handle-mounted lever engaging V belt via cable |

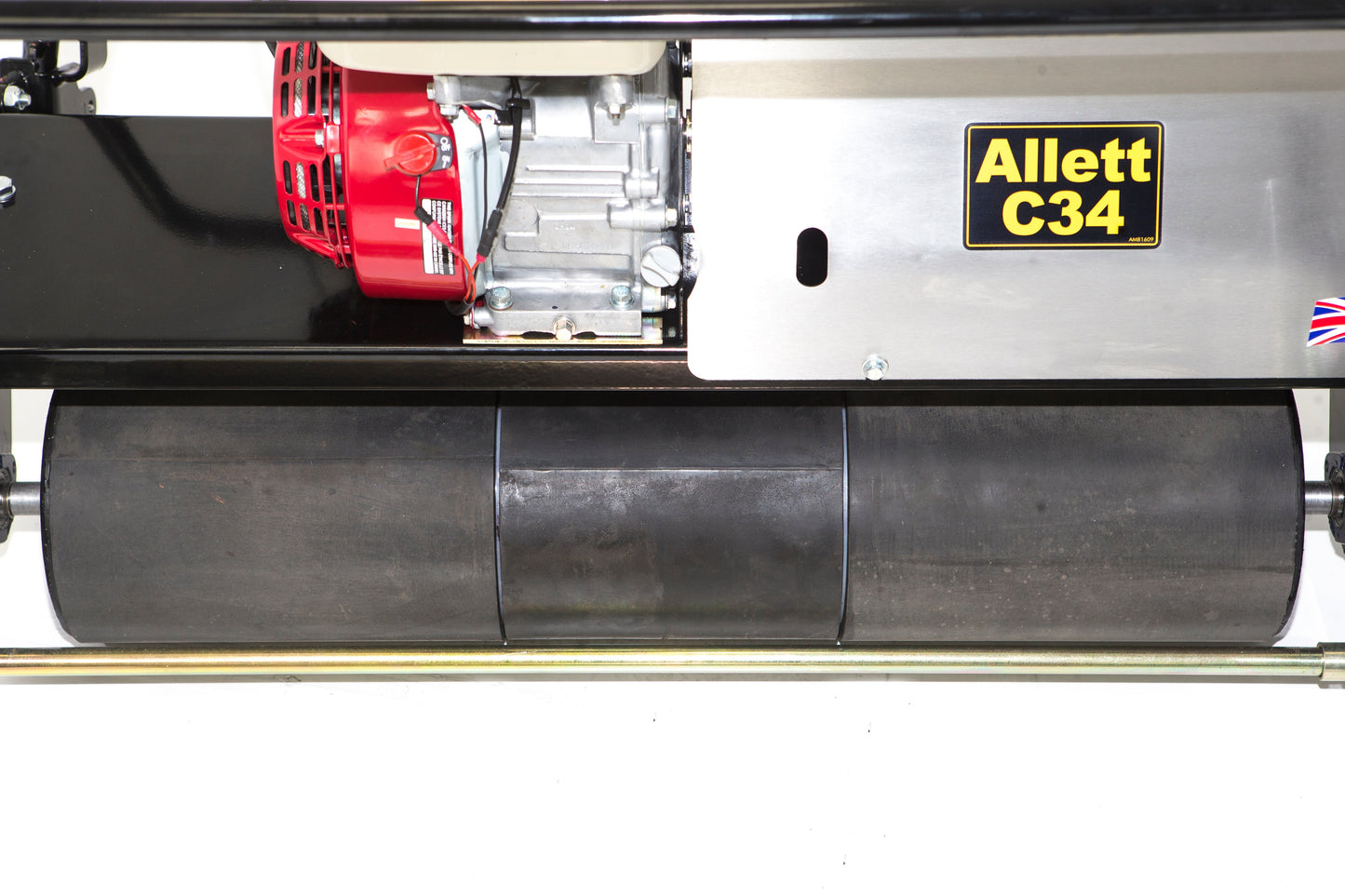

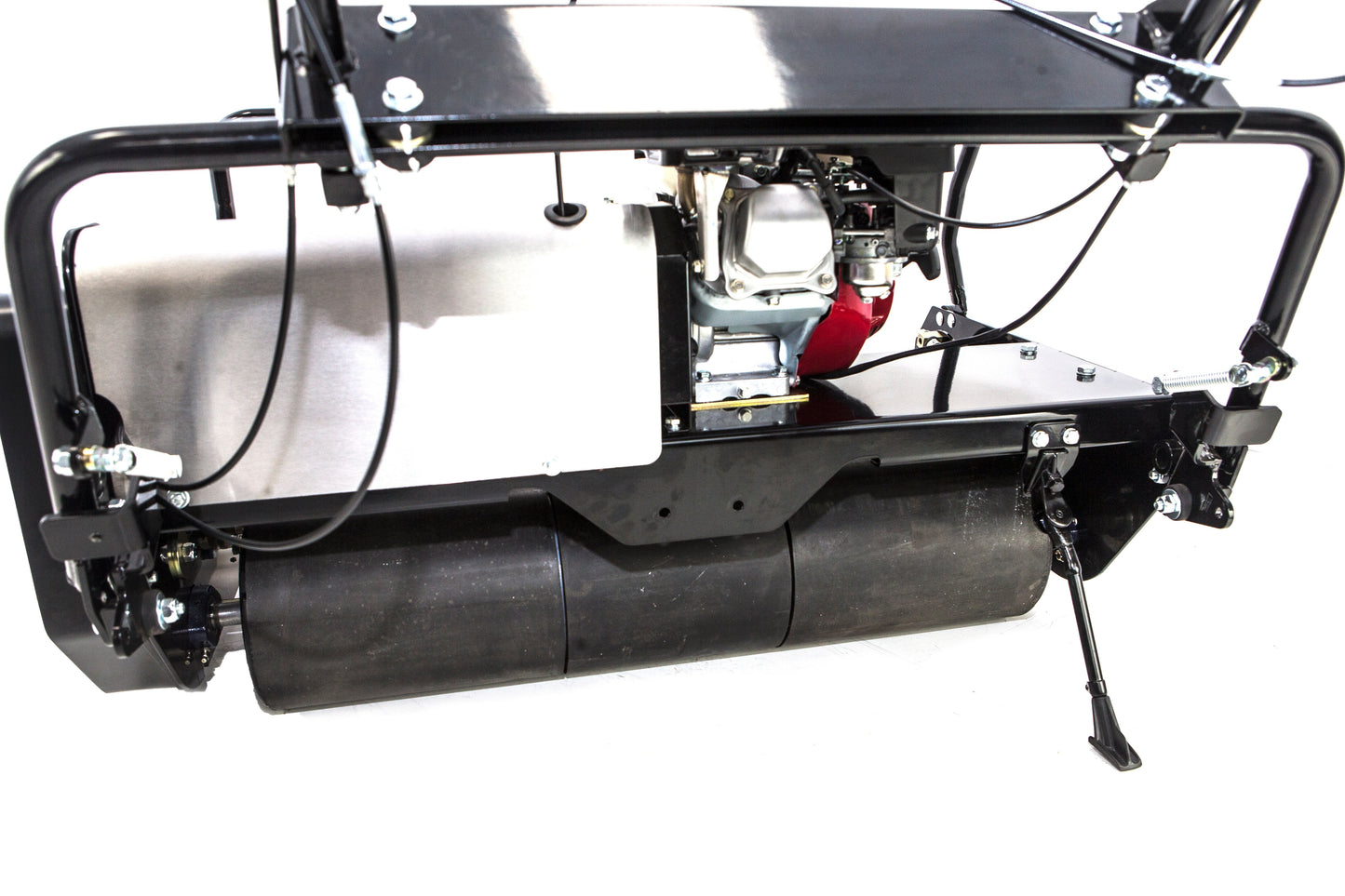

Rear roller | Rubberised, 3 piece steel construction, with steel differential gears |
Front roller | 90mm diameter smooth roller, running on double sealed bearings |

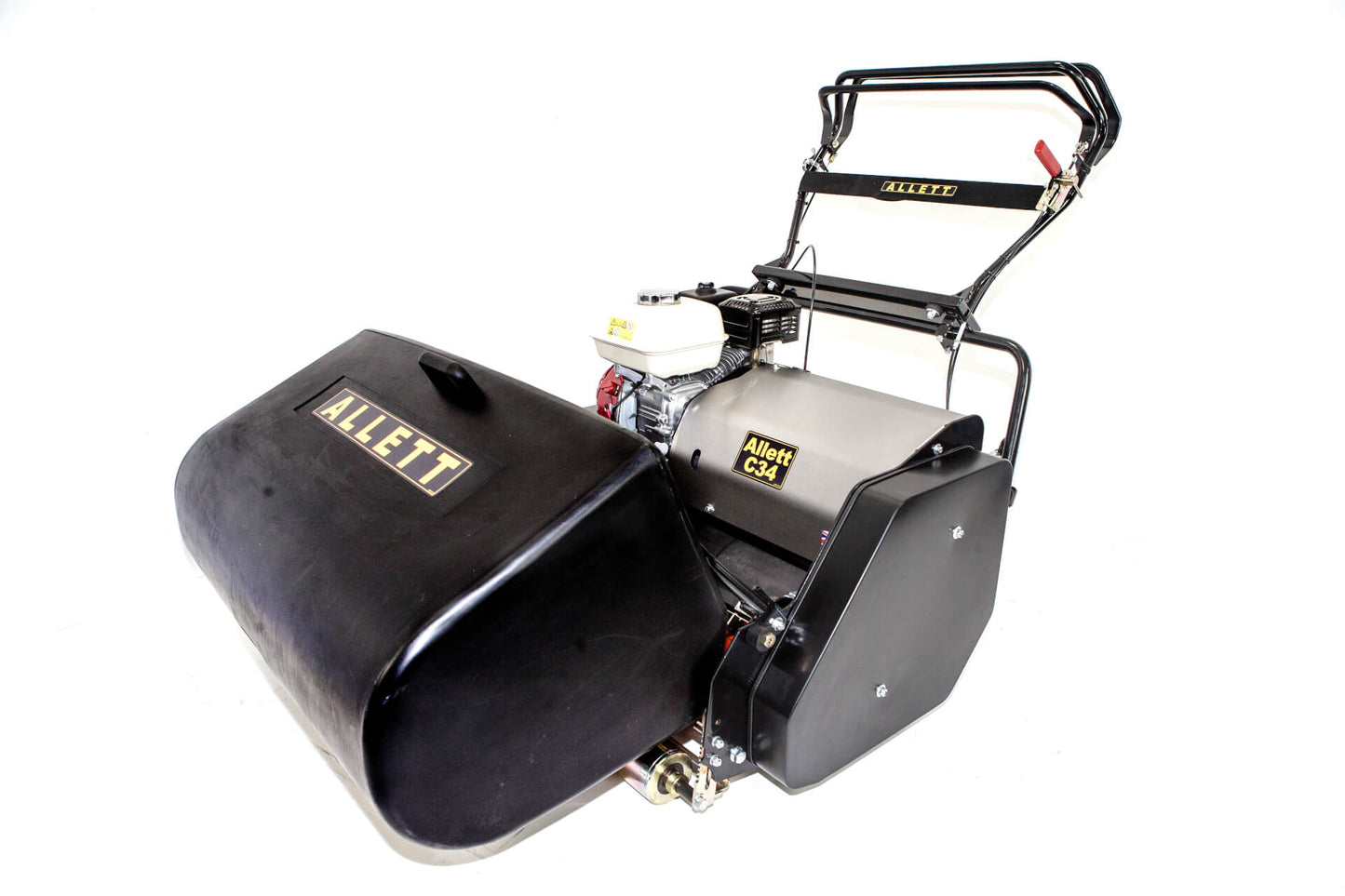

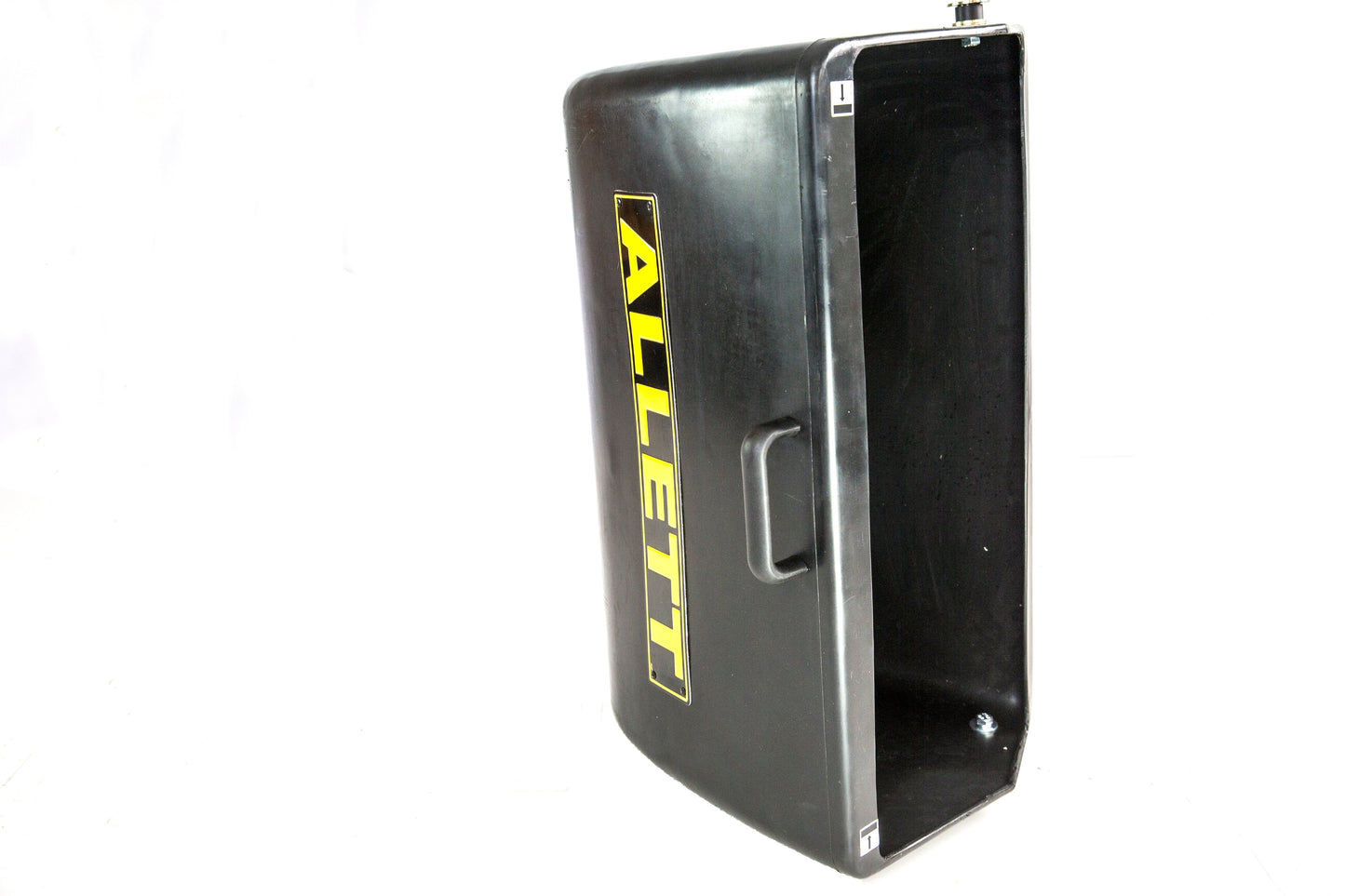

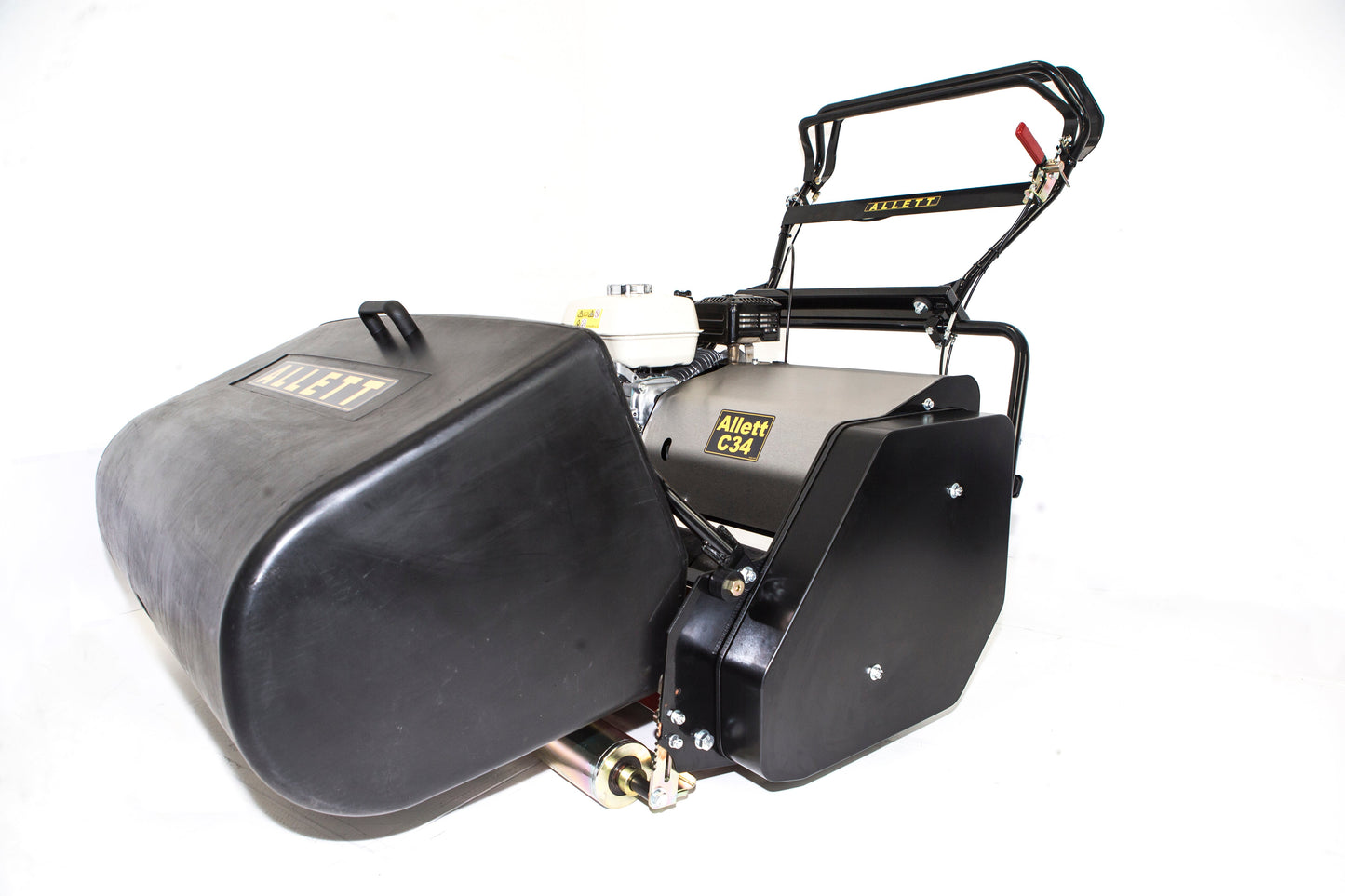

Grassbox | Moulded plastic with steel reinforcing strip |
Weight | 119kg no cartridge, 164kg with cartridge |
Options | Grooved front roller |
Optional accessories | Sorrel Roller, Turf Rake, 8 Bladed Cylinder, 6 Bladed Cylinder, Verticut, Brush, Scarifier, Scarifier with tungsten steel blades. |
Behind the C-Range

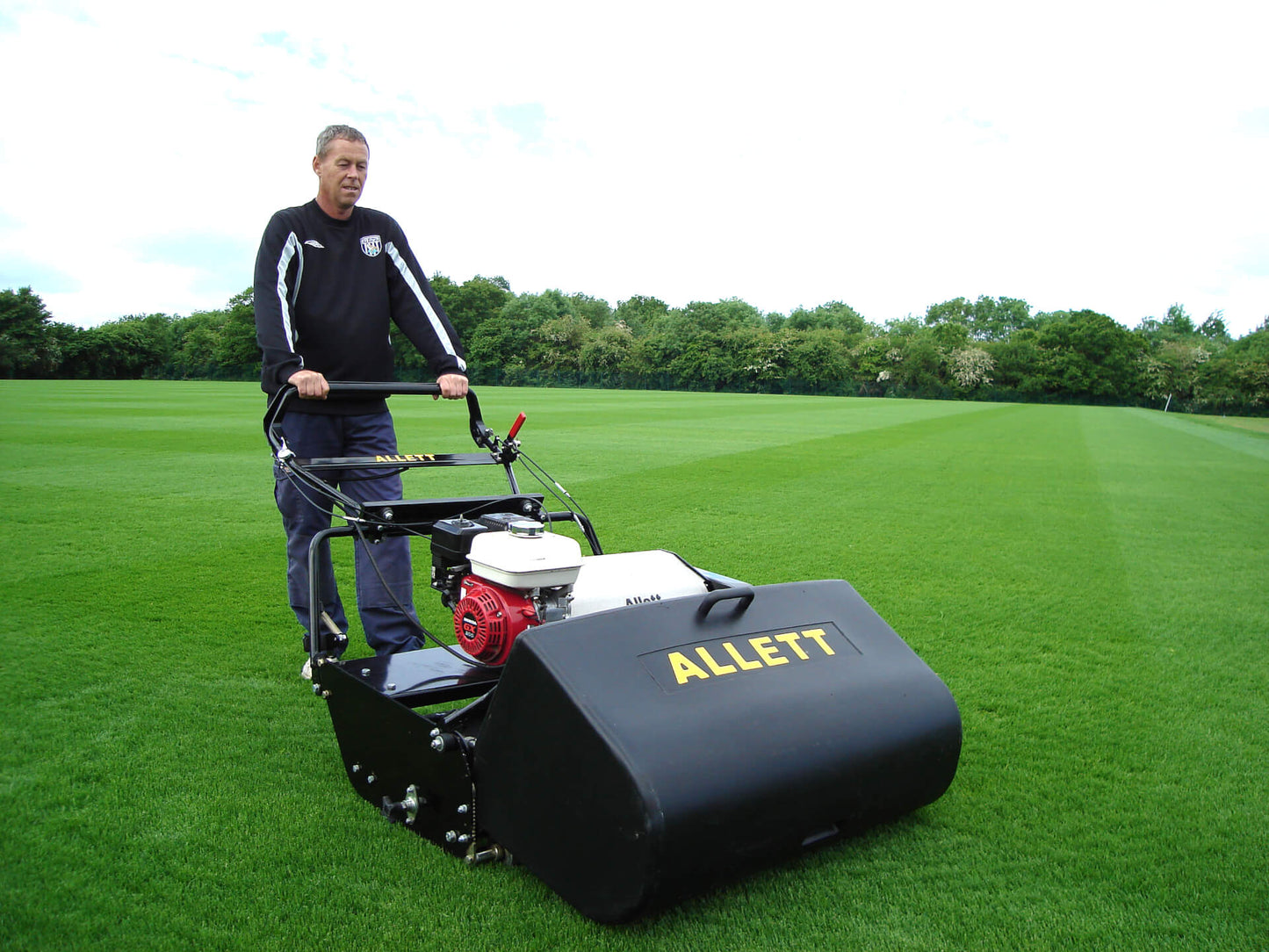

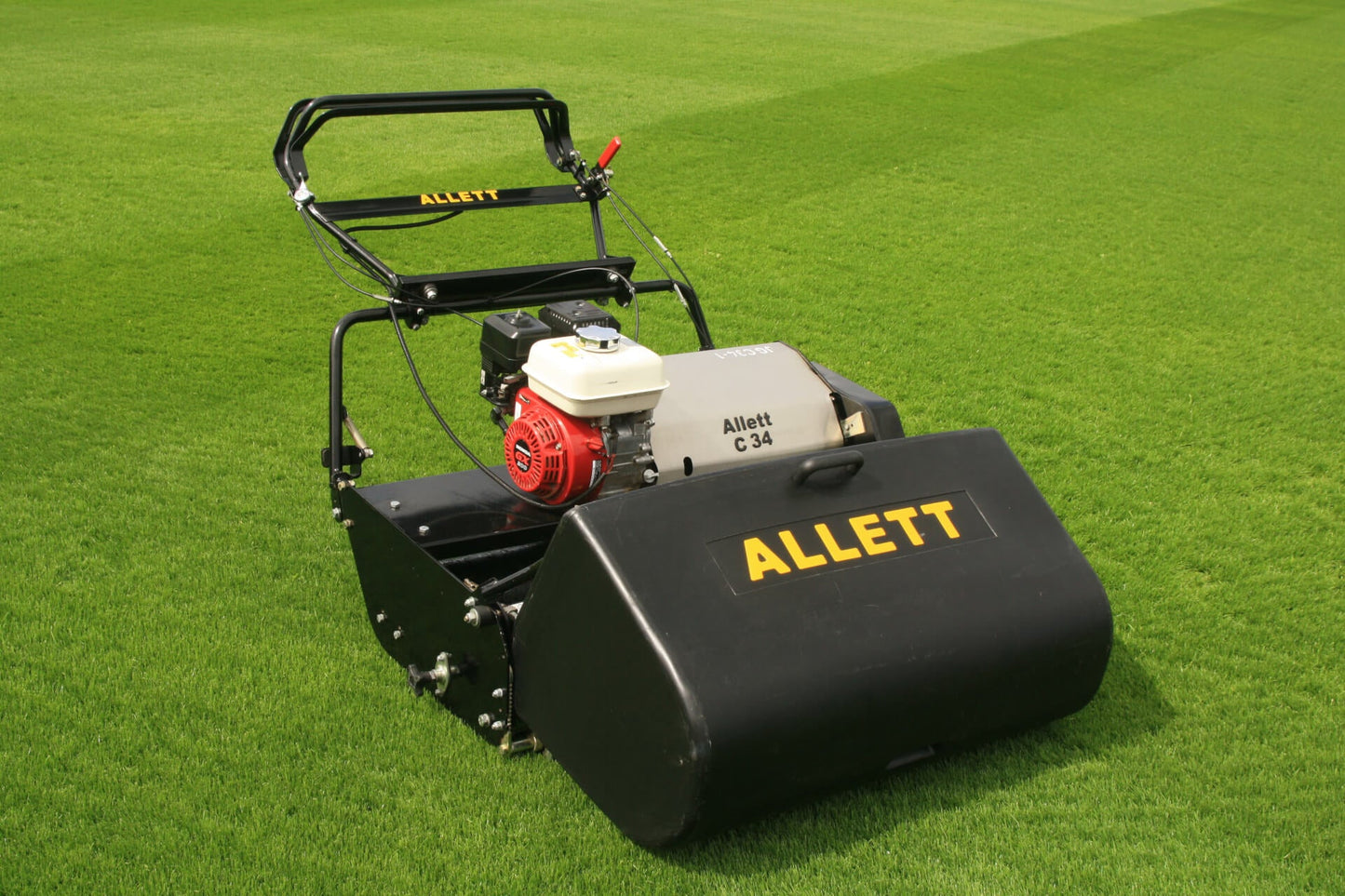

The Allett C-34 machine delivers a wide range of professional turf maintenance functions from a single pedestrian controlled machine to suit all maintained turf areas.
Perform multiple tasks
Each purpose-designed, easy-change, C-Range cartridge head becomes an integral part of the machine, enabling tasks ranging from fine turf mowing, verti-cutting and slitting to brushing, scarifying and sorrel rolling to be carried out successfully and without compromise.
Year-round versatility
Such year-round versatility greatly extends the cost-effectiveness of the C-Range power unit, enhancing the value of the investment for the benefit of owners such as bowls and golf clubs, turf maintenance contractors and other professionals looking after quality turf surfaces.

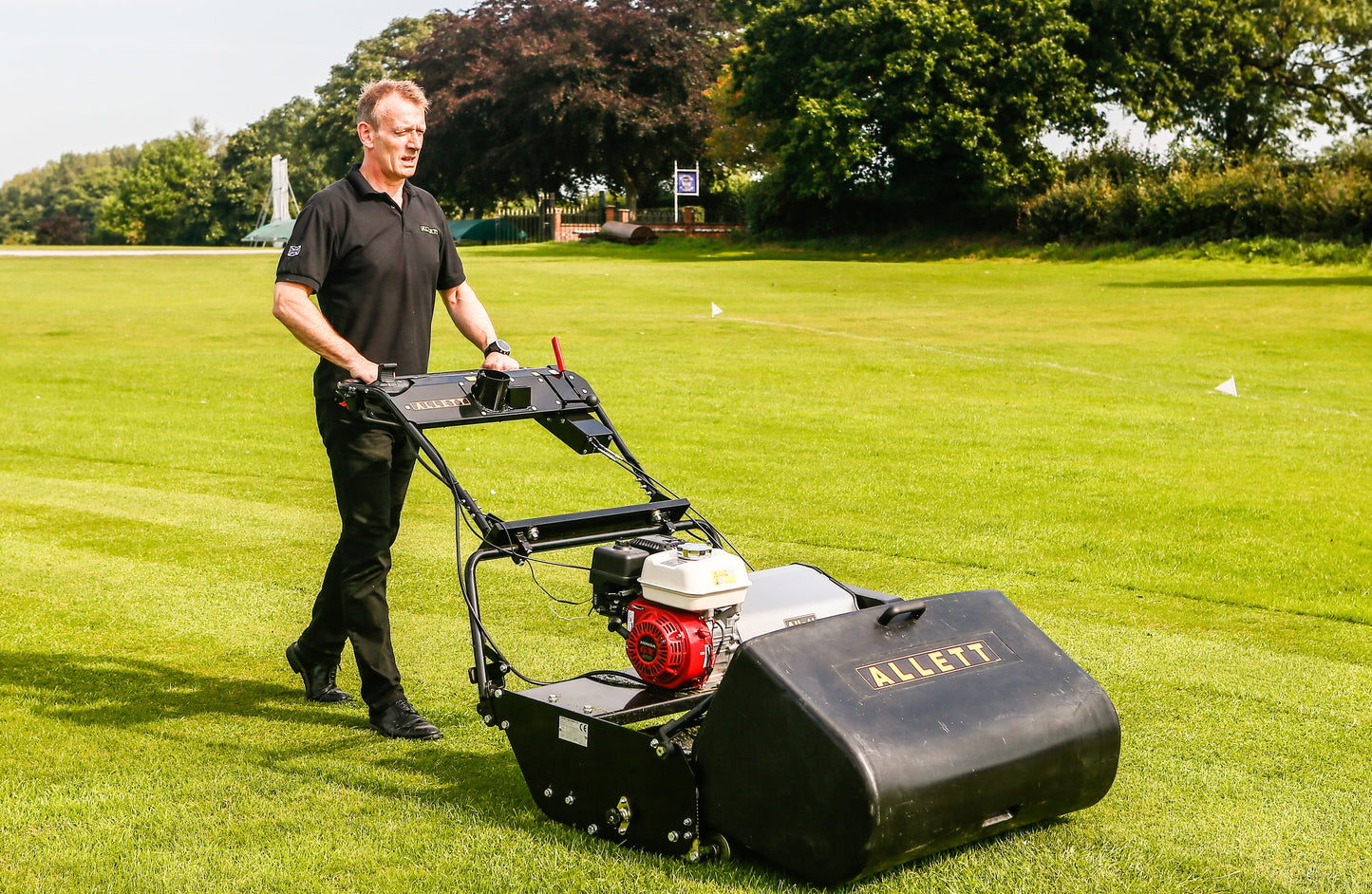

Low vibrations
The C34 has adjustable handlebars, equipped with anti-vibration mounting. Grass boxes are manufactured out of moulded plastic with the steel reinforcing strip. Engineered to operate effectively at low engine speeds the C34 machine delivers low fuel consumption, noise levels and vibration.

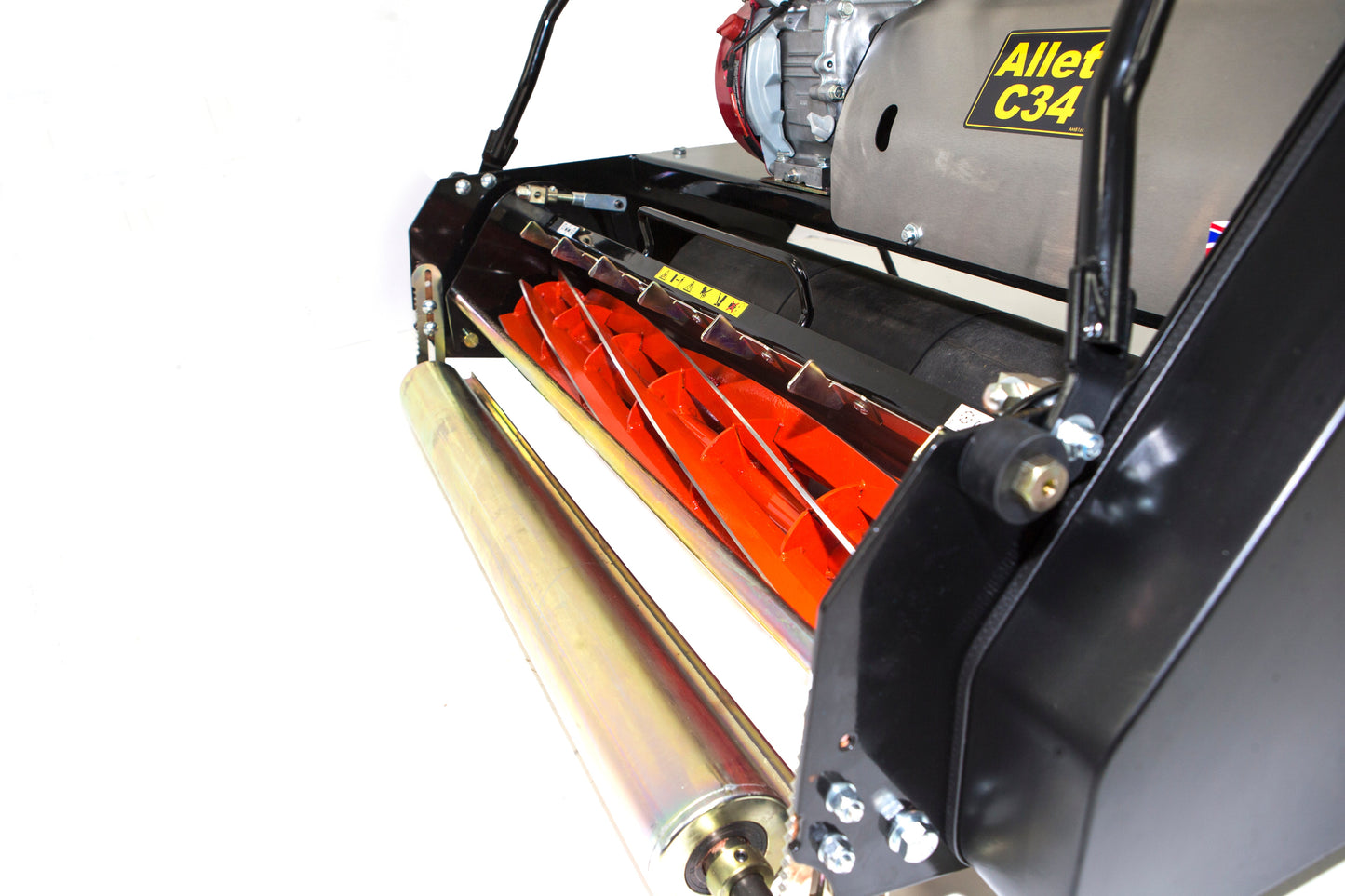

A superior cut

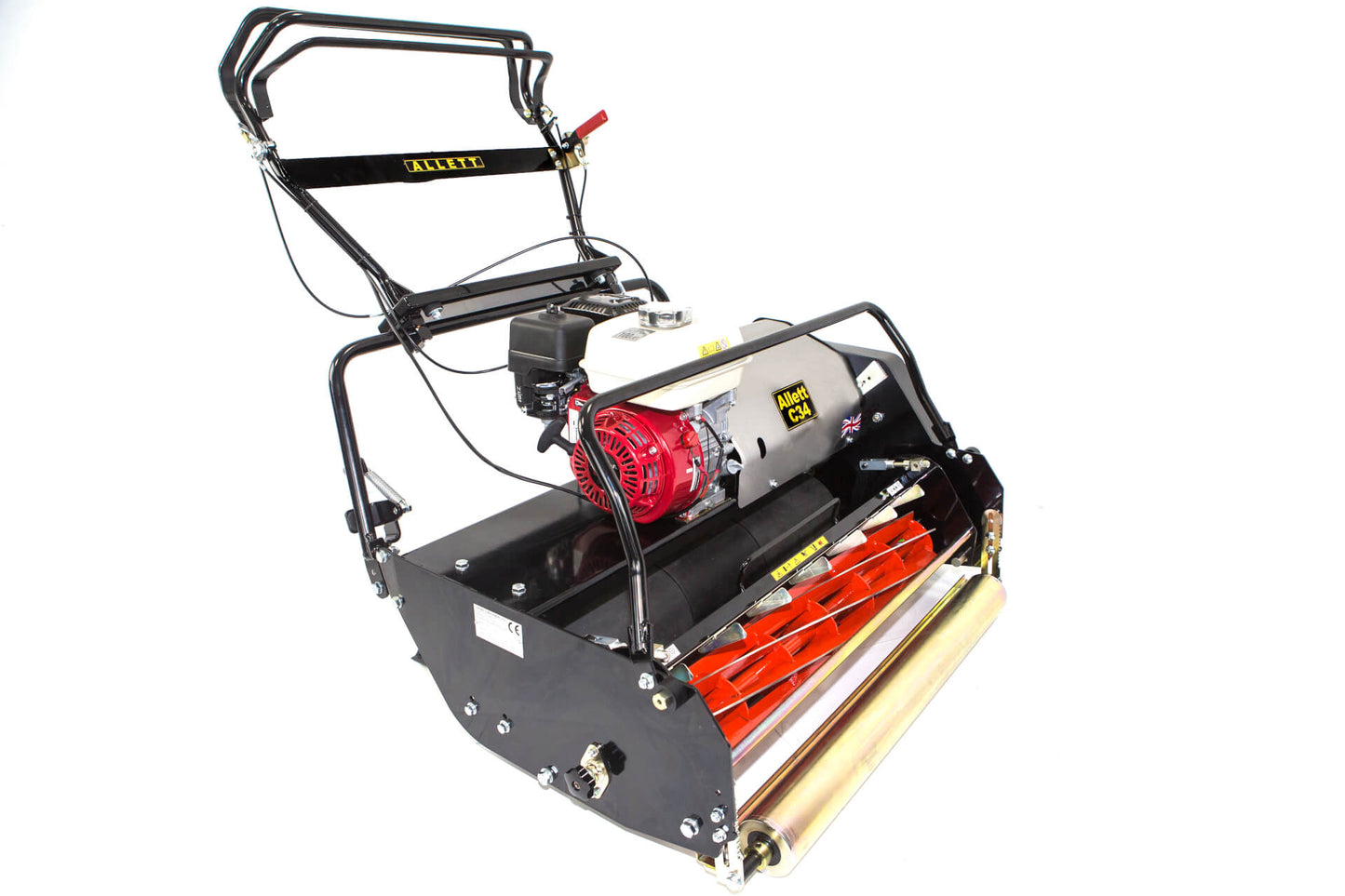

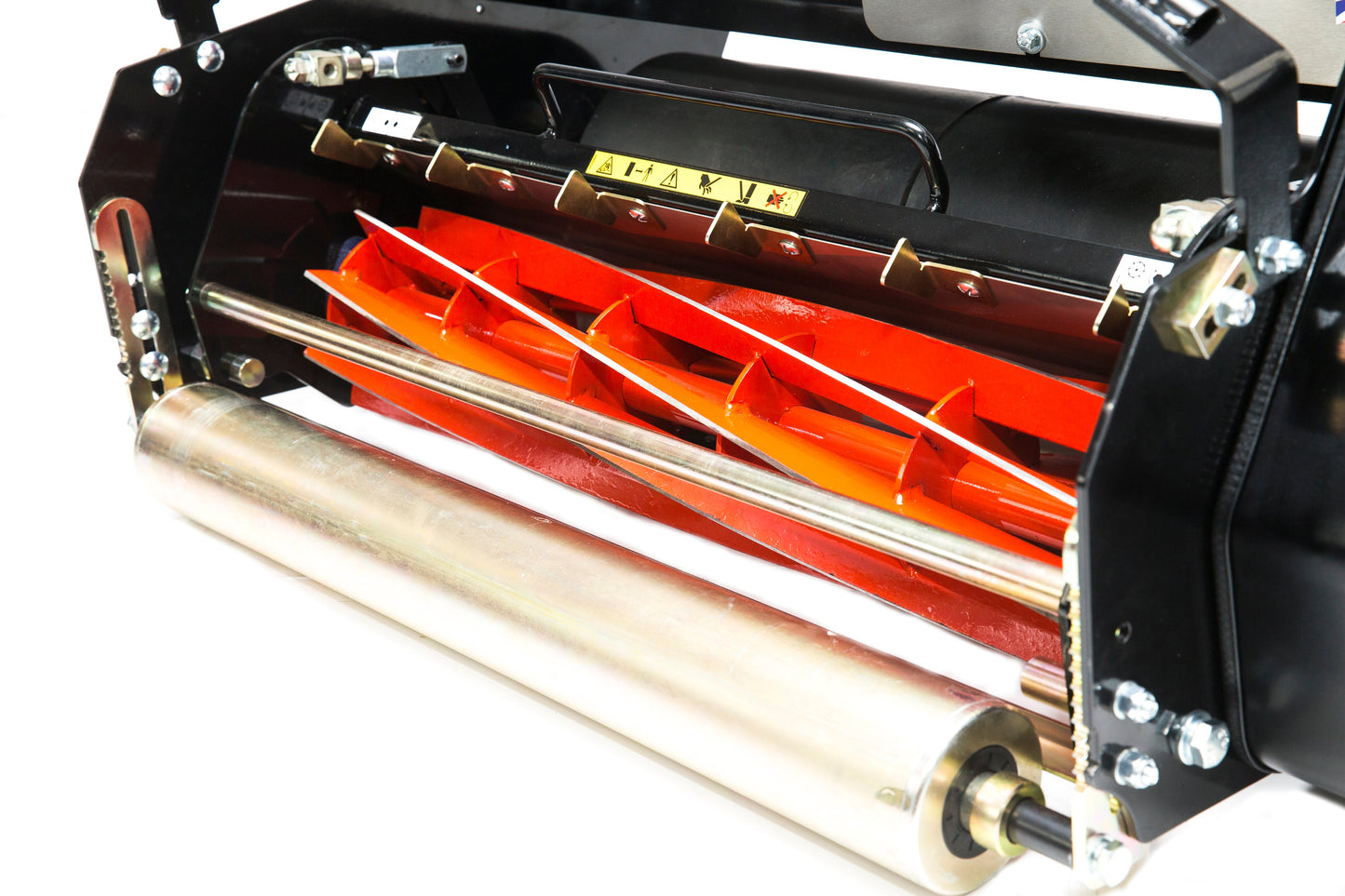

The cylinder cutting system, with substantial front and rear rollers,
ensures a superior cut, levelness of finish and longer lasting, more crisply defined stripes. Effortless mowing is equally assured with handle-mounted levers for drive and cartridge engagement.

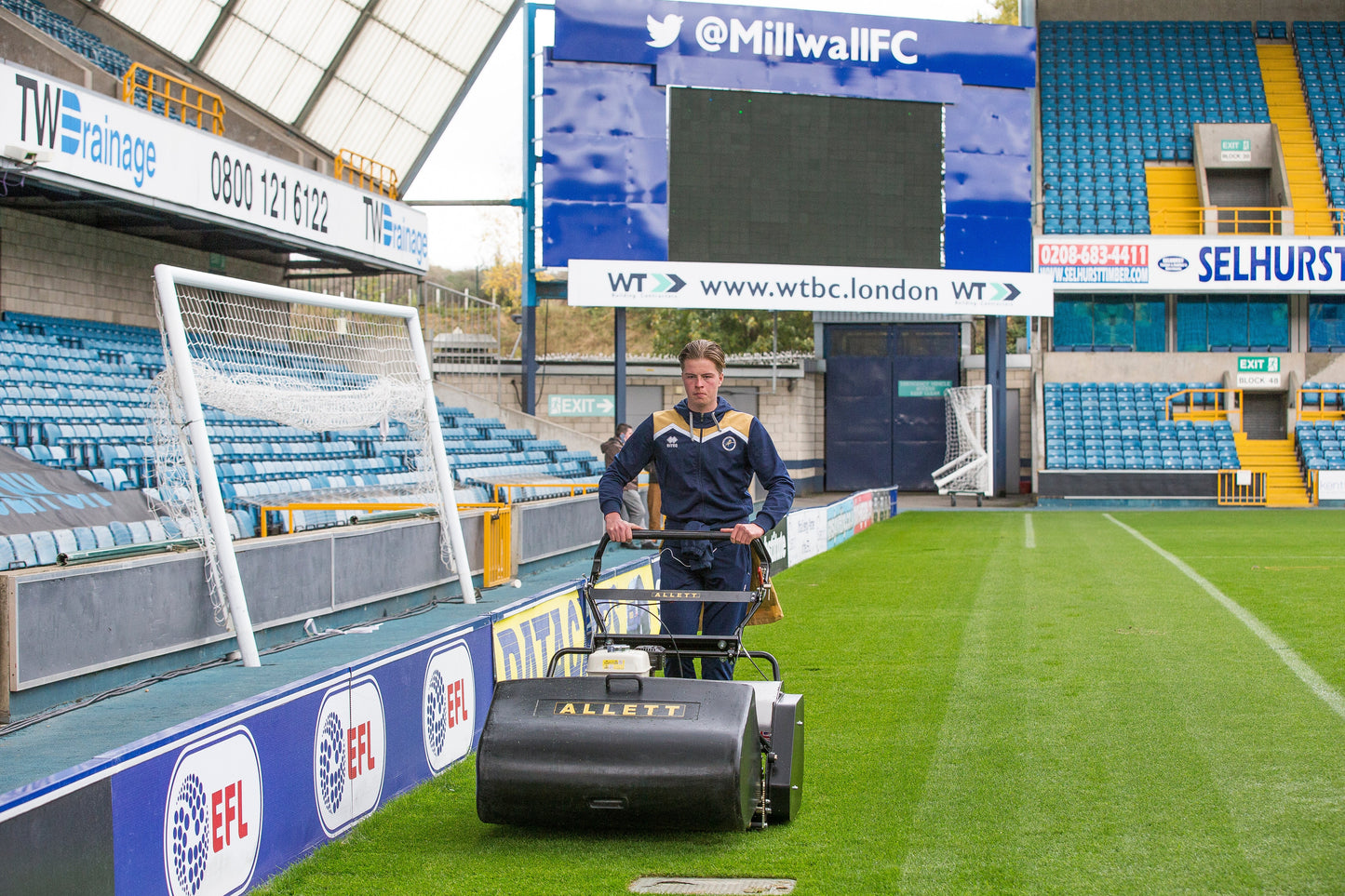

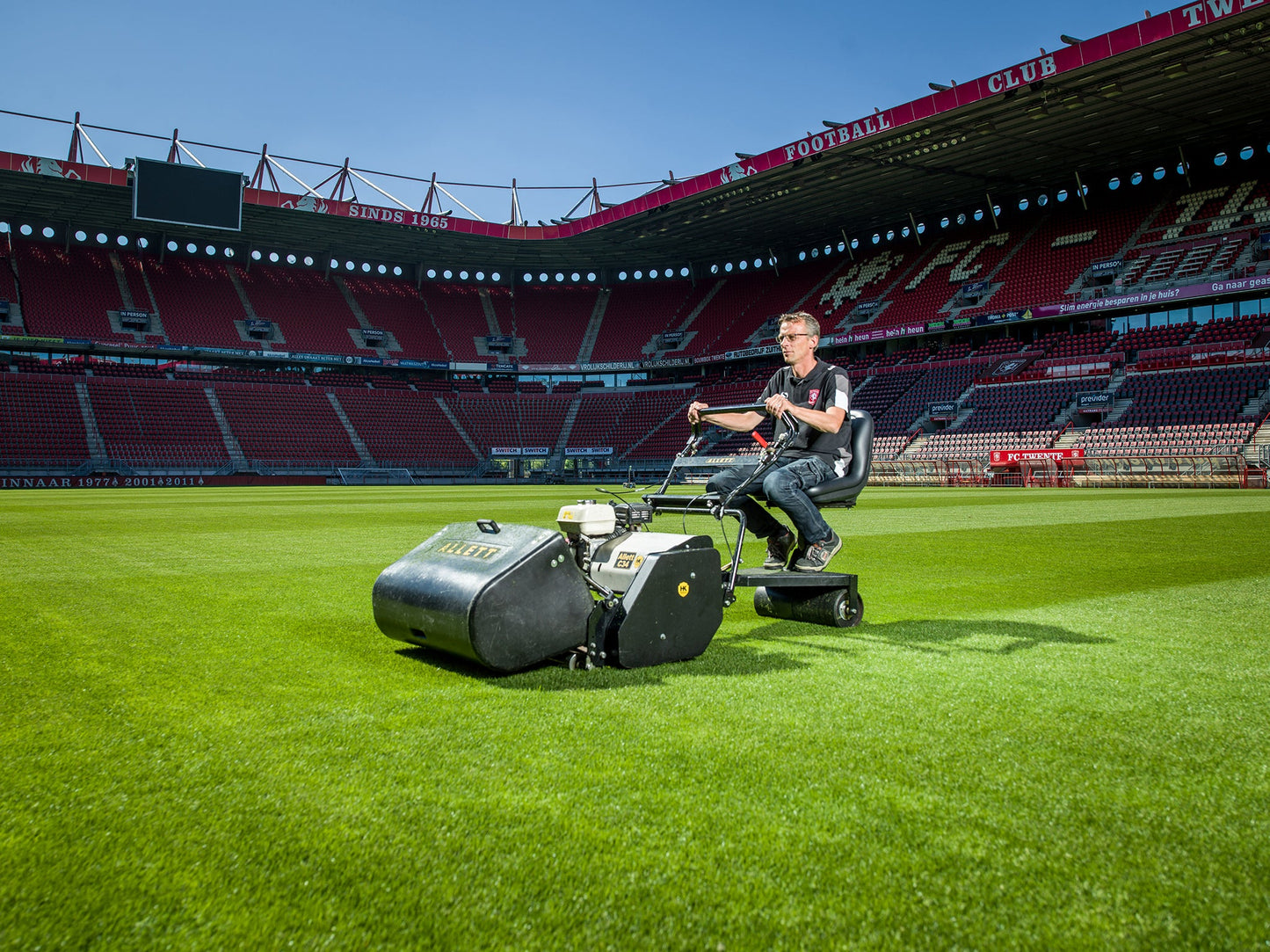

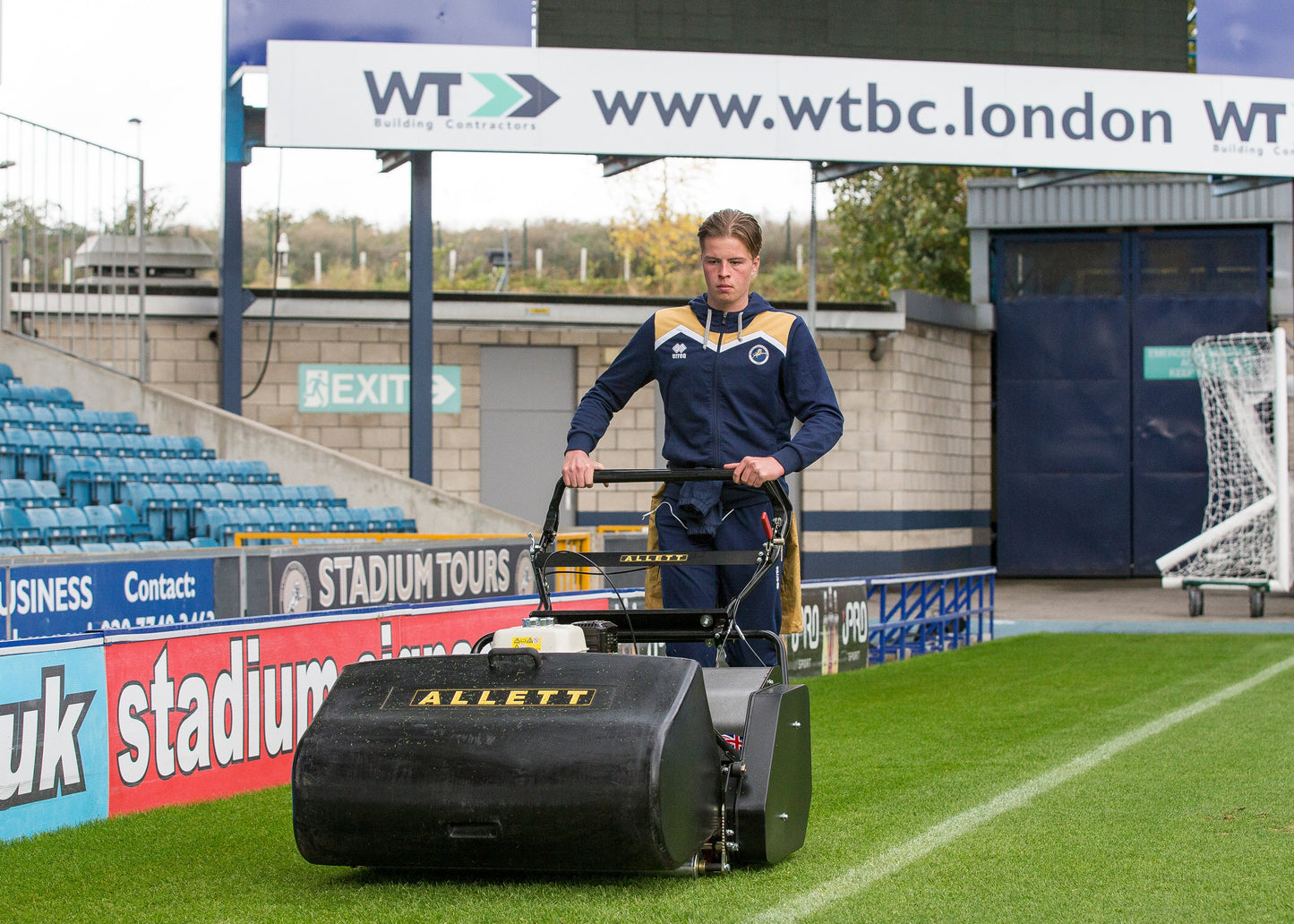

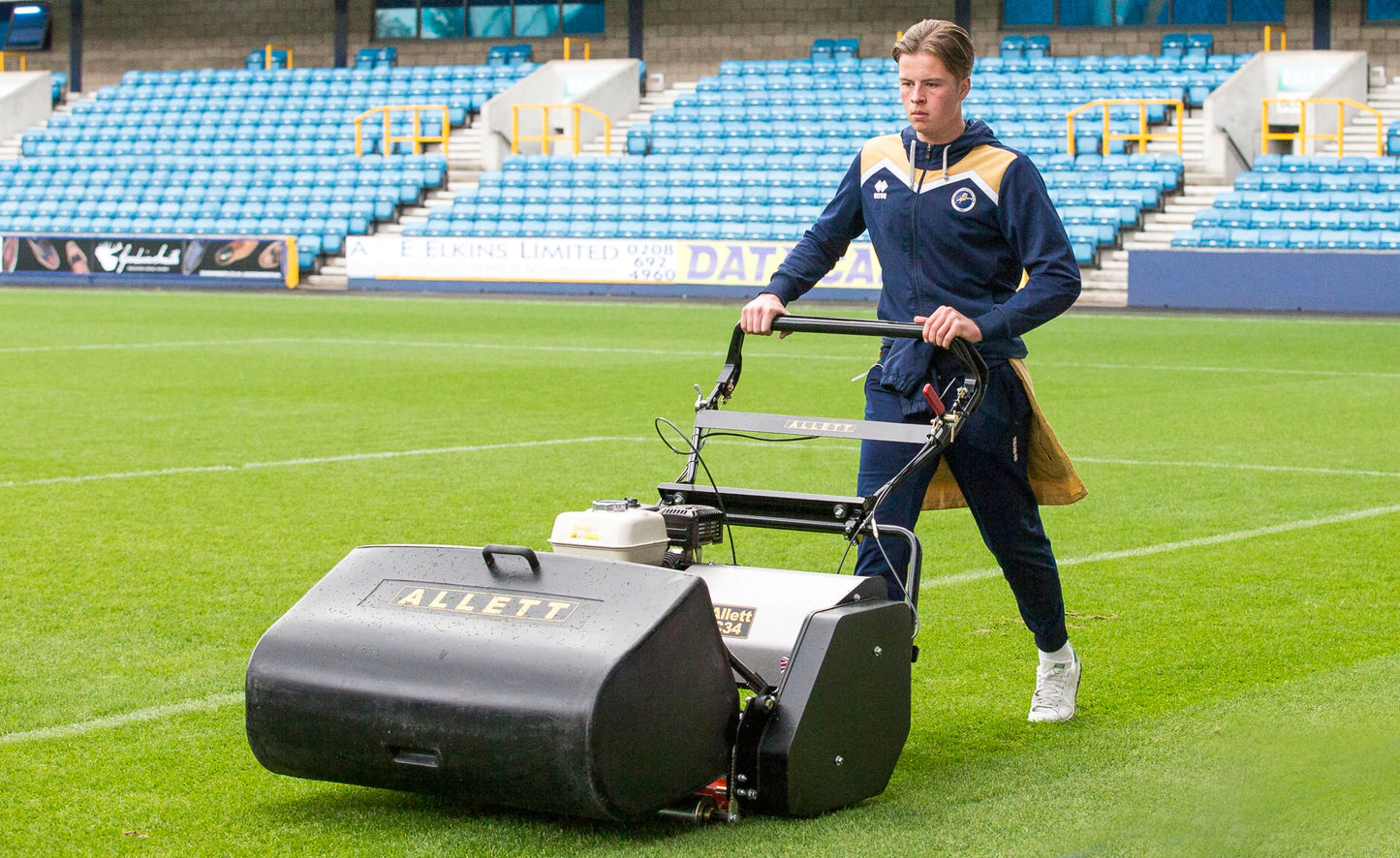

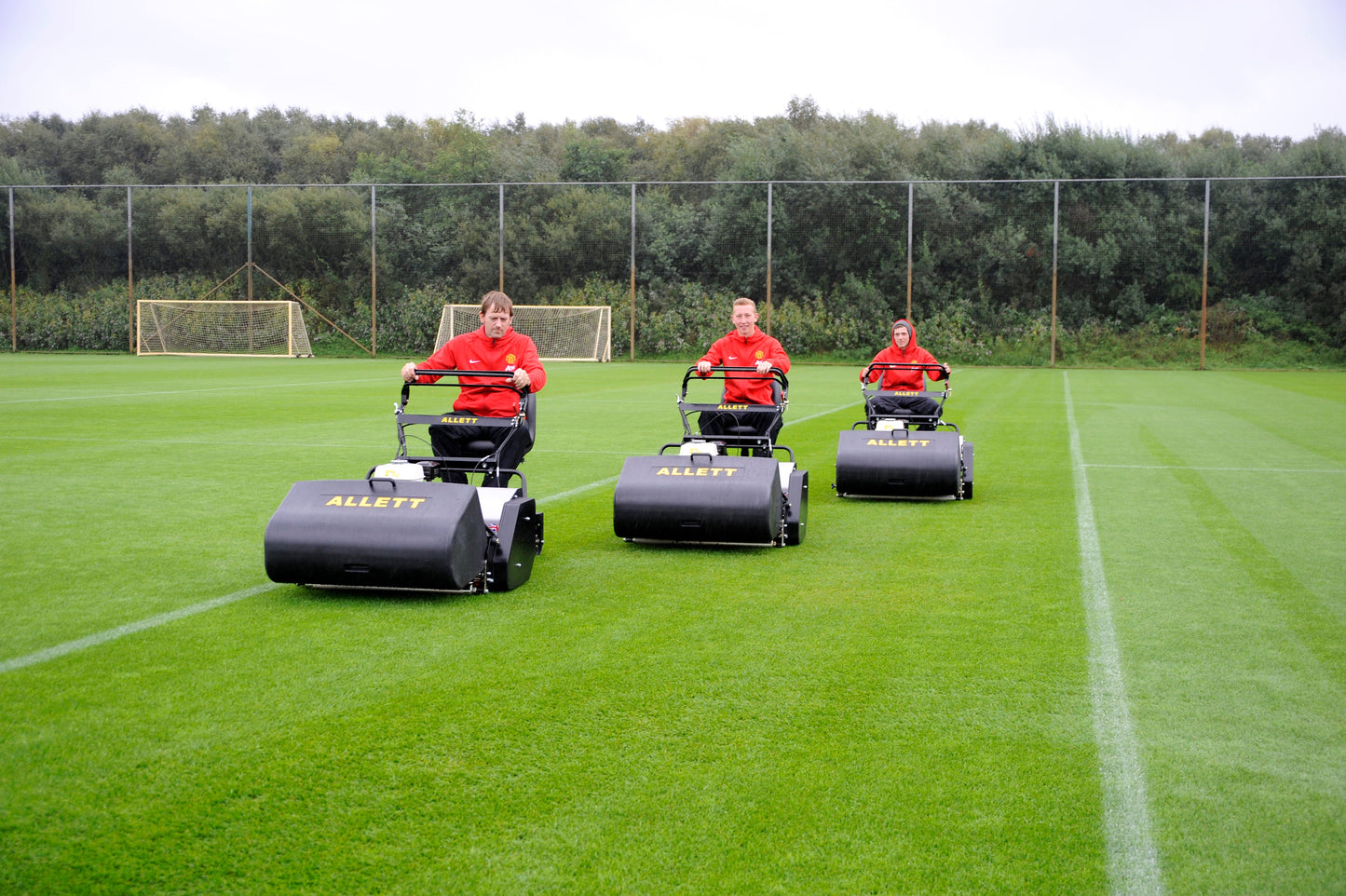

C34 Owner Stories

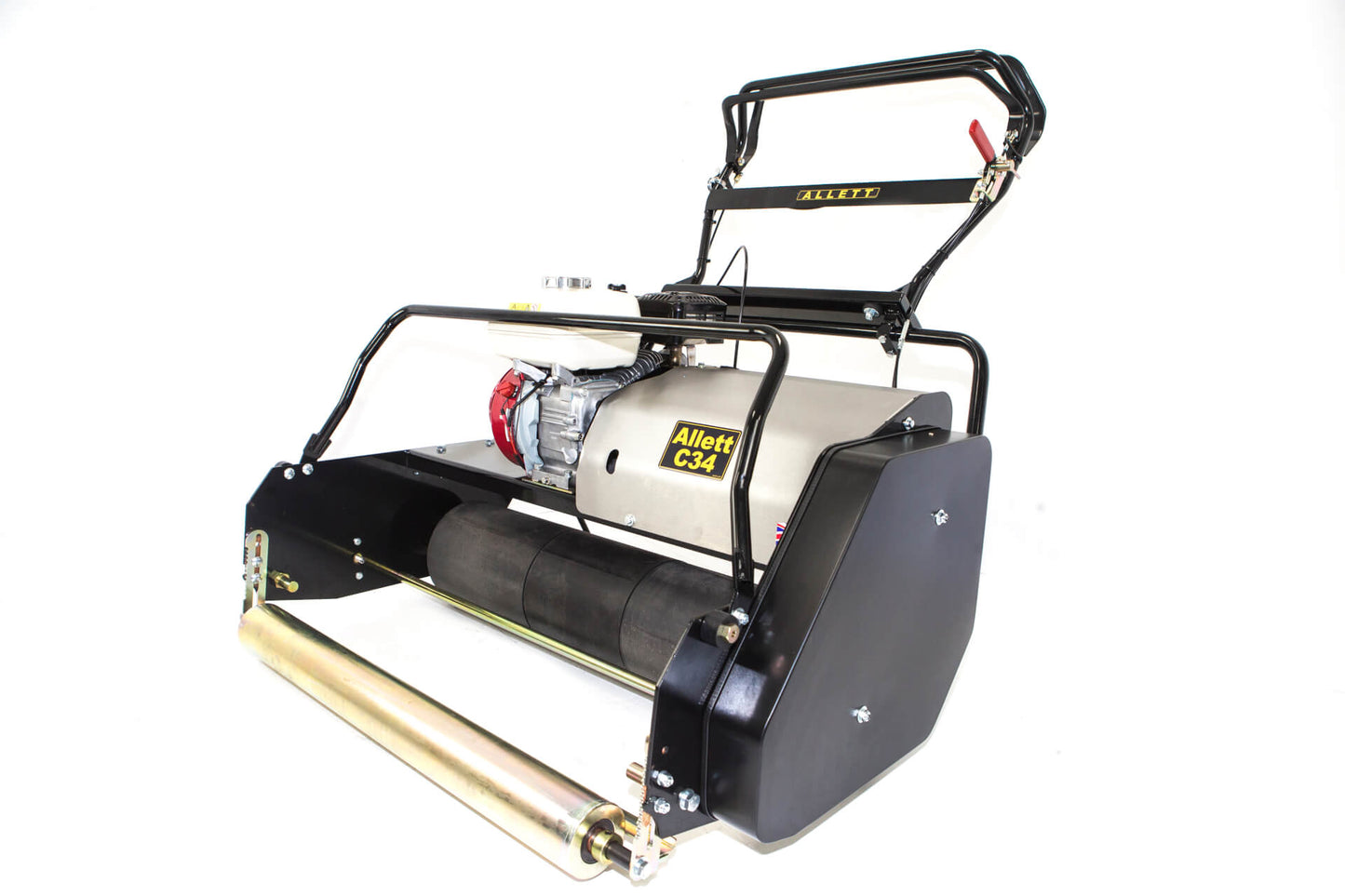

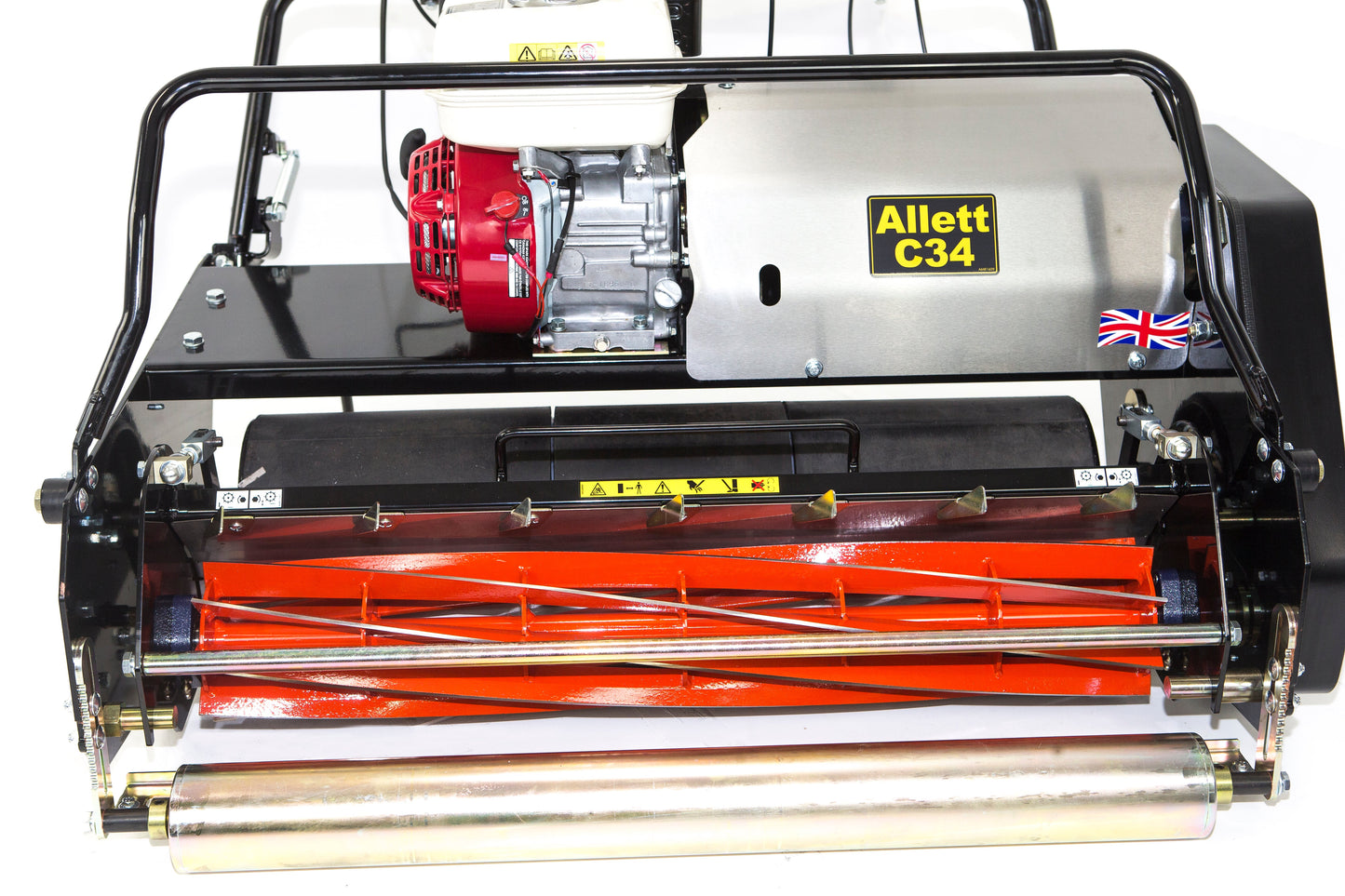

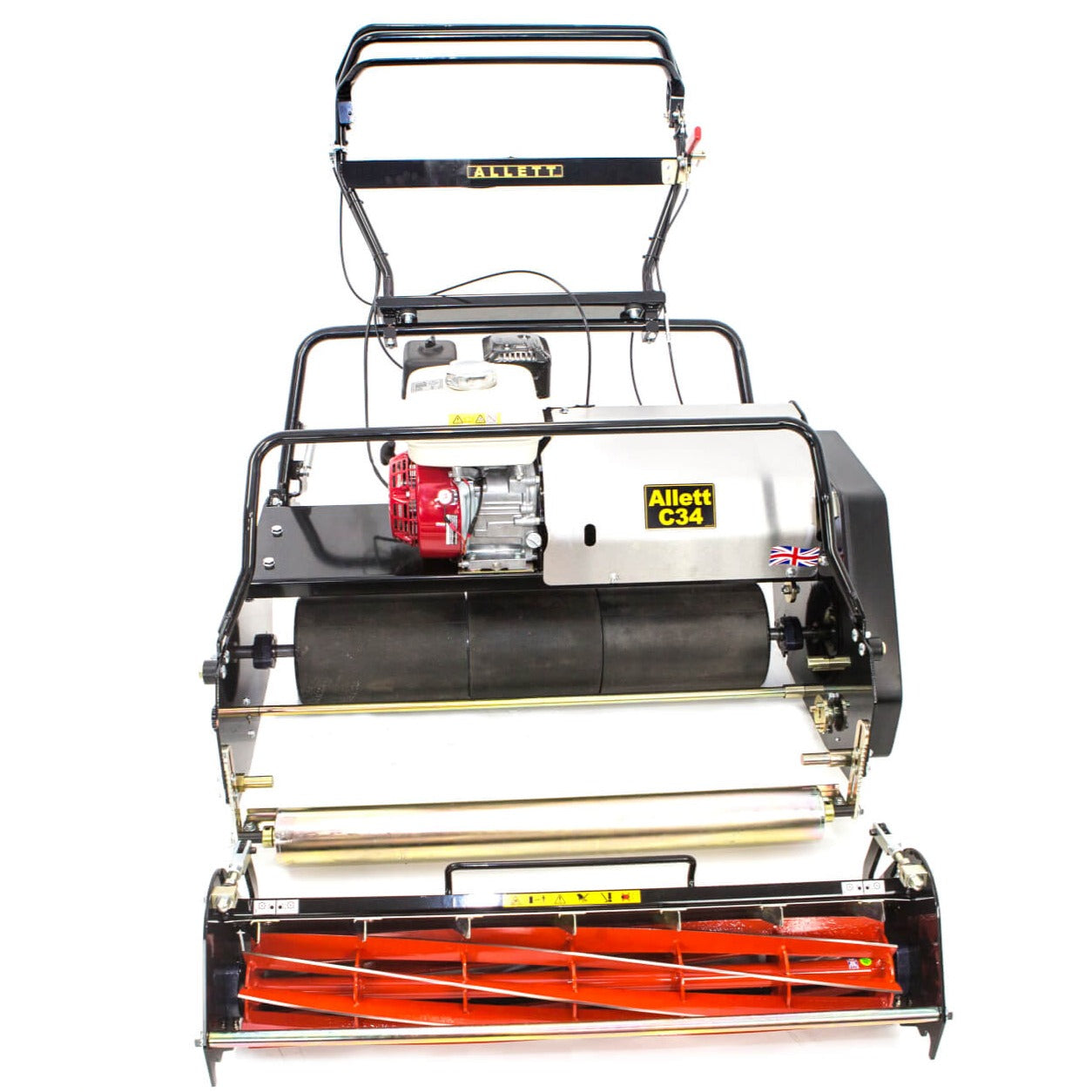

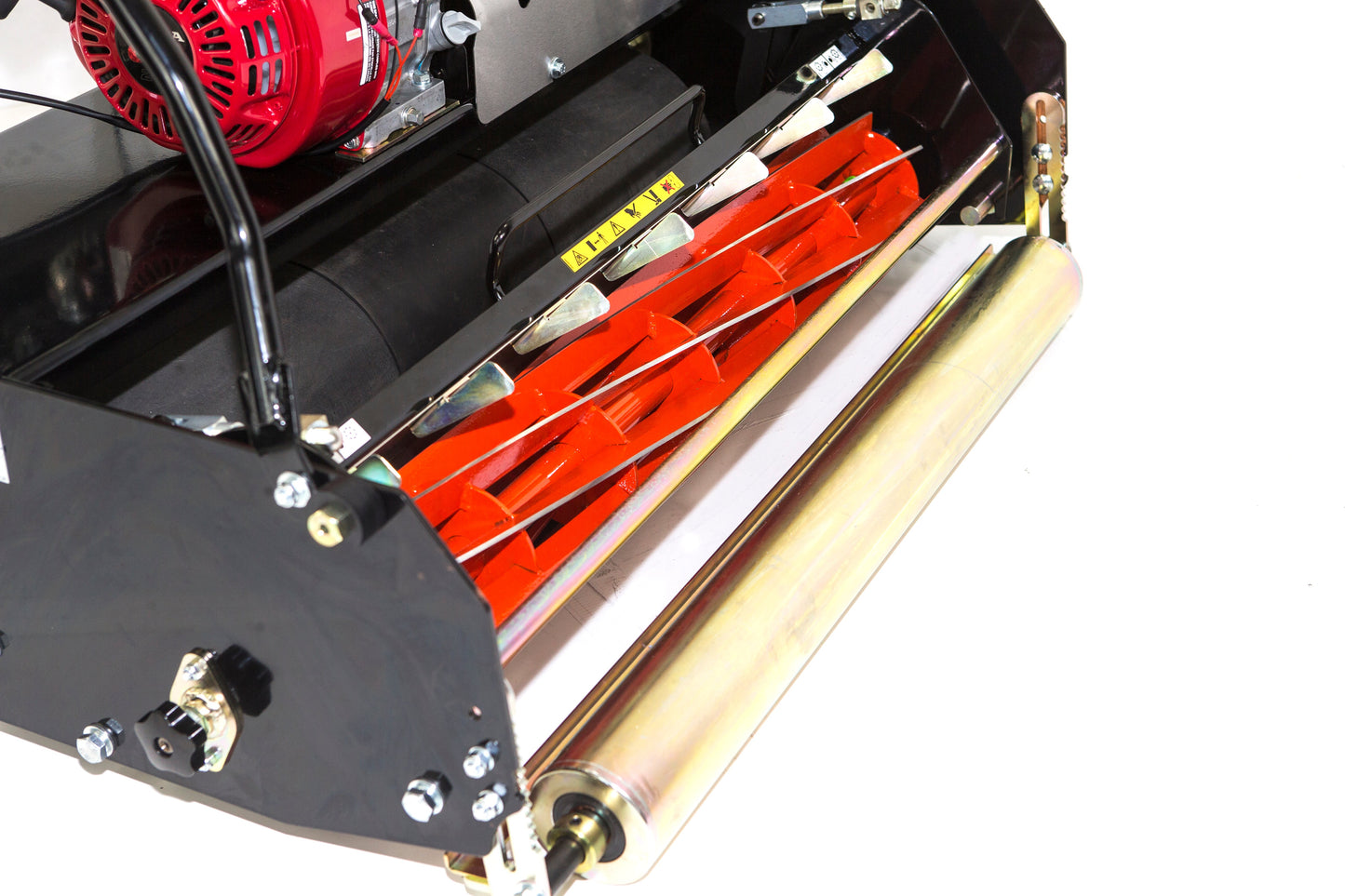

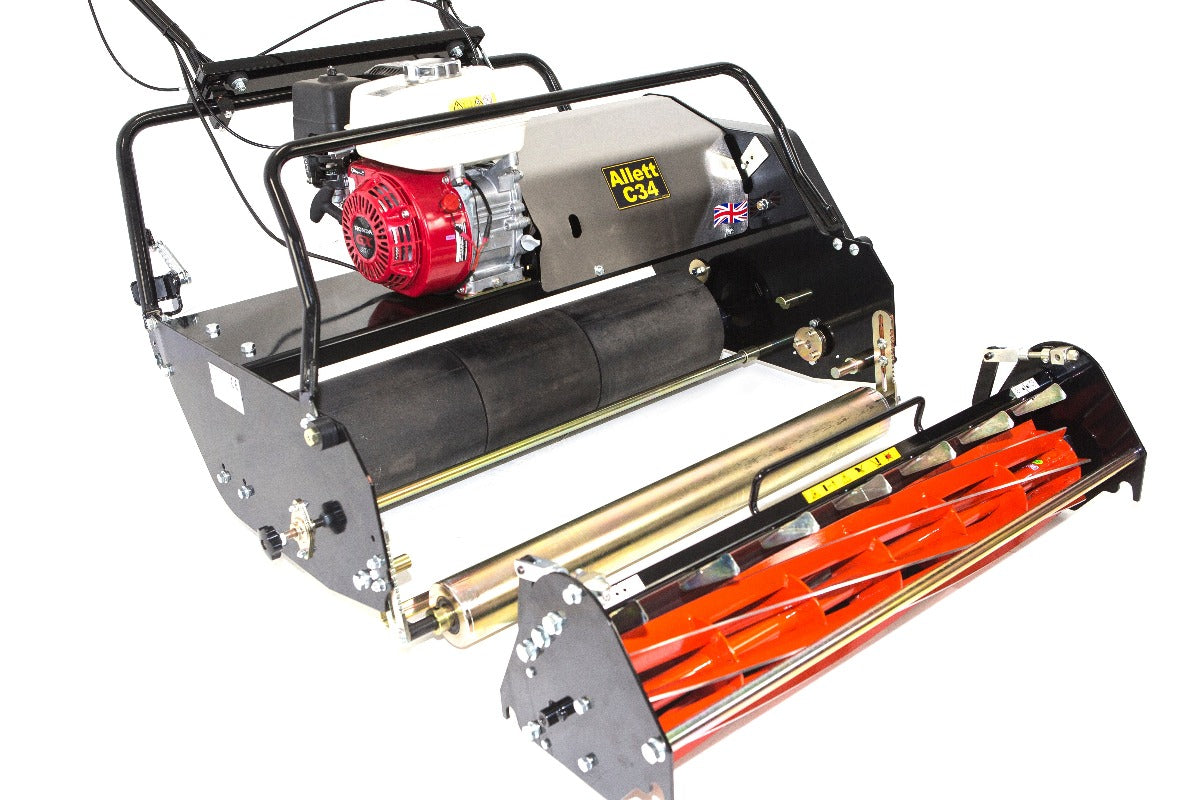

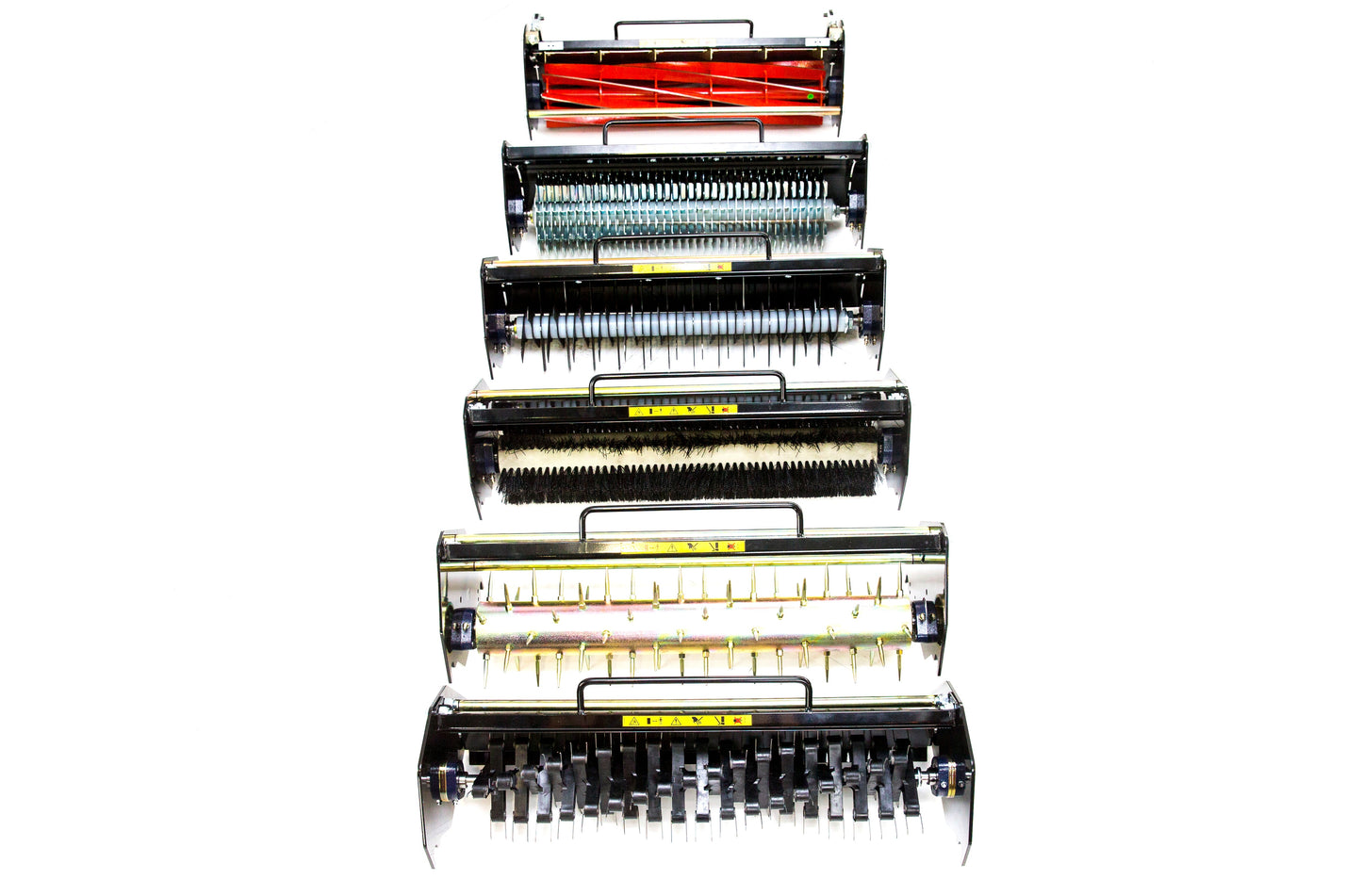

C34 Cartridge System
Each purpose-designed, easy-change, C-range cartridge becomes an integral part of the machine, enabling tasks ranging from fine turf mowing, verticutting and slitting to brushing, scarifying and sorrel rolling to be carried out successfully and without compromise.
-

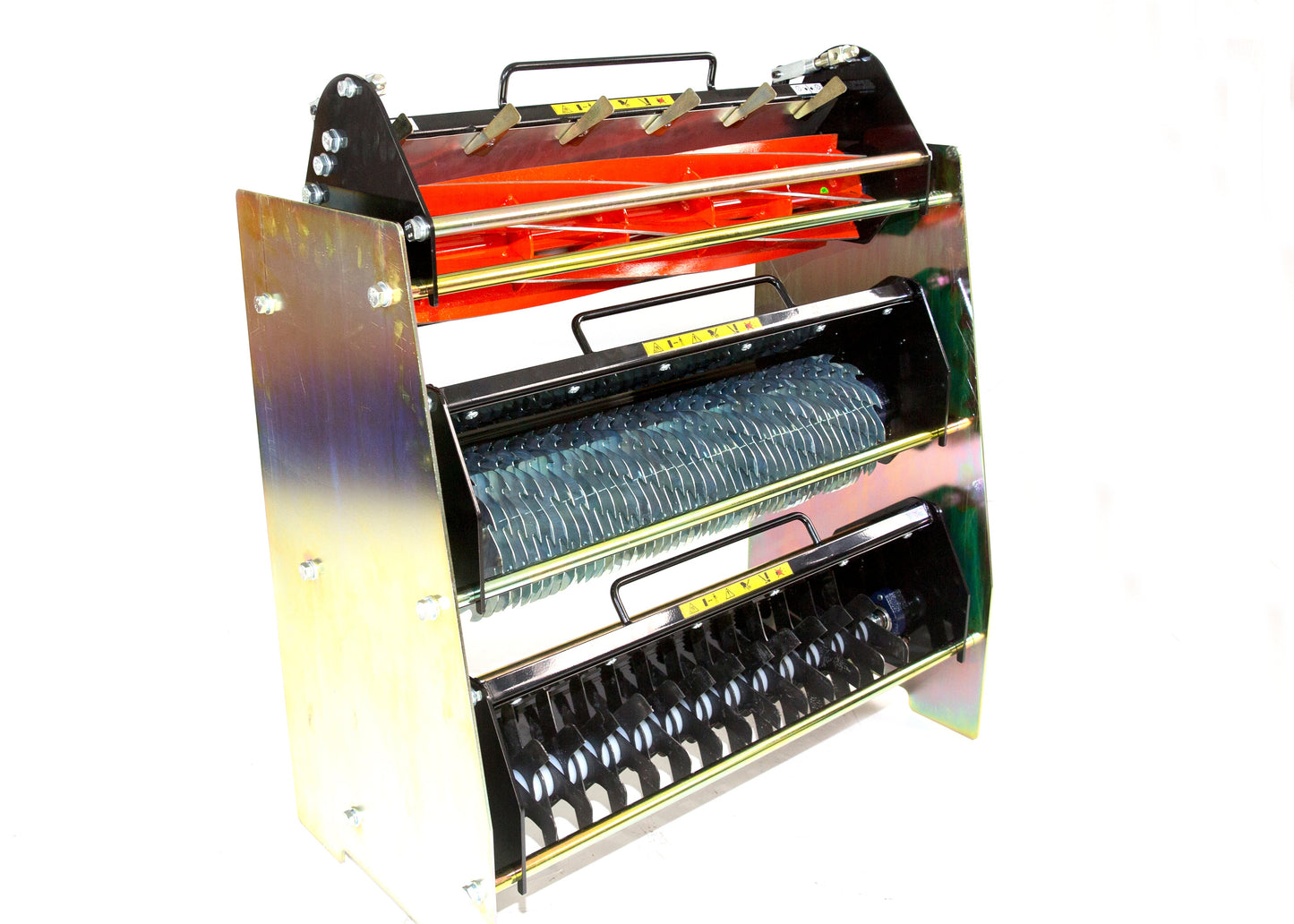

Allett CO66 Cartridge Stand for 3 Cartridges (C34)
Regular price £1,134.00Regular priceUnit price / per -
Allett C34SR 34" Non-Powered Sorrel Roller Cartridge
Regular price £2,696.40Regular priceUnit price / per -
Allett C34B 34" Powered Brush Cartridge
Regular price £2,091.60Regular priceUnit price / per -
Allett C34VC 34" Powered Verticutter Cartridge (Petrol Machines)
Regular price £2,330.40Regular priceUnit price / per -
Allett C34SC/TT 34" Powered Scarifier Cartridge with Tungsten Tipped Blades (Petrol Machines)
Regular price £2,646.00Regular priceUnit price / per -
Allett C34TR 34" Turf Rake Cartridge (Petrol Machines)
Regular price £2,128.80Regular priceUnit price / per -
Allett C34SC 34" Powered Scarifier Cartridge (Petrol Machines)
Regular price £2,419.20Regular priceUnit price / per -
Allett CC348F/2 34" 8 Bladed Cutting Cylinder
Regular price £2,782.80Regular priceUnit price / per -
Allett CC346F/2 34" 6 Bladed Cutting Cylinder
Regular price £2,727.60Regular priceUnit price / per
Want to try the C34?
If you would like to see this mower in action and try it for yourself, we can arrange for you and your groundscare team to have a no-obligations demonstration at your club or institution.
