C24
Professional Cylinder Mower with Interchangeable Cartridge and Turf Maintenance System.
Free Demo • Specialist Advice • Dealer Installation
Speak to Product Specialist
Speak to Product Specialist
Go to Contact Page
Contact Your Local Dealer
Contact Your Local Dealer
Visit our Global Dealer Locator
- A wide range of interchangeable cartridge heads available for a variety of turf maintenance tasks for large areas
- One machine capable of performing up to 10 different turf maintenance operations
- Fast, simple micro cutting height adjustment from 2.4mm – 19mm (0.1” to 0.75”)
Share

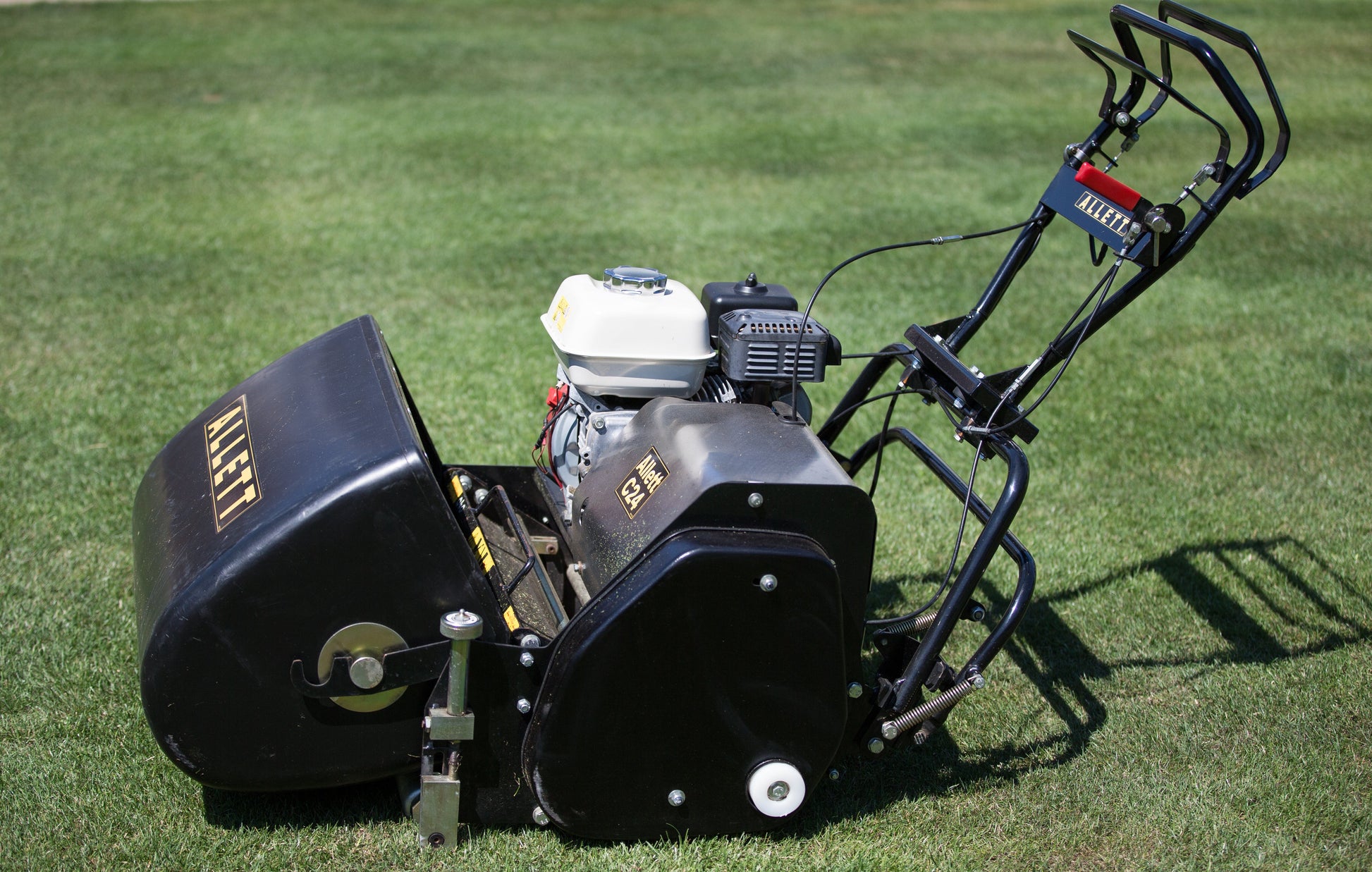

C24 Technical Data
C24 | |
---|---|
Working width | 610mm (24in) |
Overall width | 890mm (35in) |
Power Source | Honda GX160 |
Power output (net) | 3.6kW (4.8hp) @ 3,600 rpm |
Cylinder drive | Handle-mounted lever engaging V belt via cable |
Cuts per Metre | 6 blade: 93 cuts per metre, 10 blade: 155 cuts per metre |
Height of cut | 2.4mm-19mm (0.1in-0.75in) |
Handlebar | Adjustable with anti-vibration mountings |
Drive engagement | Handle-mounted lever engaging V belt via cable |
Cartridge head engagement | Handle-mounted lever engaging V belt via cable |
Rear roller | 2 piece aluminium with steel bevel gear differential |
Front roller | Grooved aluminium with scraper and sealed end-bearings (plain roller optional) |
Grassbox | Moulded plastic with steel reinforcing strip |
Weight | 94kg |
Options | Plain front roller |
Optional accessories | Sorrel Roller, Turf Rake, 10 Bladed Cylinder, 10 Bladed Cylinder with groomer, 6 Bladed Cylinder, Verticut, Brush, Scarifier, Slitter, Scarifier with tungsten steel blades. |
Behind the C-Range

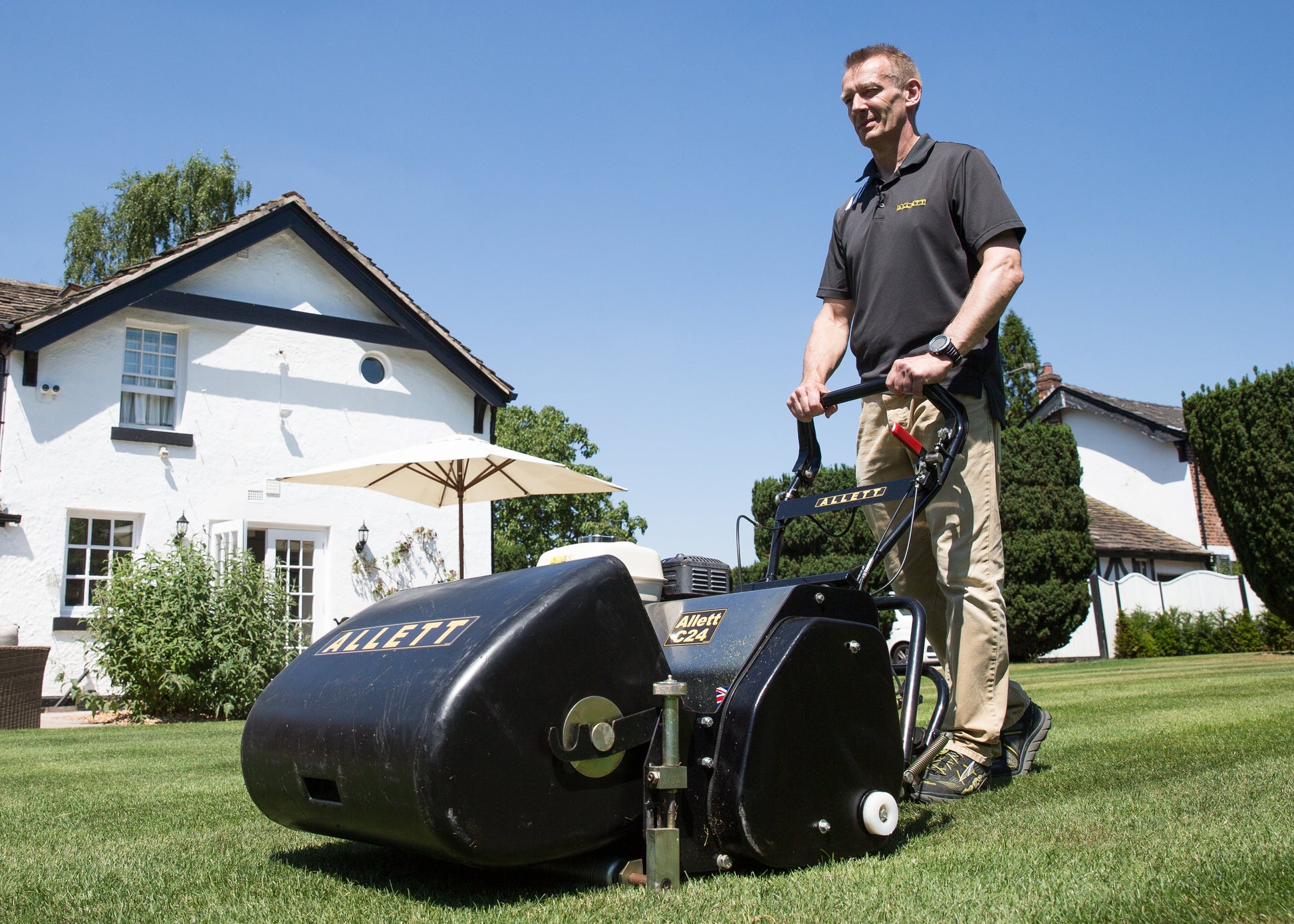

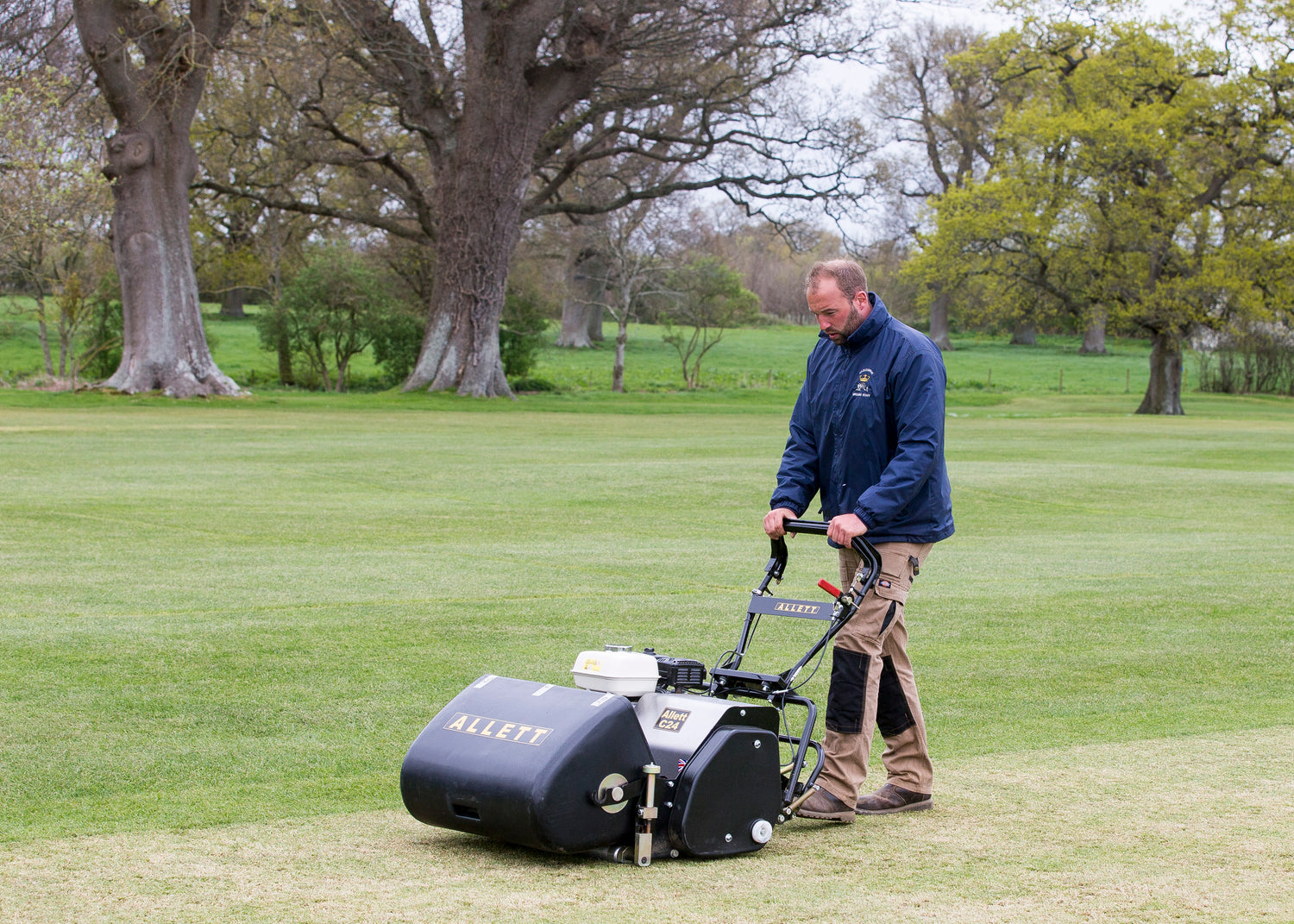

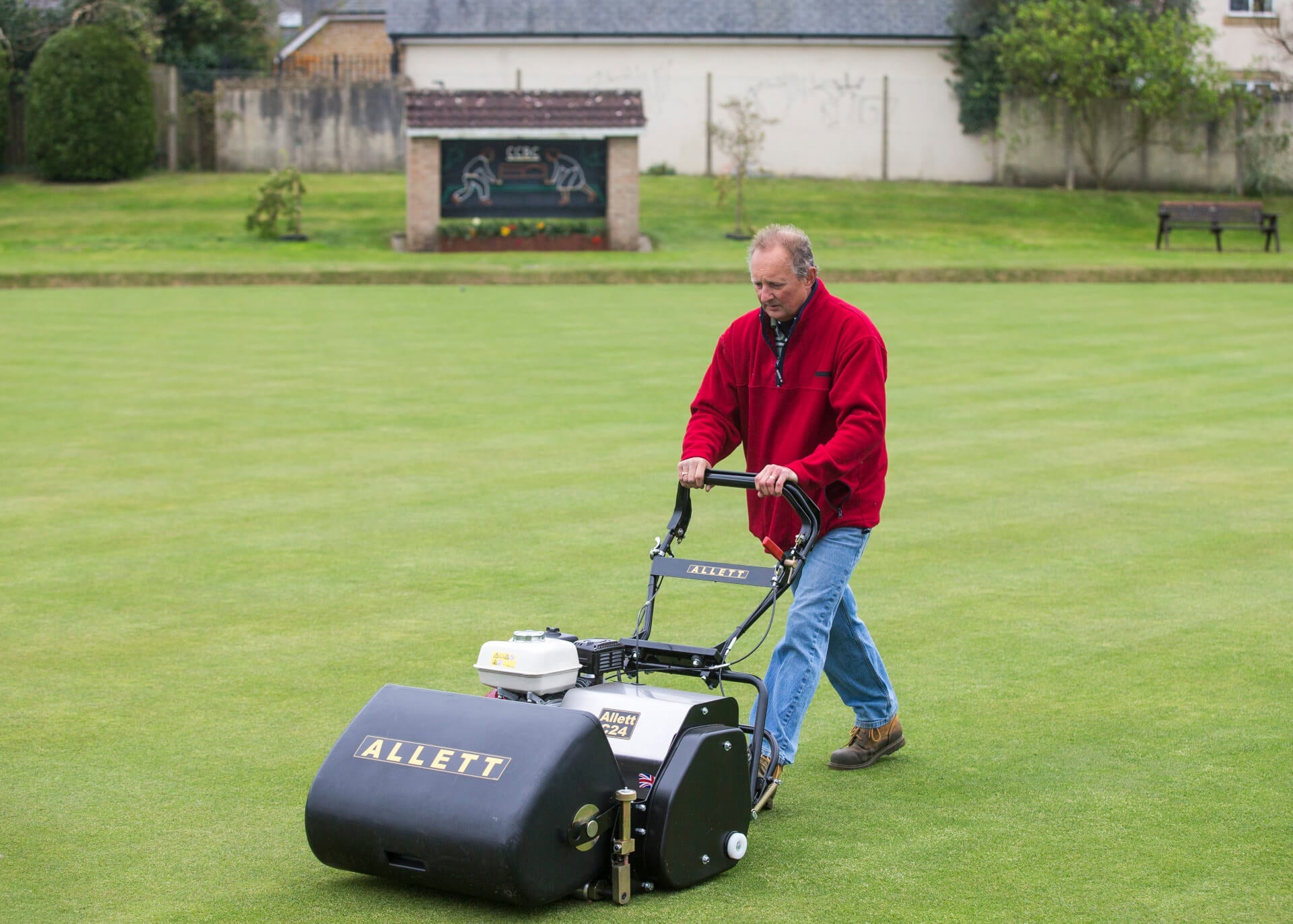

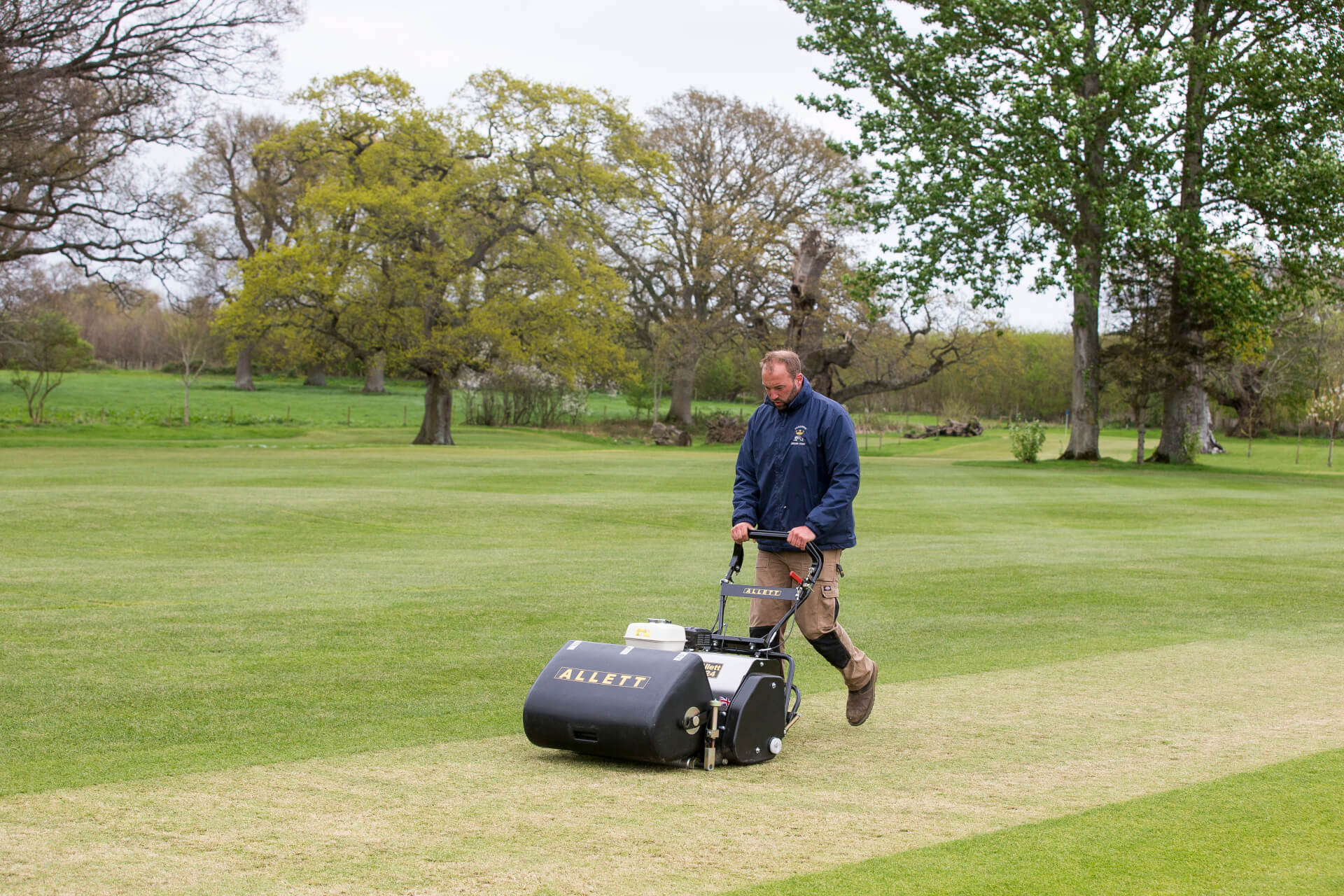

The Allett C-24 machine delivers a wide range of professional turf maintenance functions from a single pedestrian controlled machine to suit all maintained turf areas.
Perform multiple tasks
Each purpose-designed, easy-change, C-Range cartridge head becomes an integral part of the machine, enabling tasks ranging from fine turf mowing, verti-cutting and slitting to brushing, scarifying and sorrel rolling to be carried out successfully and without compromise.
Year-round versatility
Such year-round versatility greatly extends the cost-effectiveness of the C-Range power unit, enhancing the value of the investment for the benefit of owners such as sports clubs, turf maintenance contractors and other professionals looking after quality turf surfaces.
Low vibrations

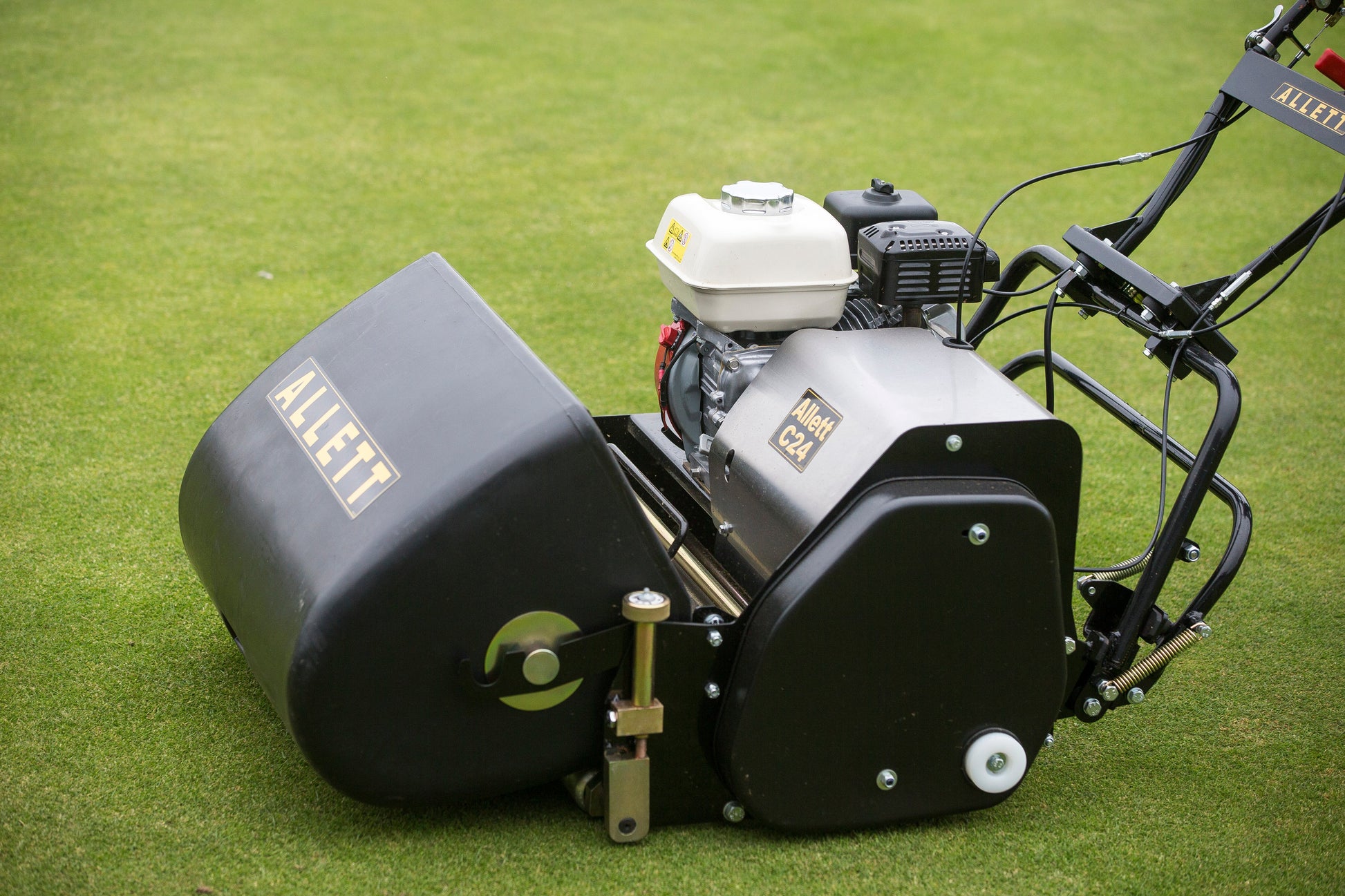

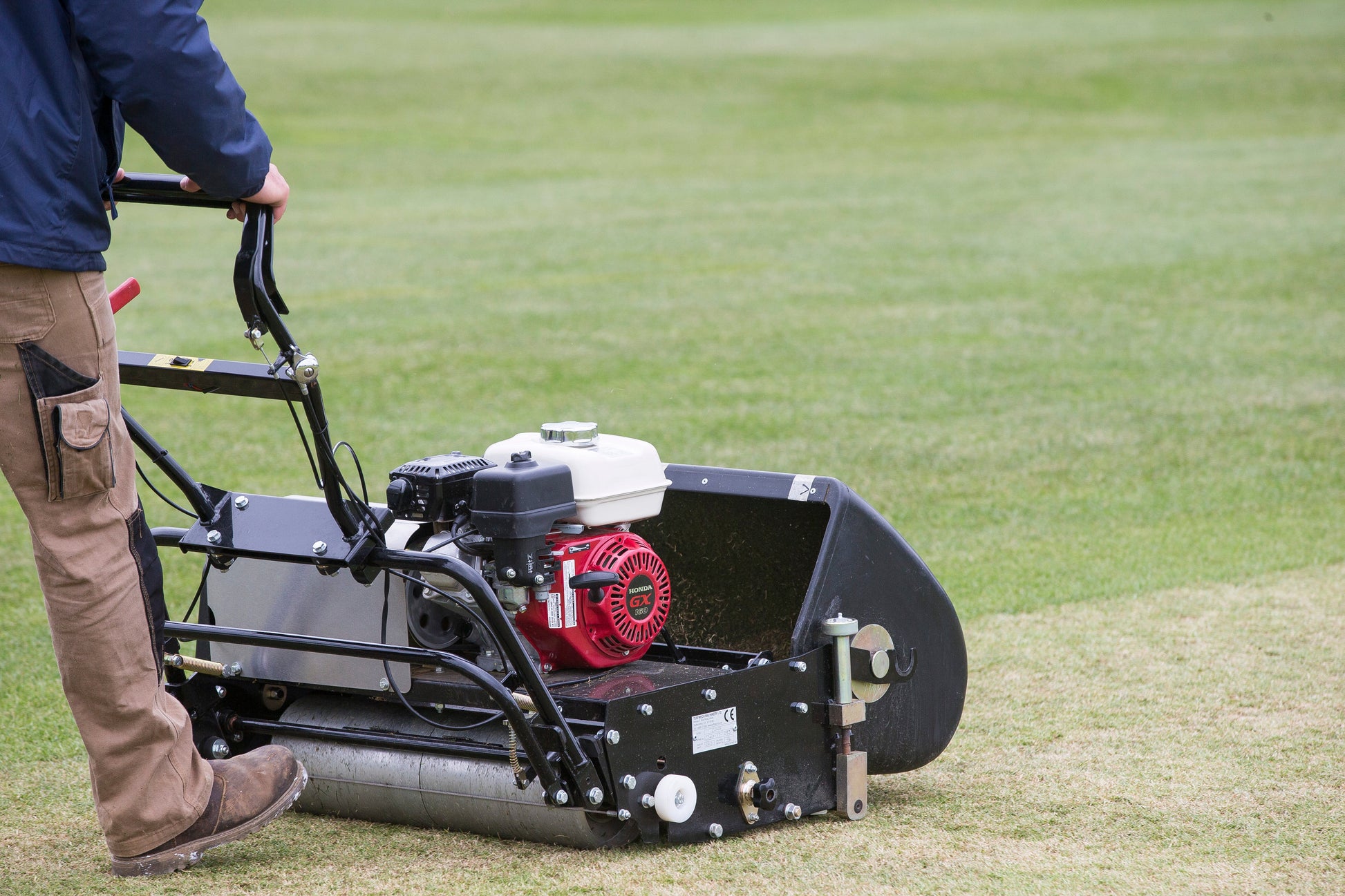

The C24 has adjustable handlebars, equipped with anti-vibration mounting. Grass boxes are manufactured out of moulded plastic with the steel reinforcing strip. Engineered to operate effectively at low engine speeds the C24 machine delivers low fuel consumption, noise levels and vibration.

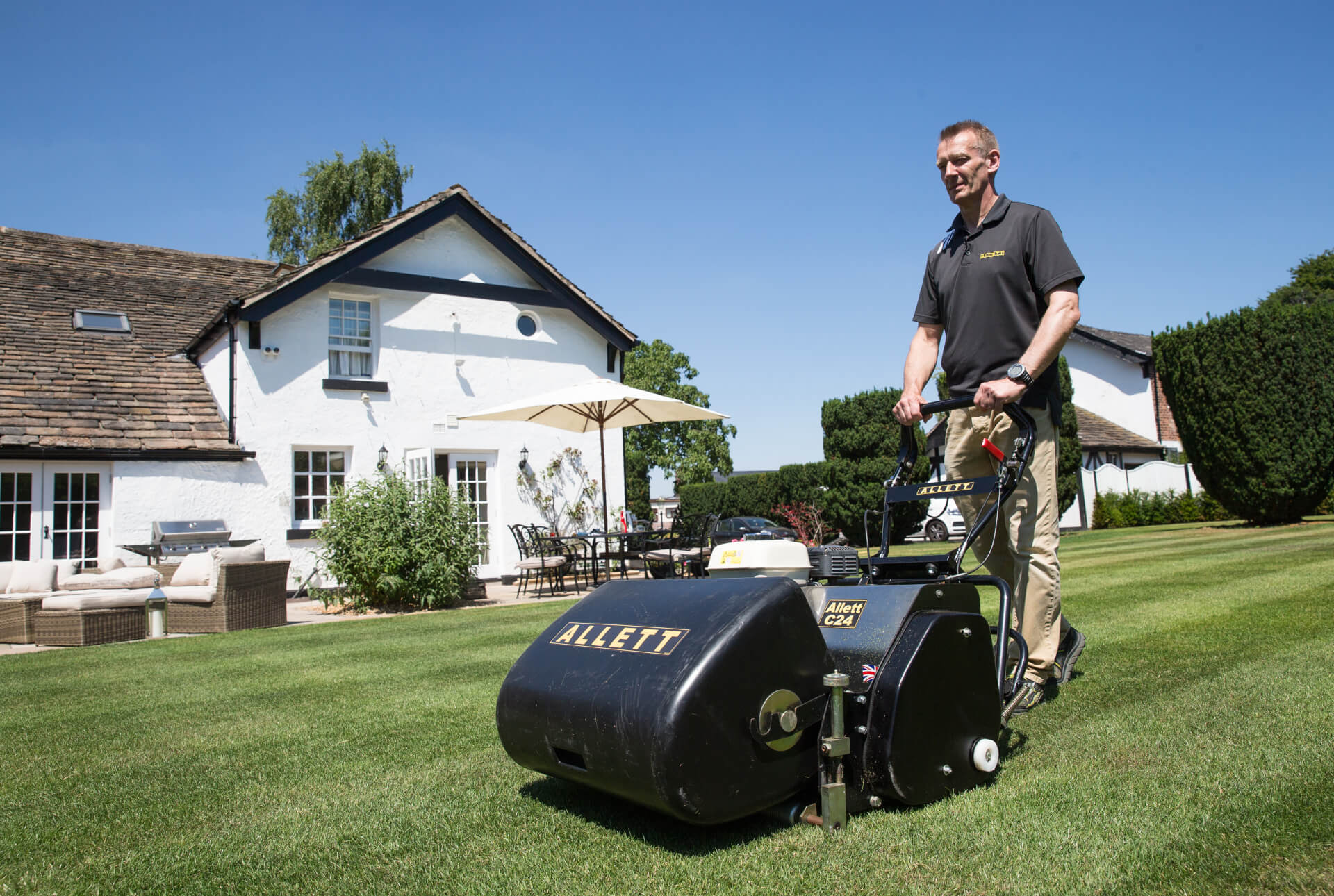

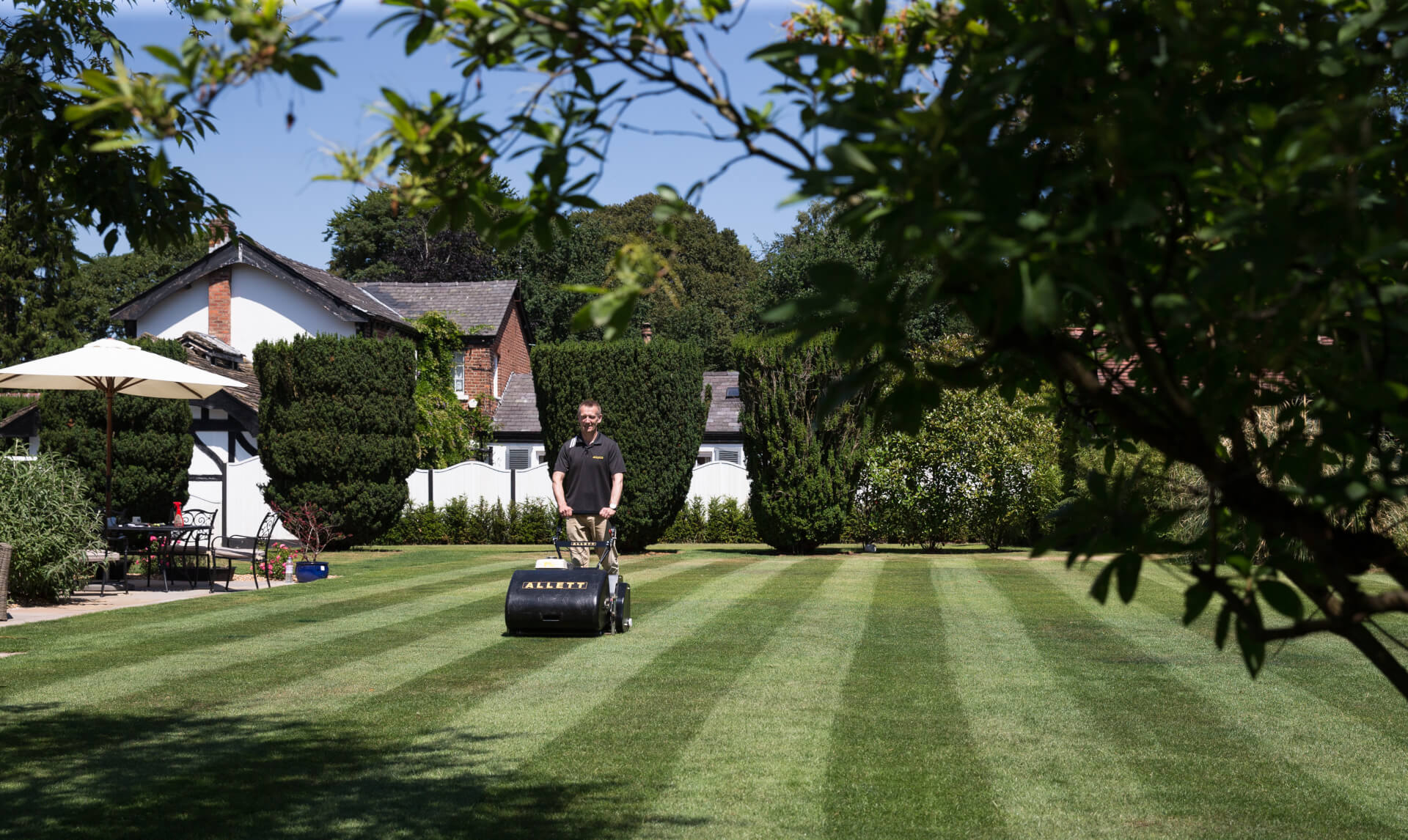

A superior cut

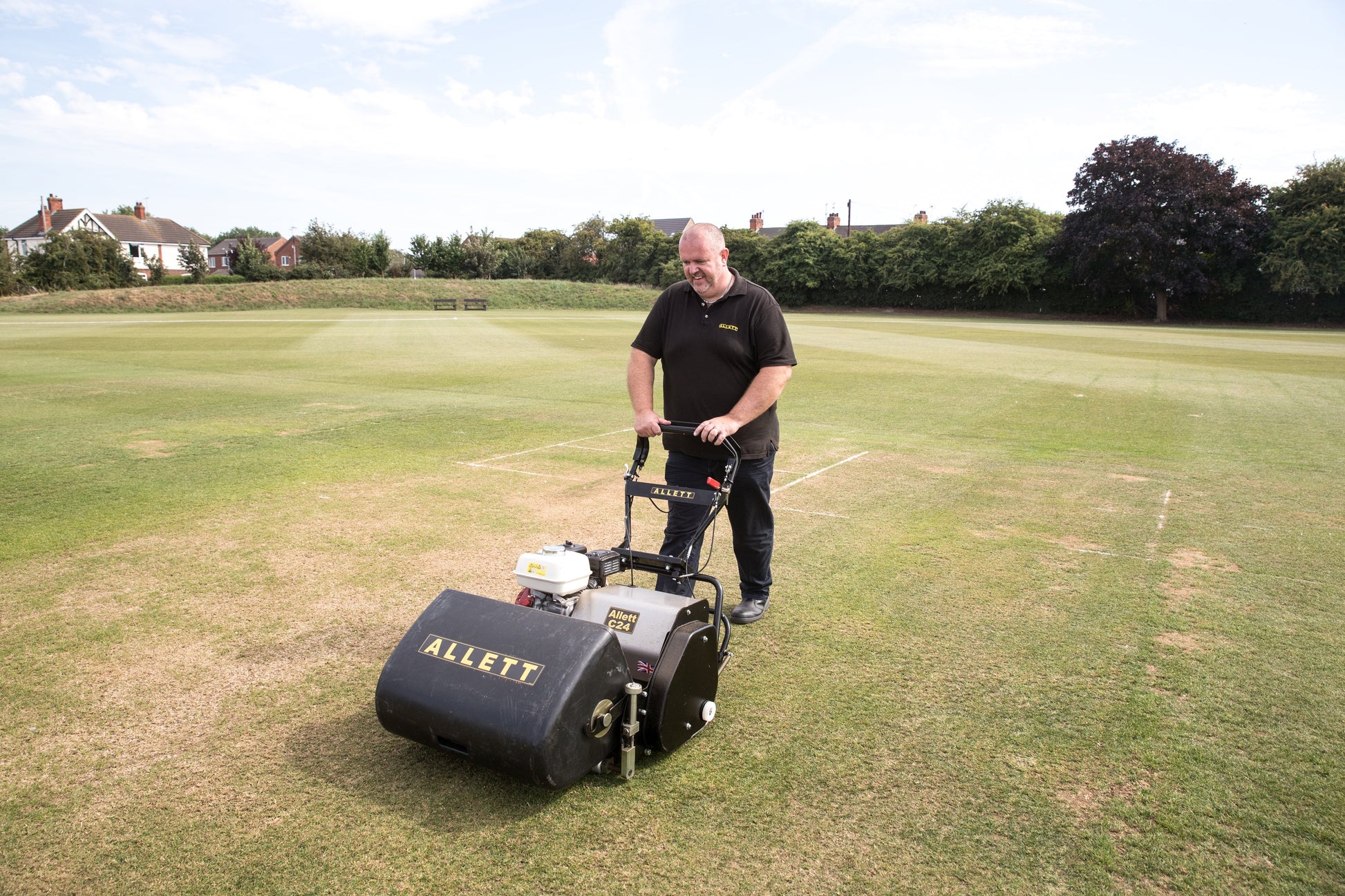

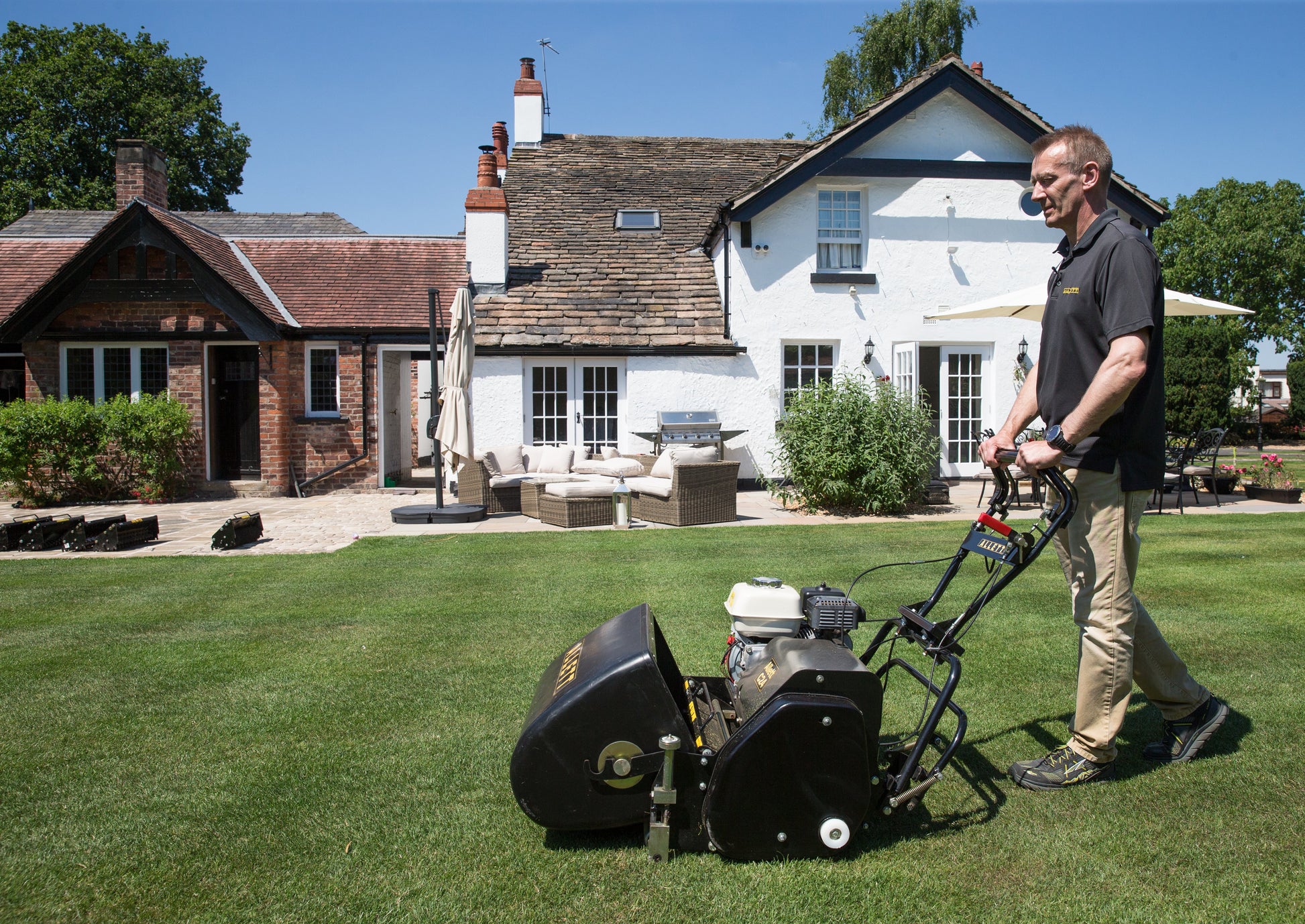

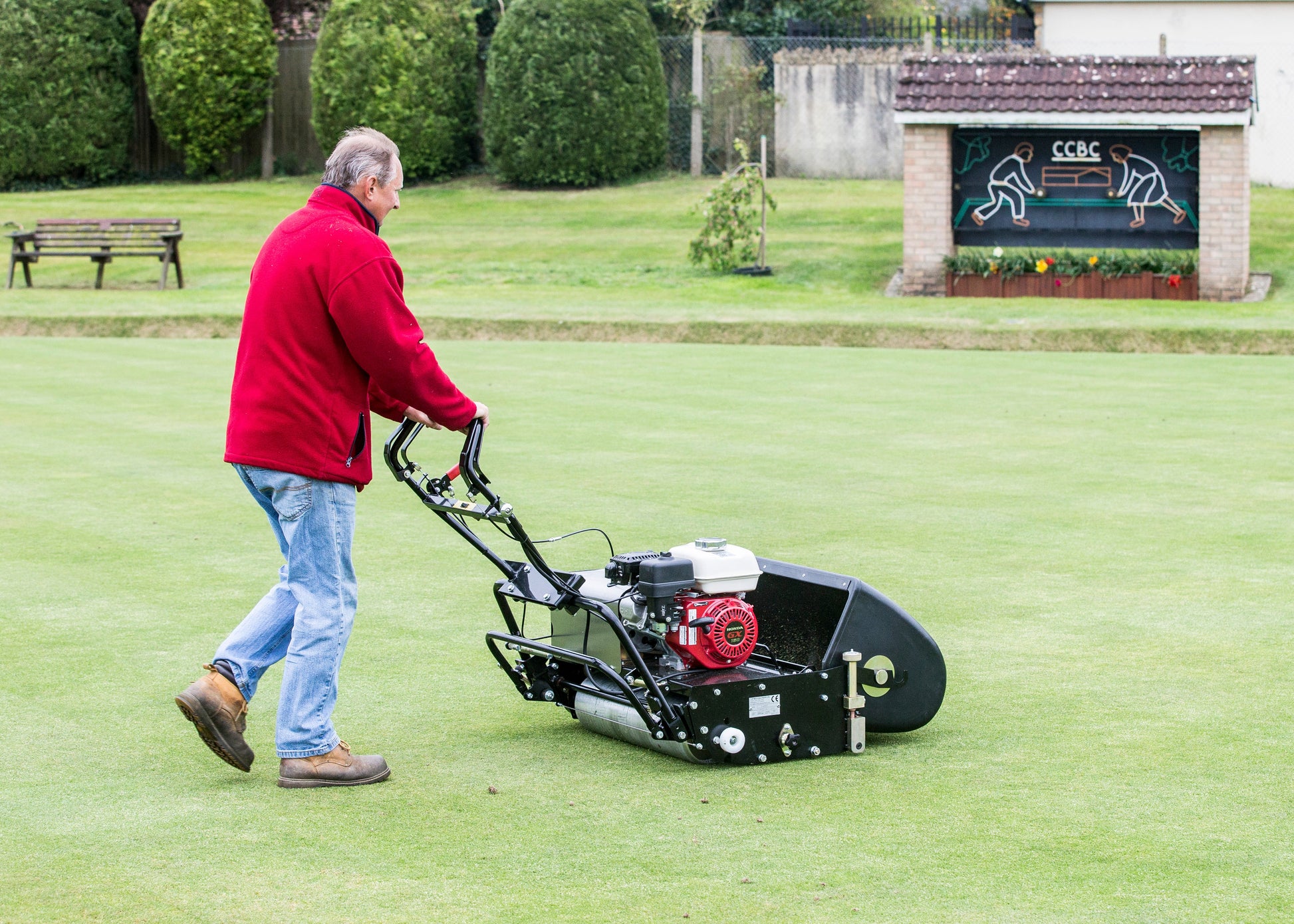

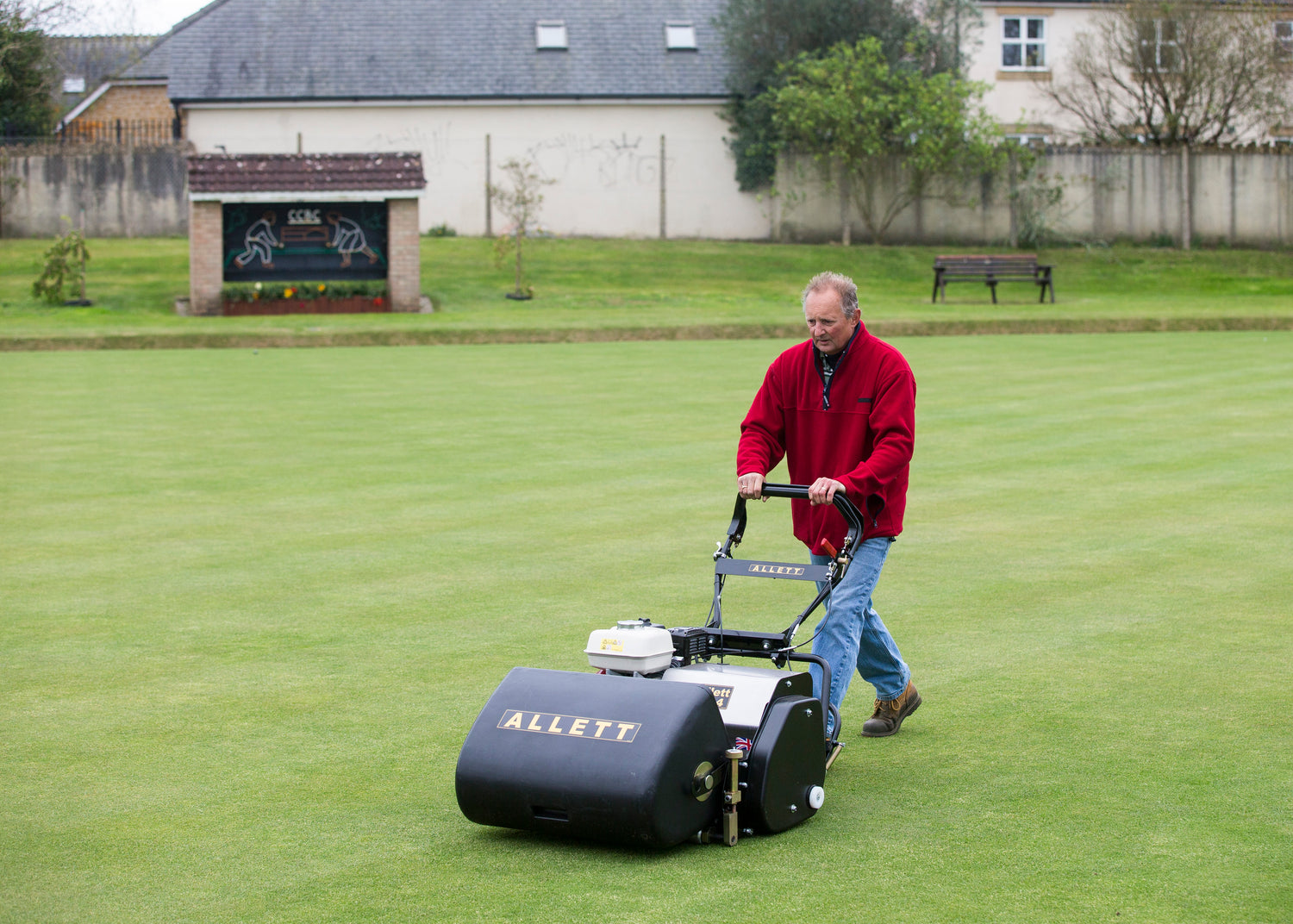

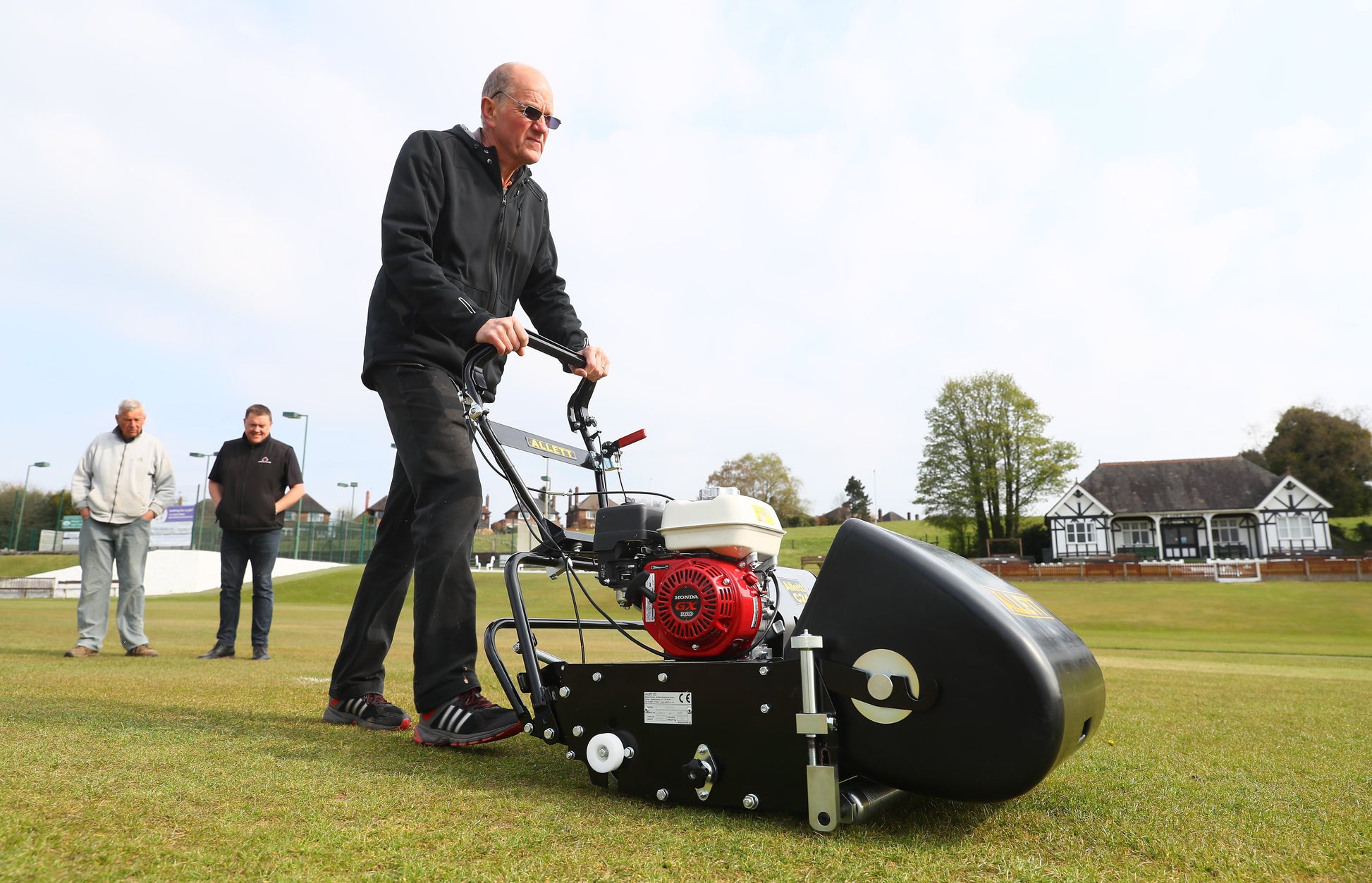

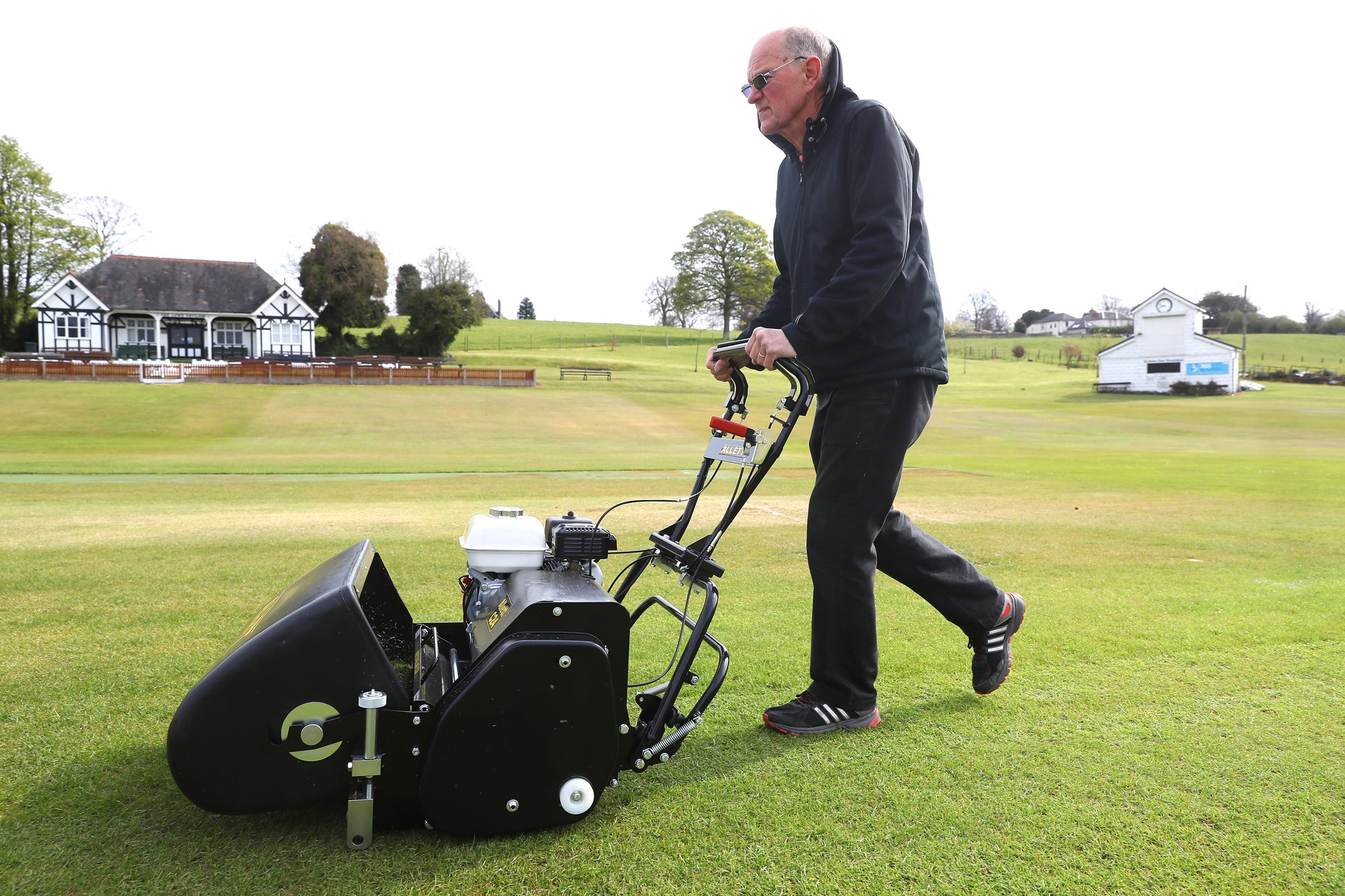

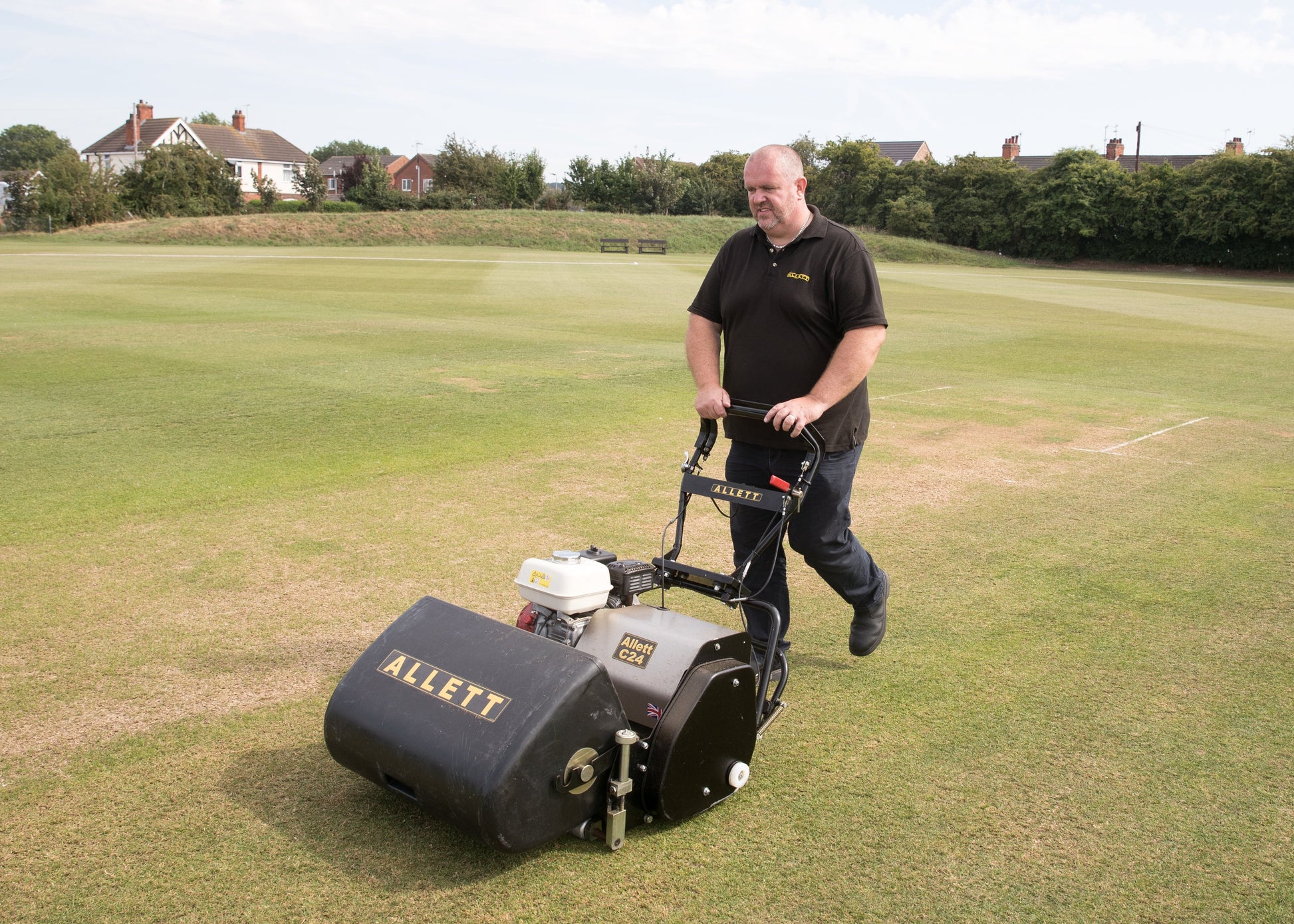

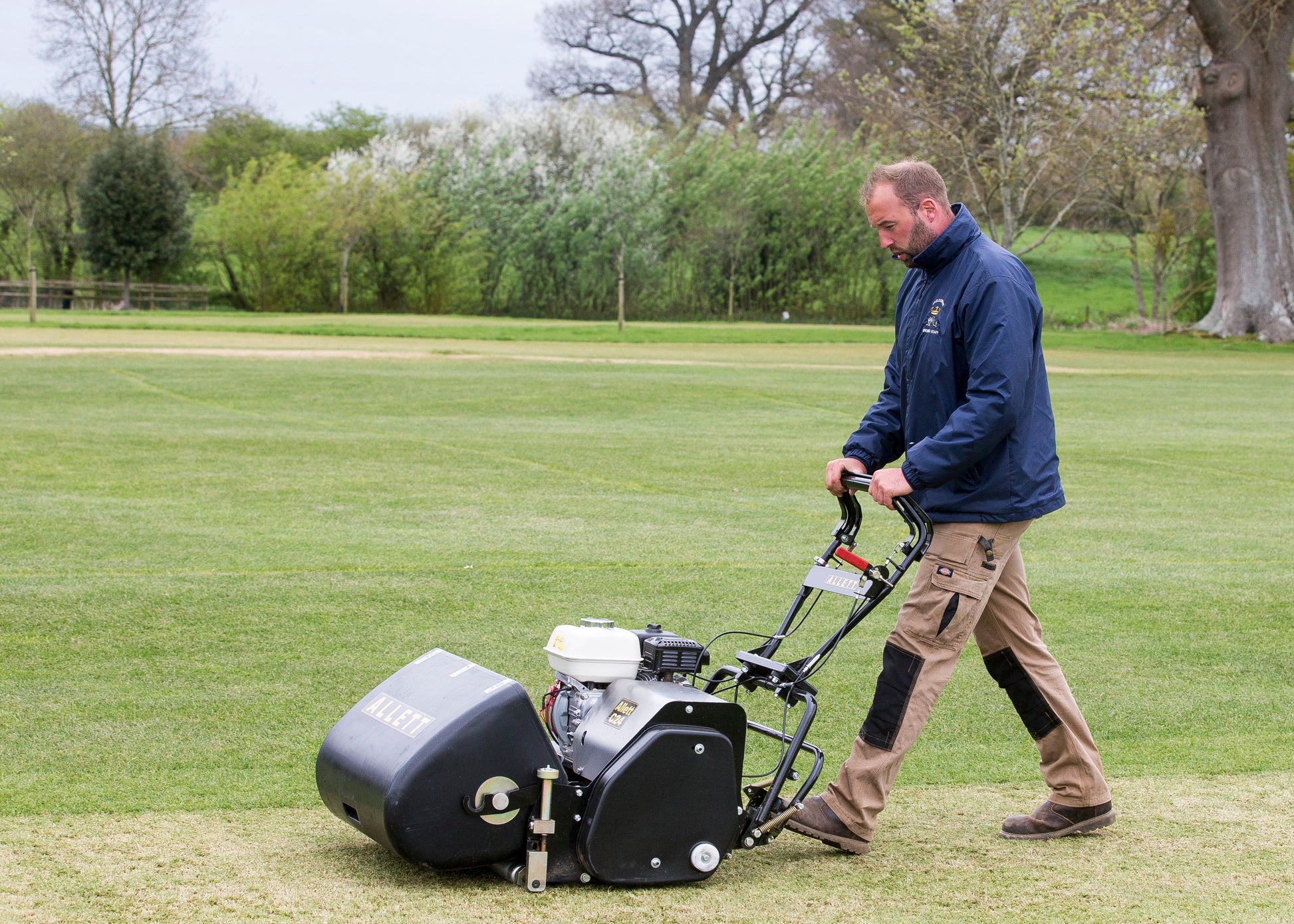

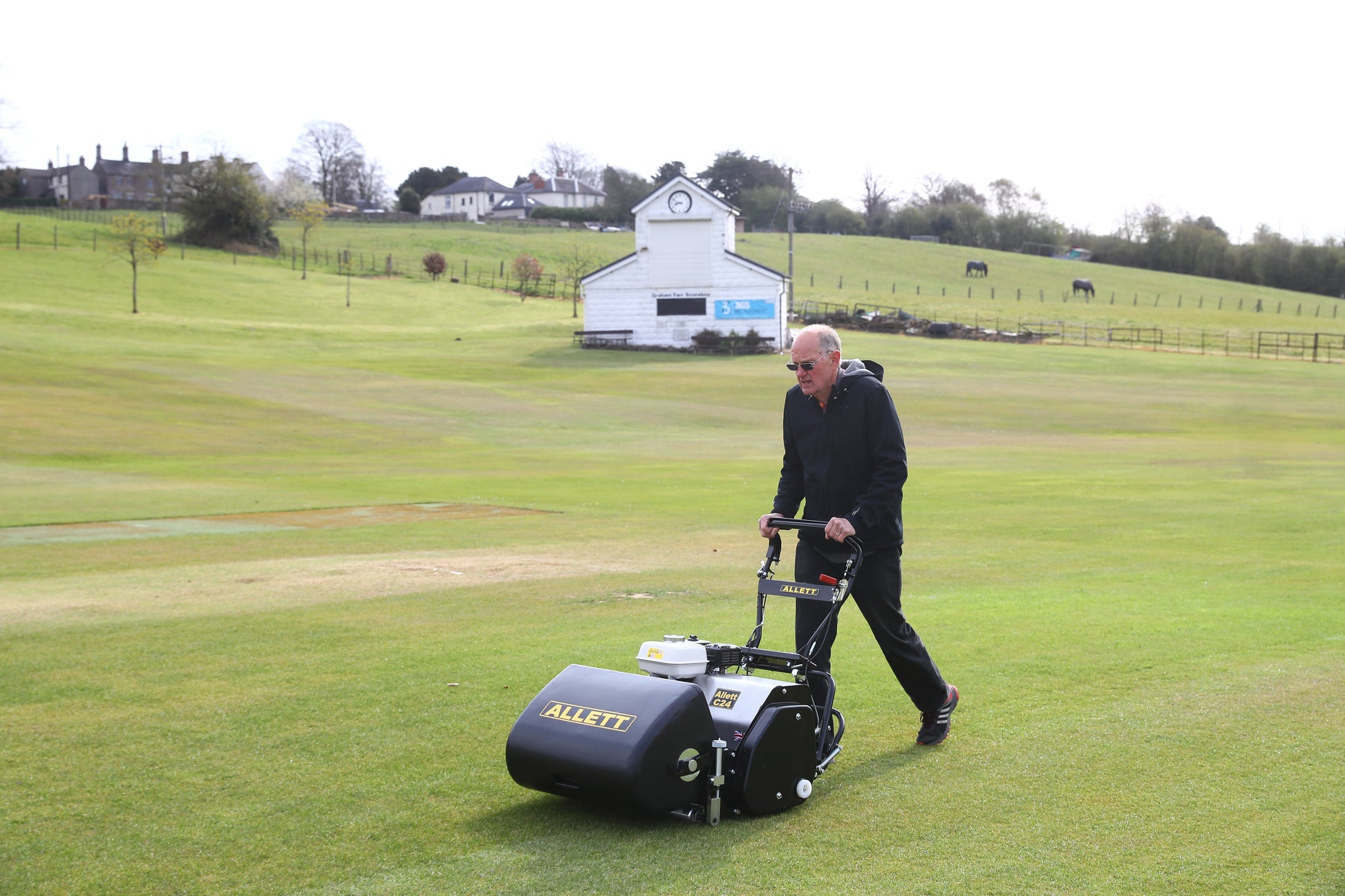

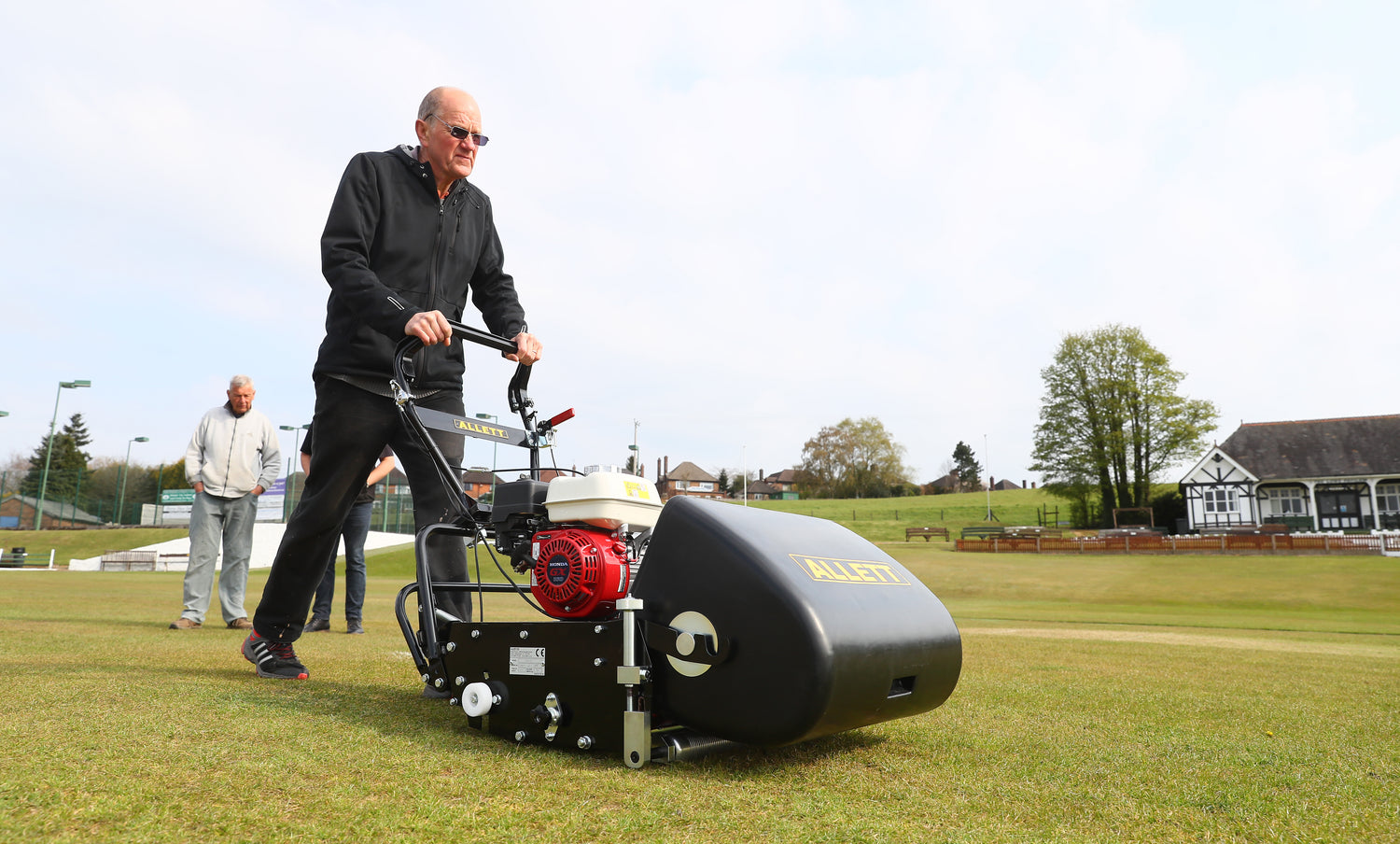

The C24 is ideal for fine sports turf surfaces such as cricket, bowls and golf as well as formal lawns where low weight and great finish are paramount.
C-Range Owner Stories
C24 Cartridge System
Each purpose-designed, easy-change, C-range cartridge becomes an integral part of the machine, enabling tasks ranging from fine turf mowing, verticutting and slitting to brushing, scarifying and sorrel rolling to be carried out successfully and without compromise.
-

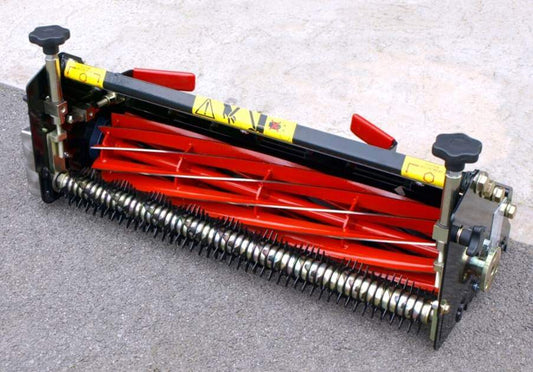

Allett CC24G 24" 10 Bladed Cutting Cylinder with Groomer
Regular price £3,274.80Regular priceUnit price / per -
Allett CC246 24" 6 Bladed Cutting Cylinder
Regular price £1,954.80Regular priceUnit price / per -

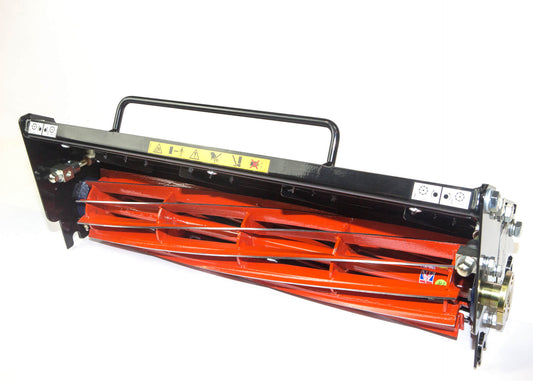

Allett CC2410 24" 10 Bladed Cutting Cylinder
Regular price £2,002.80Regular priceUnit price / per -
Allett CO27 Cartridge Stand for 4 Cartridges (C20/C24)
Regular price £694.80Regular priceUnit price / per -

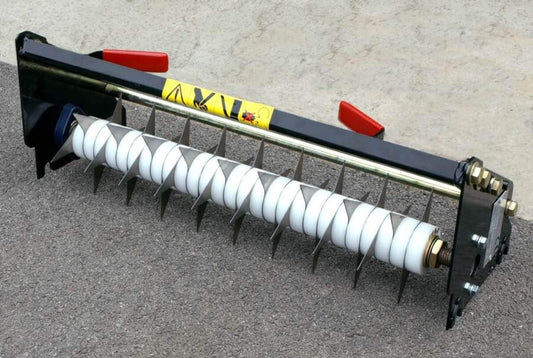

Allett C24S 24" Non-Powered Slitter Cartridge
Regular price £1,638.00Regular priceUnit price / per -
Allett C24SR 24" Non-Powered Sorrel Roller Cartridge
Regular price £1,890.00Regular priceUnit price / per -

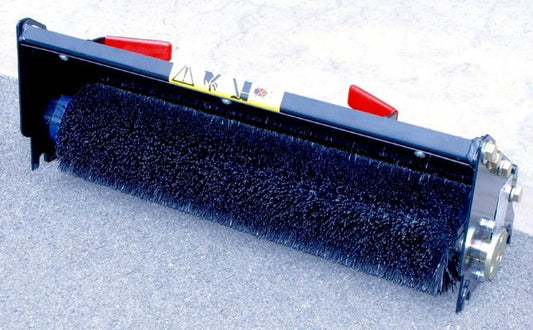

Allett C24B 24" Powered Brush Cartridge
Regular price £1,776.00Regular priceUnit price / per -

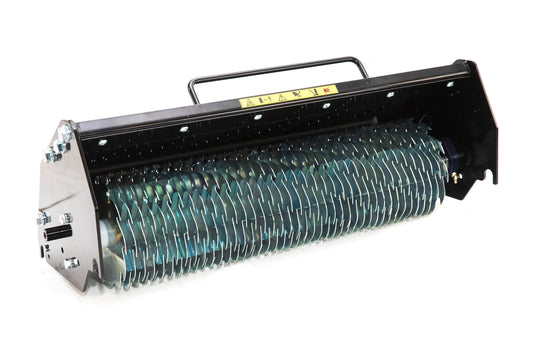

Allett C24VC 24" Powered Verticutter Cartridge
Regular price £1,890.00Regular priceUnit price / per -
Allett C24SC/TT 24" Powered Scarifier Cartridge with Tungsten Tipped Blades
Regular price £2,290.80Regular priceUnit price / per -

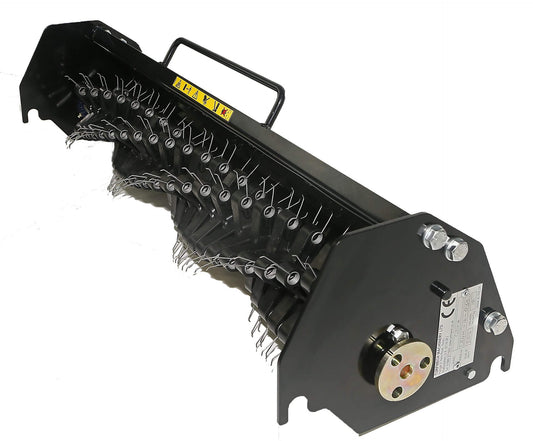

Allett C24TR 24" Turf Rake Cartridge
Regular price £1,650.00Regular priceUnit price / per -

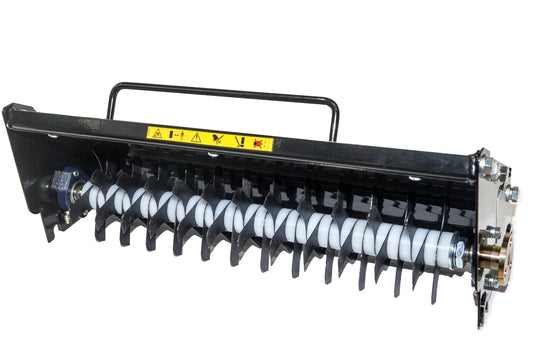

Allett C24SC 24" Powered Scarifier Cartridge
Regular price £1,675.20Regular priceUnit price / per
Want to try the C24?
If you would like to see this mower in action and try it for yourself, we can arrange for you and your groundscare team to have a no-obligations demonstration at your club or institution.
