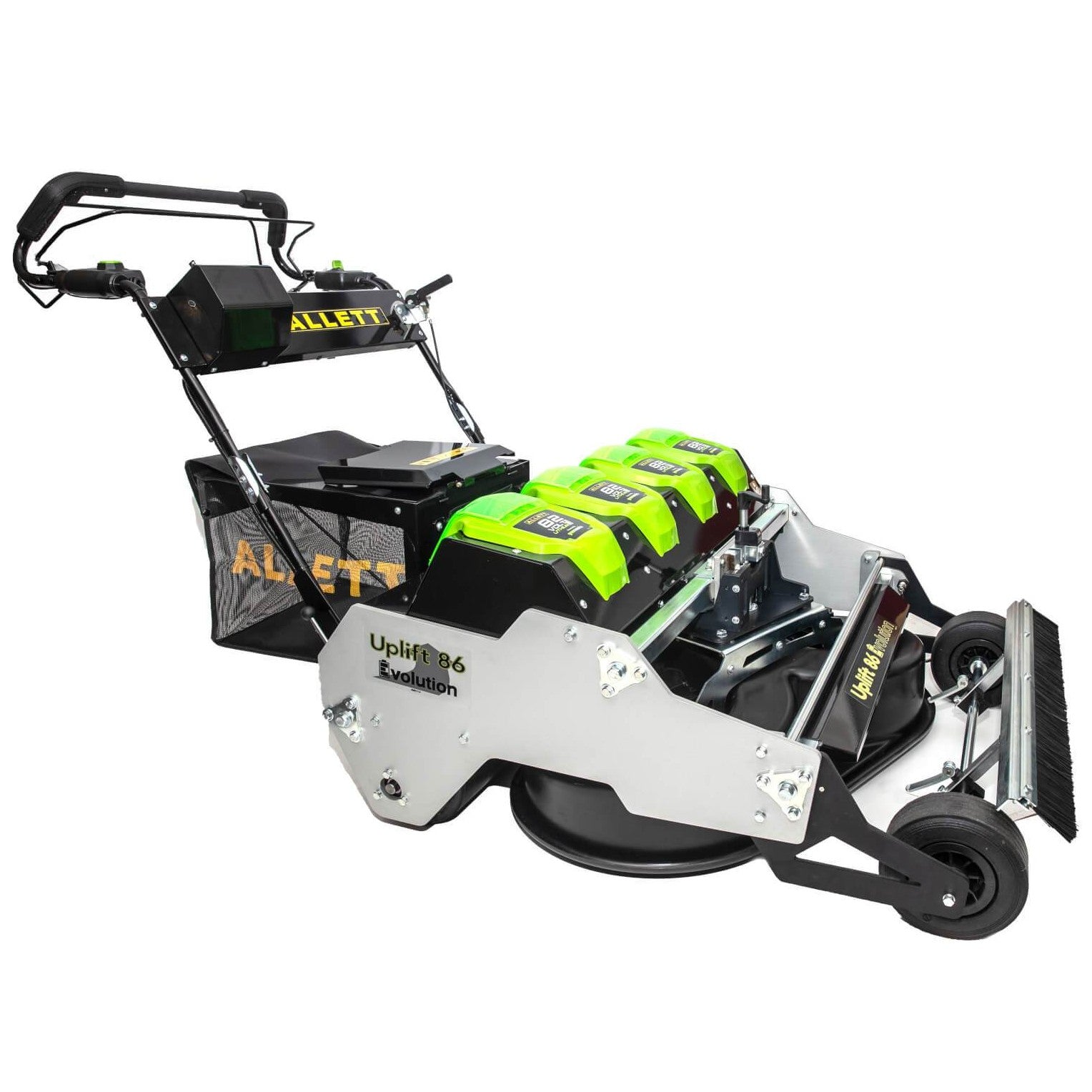

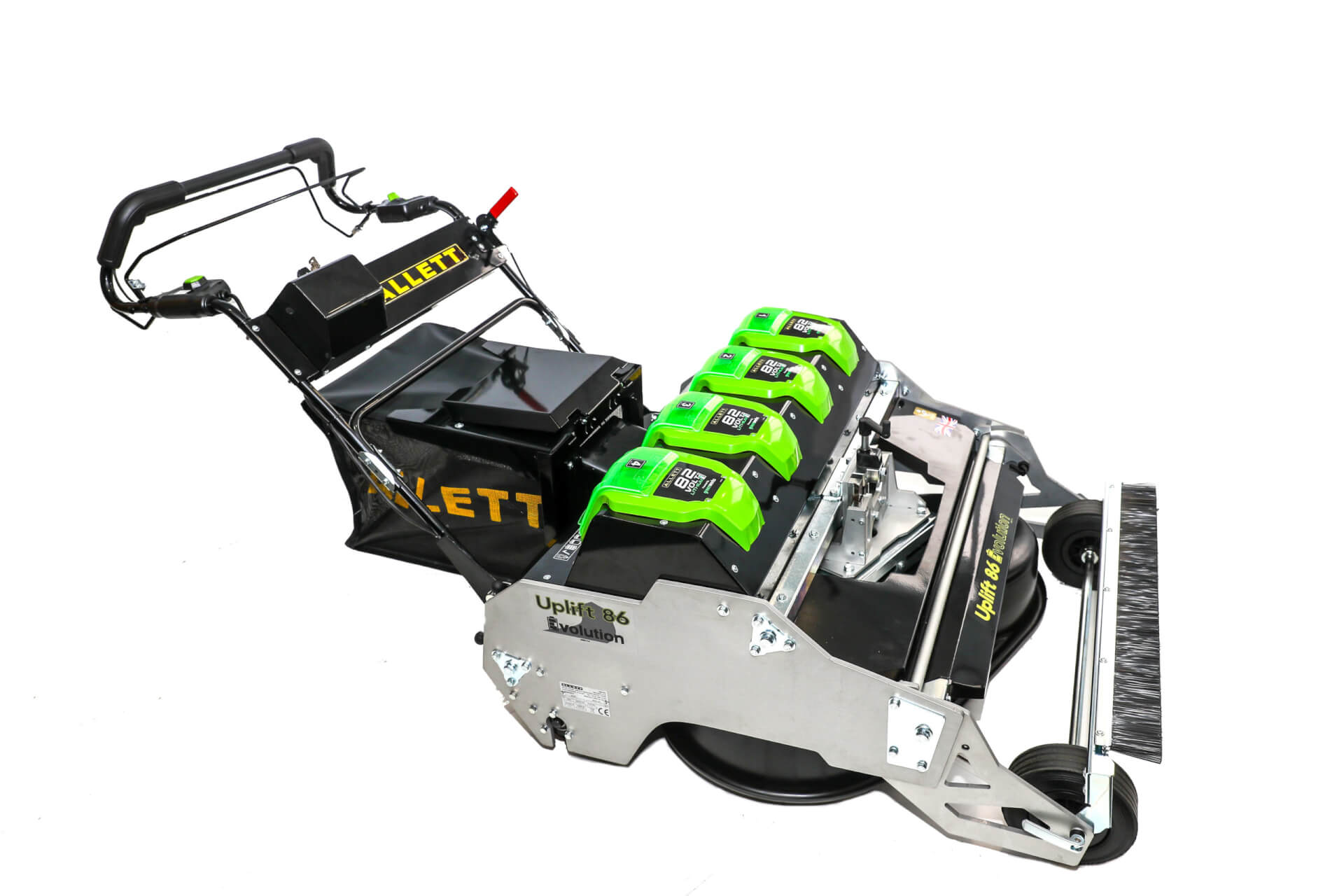

UPLIFT
86E

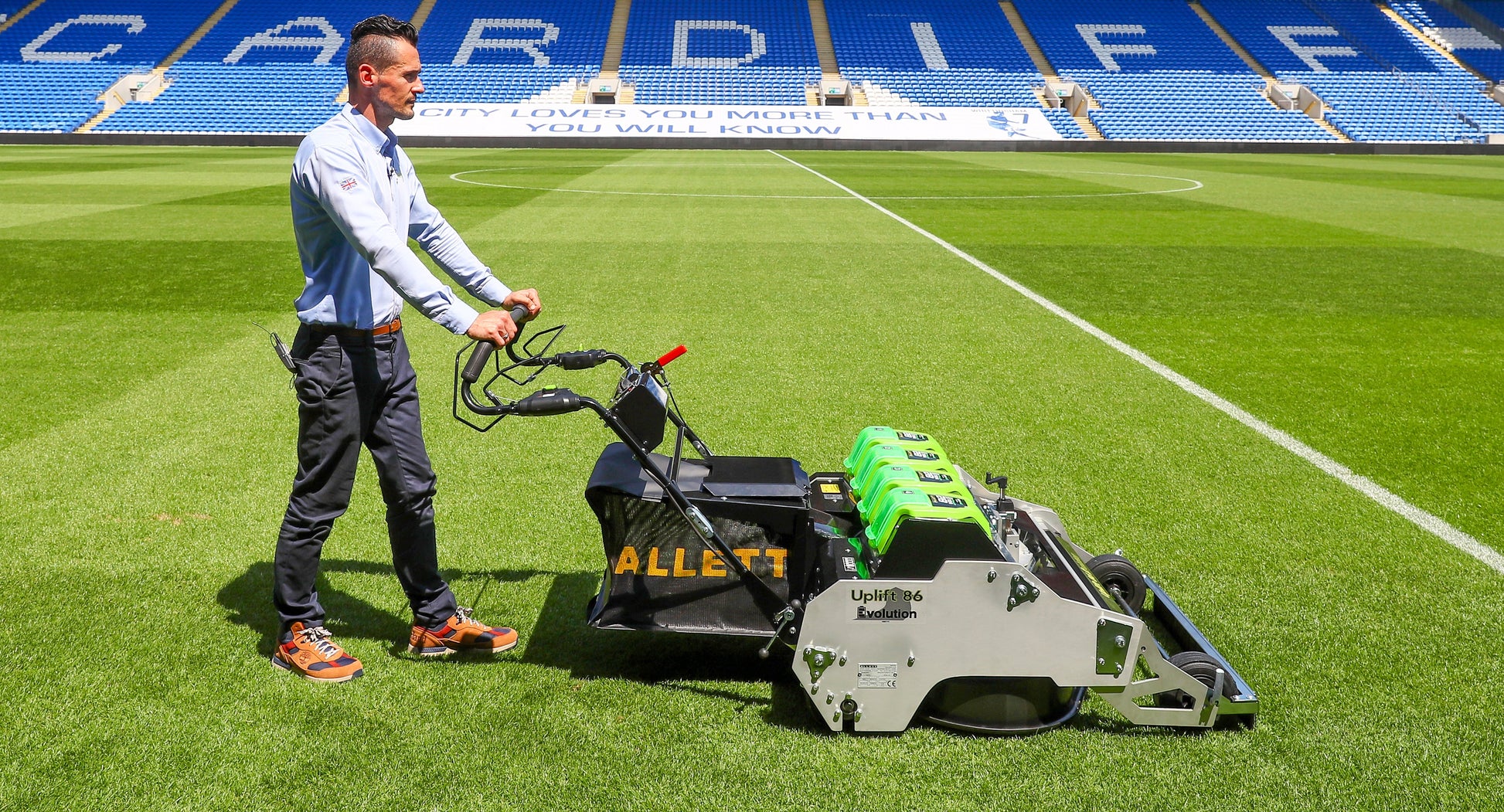

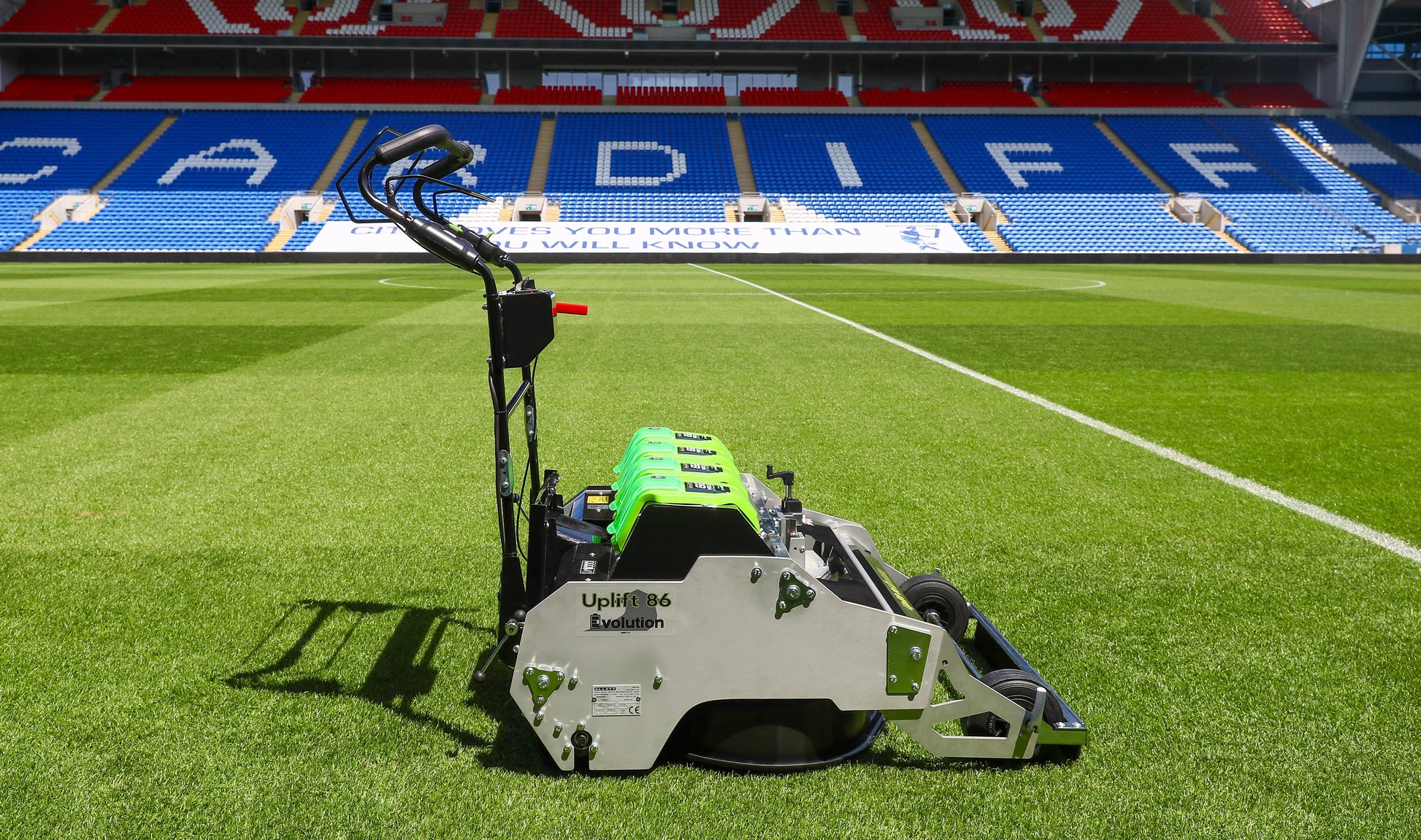

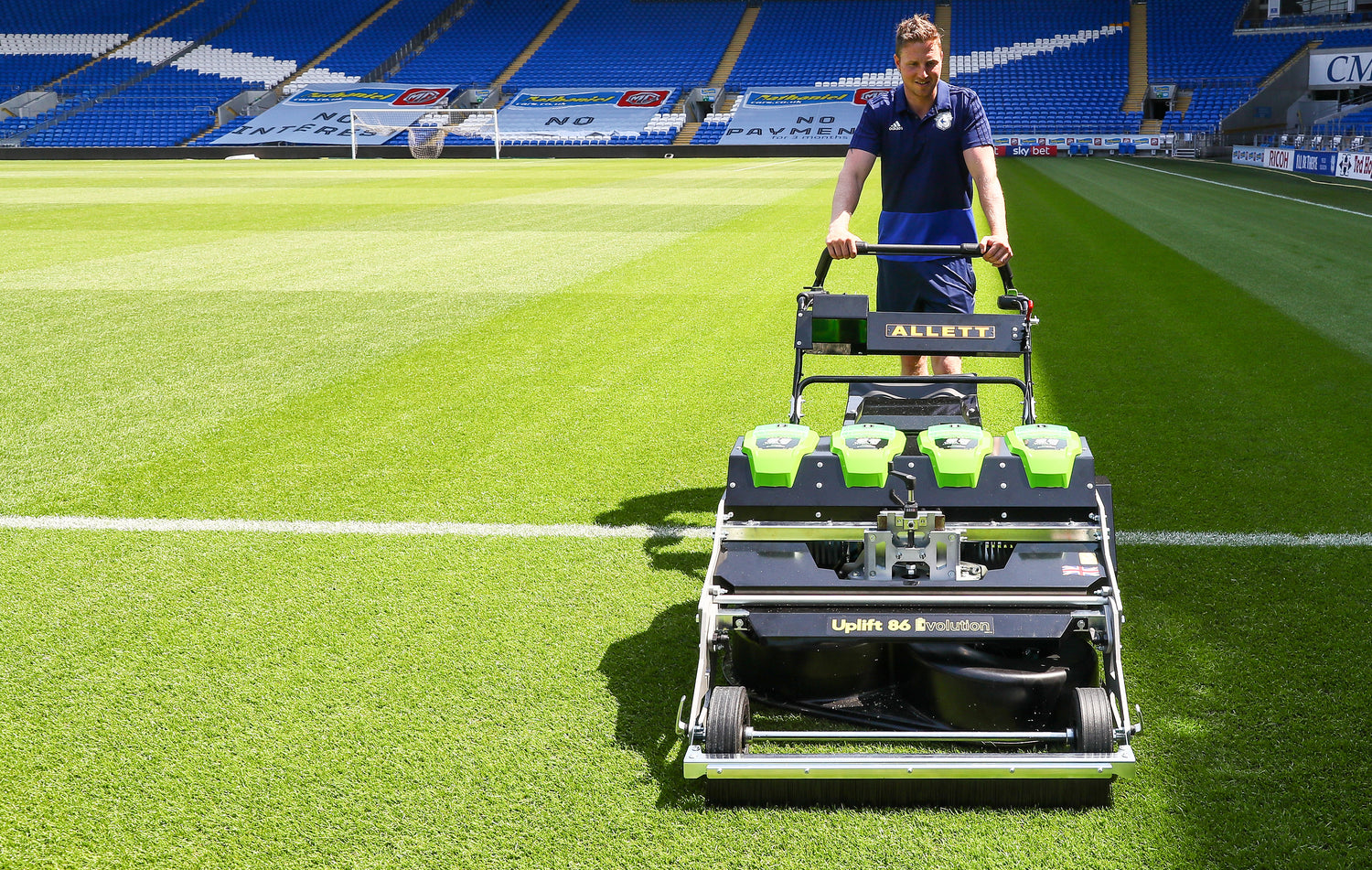

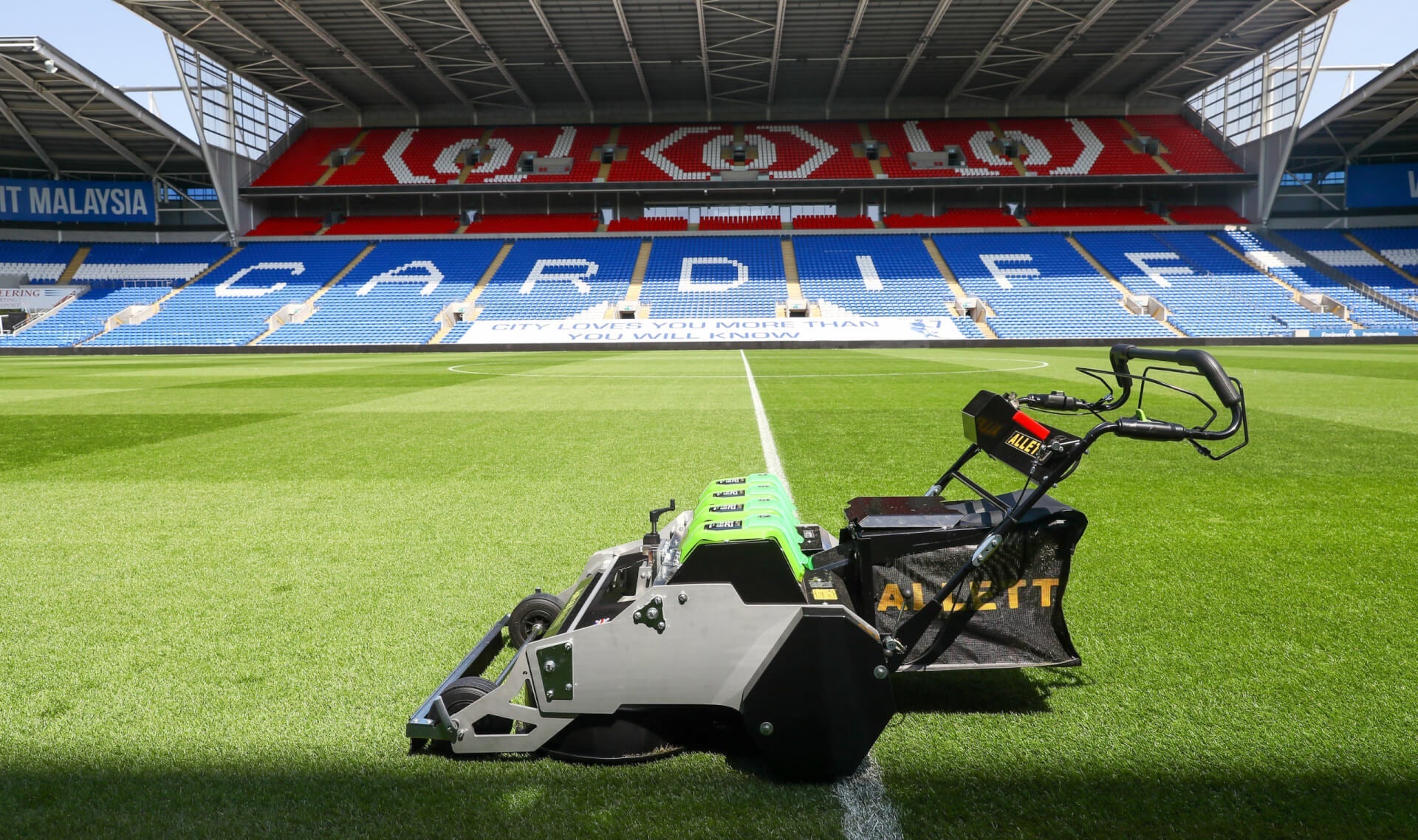

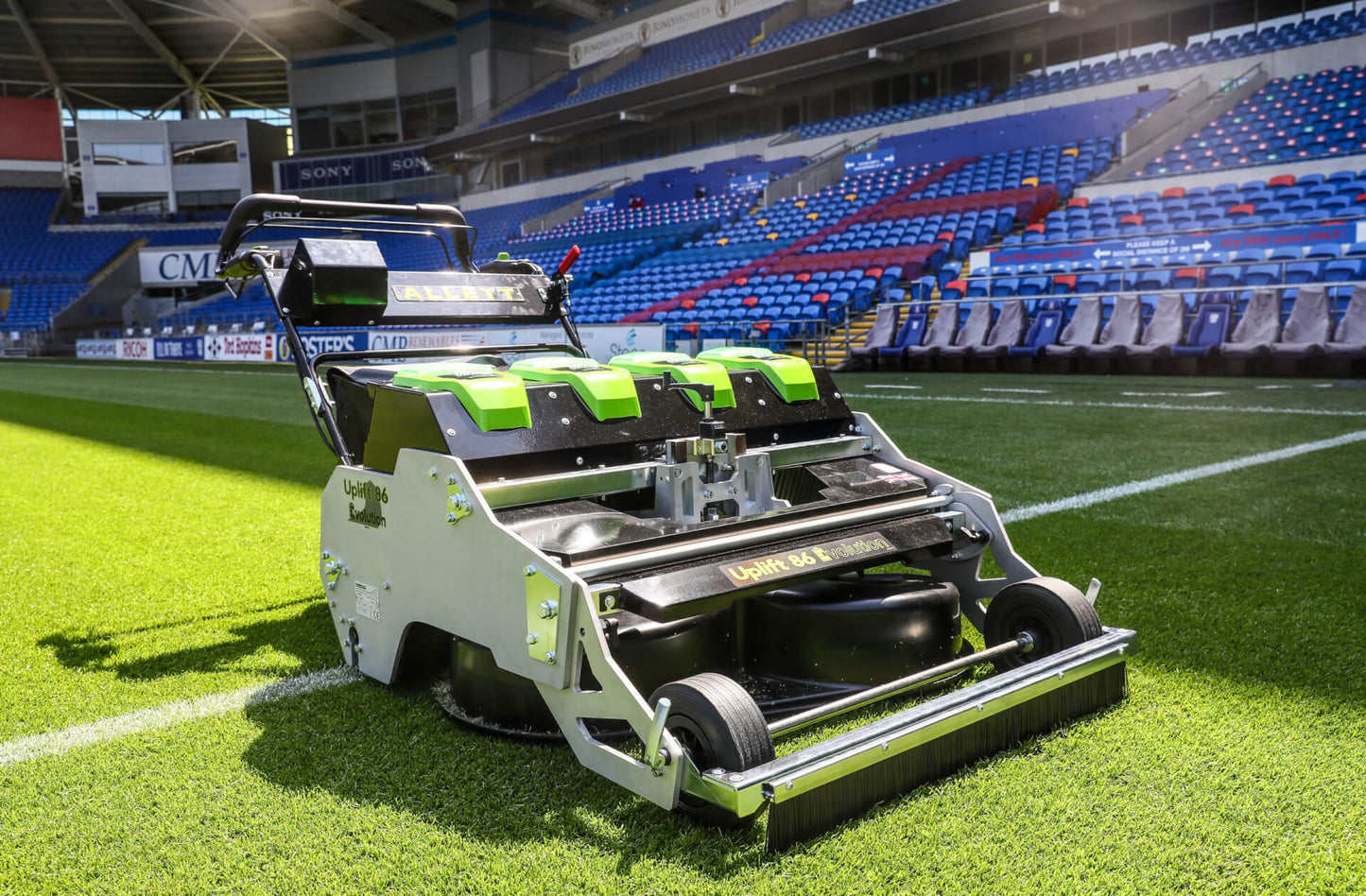

An electric-powered stadium rotary mower designed to cut and vacuum quickly and efficiently whilst still producing strong contrasting stripes.
Arrange Demo • Specialist Advice • Delivered By Local Dealer

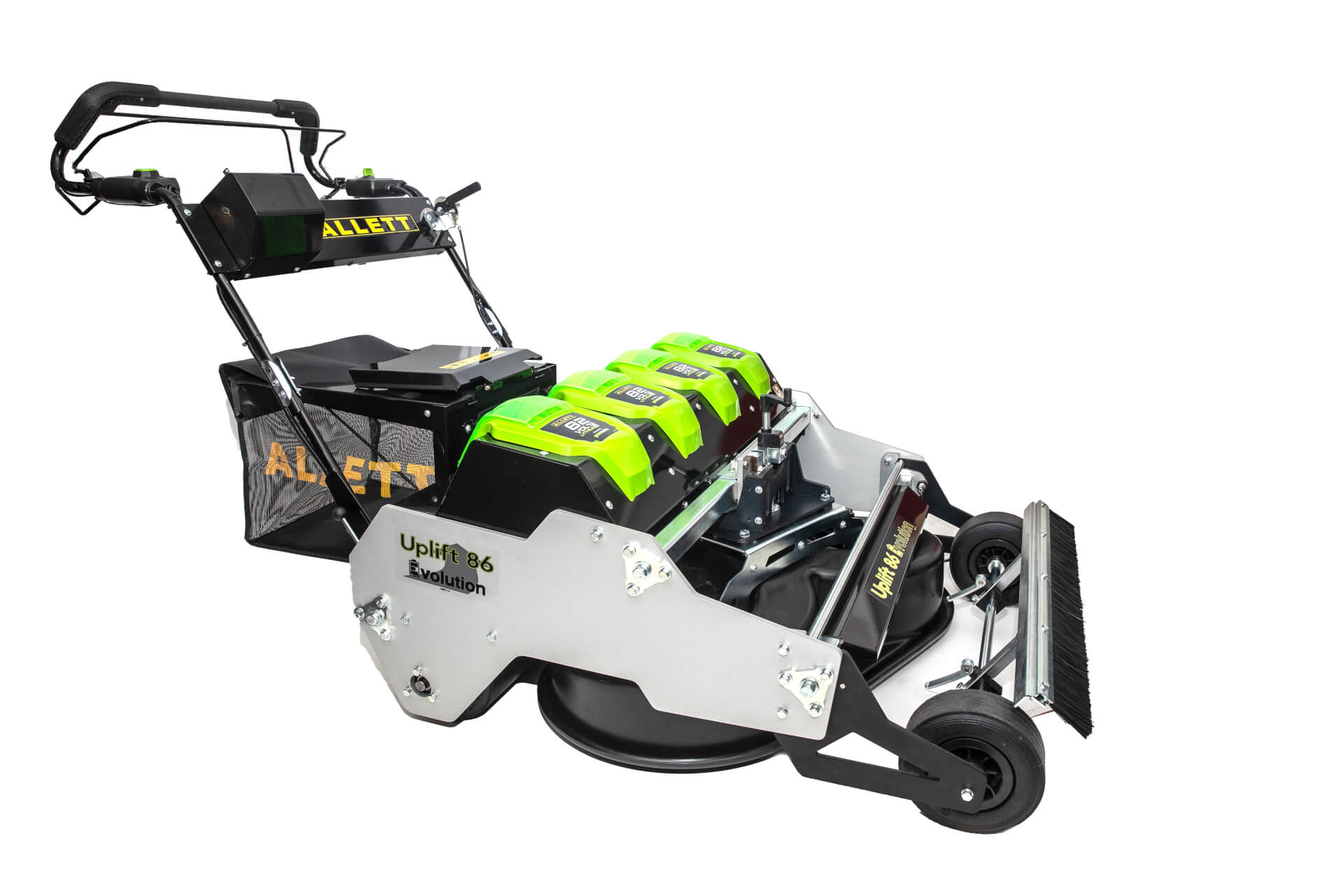

Uplift 86E Technical Data
| 86E EVOLUTION | |
|---|---|
| Type | Twin blade Rotary mower with rear roller |
| Cutting width | 864mm (34in) |
| Cutting heights | 20-75mm (0.8in - 2.95in) |

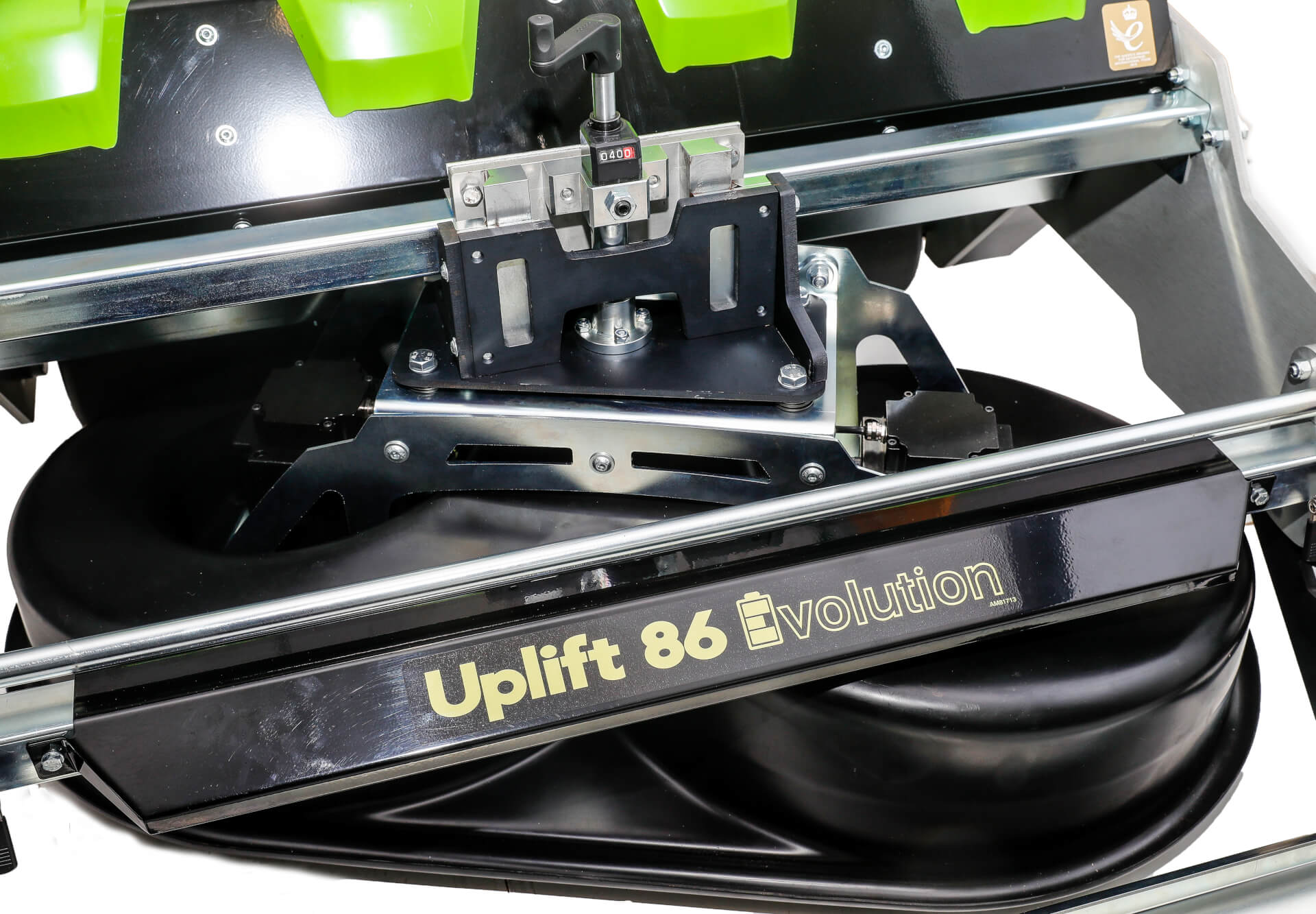

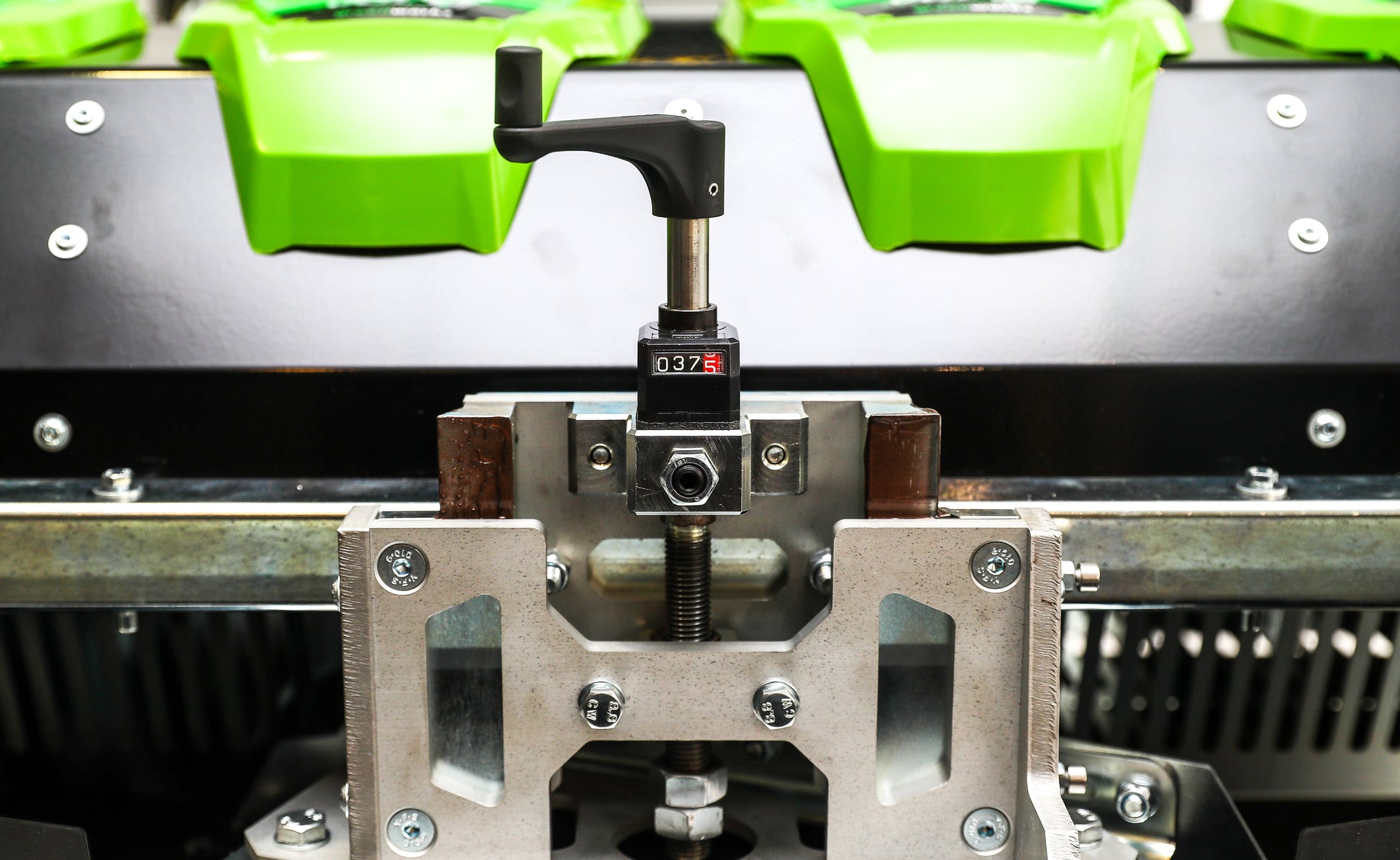

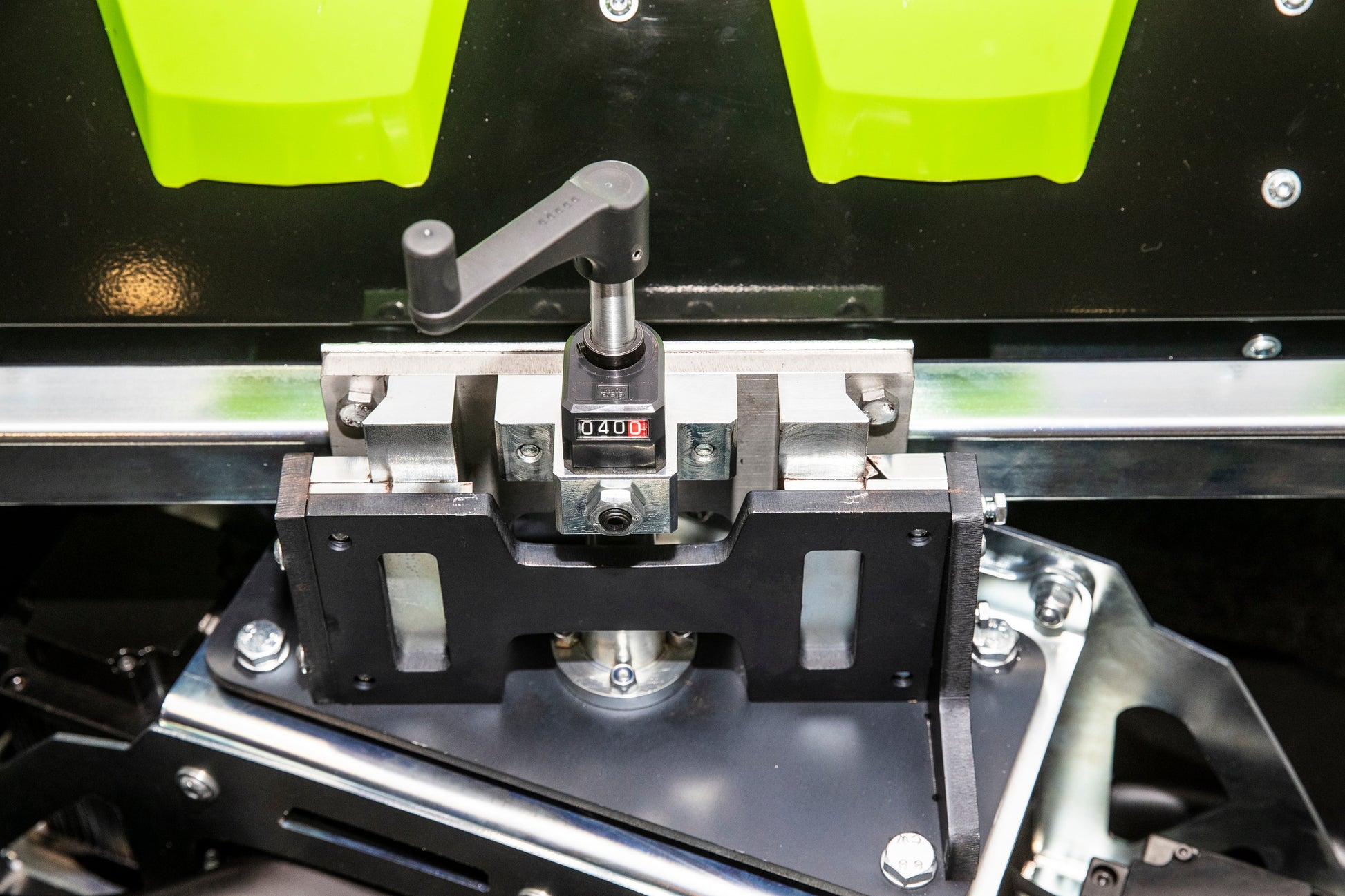

| Cutting height adjustment | Single point, effortless graduated mechanical counter showing precise height of cut read out in mm |
| Rear roller | Rear roller Rubberised, 3 piece steel construction, with steel differential gears |
| Power output | 4 x 8Ah 82V Li-ion batteries (charge time approximately 1.5 hours). Bluetooth capability. |

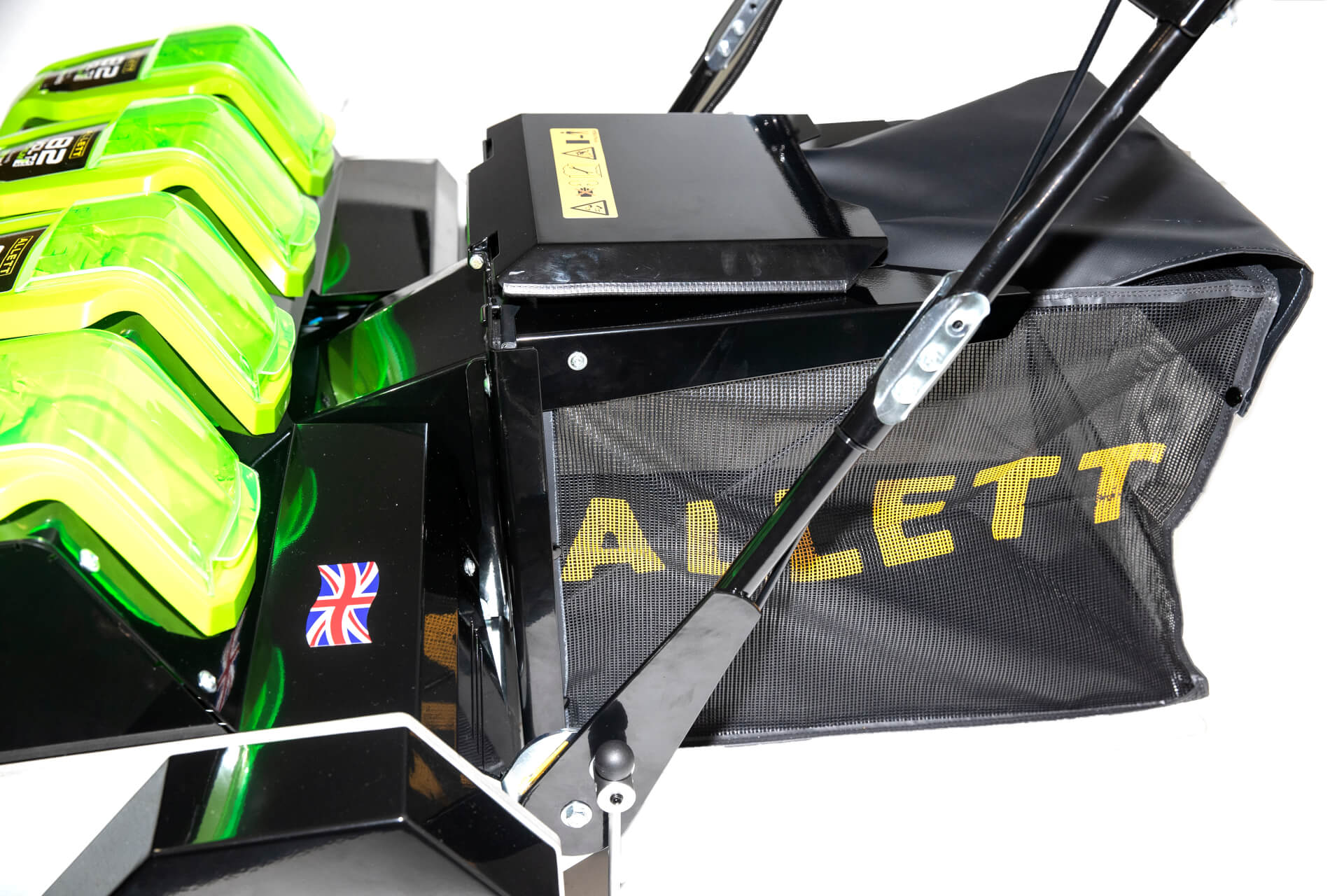

| Grass bag capacity | 90 litres |

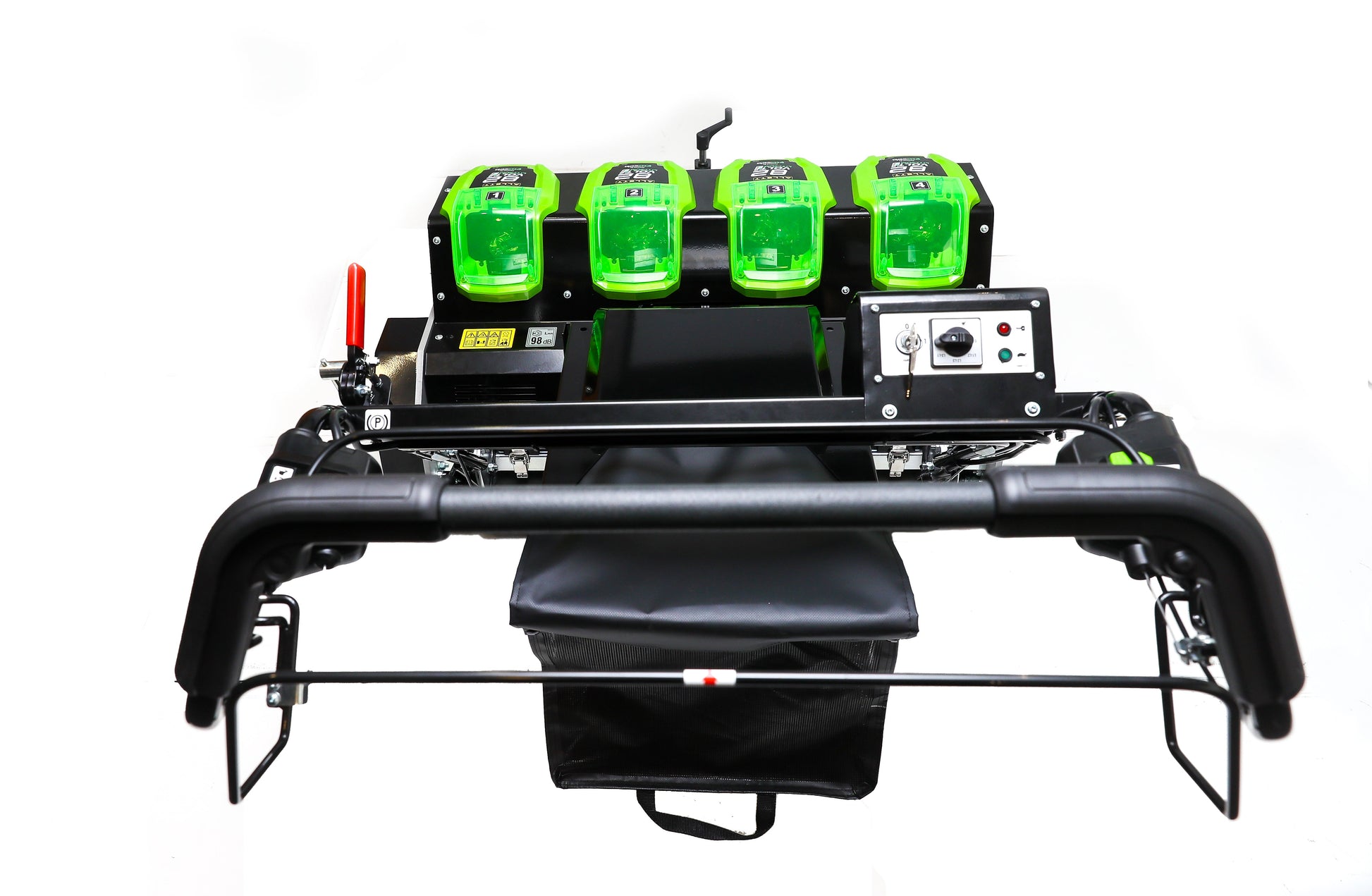

| Power Source | 82V 8Ah battery system, featuring 4 quick change battery docking stations. Can use any number of batteries from 1 to 4. Batteries can be used with other Cramer products. |
| Blade system | 2 x 457mm (18in) high lift blades, contra-rotating and overlapping to ensure every blade is cut |
| Blade drive | 2 action safety switch & bale bar for blade engagement |
| Battery Charger | Twin battery dock mains charger, diagnostic charger. Uses same batteries as ALLETT C34 Evolution. |
| Deck | Plastic moulded deck for optimised airflow |
| Weight | 190kg (419lbs) |
| Dimensions | Width: 37in (940mm) Height: 37-43in (950mm-1080mm) Length: 79in (2000mm) |
| Starter mechanism/ Drive | Push button. Bale bar for rear roller drive engagement, handle mounted rear roller speed control |
| Speed | Variable forward speed of increments between 1 and 6. Top speed 6.7km/h (4.2mph) |

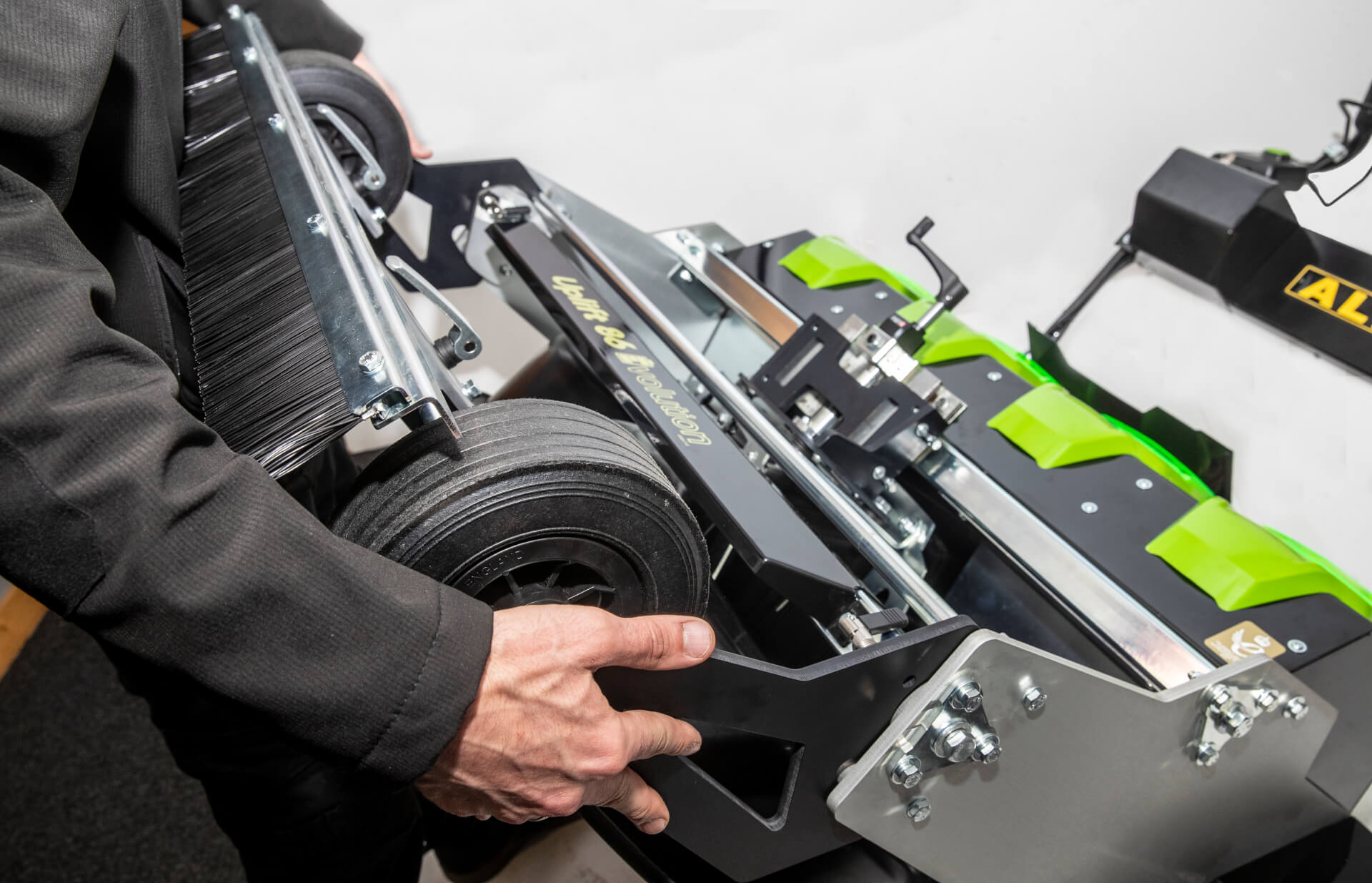

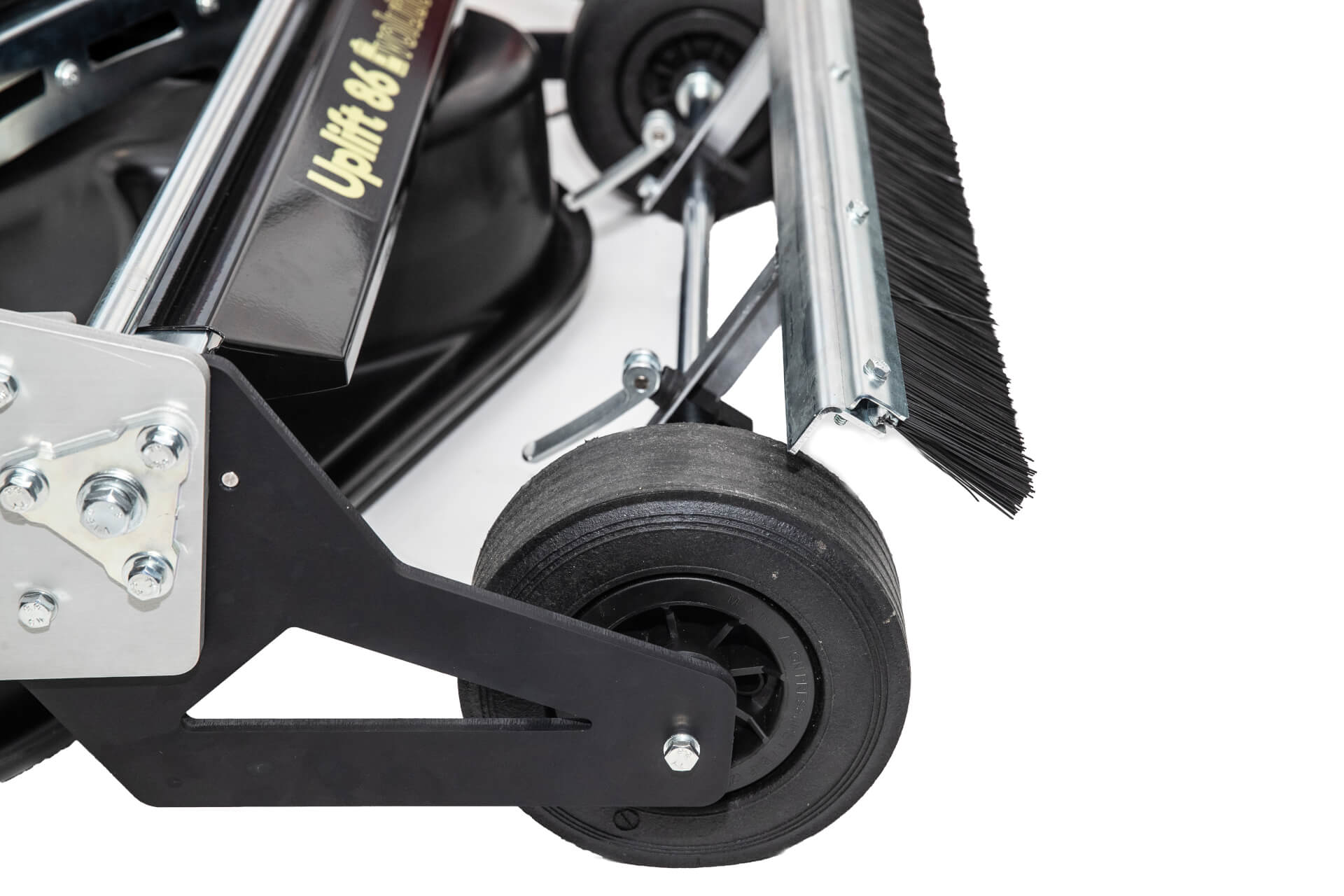

| Front wheels | 8in (220mm) diameter Pneumatic front wheels running on Bronze bushes. Swap wheels for roller. |

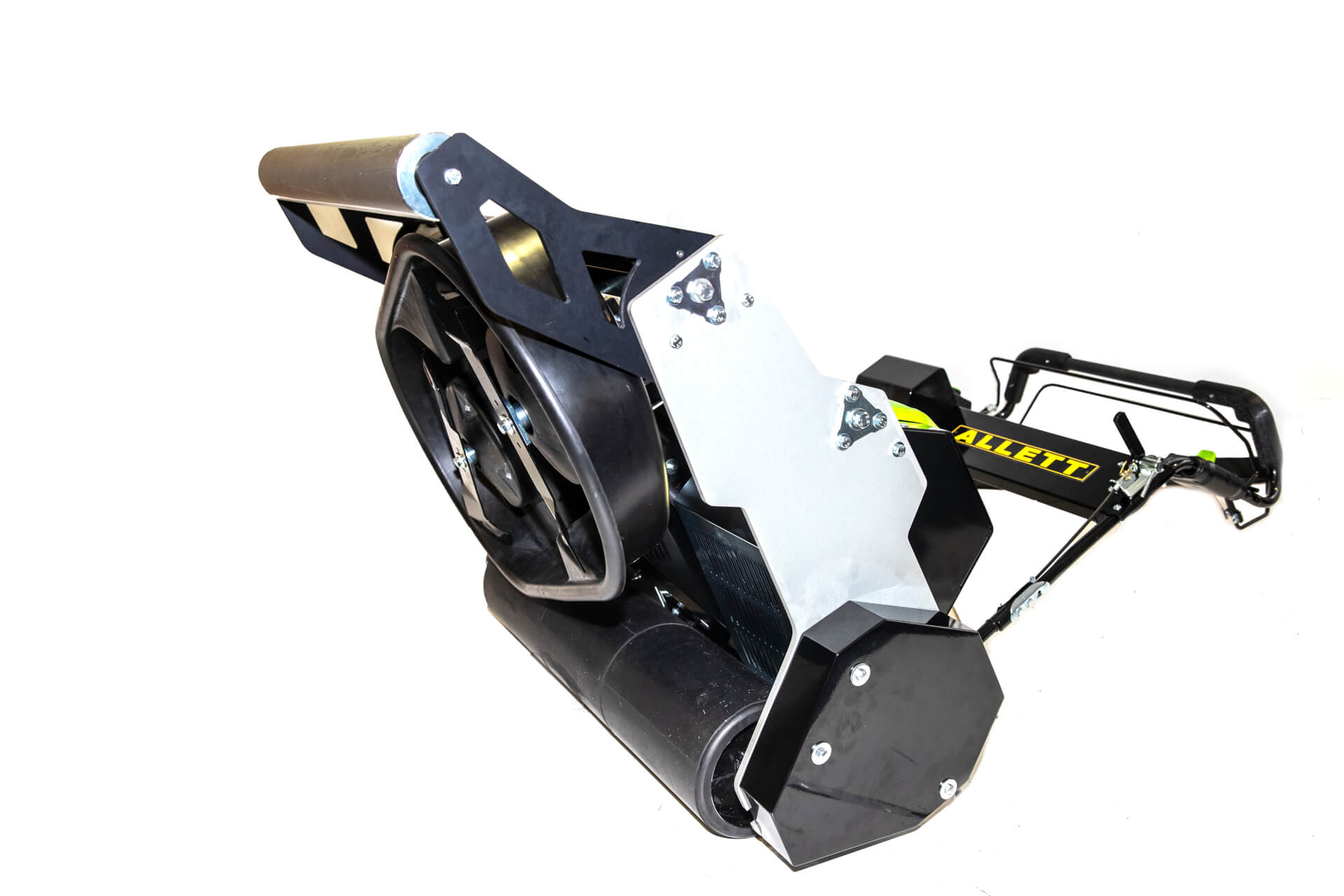

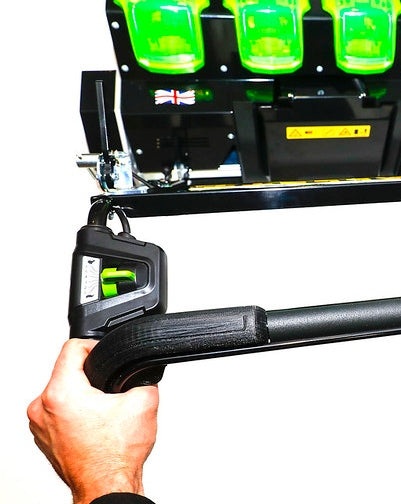

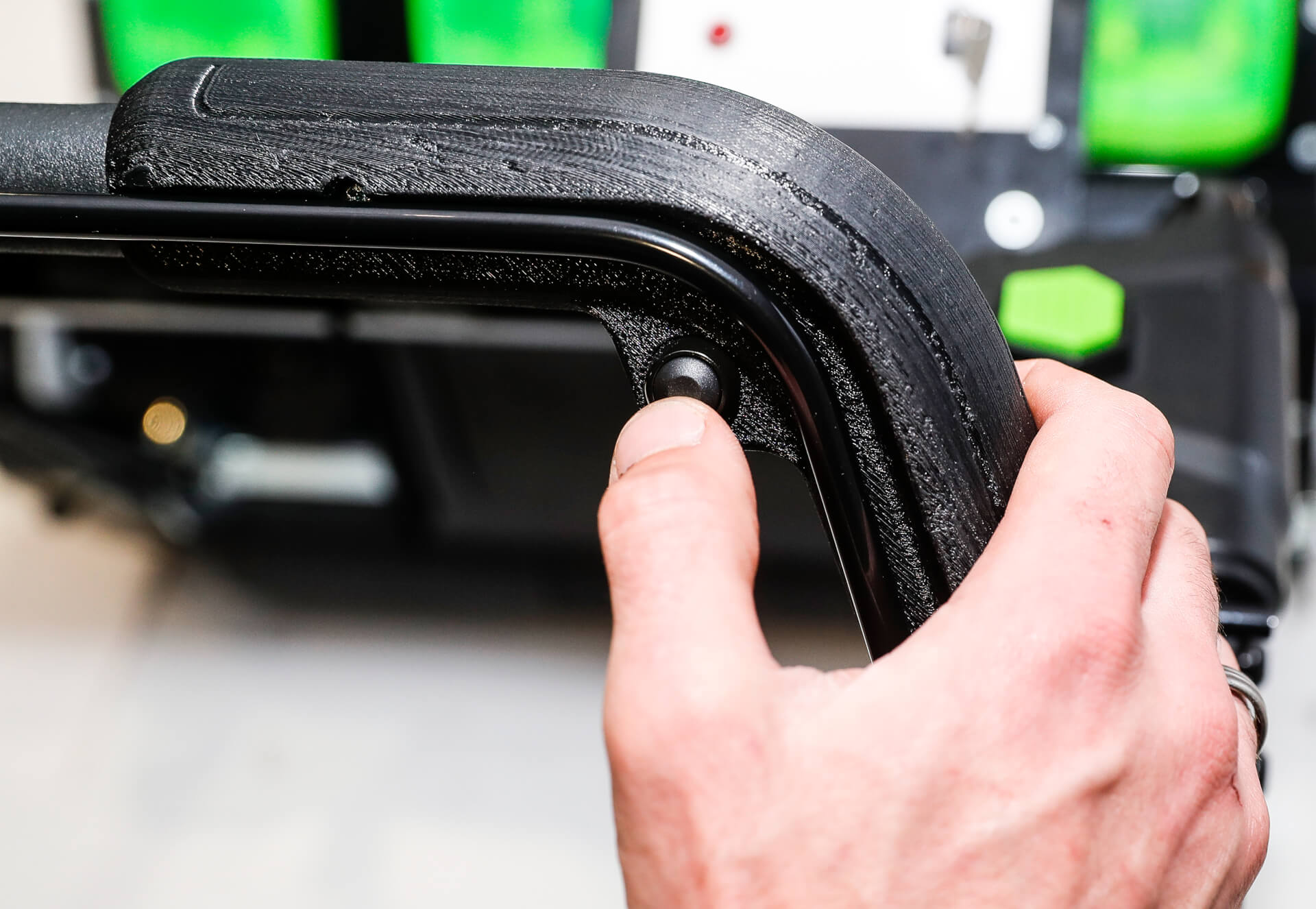

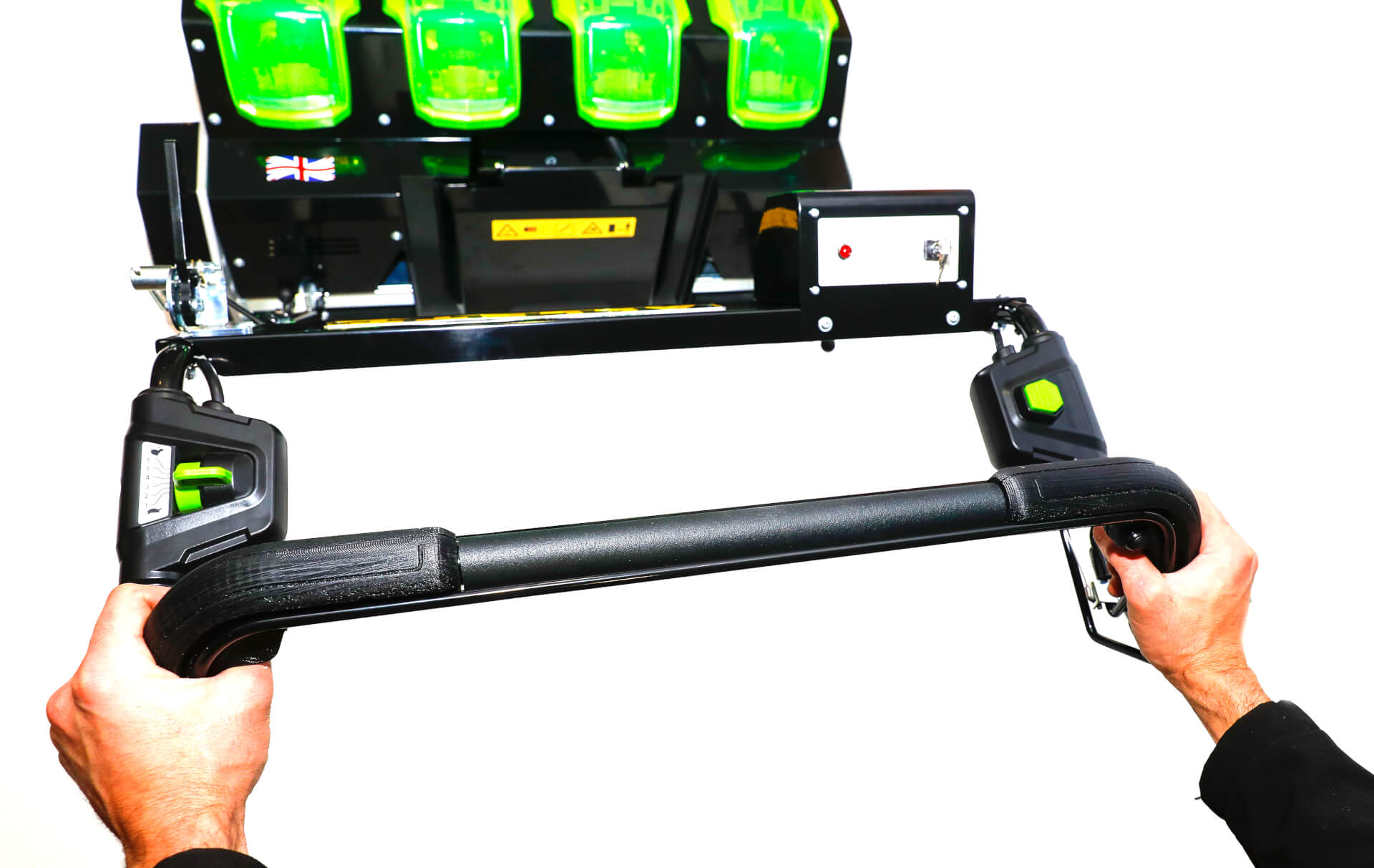

| Handlebars | Handlebars fold upright for convenient storage. Handle bar folding allows mower deck to be tilted back for easy cleaning and maintenance. Wide handle bar. Half-speed button. |

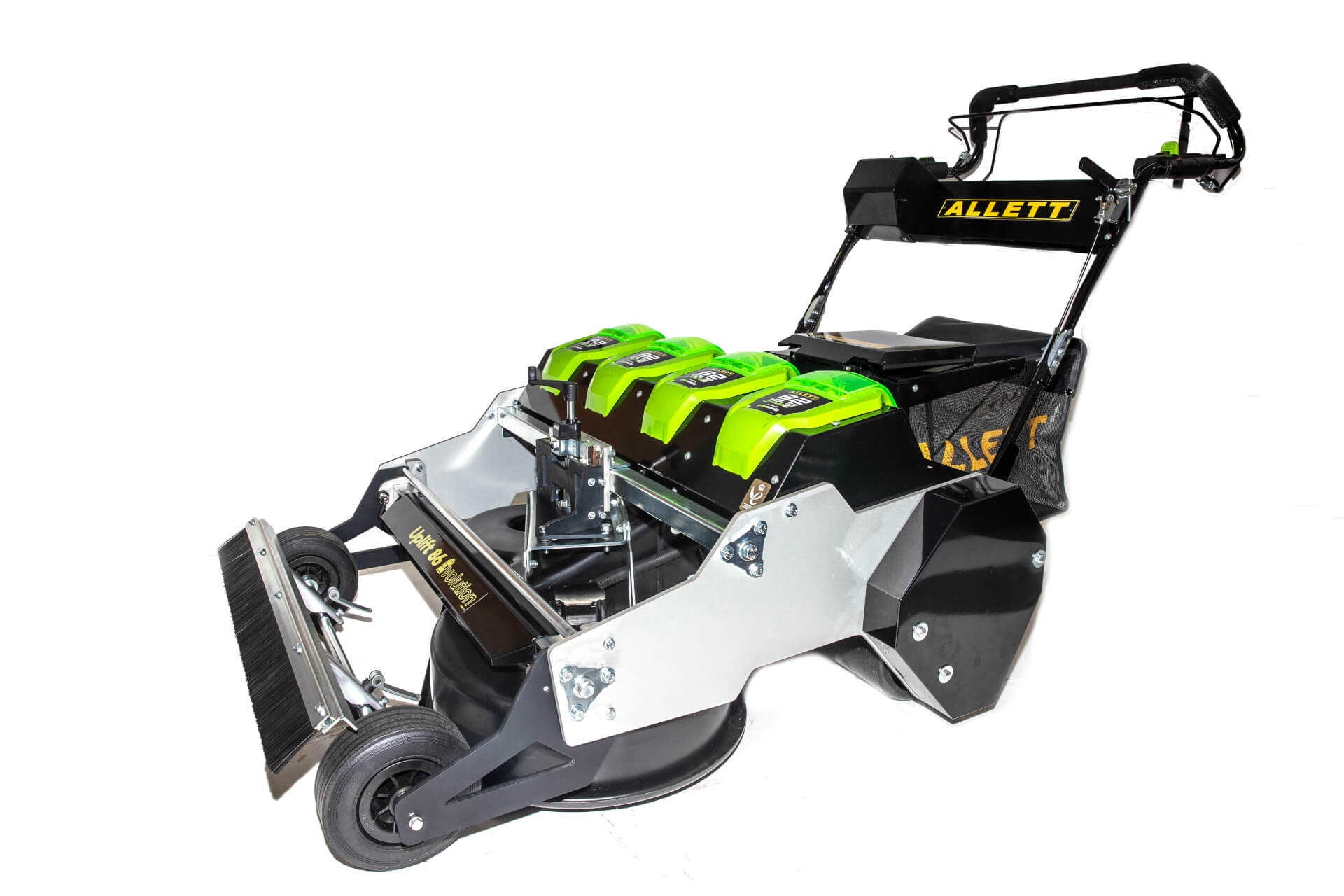

| Optional accessories | Fixed Front Rake, Front Roller Kit, Front Brush. |
Behind the Uplift
Variable speed for operator comfort
Powered by 4x 82V 8Ah Lithium Ion batteries the Uplift 86 Evolution boasts step-less variable forward speeds allowing a comfortable walking speed making it simple and easy to use in intricate areas.
A greener, quieter alternative
The machine offers a height

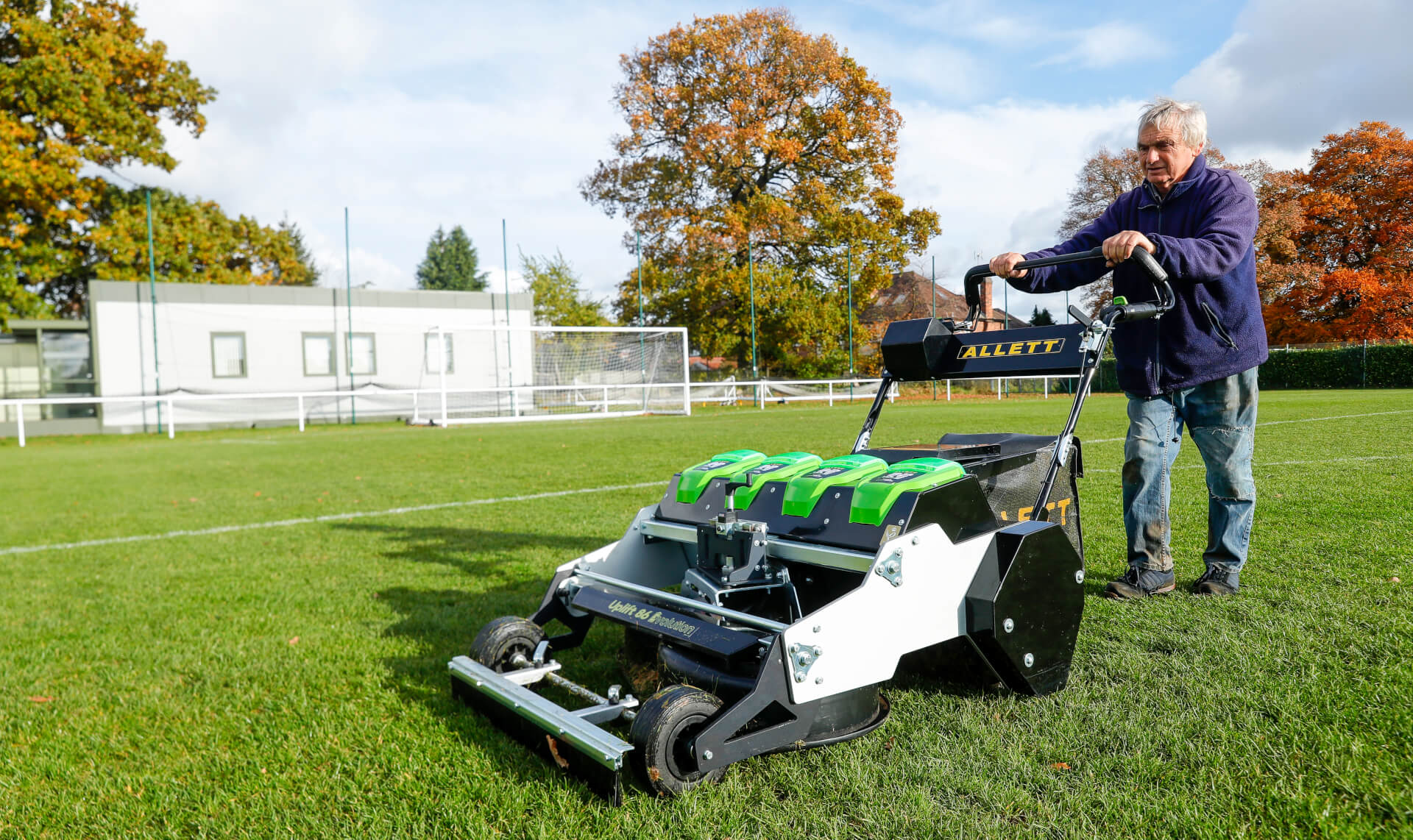

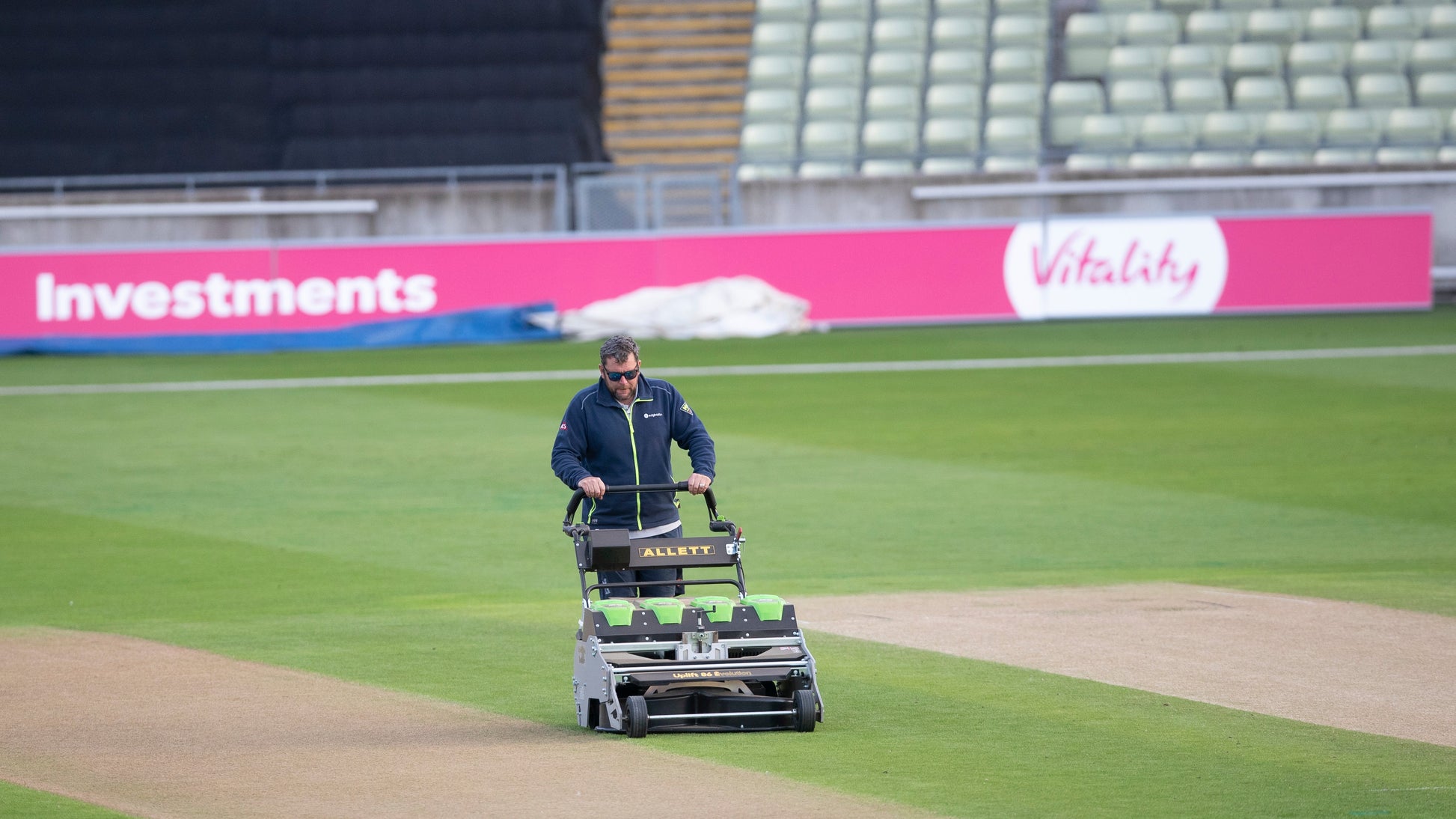

of cut range from 20-75mm and a greener, quieter alternative to help keep your sports pitch perfectly striped and in pristine condition.
Safe prolonged usage

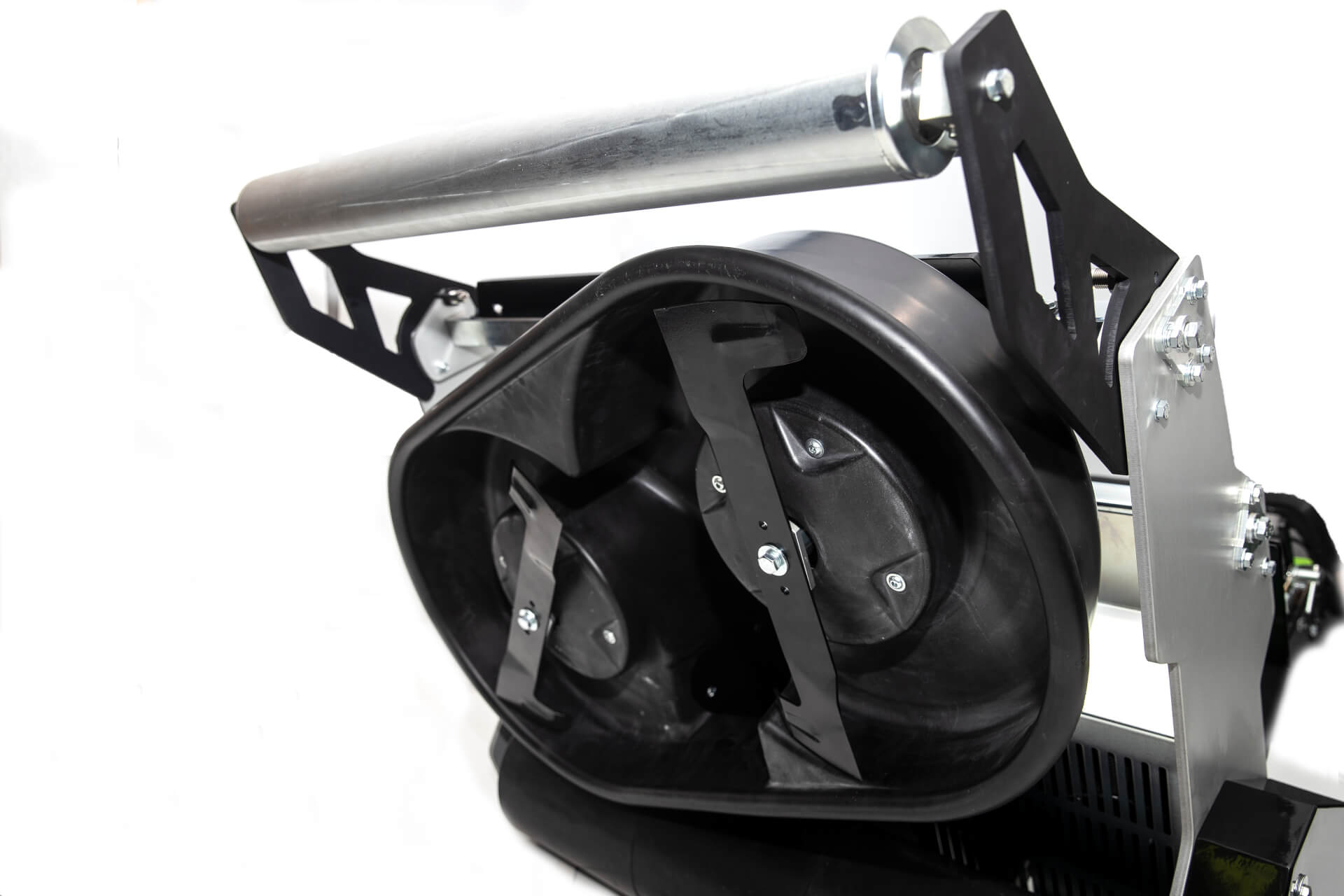

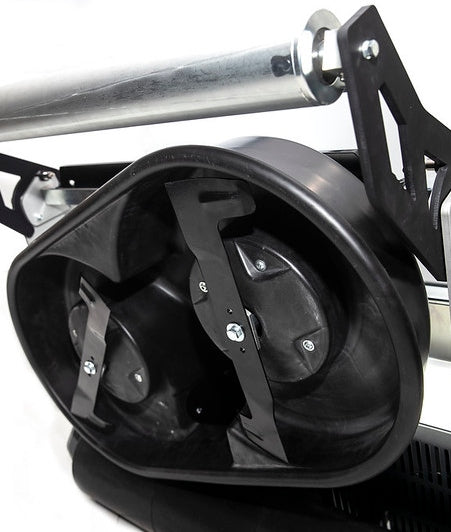

The Uplift 86 Evolution boasts contra-rotating high lift blades and a wide chute for efficient collection. Hand-arm vibration levels are low allowing safe prolonged usage.

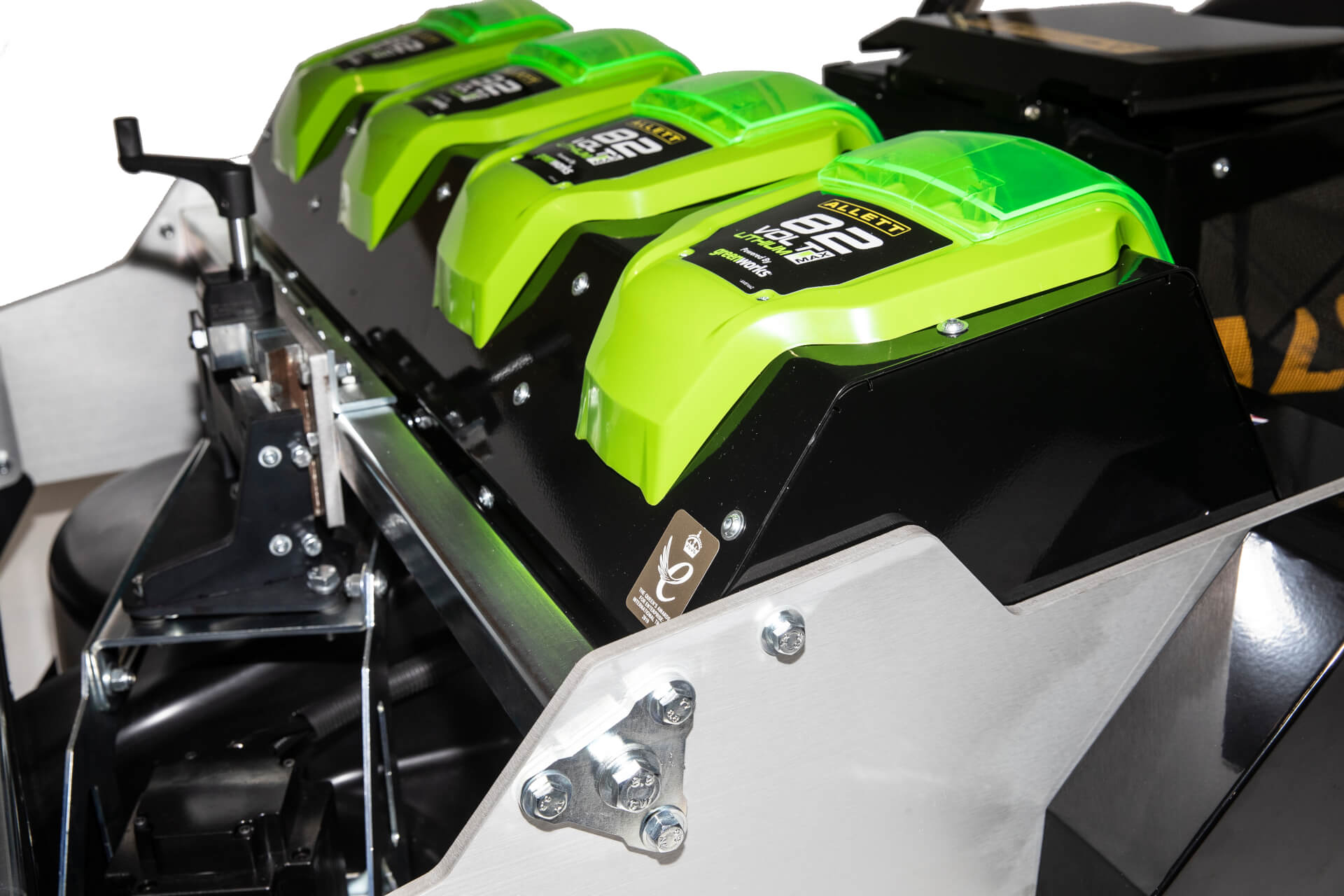

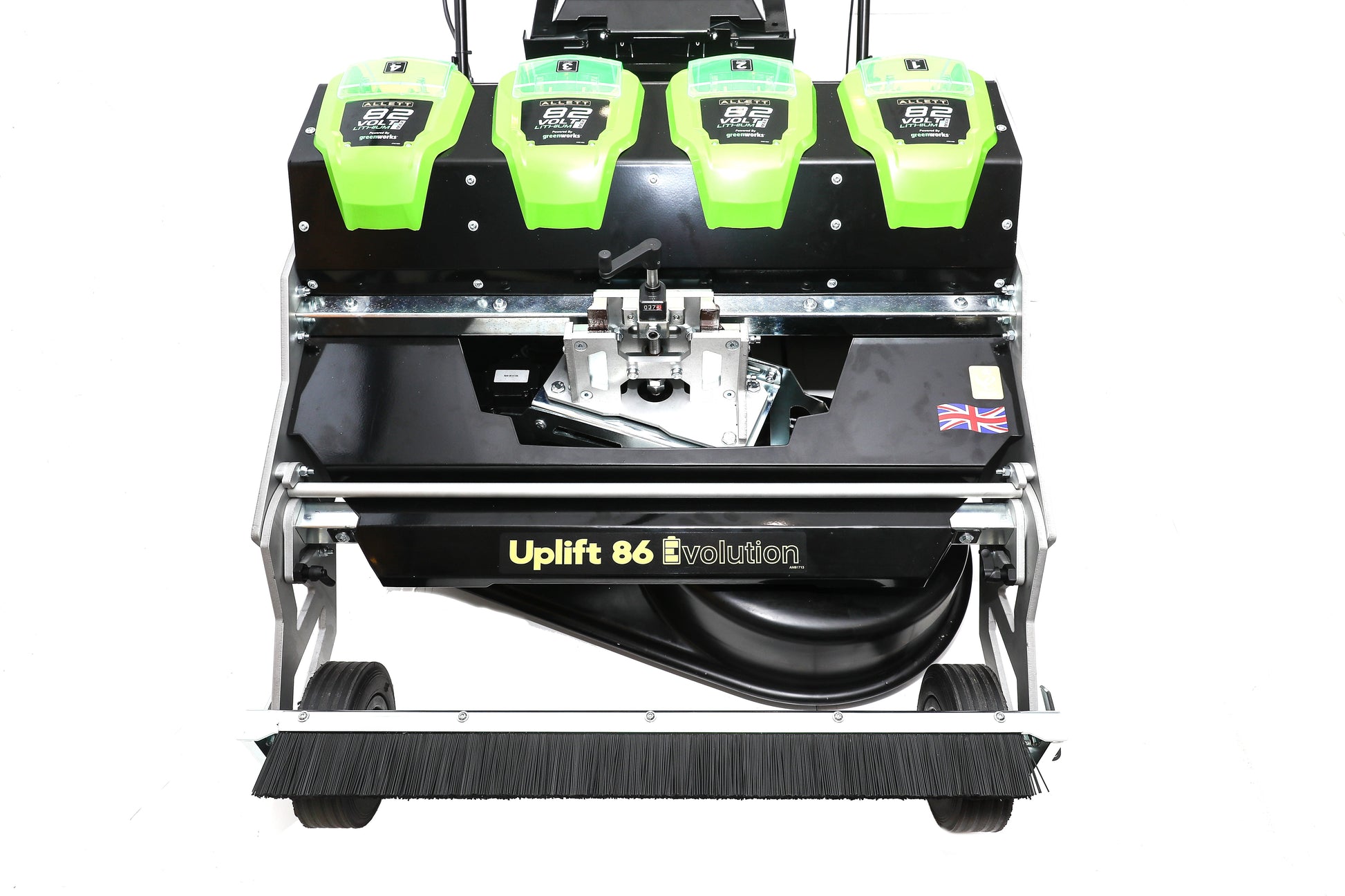

Interchangeable battery system
Interchangeable batteries can also be used in the Allett C34Evolution and other battery products. Batteries connect to phone app via bluetooth enabling the operator to check battery life, battery temperature and even the batteries location.

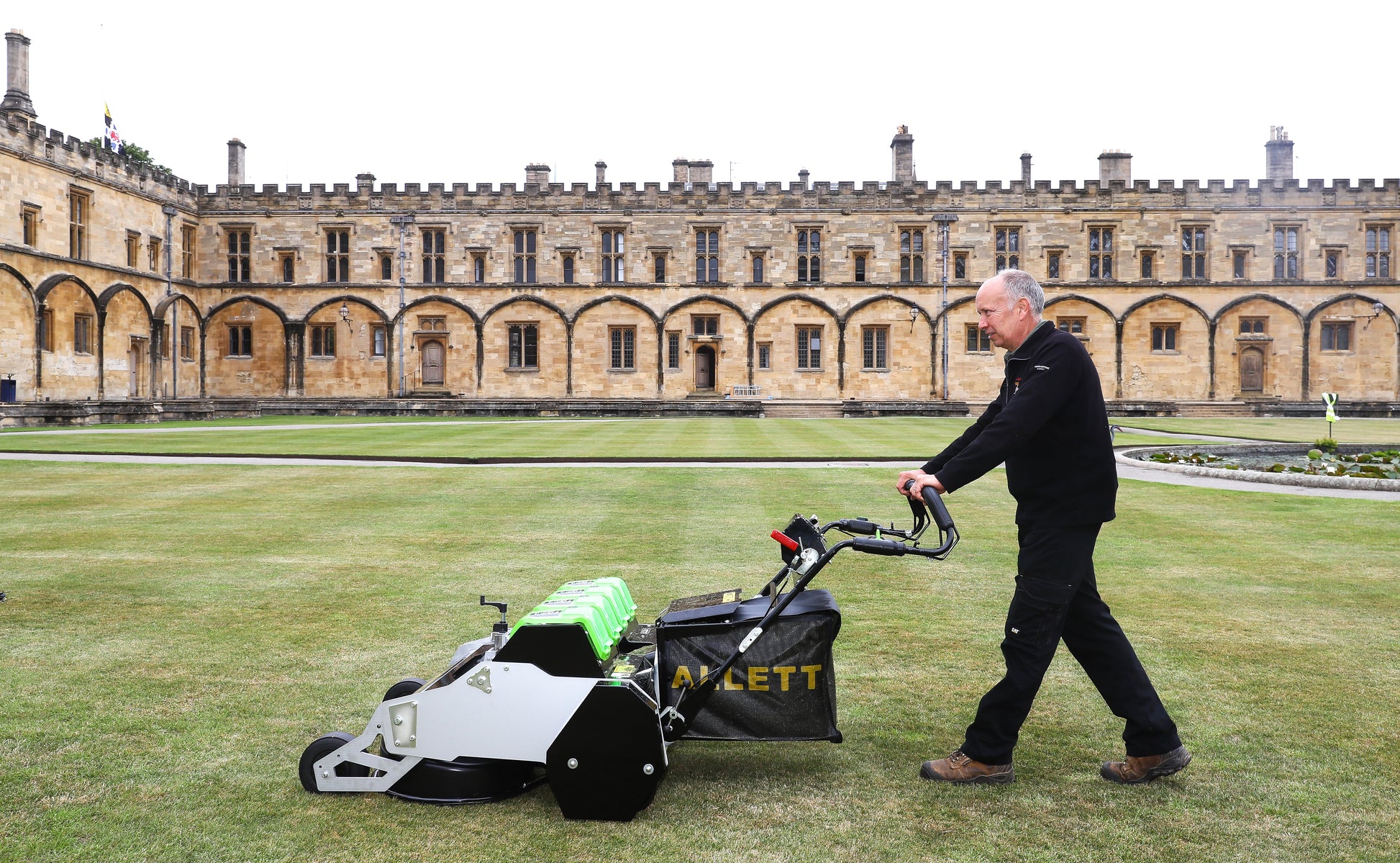

Uplift Owner Stories
Uplift Accessories
-

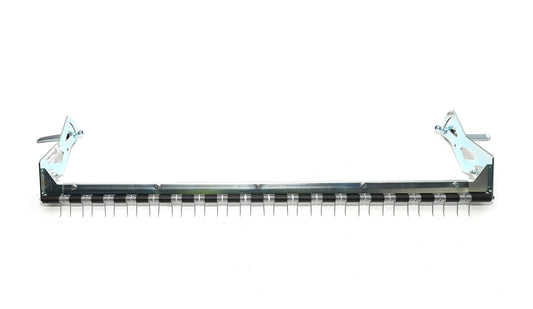

Allett Uplift 86E Fixed Front Rake Kit
Regular price £814.80Regular priceUnit price per -

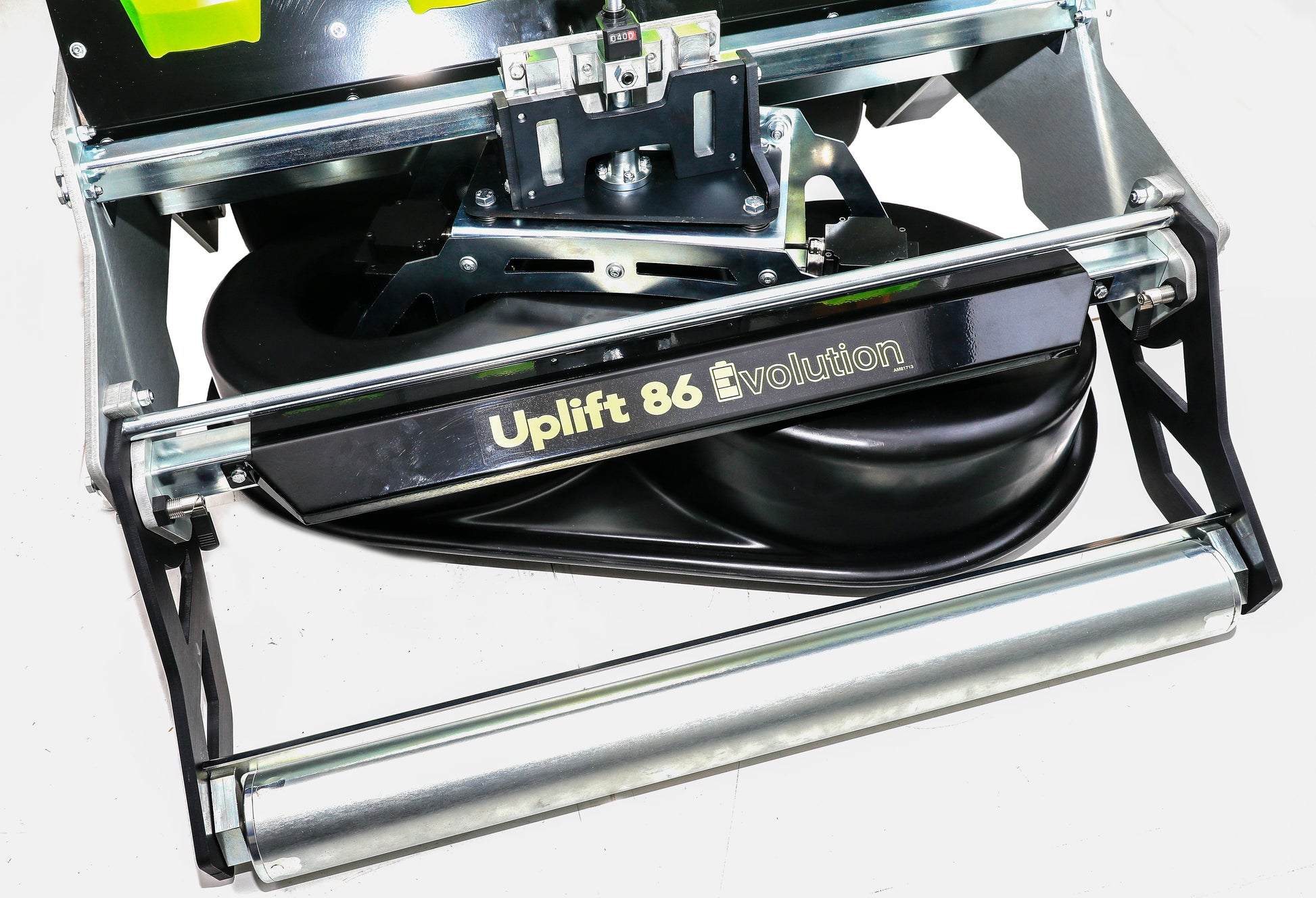

Allett Uplift86E Front Roller Kit (UP86ER)
Regular price £957.60Regular priceUnit price per -

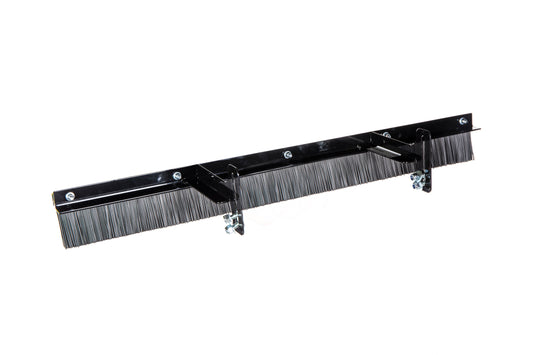

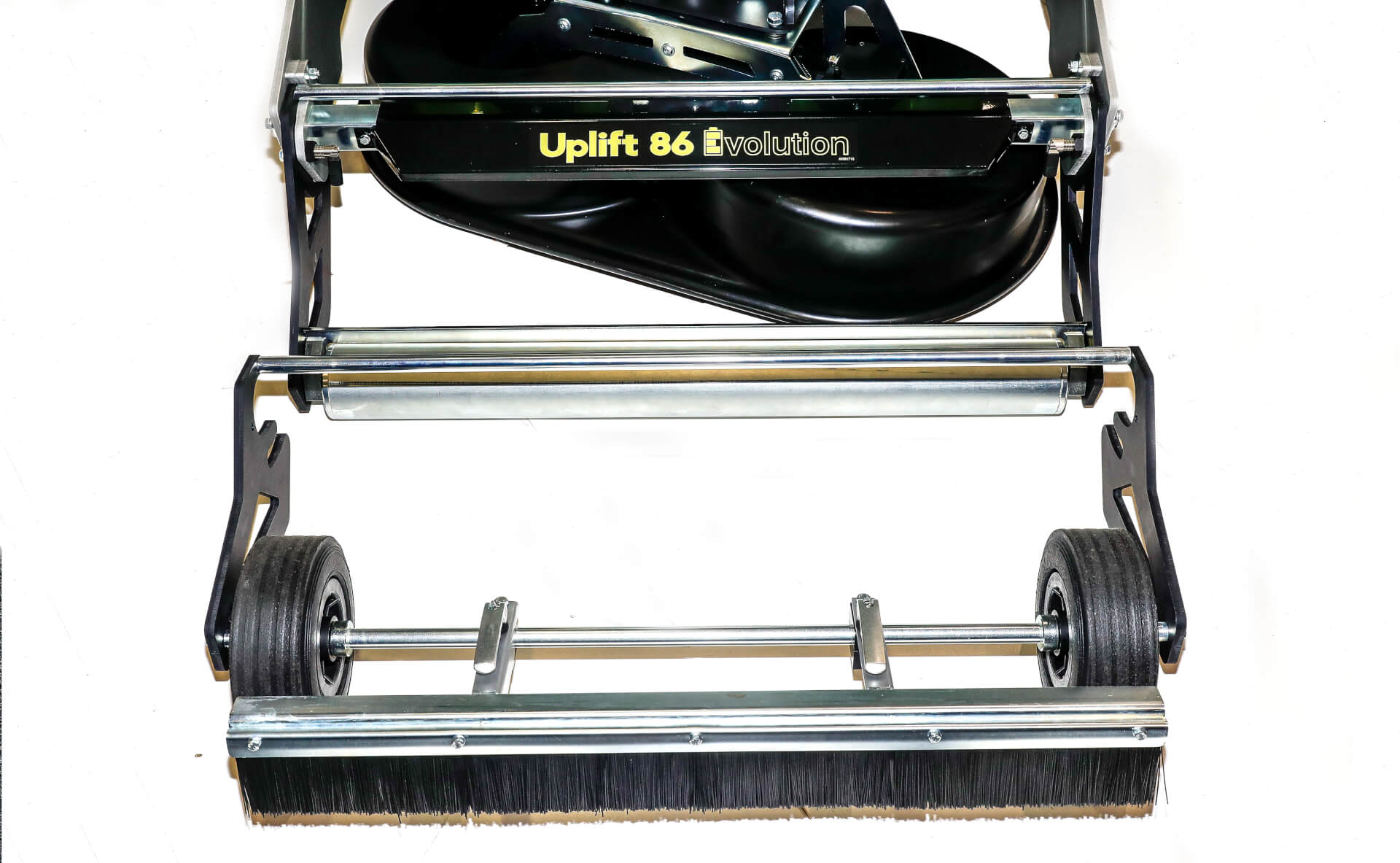

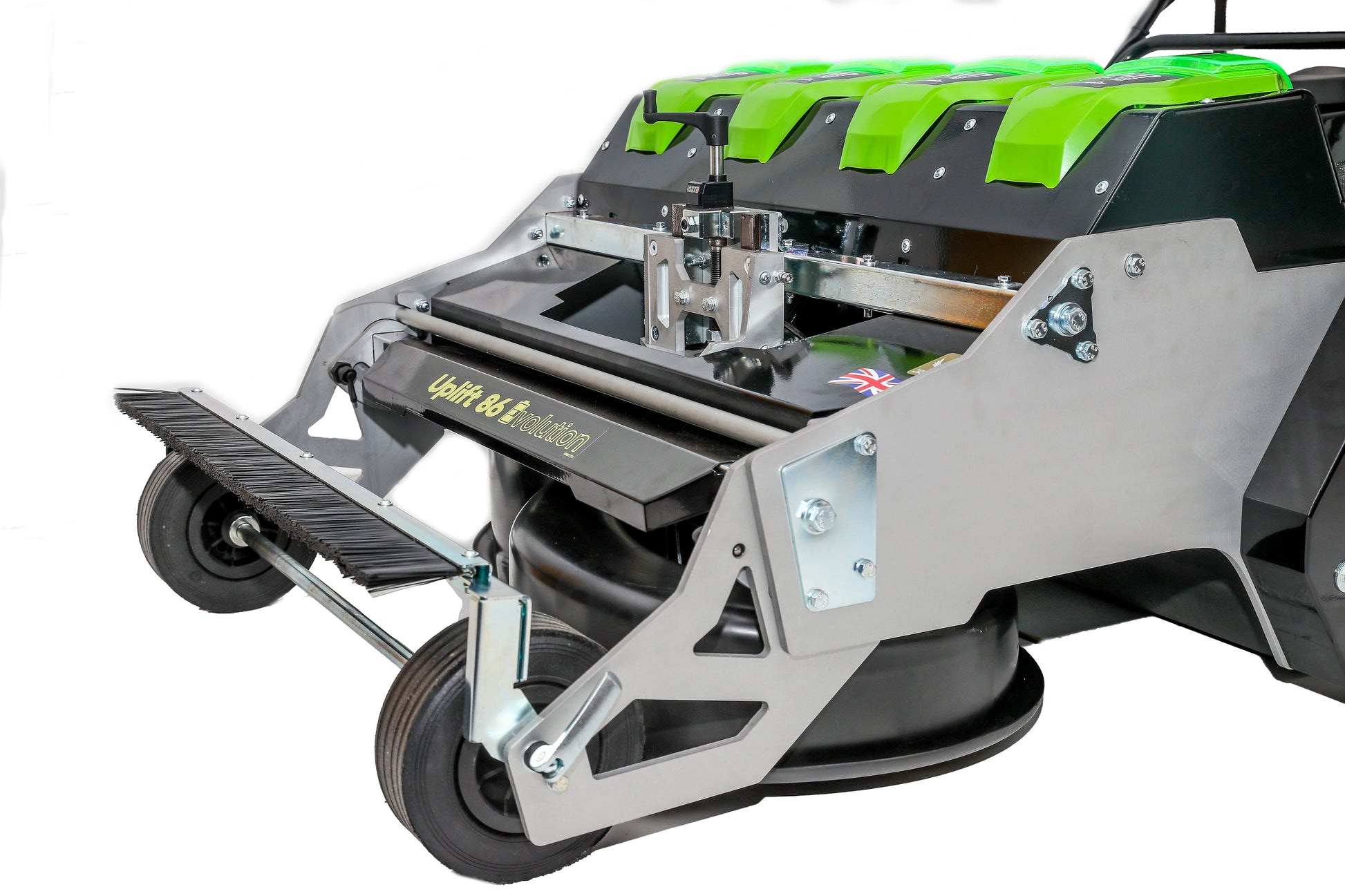

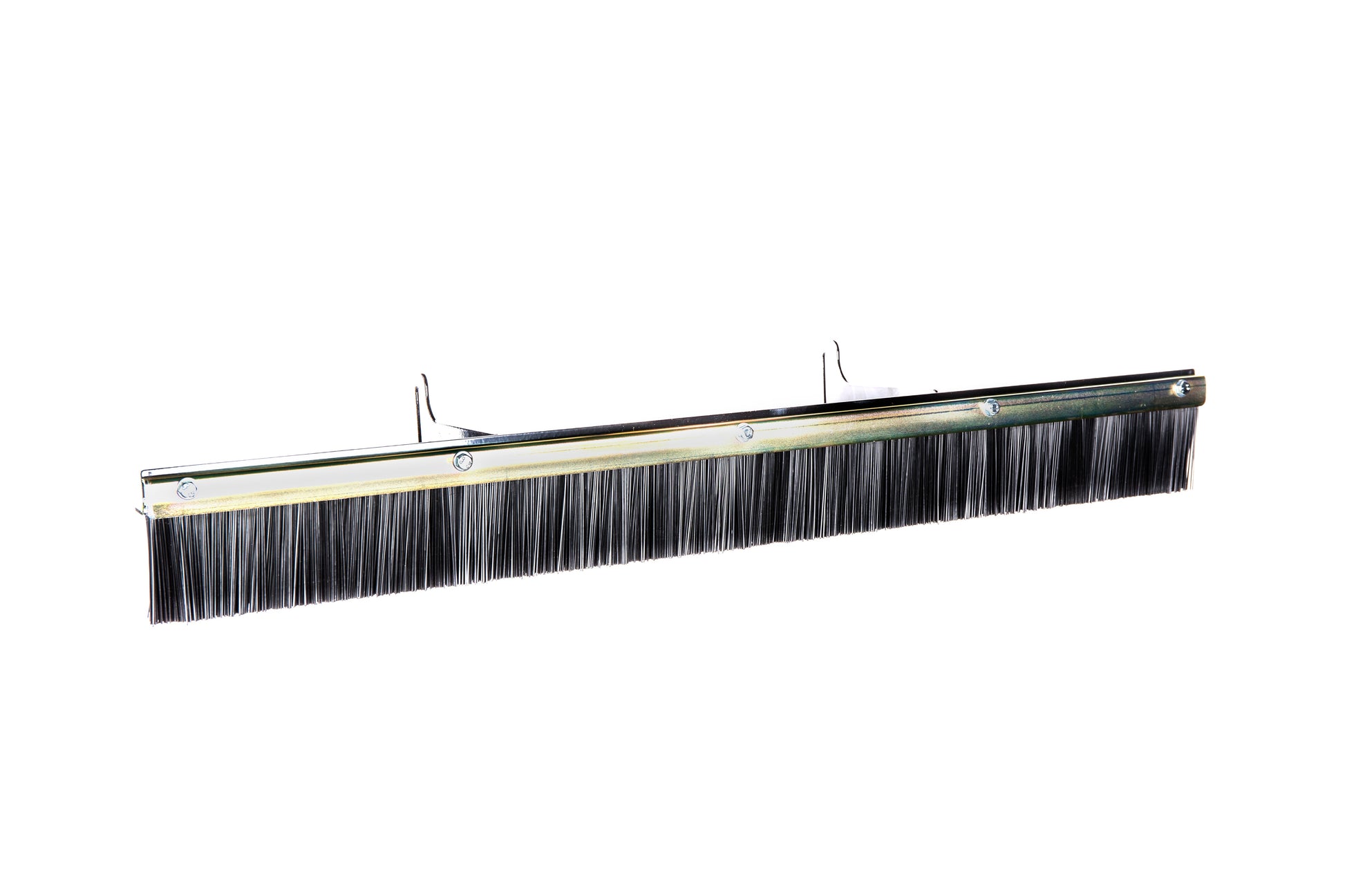

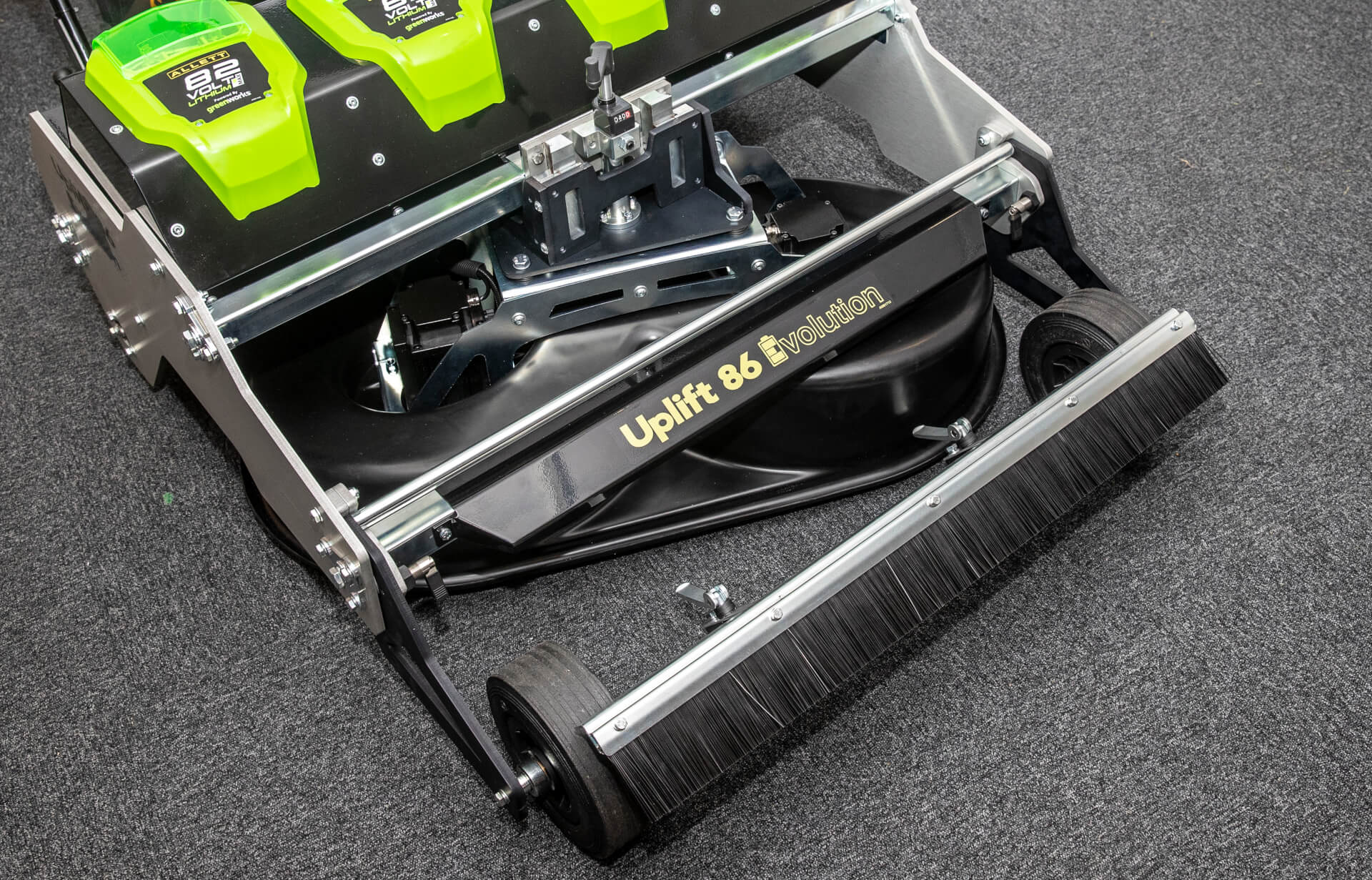

Allett Uplift 86E Front Brush (UP86EB)
Regular price £553.80Regular priceUnit price per
Want to try the Uplift 86E?
If you would like to see this mower in action and try it for yourself, we can arrange for you and your groundscare team to have a no-obligations demonstration at your club or institution.
