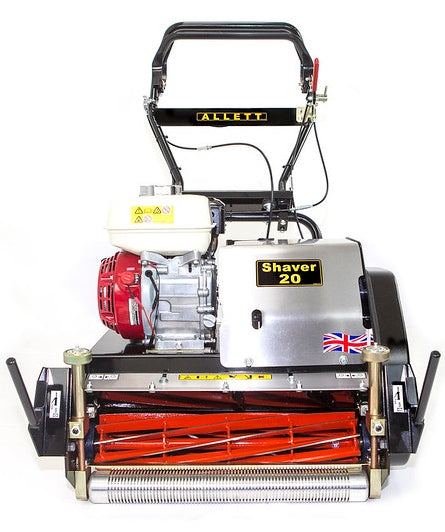

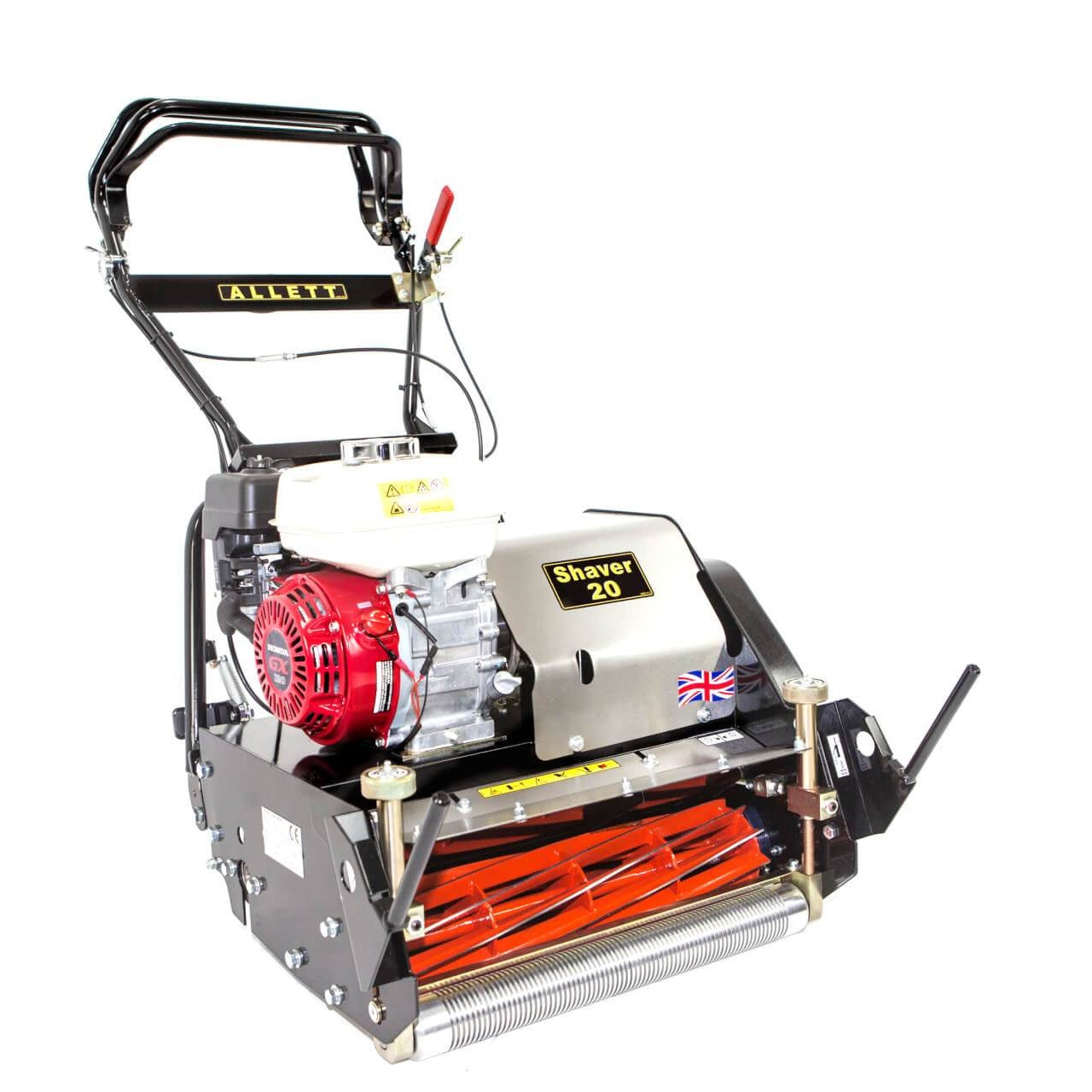

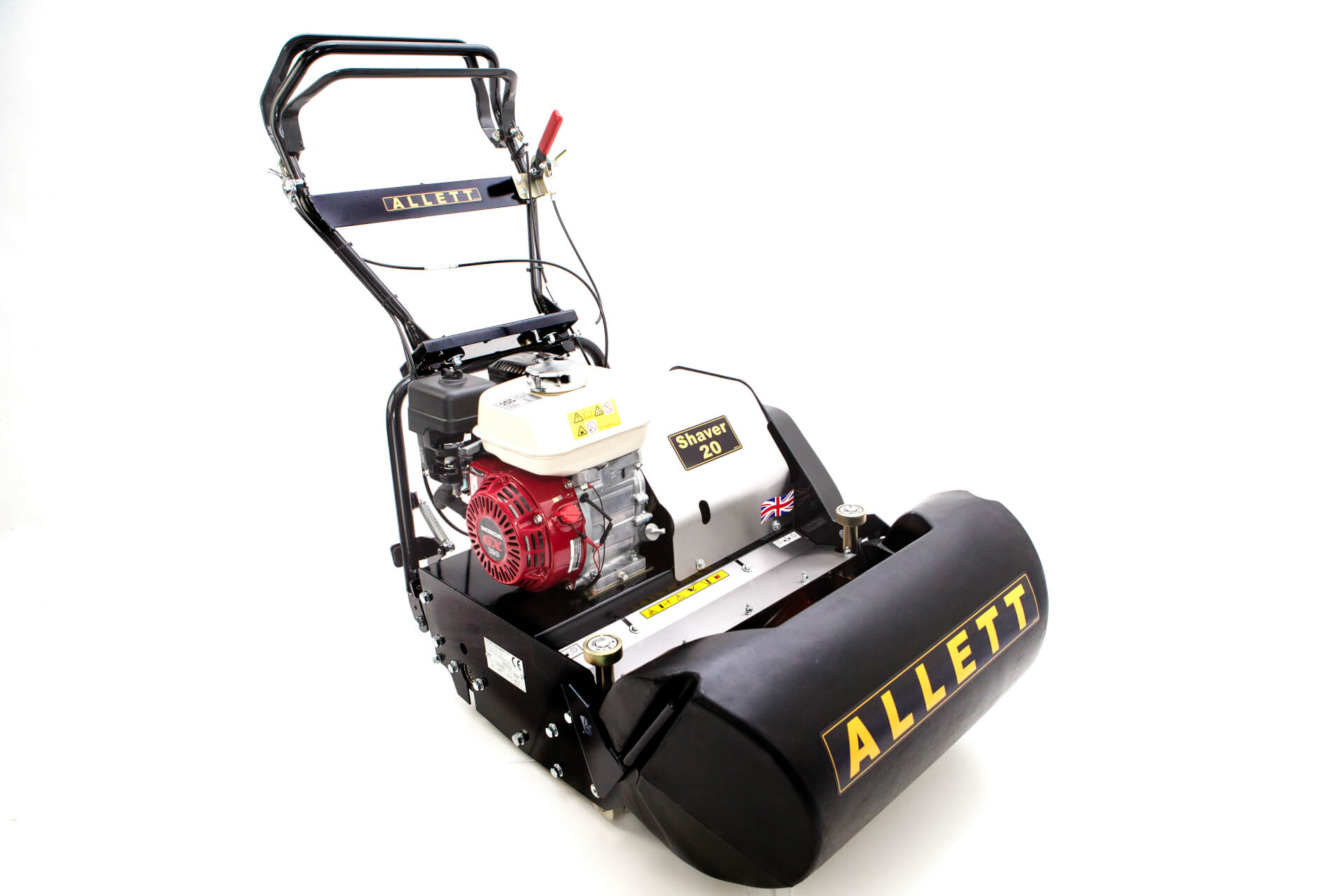

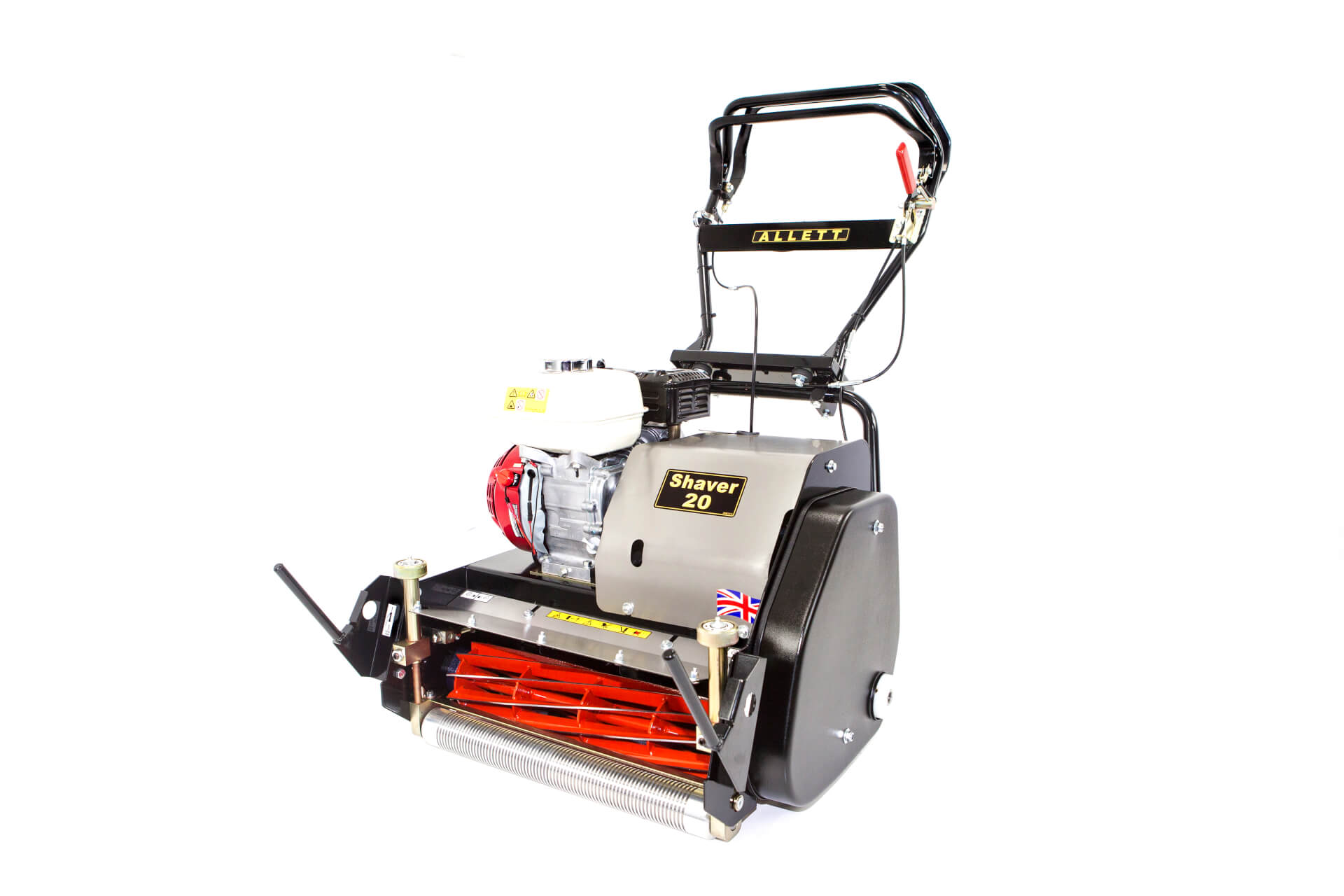

SHAVER
20
Fine Turf Precision Cylinder Mower.
Book Demo • Specialist Advice • Delivered By Local Dealer

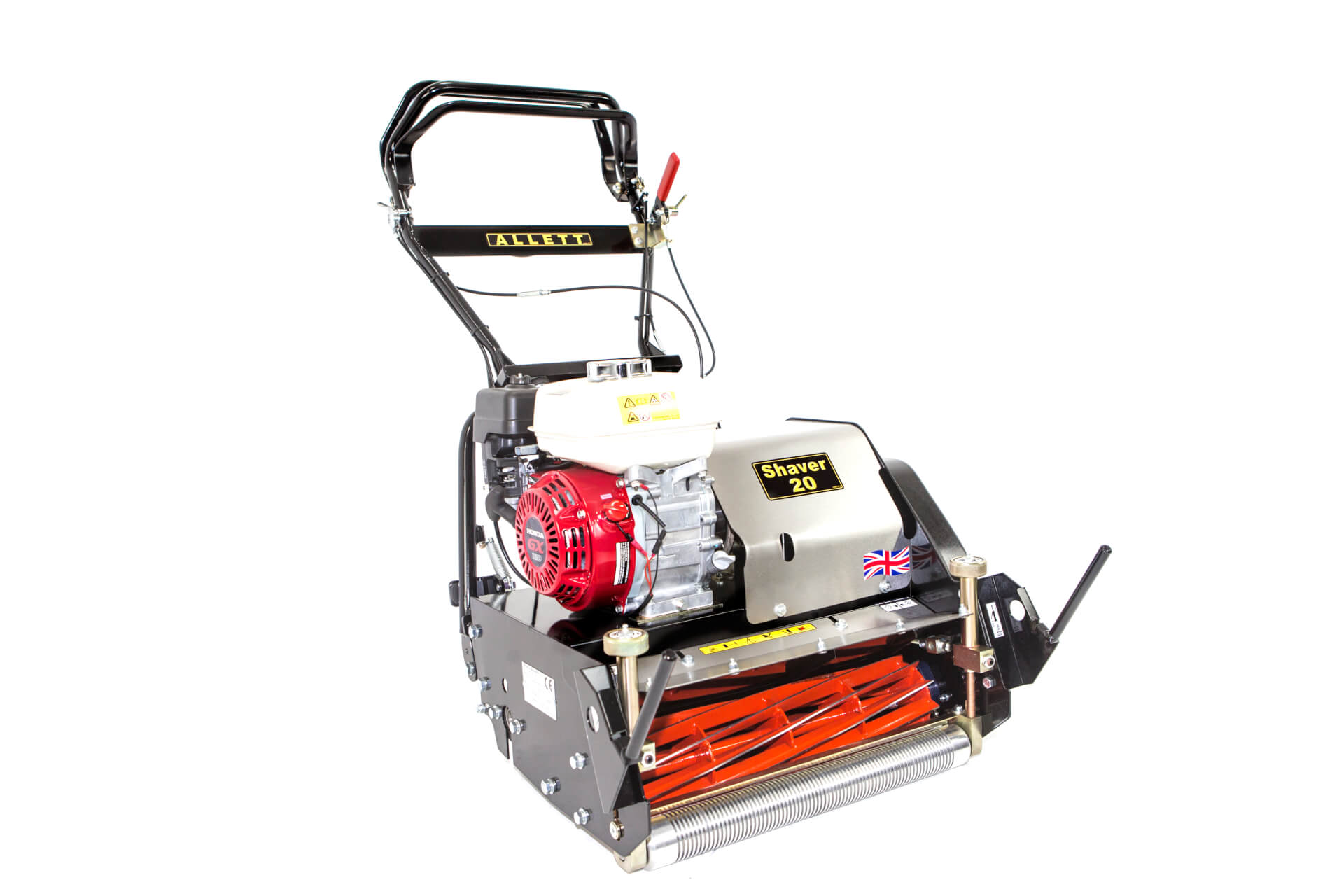

Shaver 20 Technical Data
| SHAVER 20 | |
|---|---|
| Working width | 510mm (20in) |
| Overall width | 686mm (27in) / 902mm* (35.5in) |

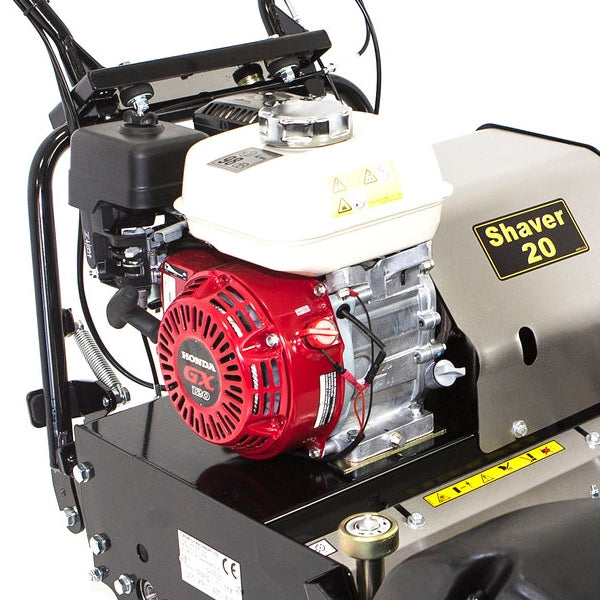

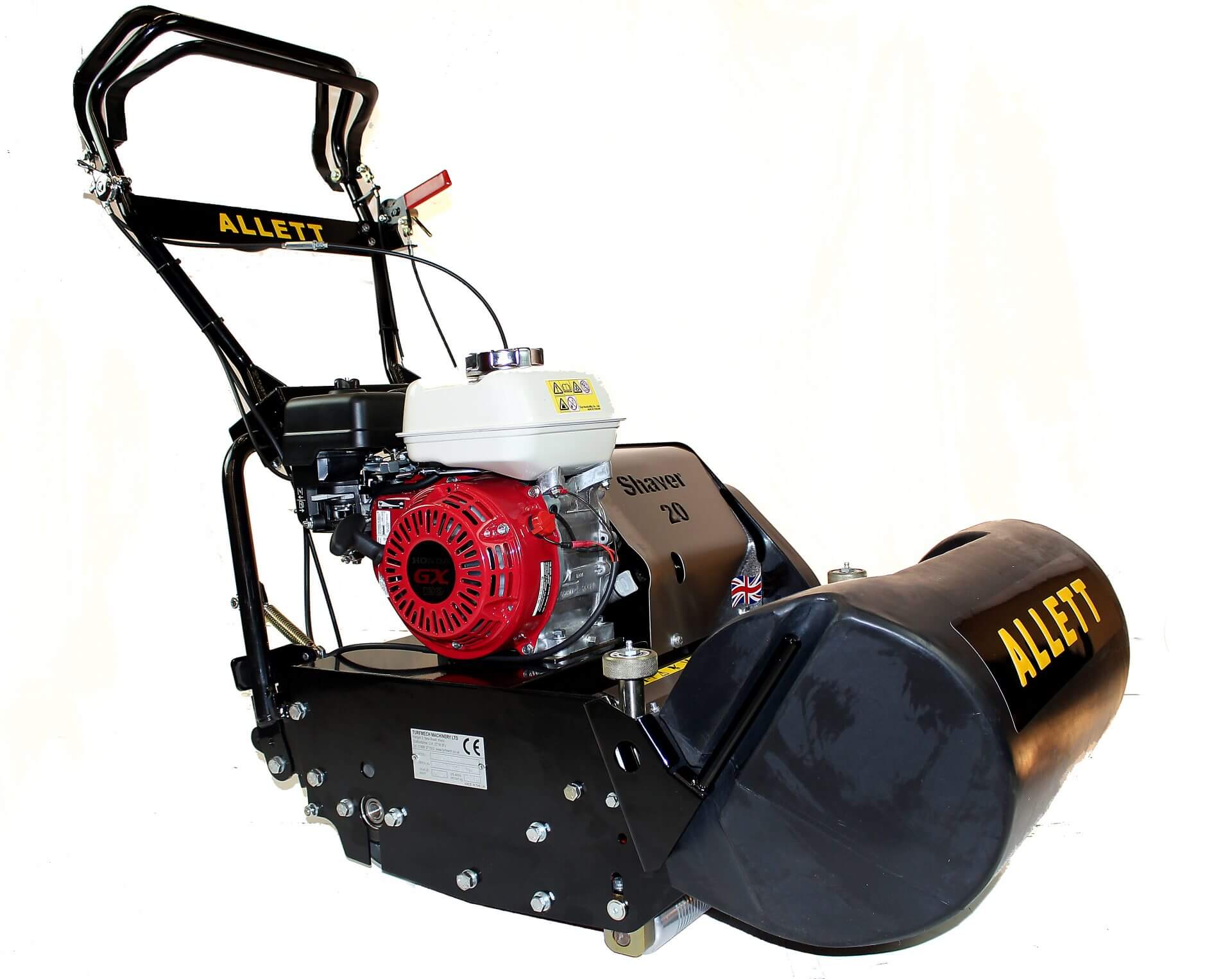

| Power Source | Honda GX120 |
| Power output (net) | 2.6kW (3.5hp) @ 3,600 rpm |
| Cutting cylinder | 120mm (4.7in) diameter equipped with 10 blades. All-welded construction. |
| Bottom blade | 2.4mm (0.1in) as standard. 4mm (0.16in) bottom blade available on request |

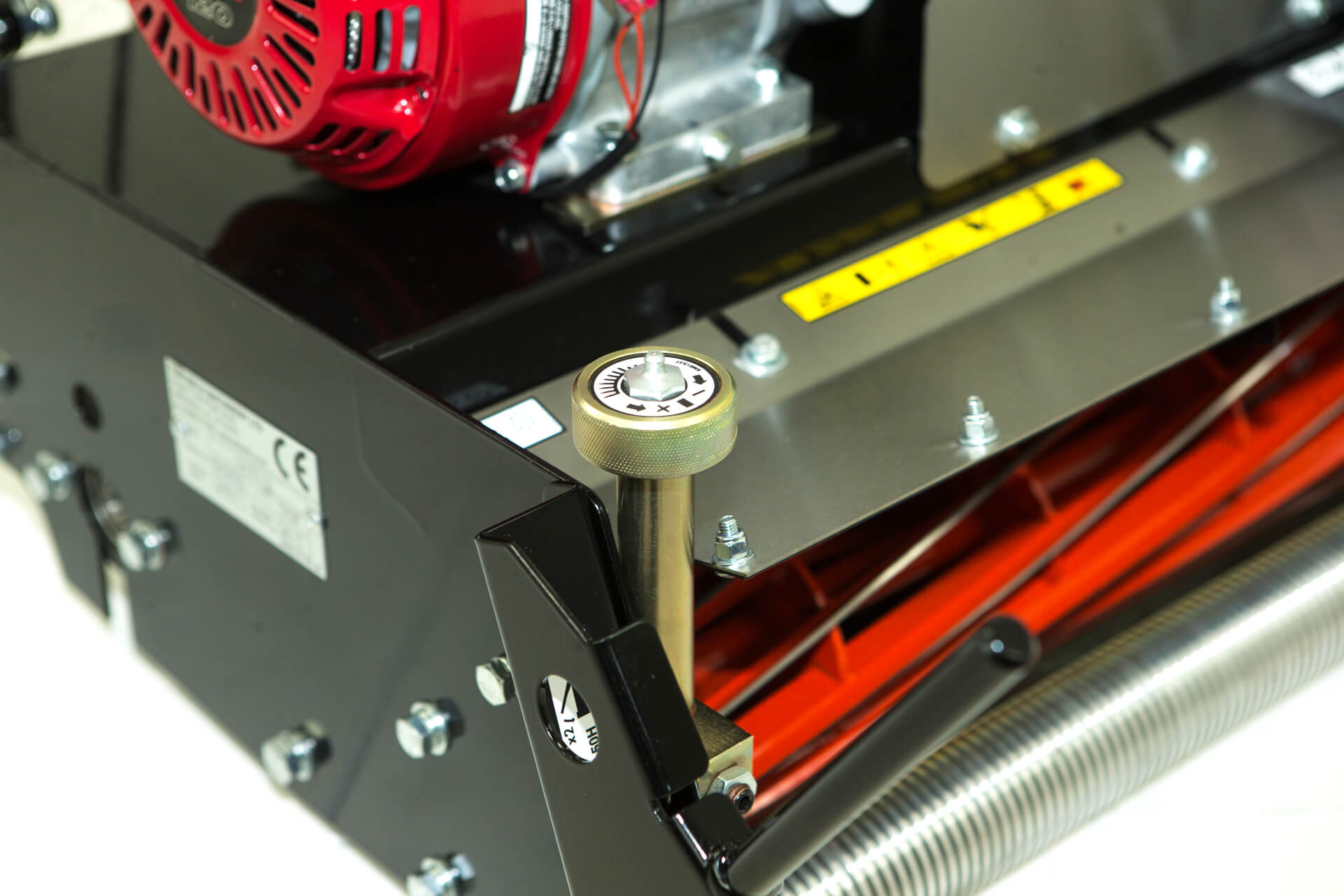

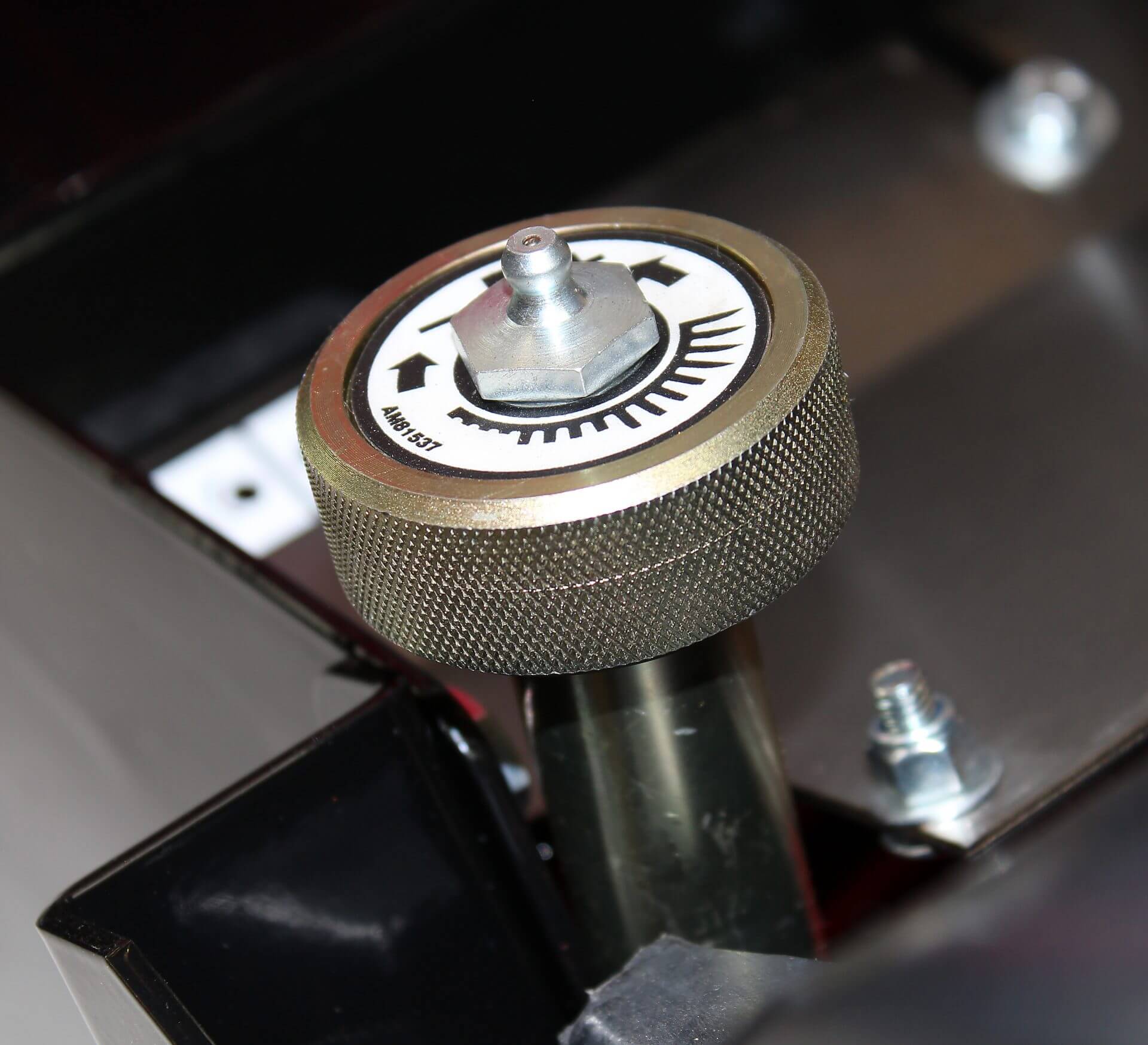

| Height of cut | Hand adjustable from 2.4mm-19mm (0.1in-0.75in) |
| Clip rate | 217 clips/metre (198 clips/yd) irrespective of forward speed |
| Handlebar | Adjustable with anti-vibration mounting |
| Drive engagement | Handle-mounted lever engaging V belt via cable |
| Cylinder engagement | Handle-mounted lever engaging V belt drive via cable |

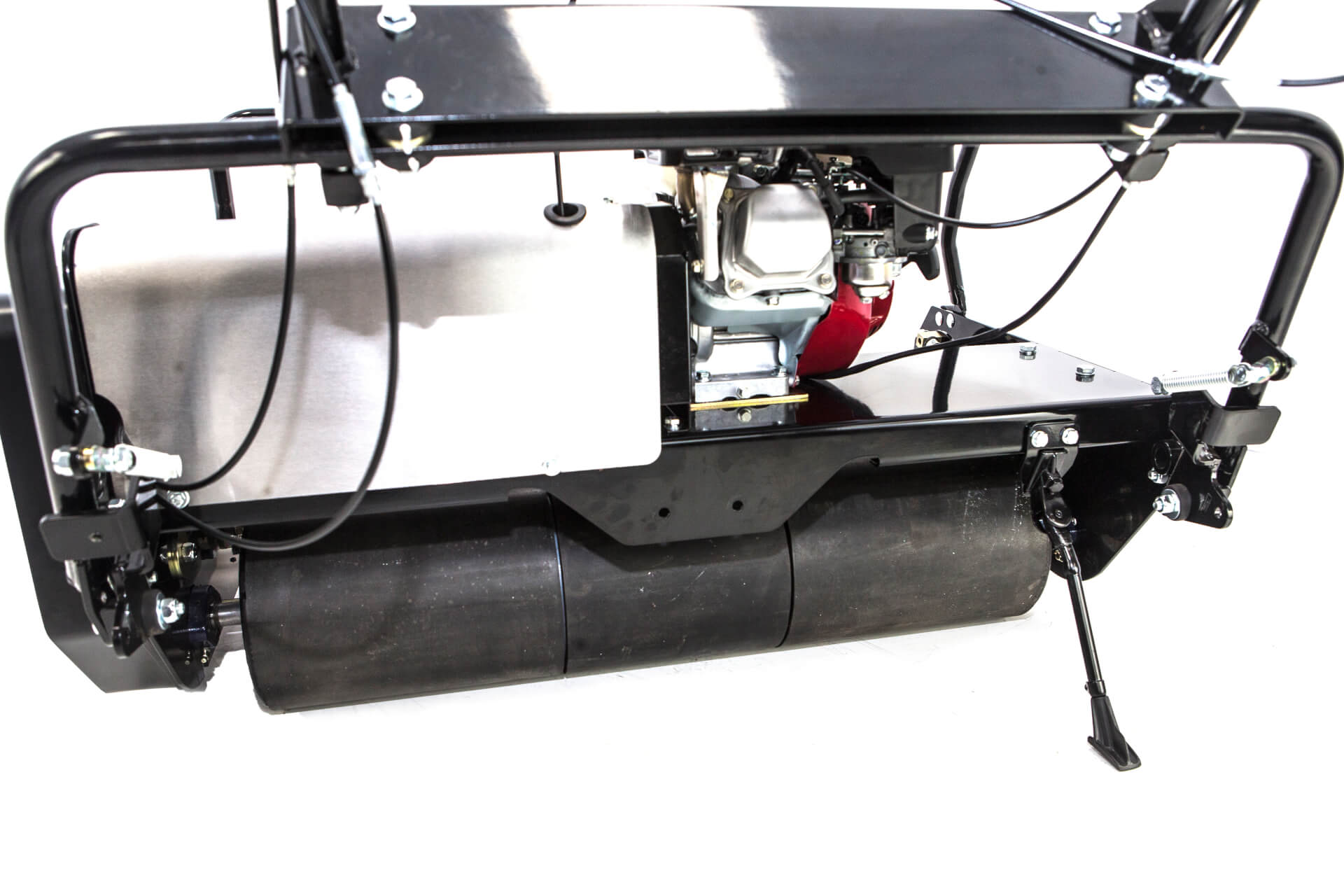

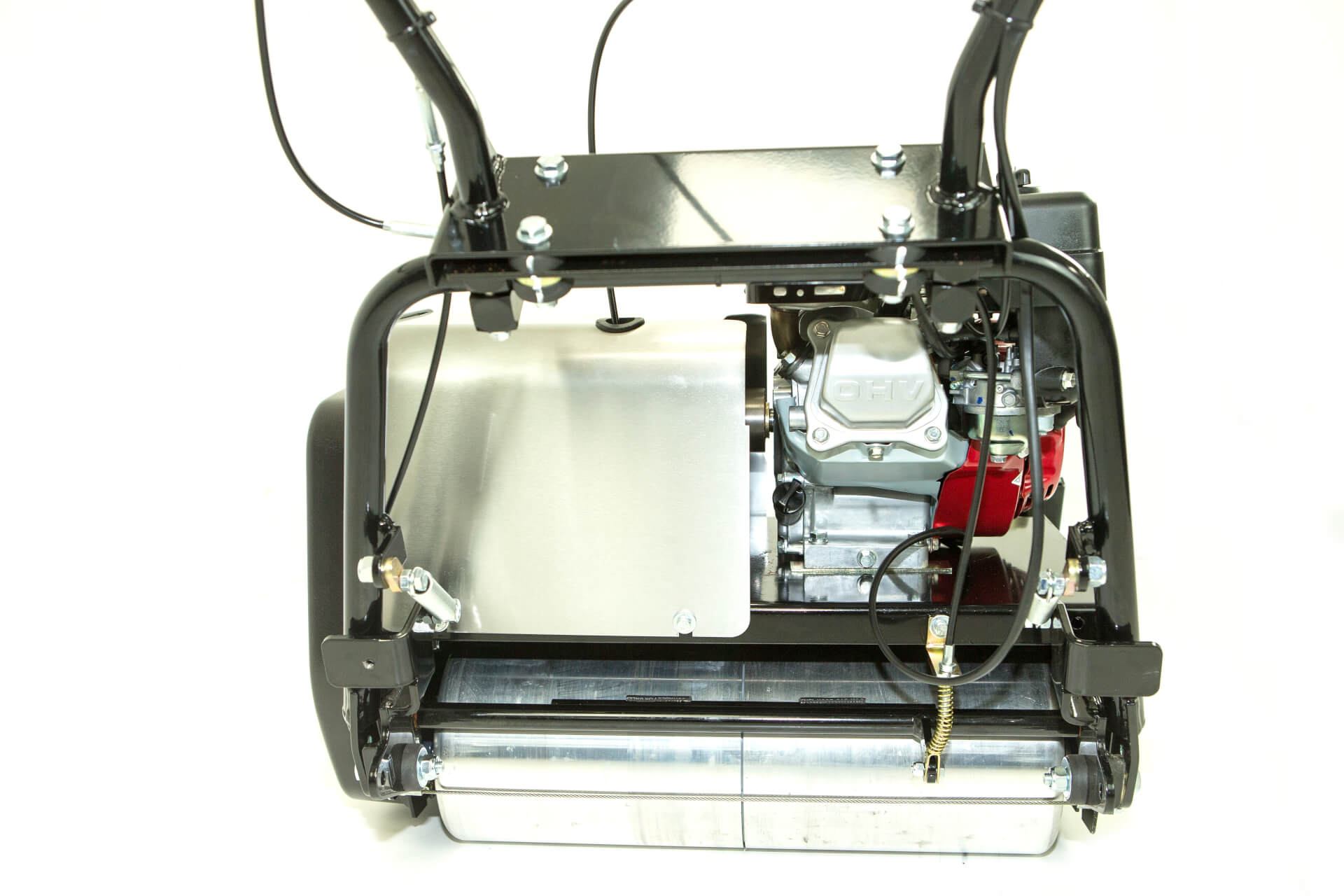

| Rear roller | Two-piece aluminium with steel bevel gear differential |
| Front roller | Grooved aluminium with scraper and sealed end-bearings |

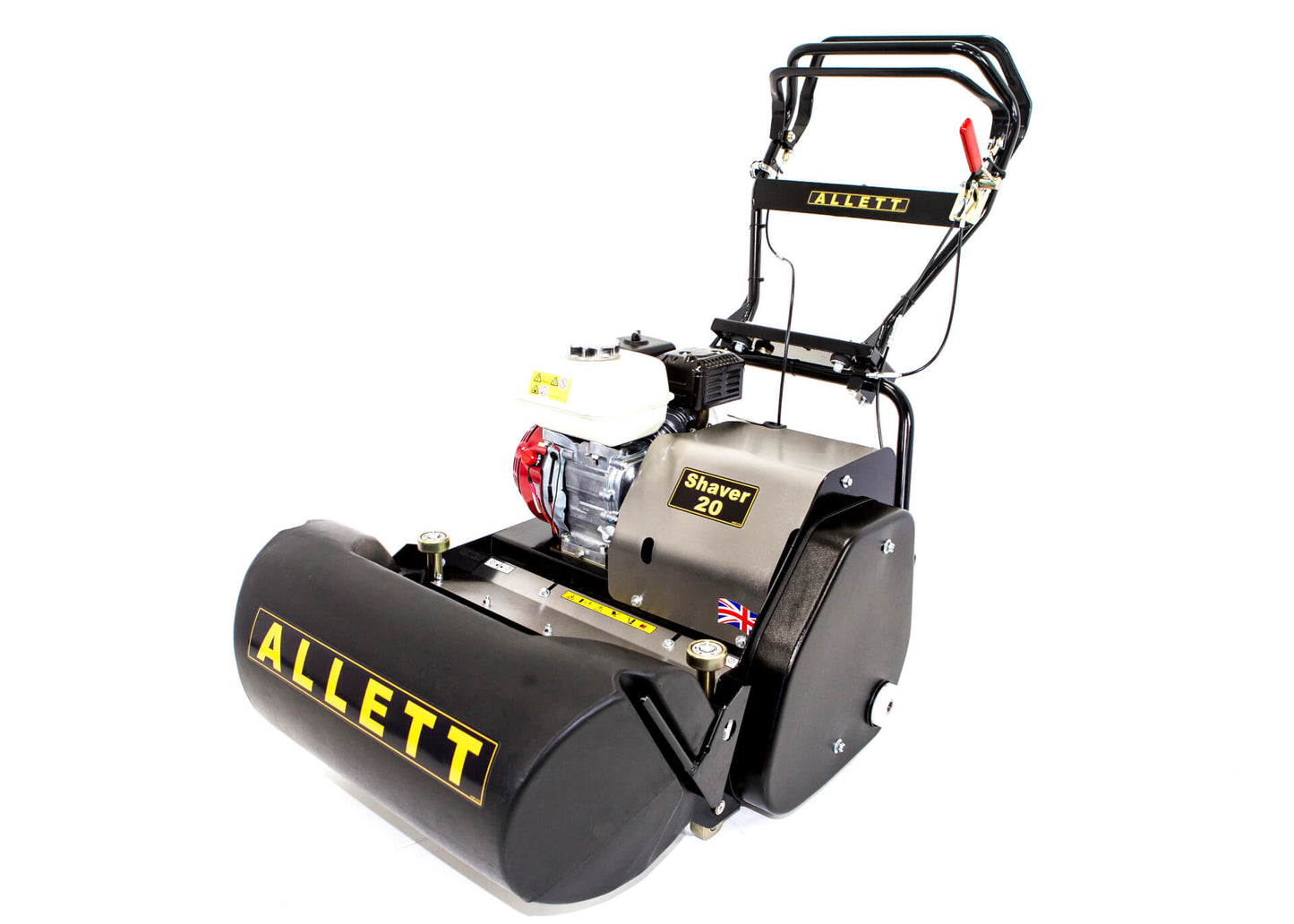

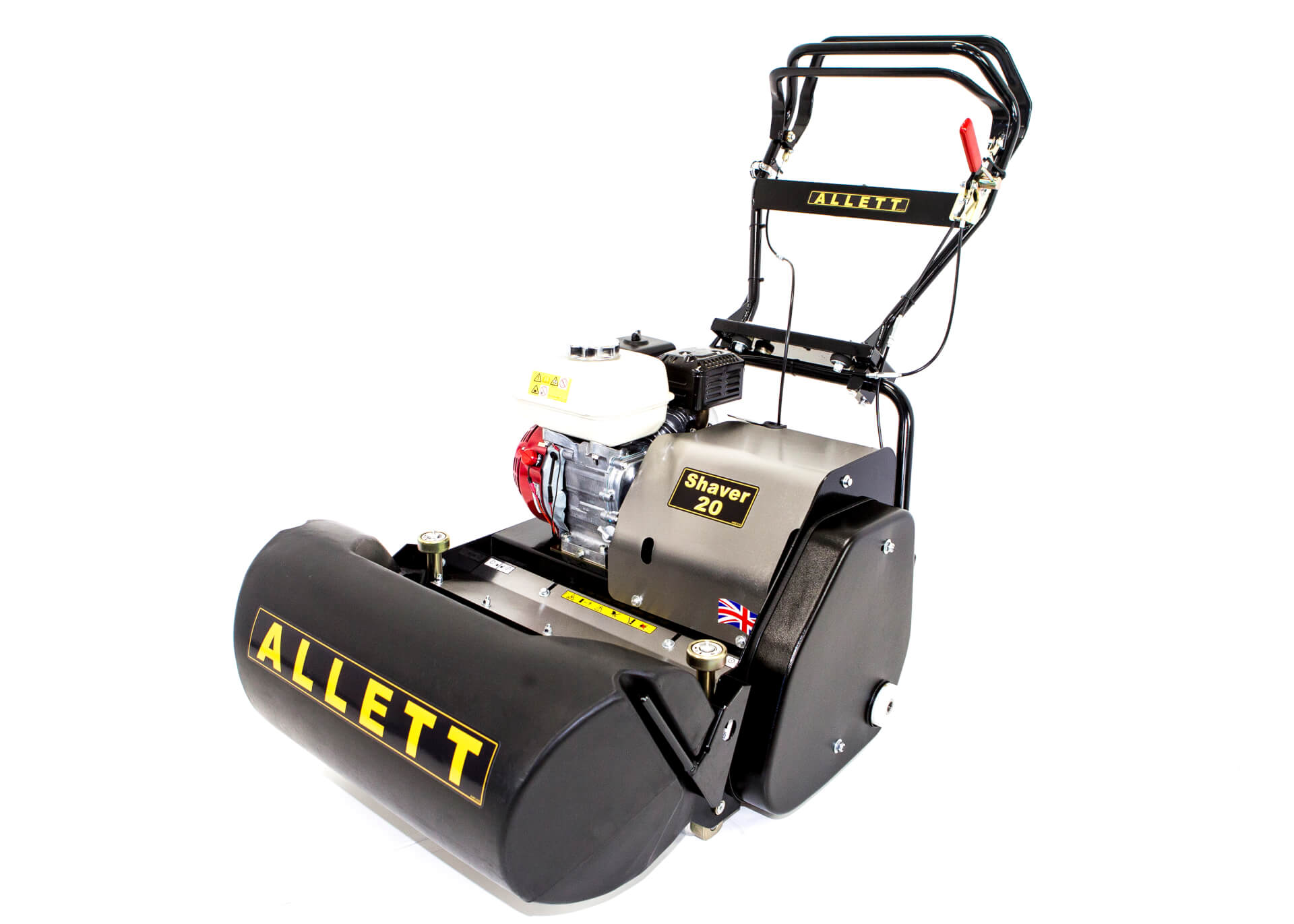

| Grassbox | Moulded plastic with steel reinforcing strip |
| Weight | 81.5kg (180lbs) |
| Overall height | 1,016mm (40in) |
| Overall length | 1,270mm (50in) |
| Optional accessories | Smooth front roller in place of grooved AS064 Transport wheels and stand |
* overall width with optional transport wheels fitted
Behind the Shaver
Anti-vibration mountings
Elegantly balanced to avoid carrying excess weight and handlebar anti-vibration mountings make the Shaver a pleasure to use.
Smooth and easy operation
The Shaver has hand lever controlled independent clutches for the cutting cylinder and the rear roller ensure smooth and easy operation at all times while enhancing turning of the mower at the end of a run.
Low fuel consumption
Engineered to operate effectively at low engine speeds the Shaver delivers low fuel consumption, noise levels and vibration. This is the perfect machine for cricket wickets, golf and bowling greens.

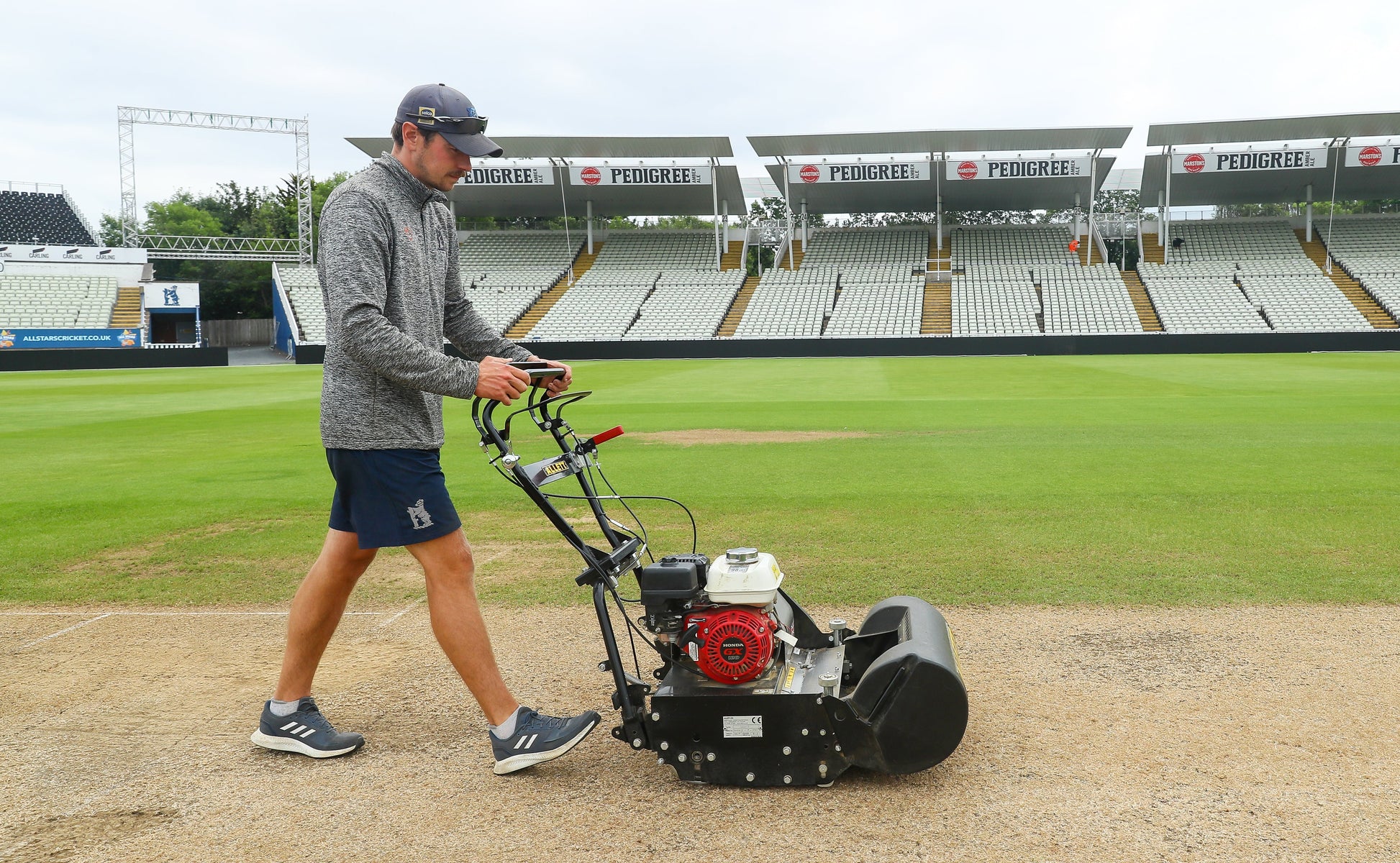

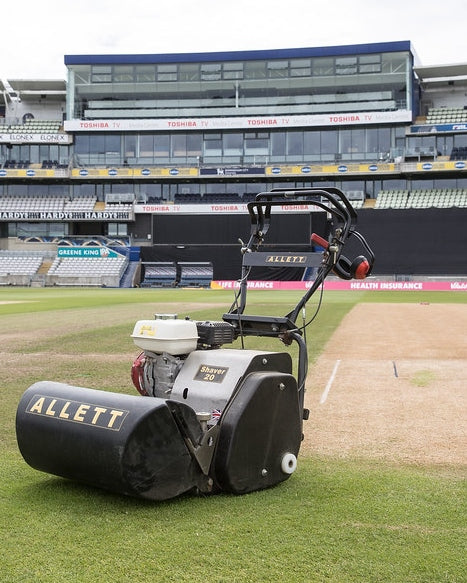

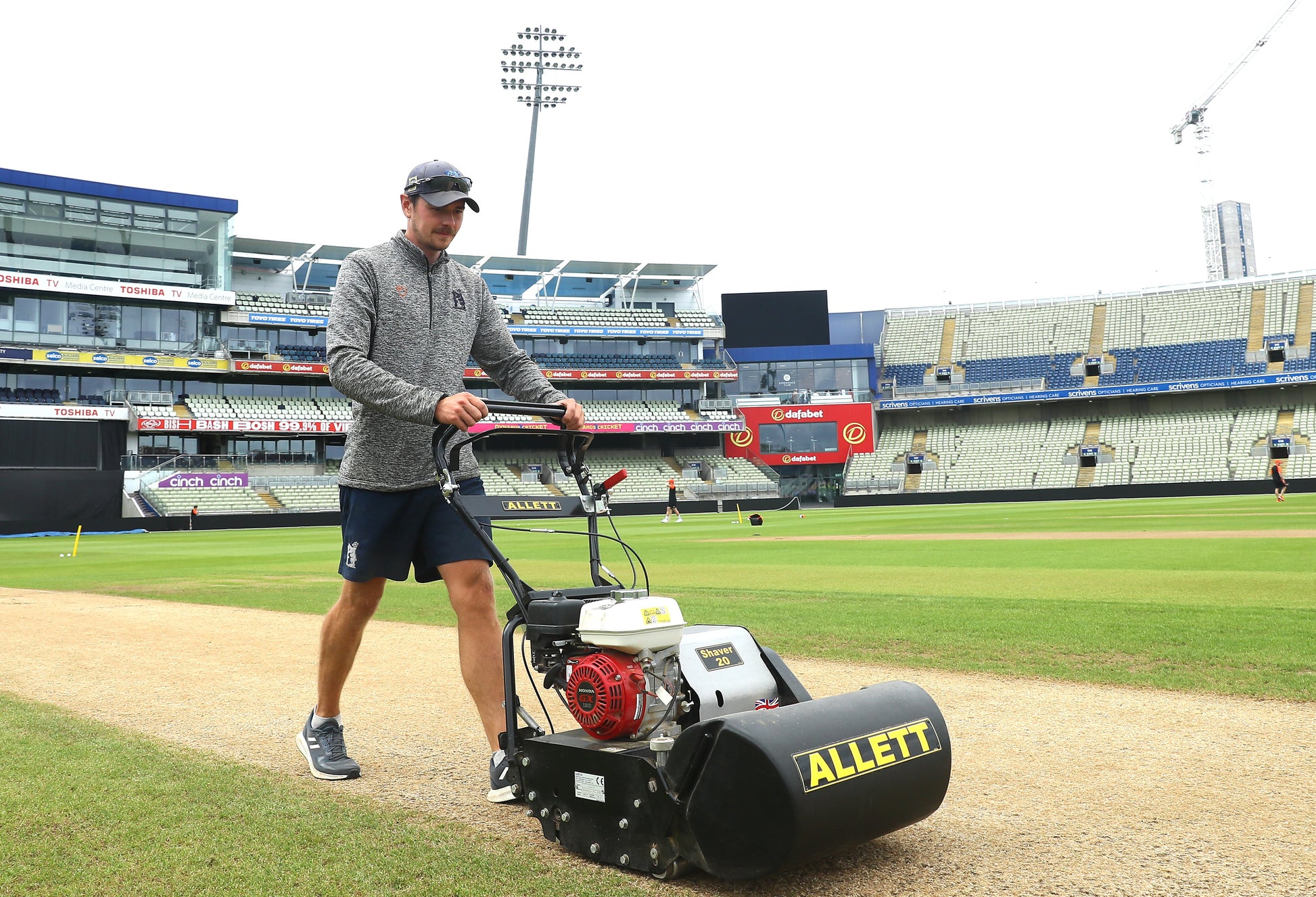

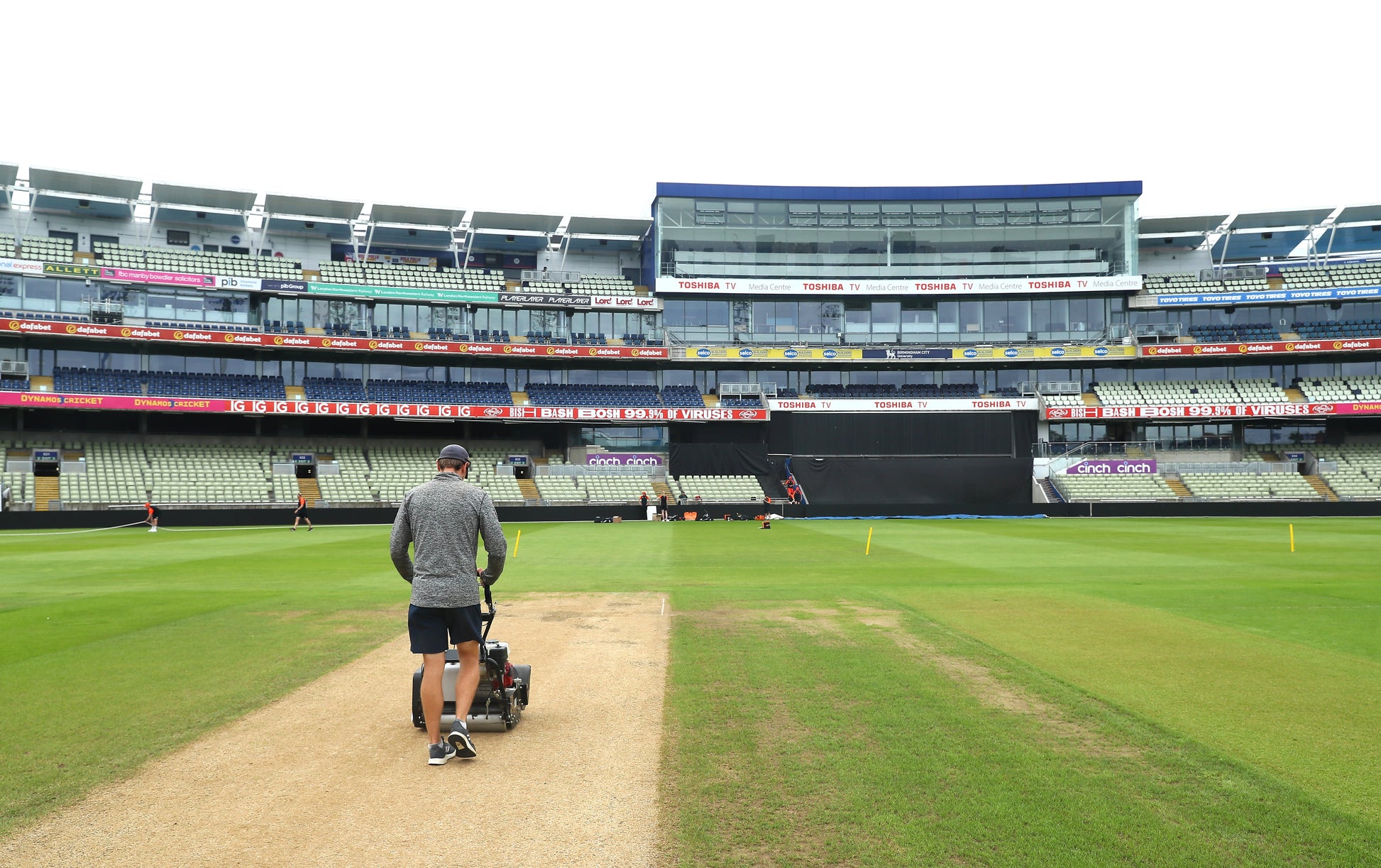

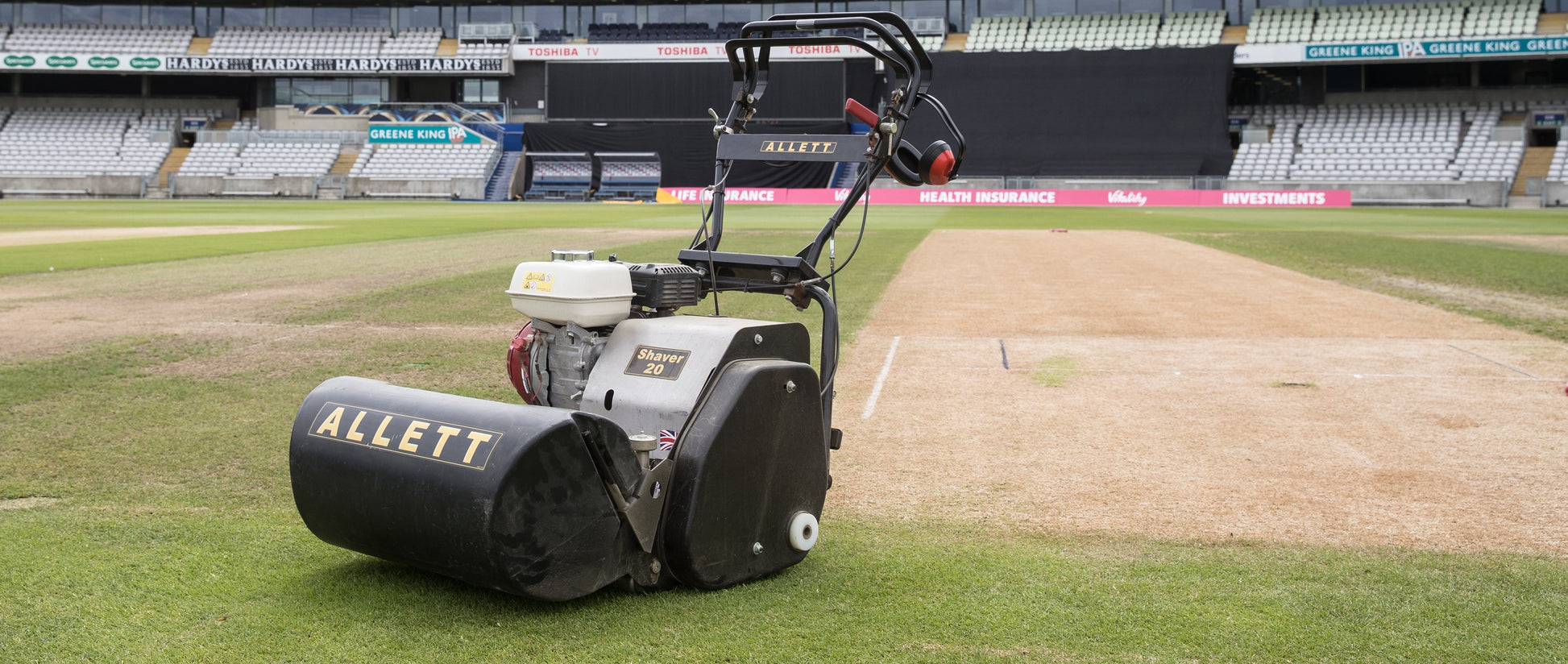

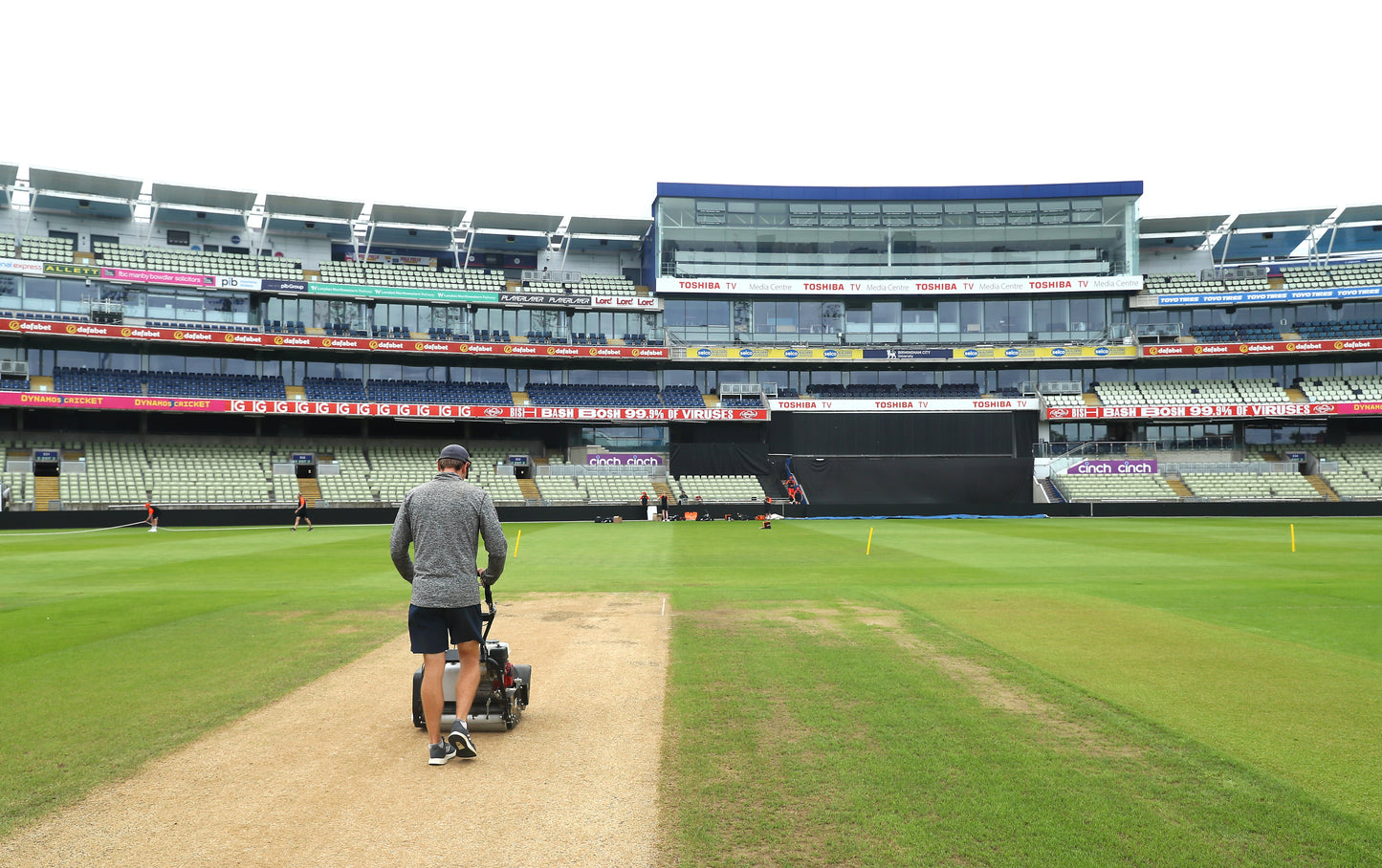

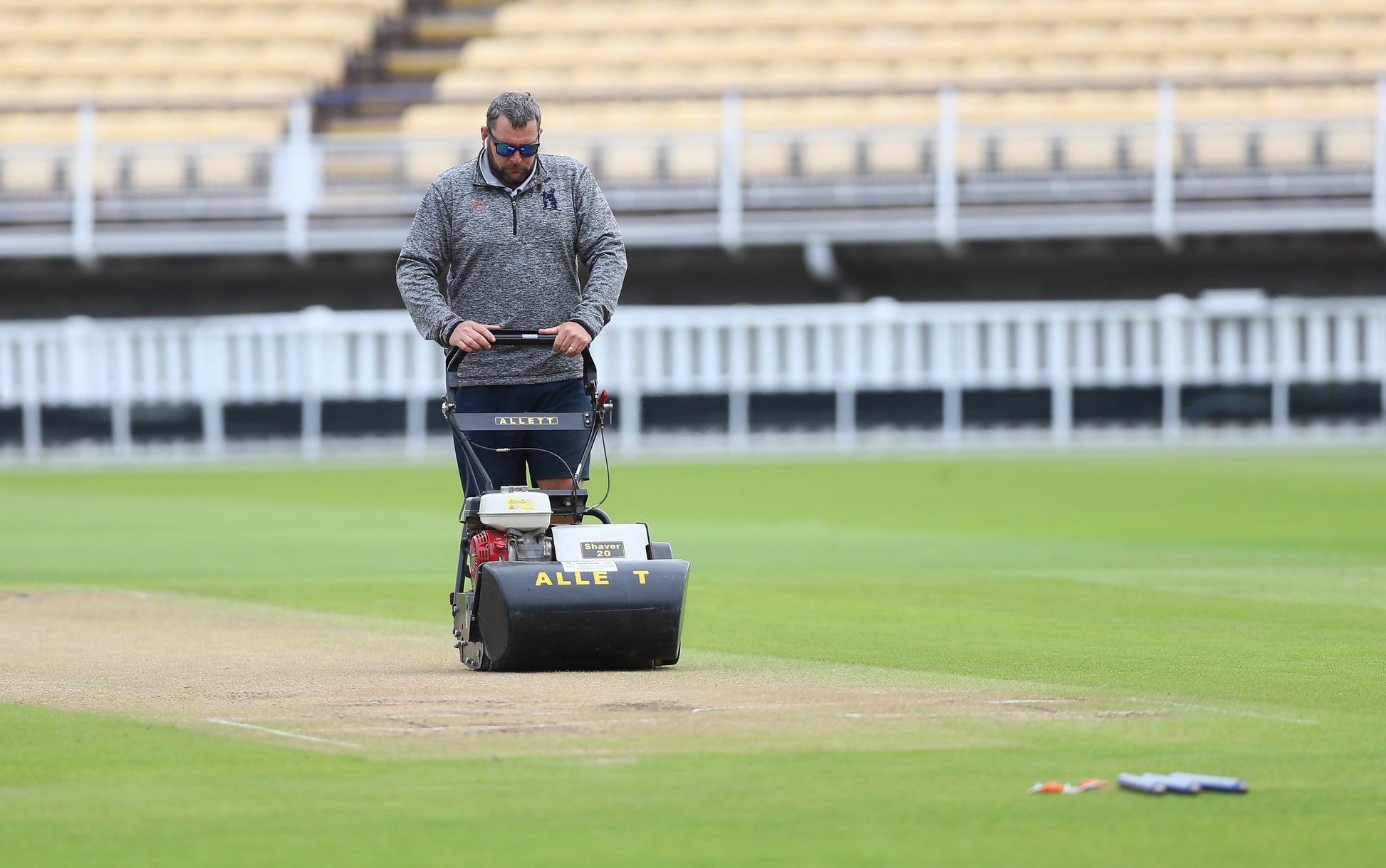

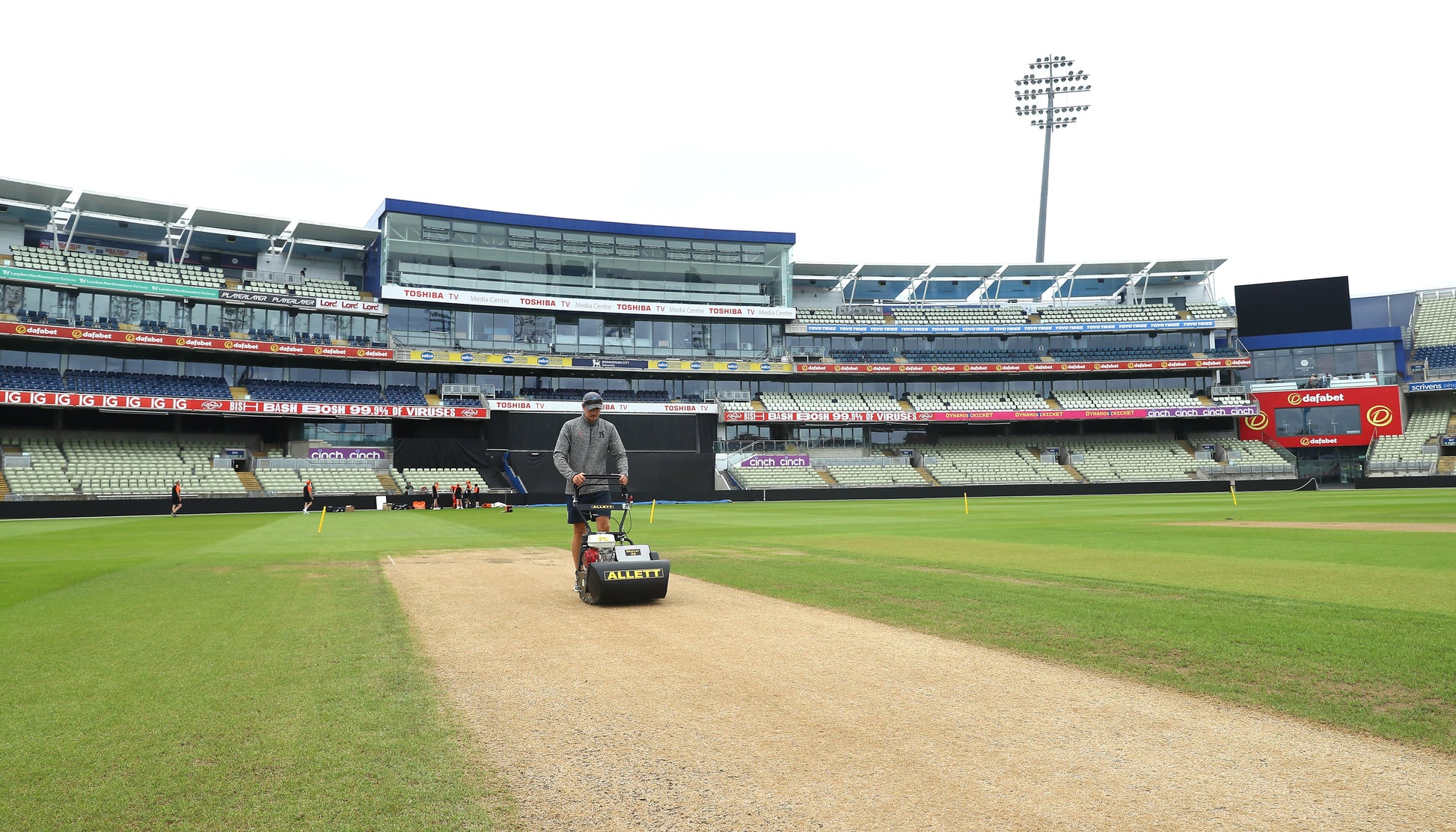

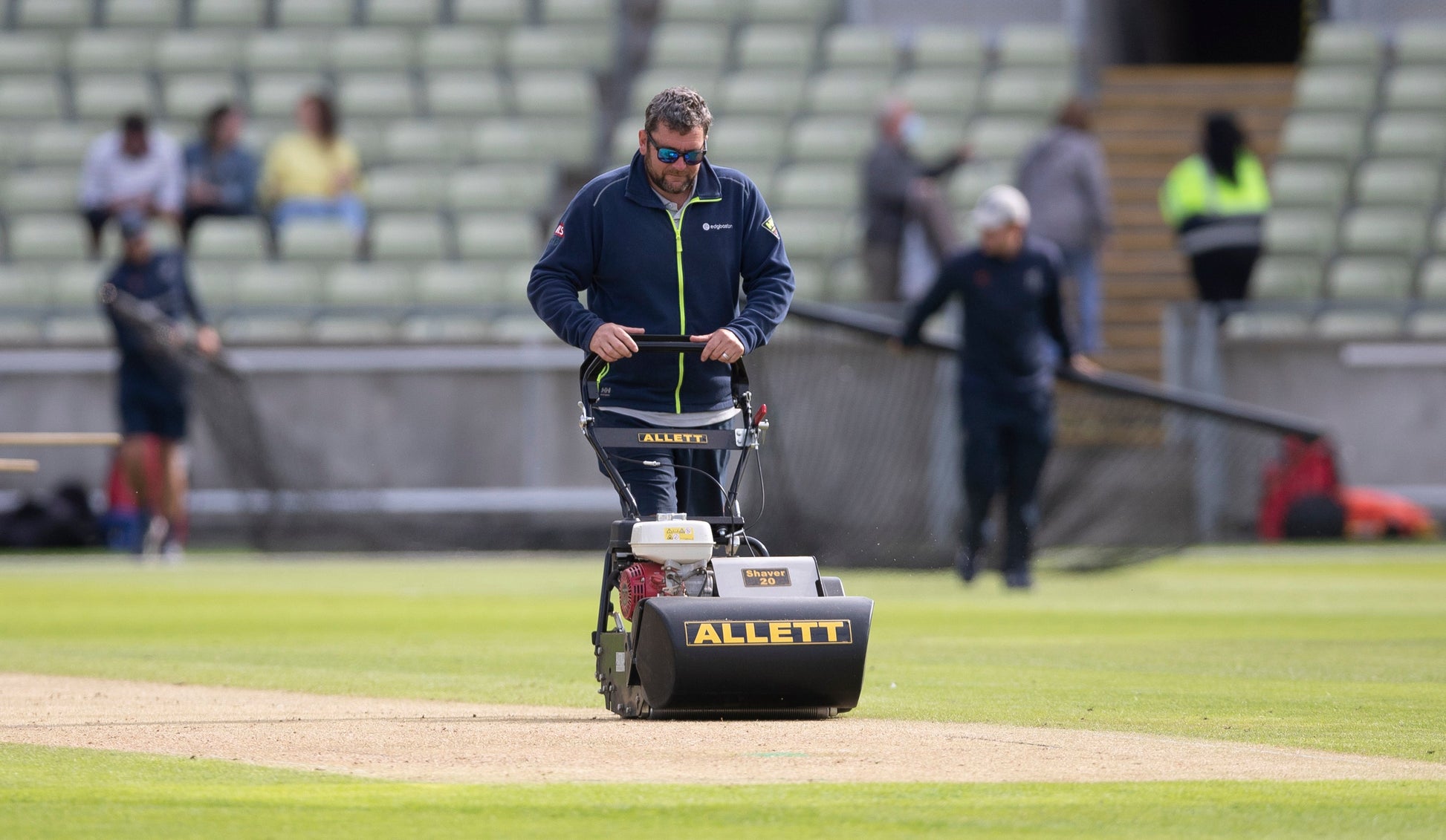

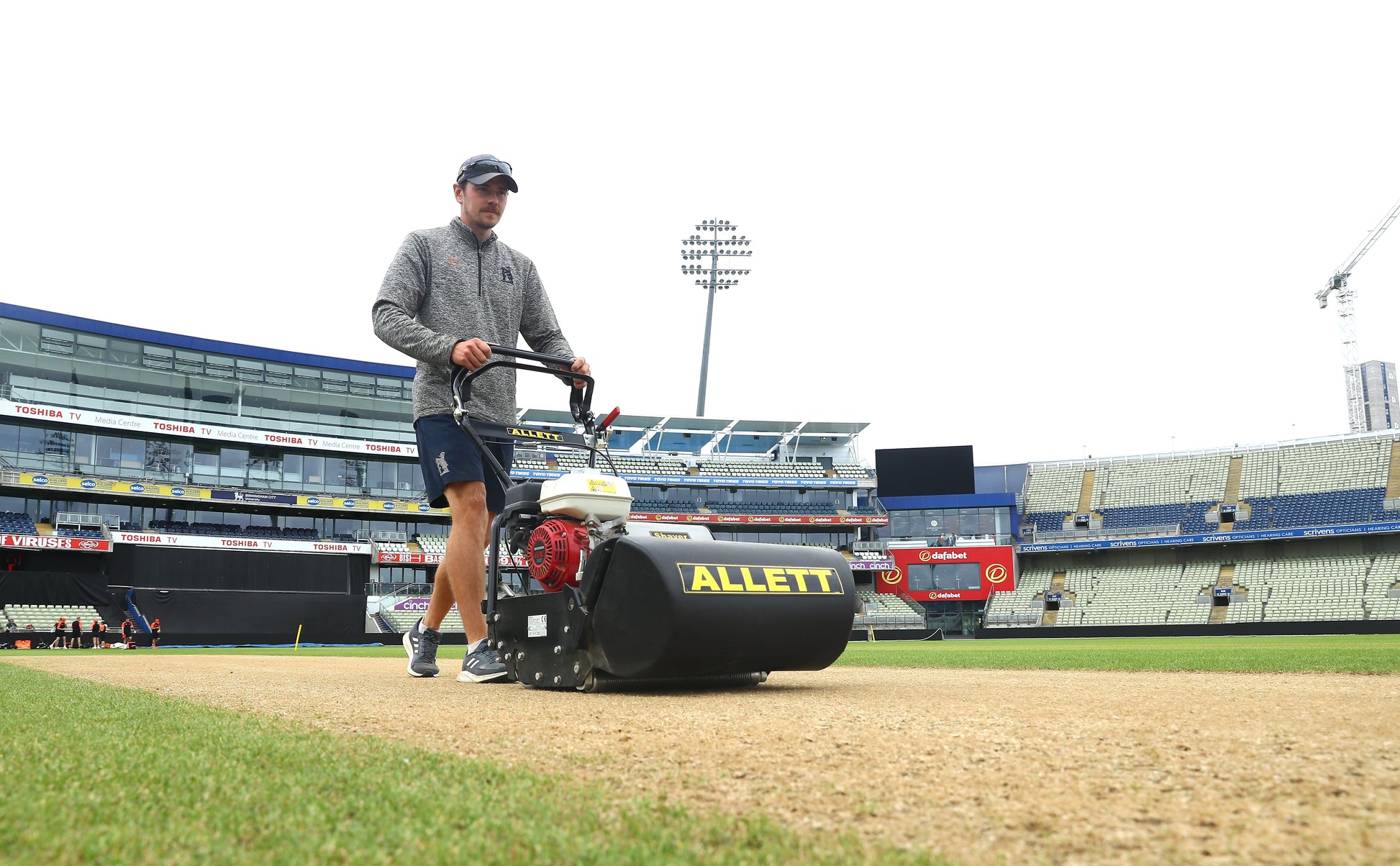

Shaver - The perfect machine for preparing a cricket wicket
Want to try the Shaver 20?
If you would like to see this mower in action and try it for yourself, we can arrange for you and your groundscare team to have a no-obligations demonstration at your club or institution.
