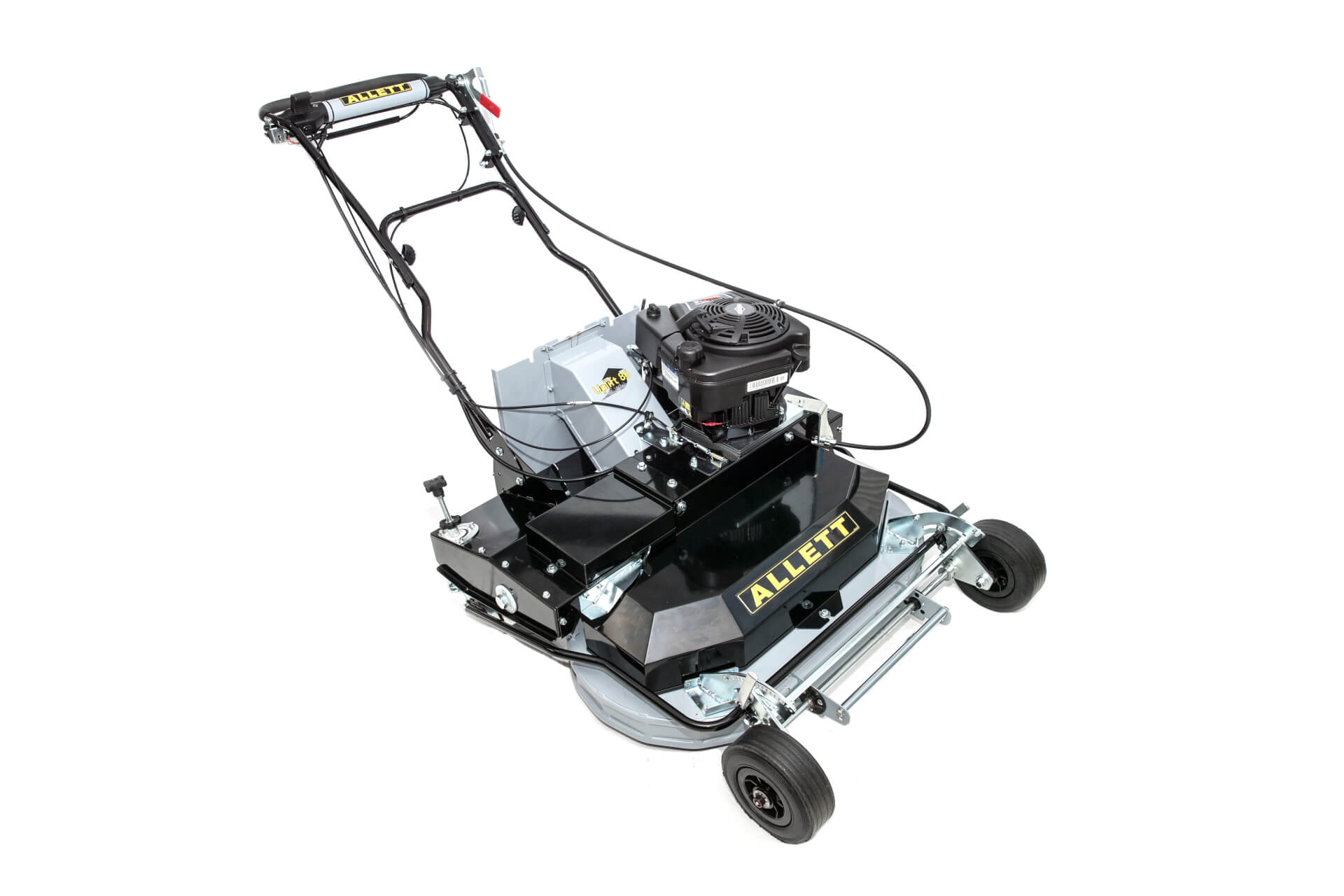

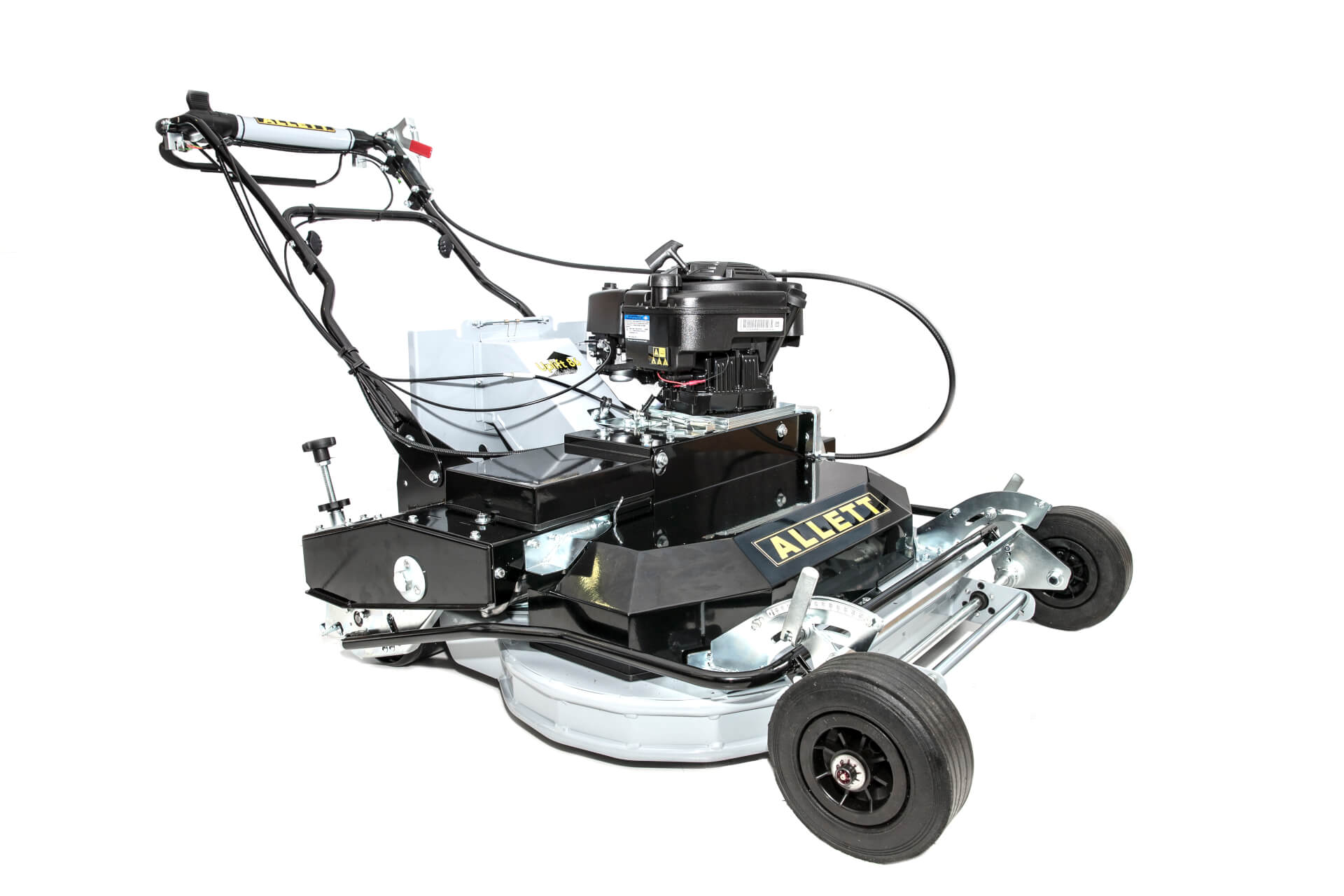

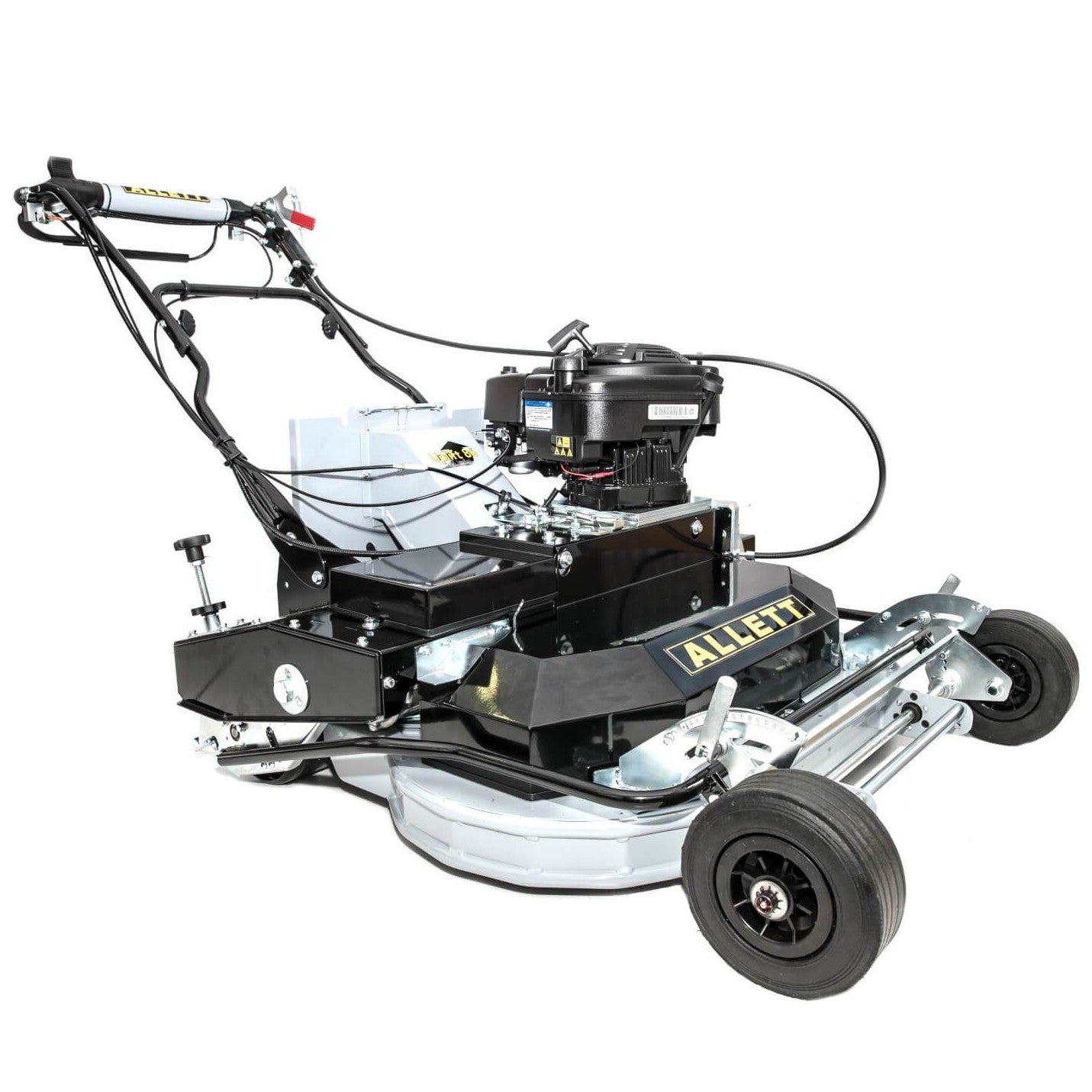

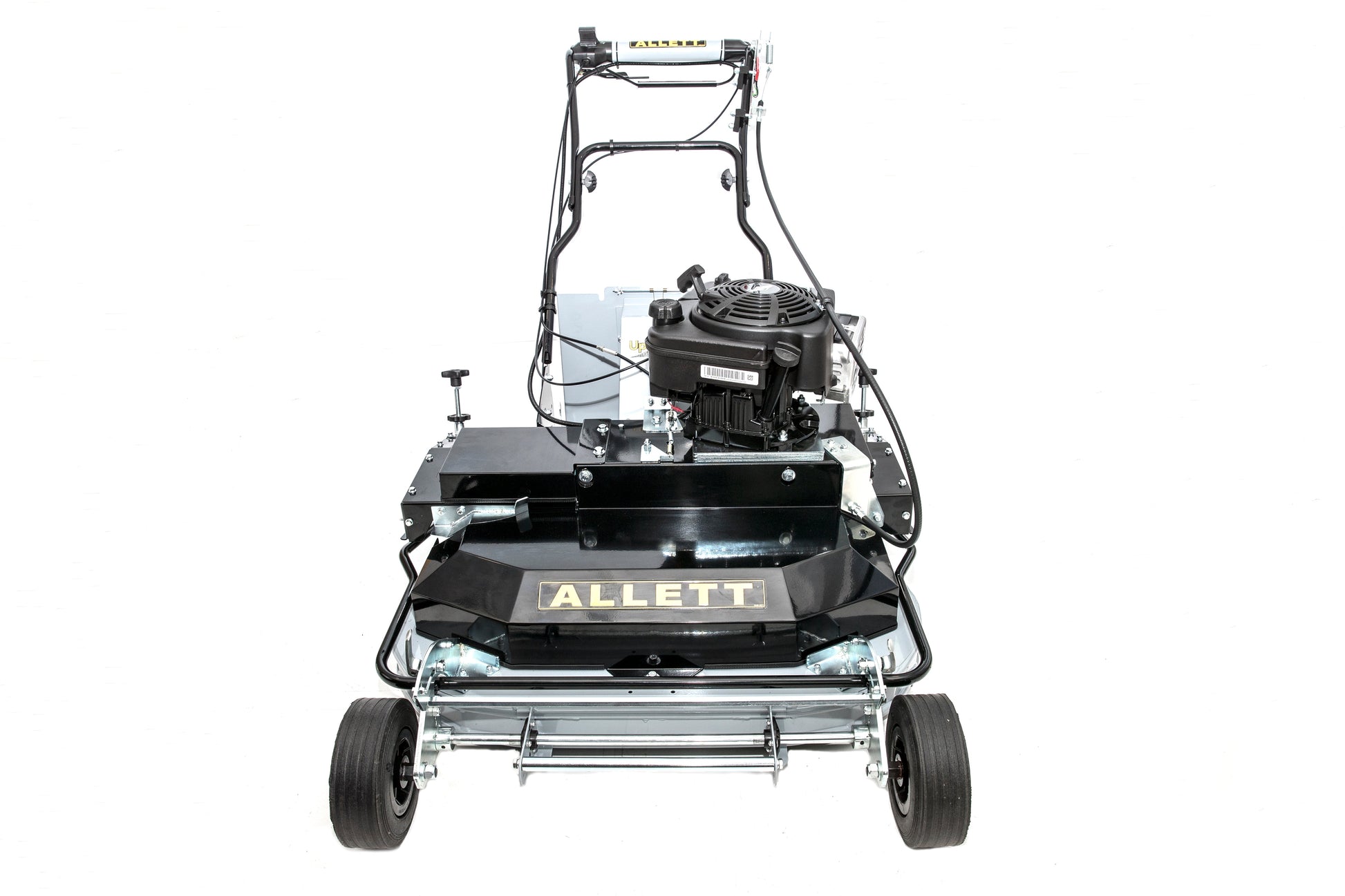

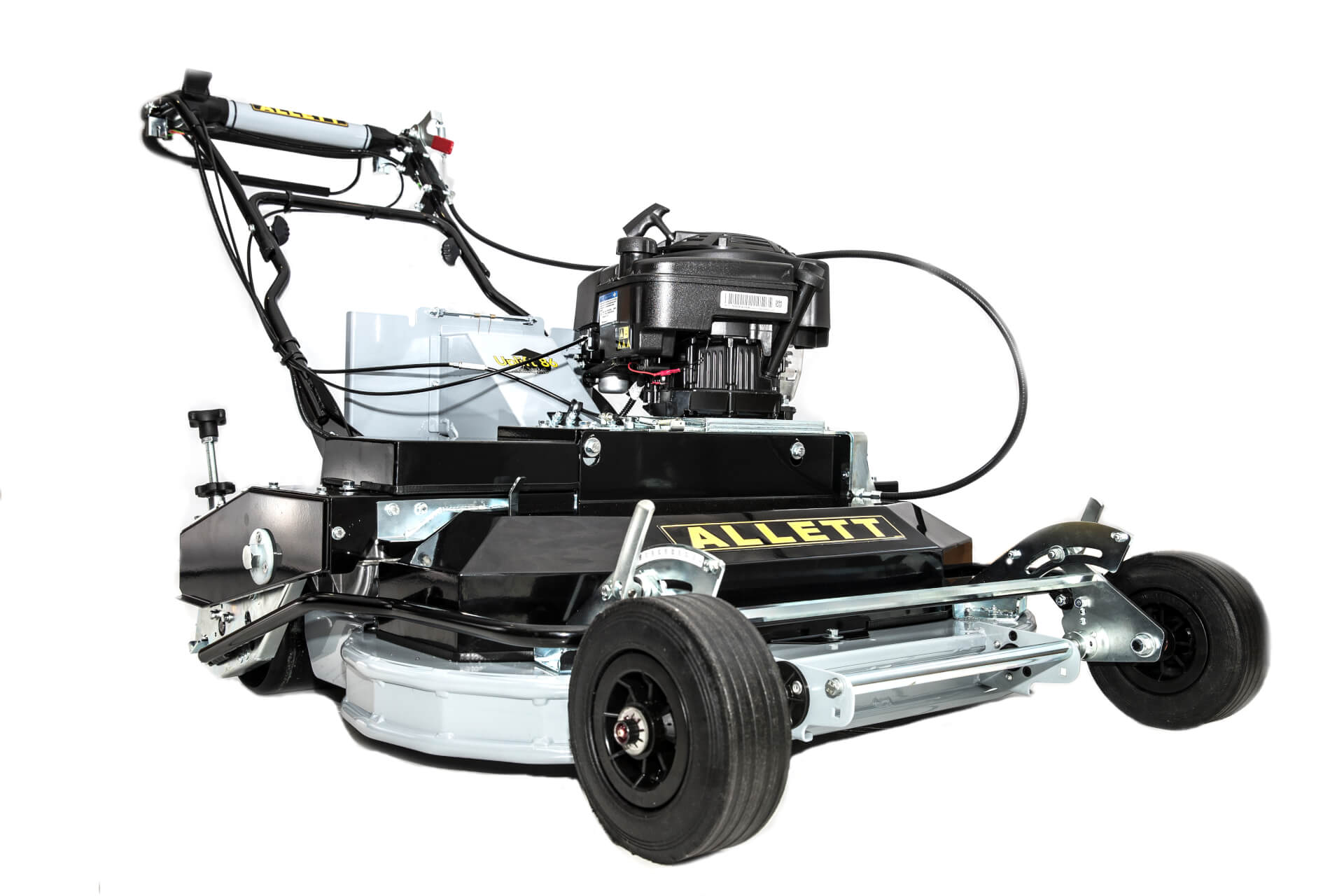

UPLIFT
86

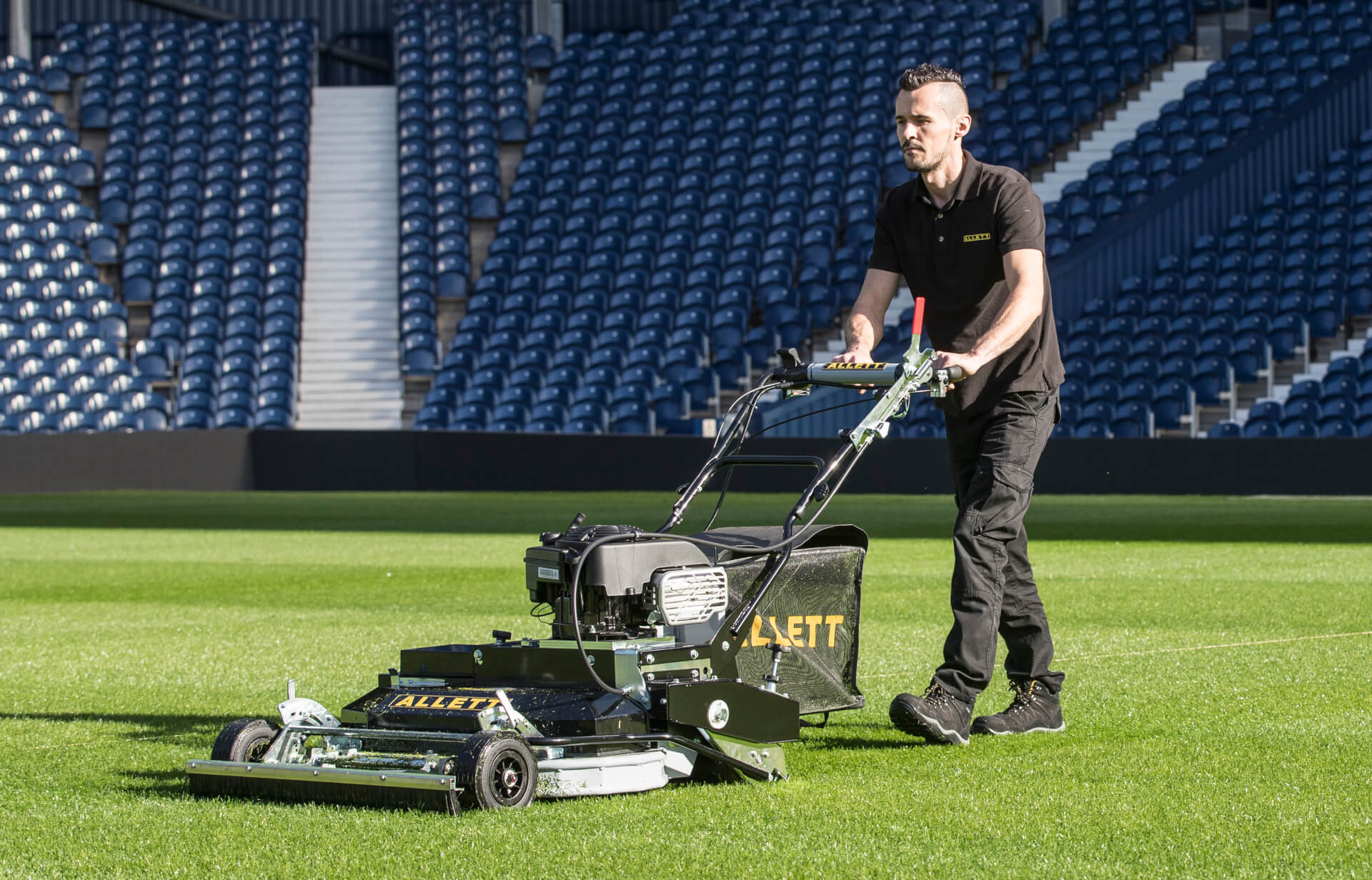

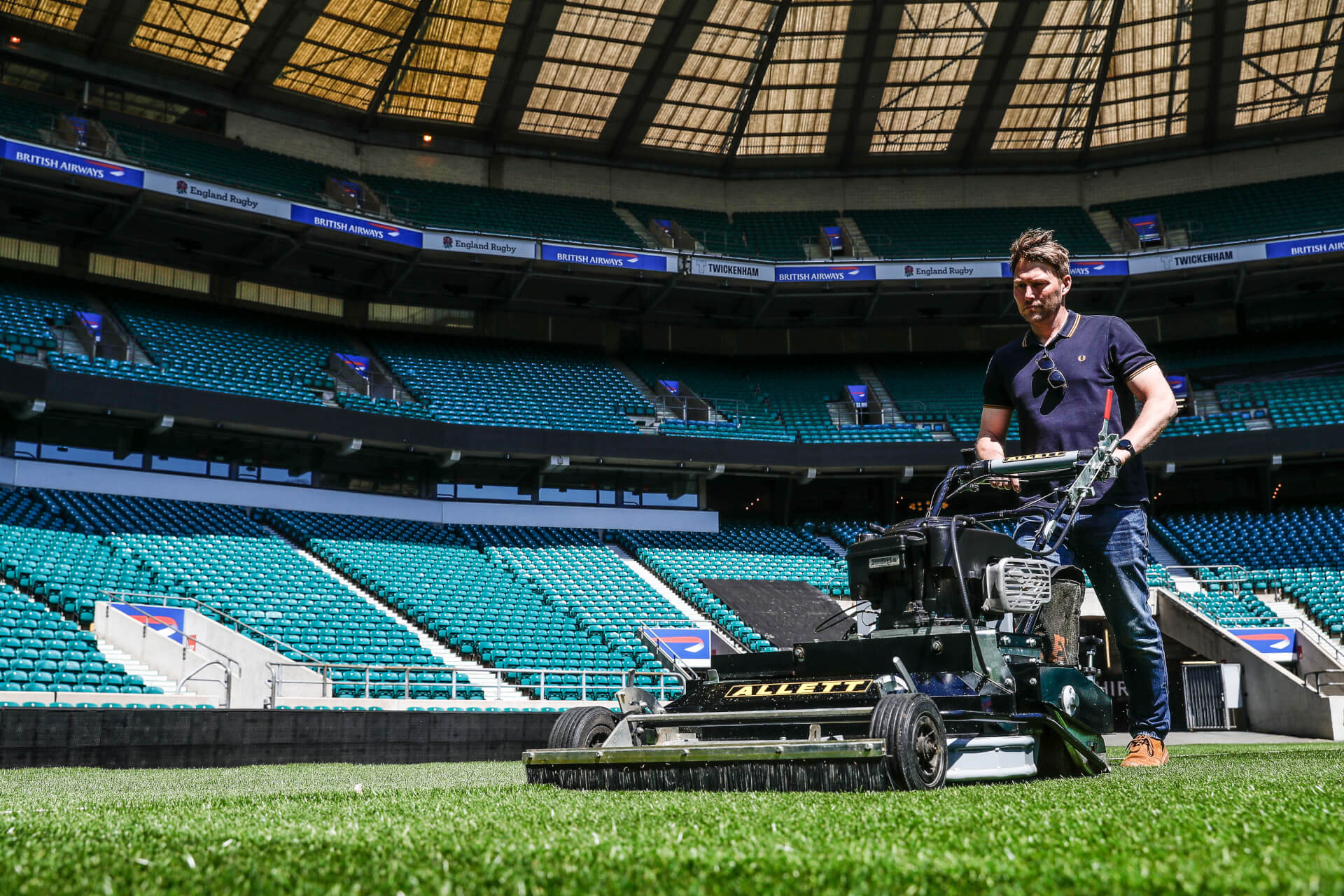

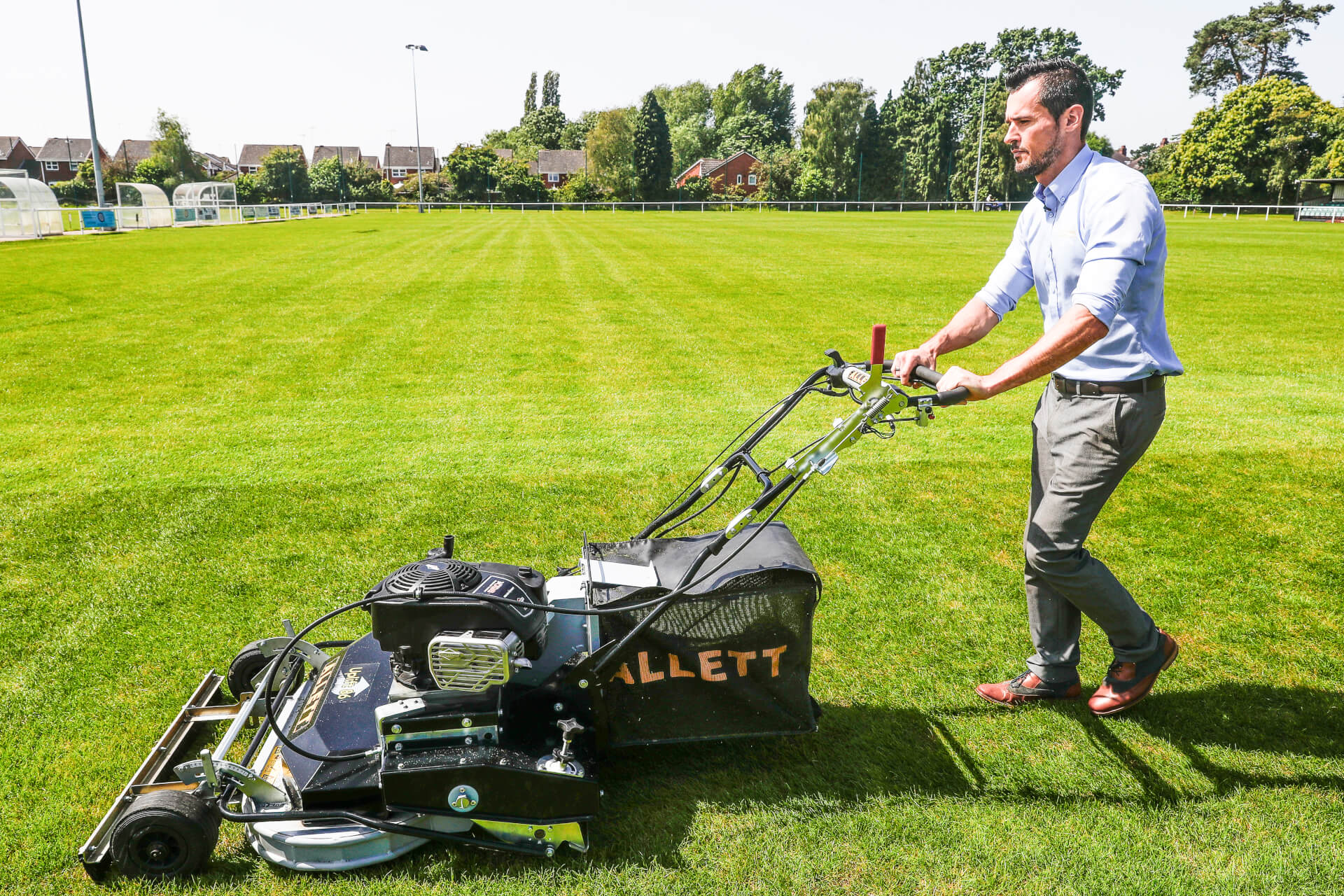

Solid and dependable stadium rotary mower designed to cut and vacuum quickly whilst still producing strong contrasting stripes.
Arrange Demo • Specialist Advice • Delivered By Local Dealer

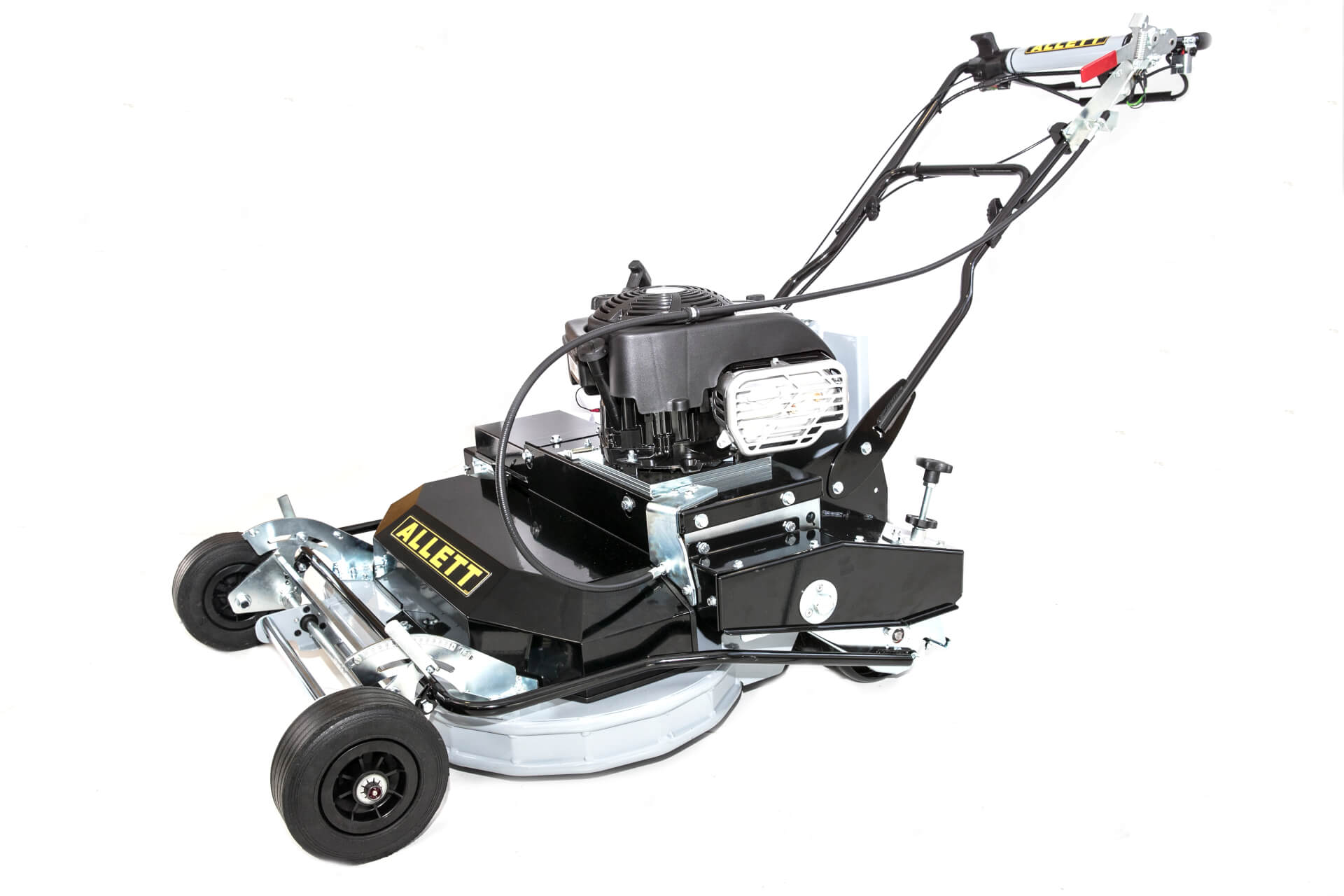

Uplift 86 Technical Data
| Uplift 86 | |
|---|---|
| Type | Twin blade Rotary mower with rear roller |
| Cutting width | 864mm (34in) |
| Height of cut | Adjustable from 15-75mm (0.6in - 2.96in) |

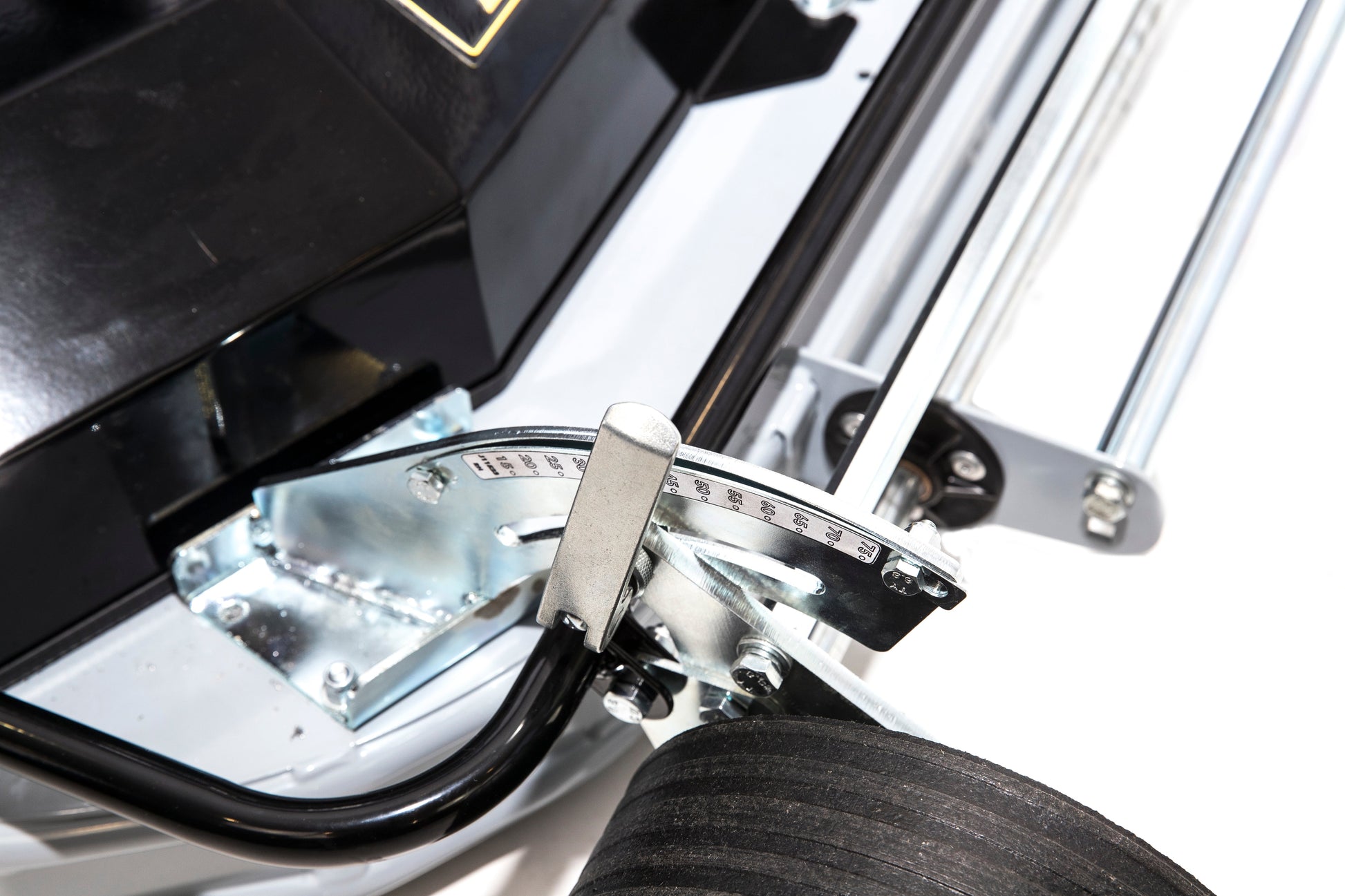

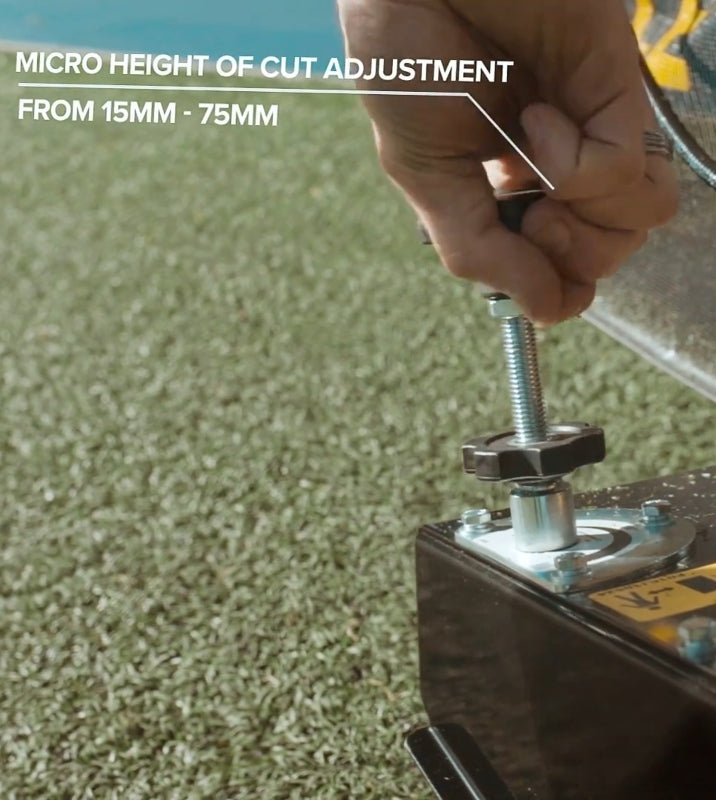

| Cutting height adjustment | 2 point micro height adjusters with front wheel height locking |

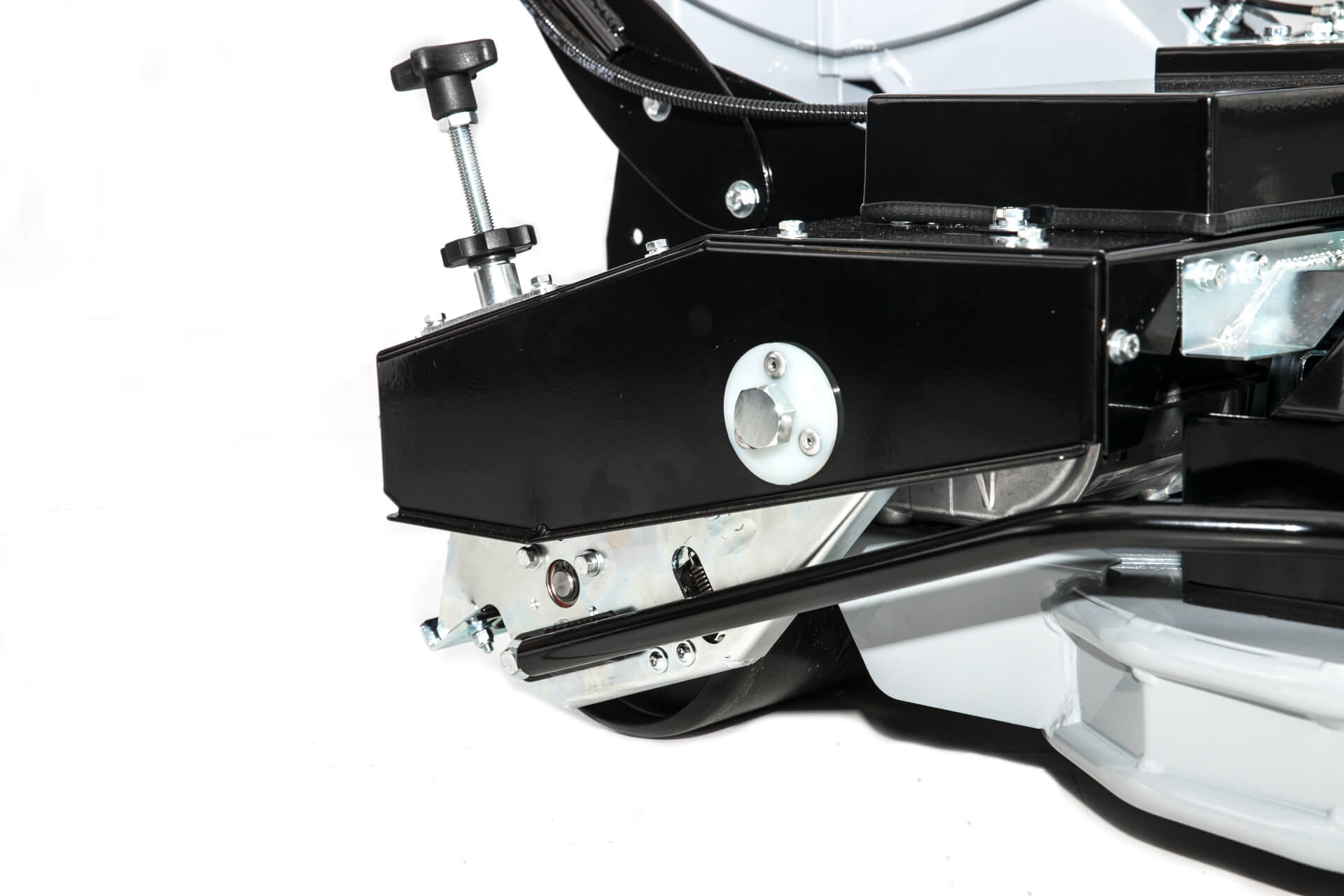

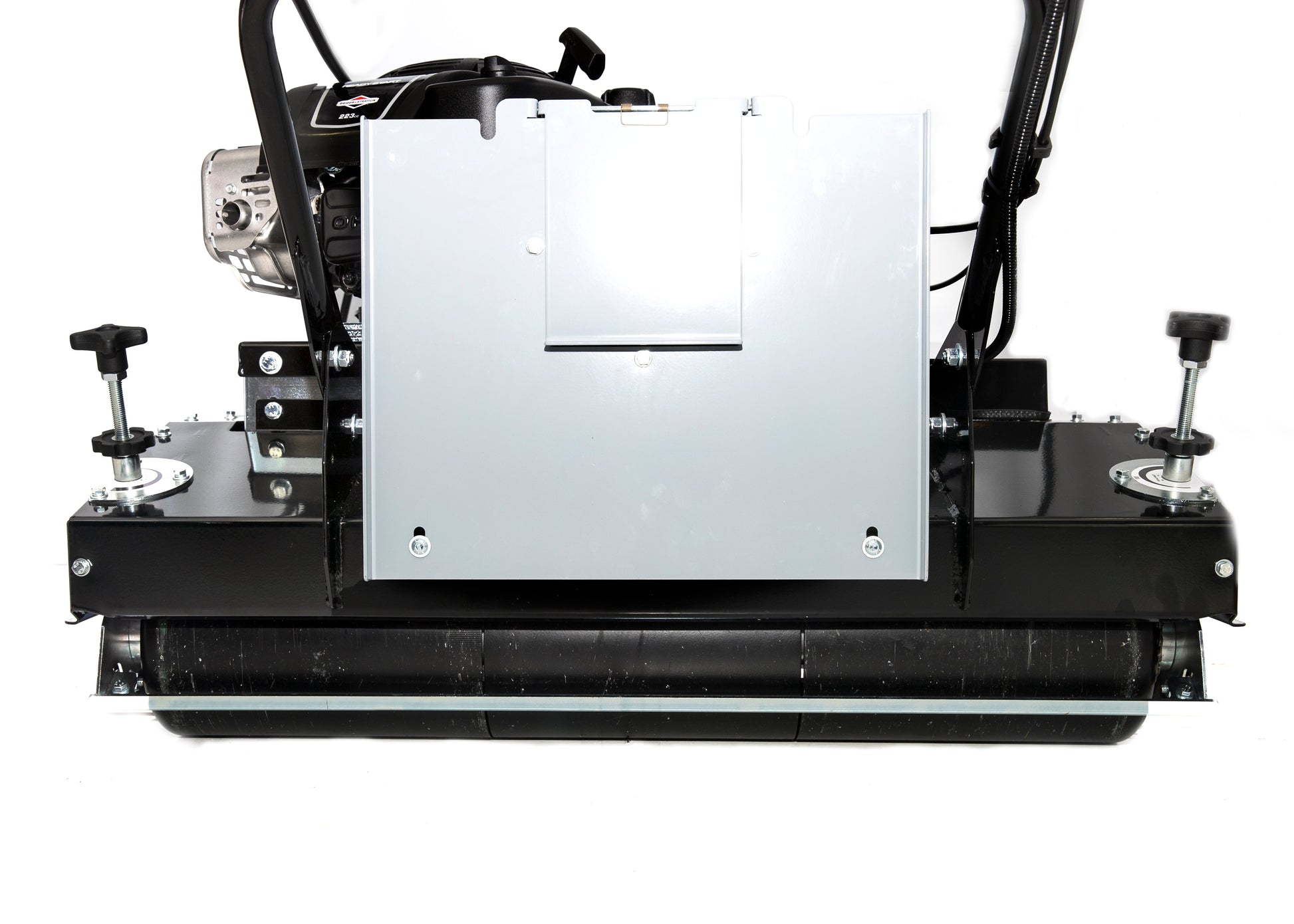

| Rear roller | 3 piece steel, full width rear roller with differential |
| Roller Drive | 5 speed heavy duty gear box with cast aluminium housing and steel gears |

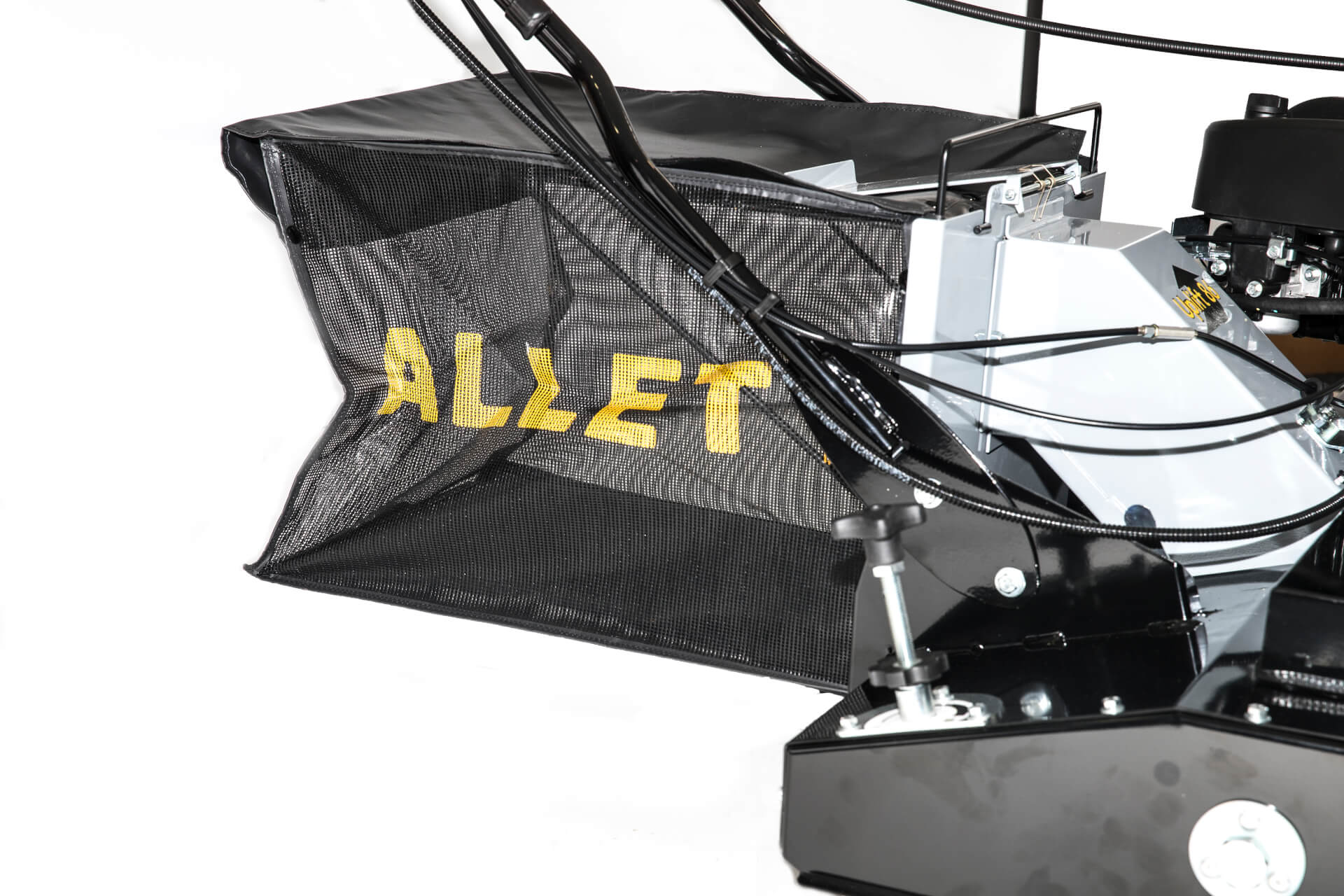

| Grass bag capacity | 90 litres |
| Engine | 223cc Briggs and Stratton 950E vertical crankshaft engine featuring "ReadyStart". Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve) |
| Blade system | 2 x 457mm (18in) high lift blades, contra-rotating and timed producing high volume air flow |
| Blade drive | Separate bale bar for roller drive & blades allows 3 modes 1) Roller drive only, 2) Blades only or 3) Roller drive and Blades. Belt drive to spindle. Blade brake clutch (operator presence controls) |
| Blade safety breaking | Yes |
| Cutter deck construction | Steel fabricated |
| Weight | 145kg (320lbs) |
| Overall dimensions | Width: 37in (940mm) Height: 37-43in (950mm-1080mm) Length: 79in (2000mm) |
| Starter mechanism | Pull recoil |
| Speed | 5 speed gearbox: 1st 1.9km/h (1.2mph), 2nd 3.0km/h (1.9mph), 3rd 4.5km (2.8mph), 4th 5.7km/h (3.6mph), 5th 6.7km/h (4.2mph) |
| Fuel tank capacity | 1.1 litre |

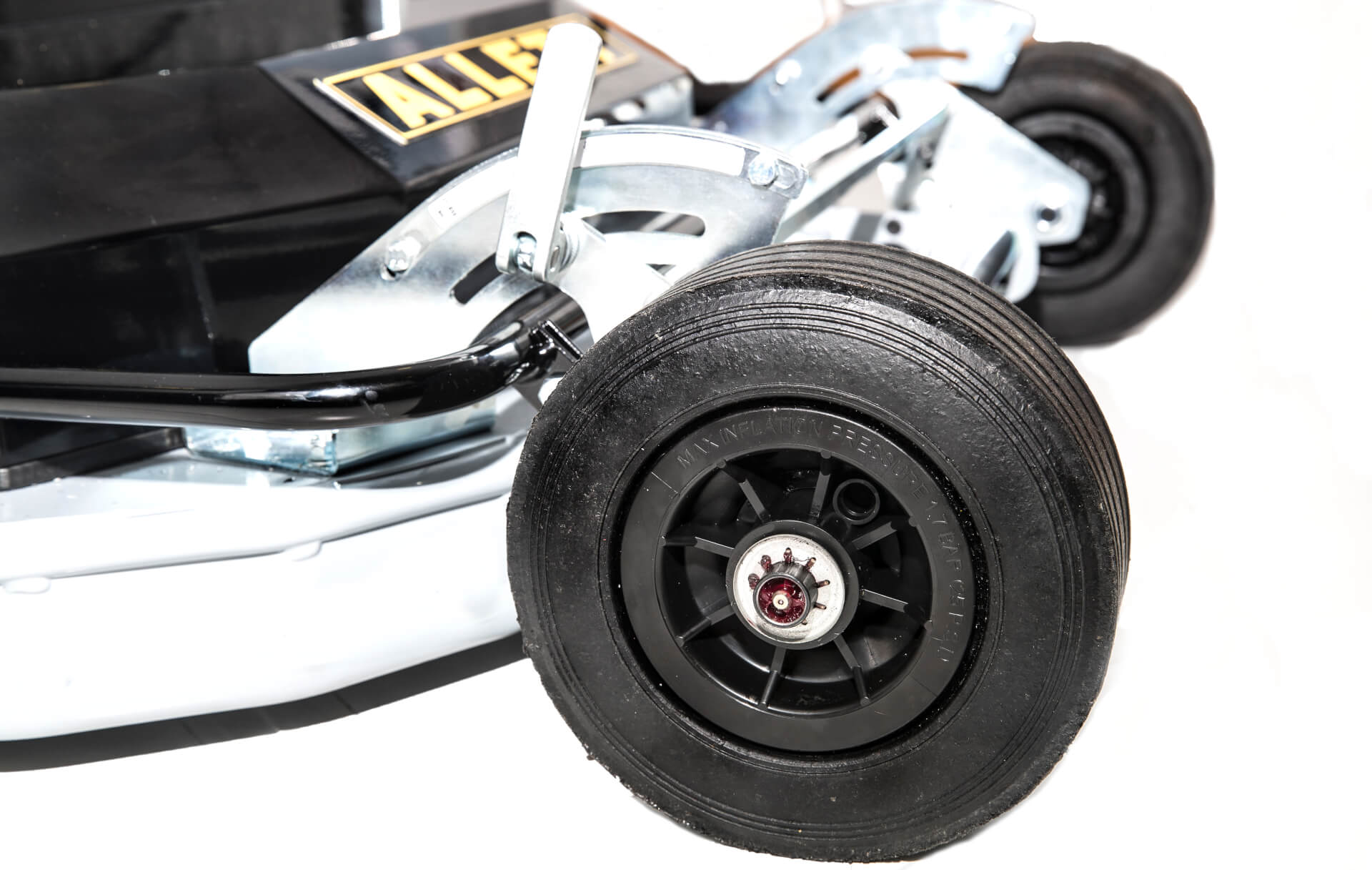

| Front wheels | 8in (200mm) diameter solid front wheels running on bronze bushes (greasable). |

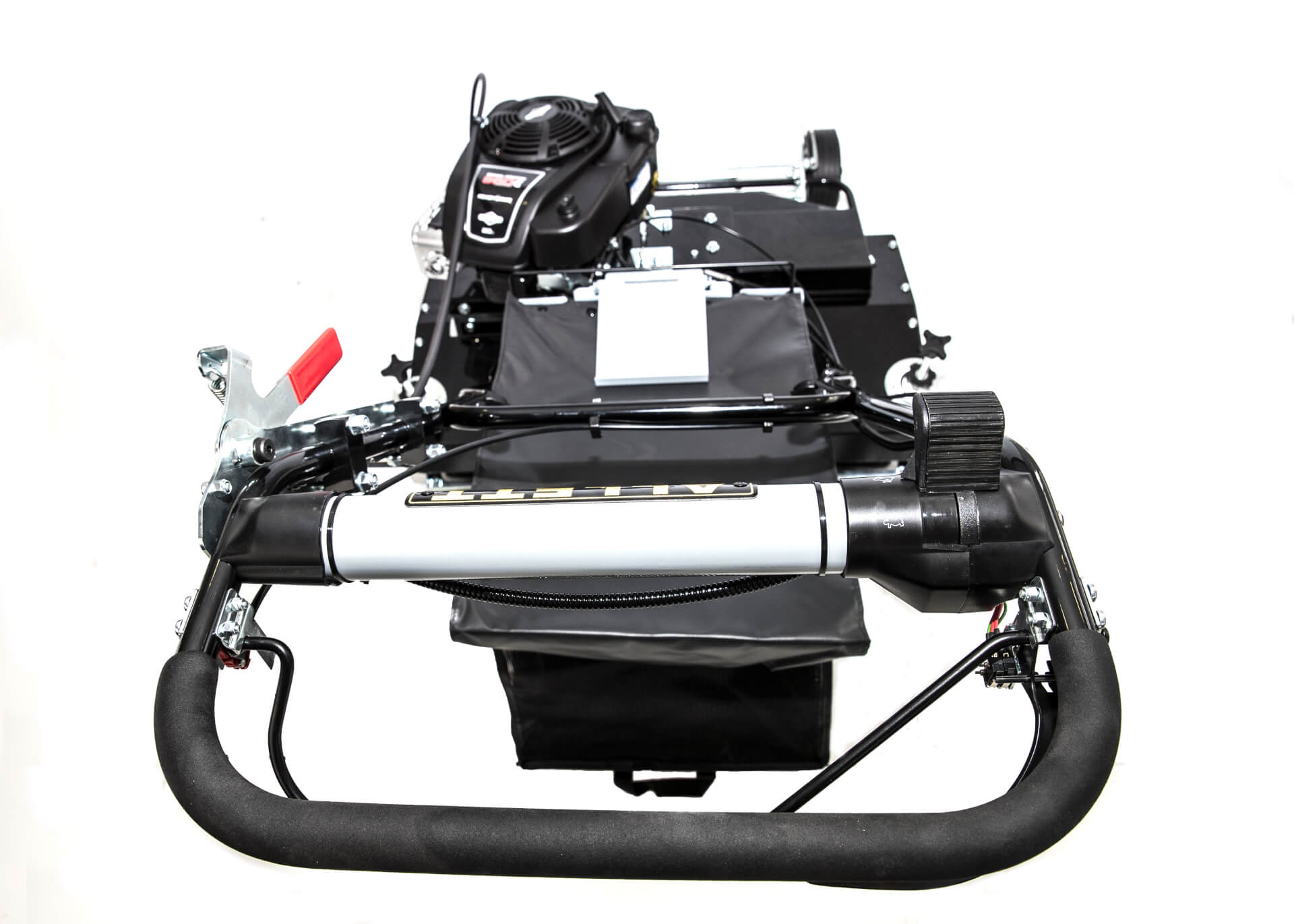

| Handlebars | Adjustable heights for operator comfort |

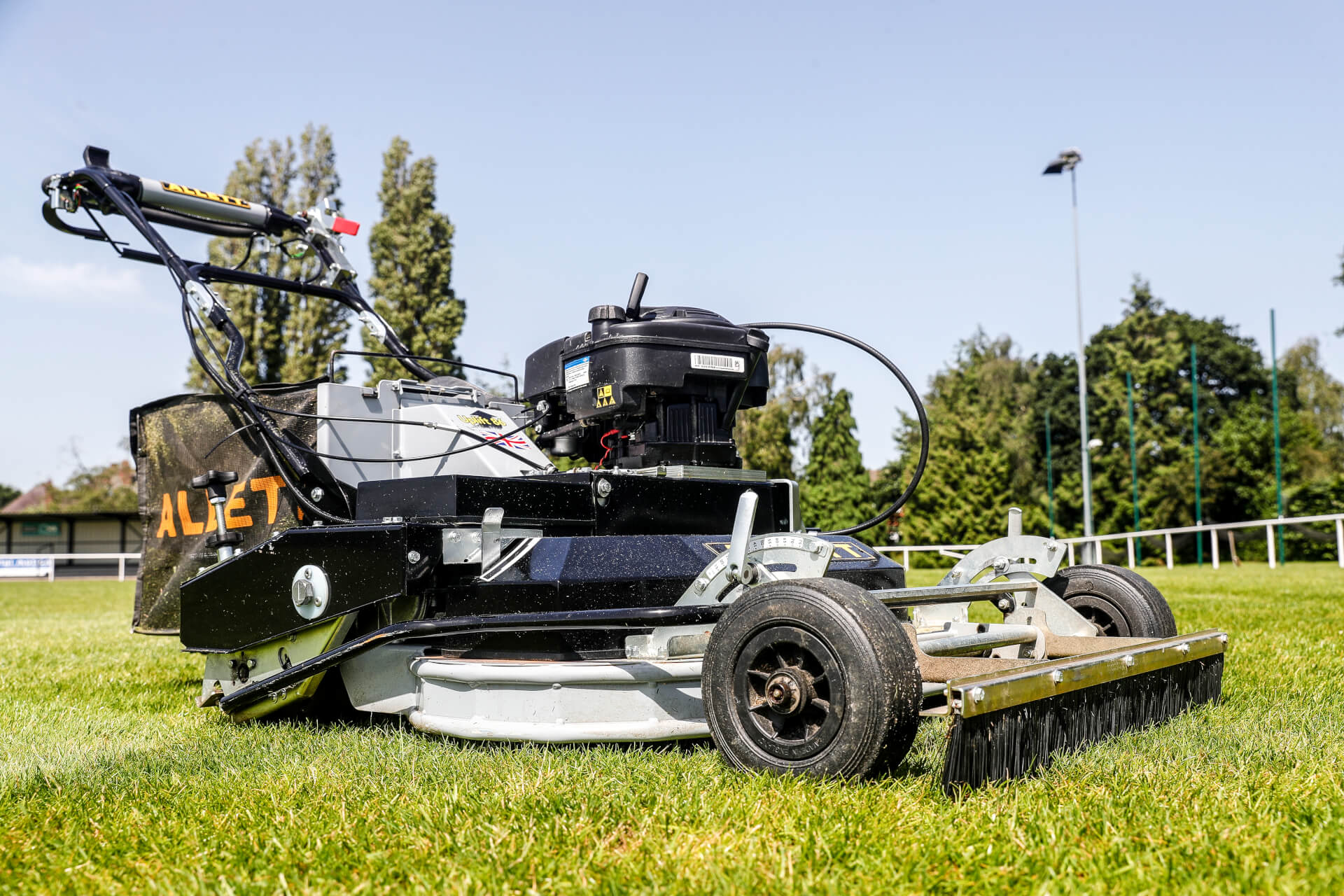

| Optional accessories | Front Brush. |

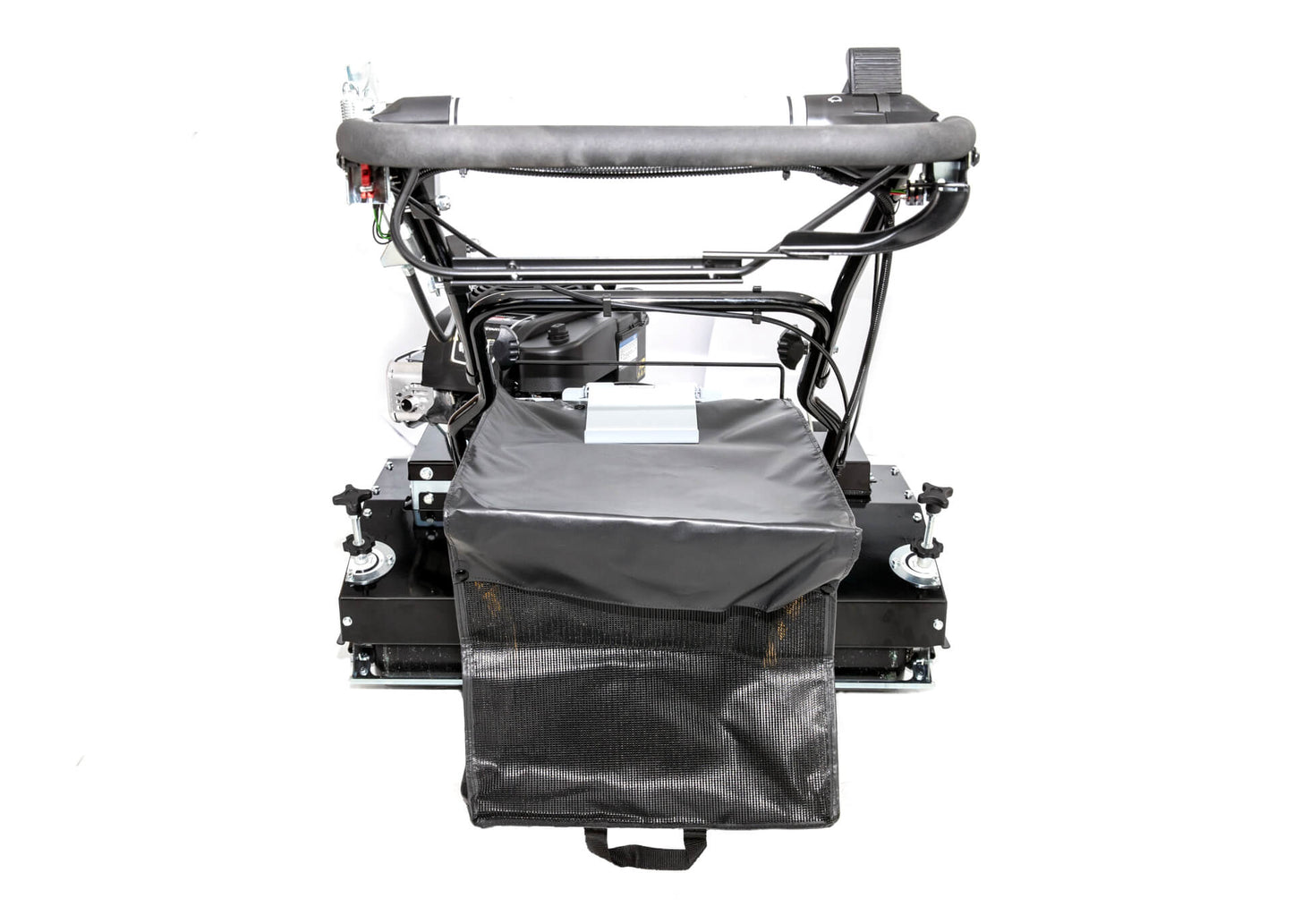

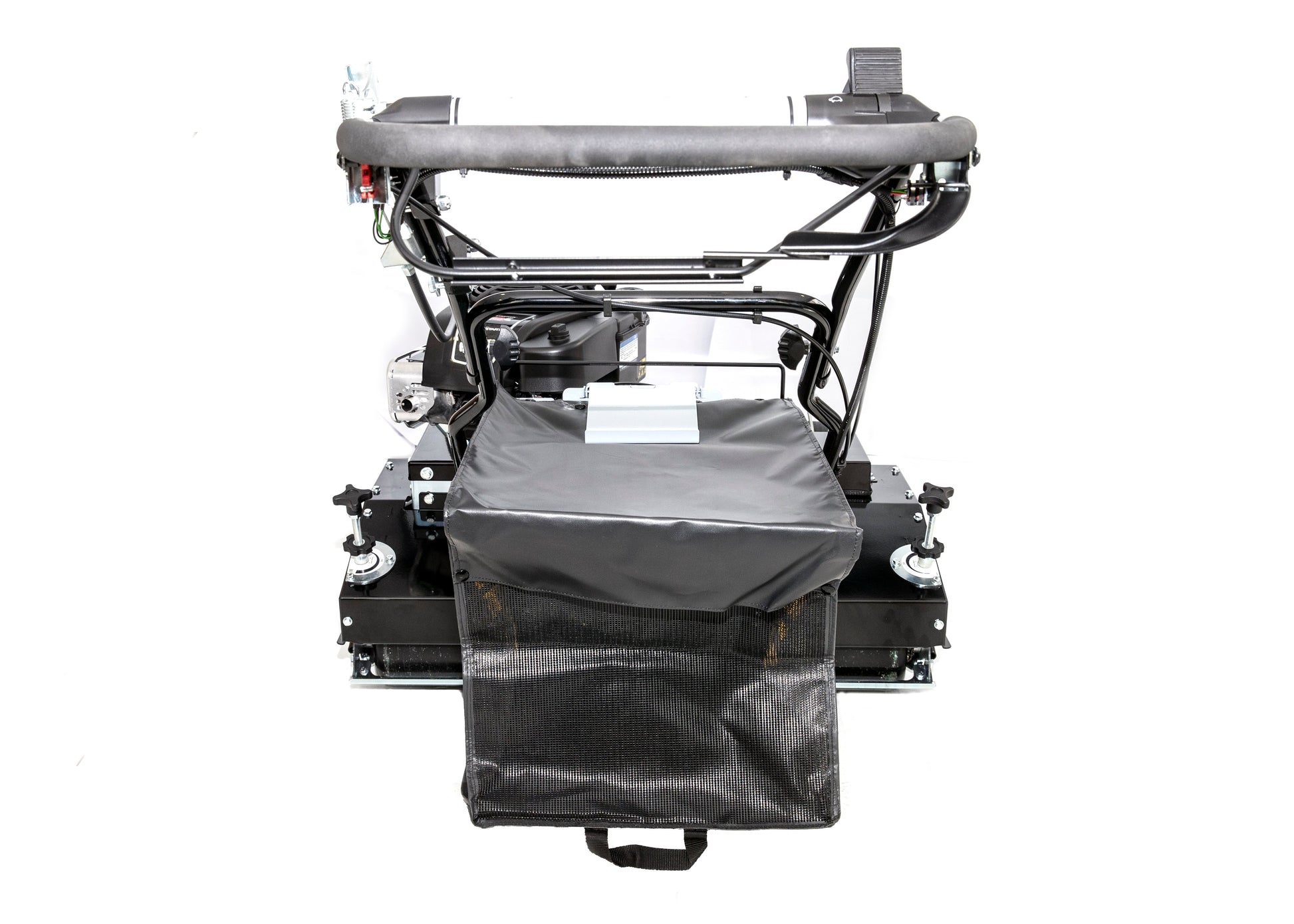

Behind the Uplift

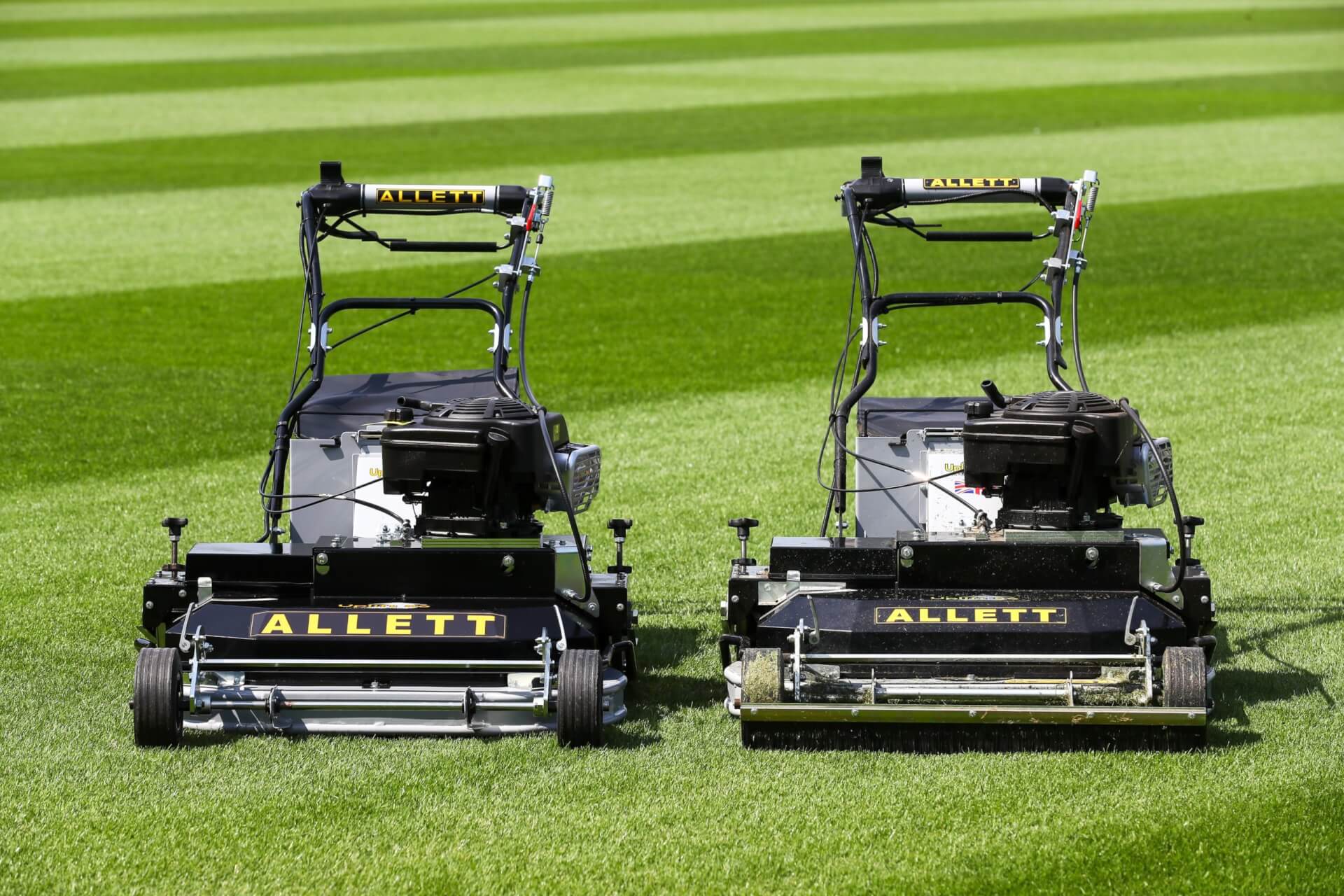

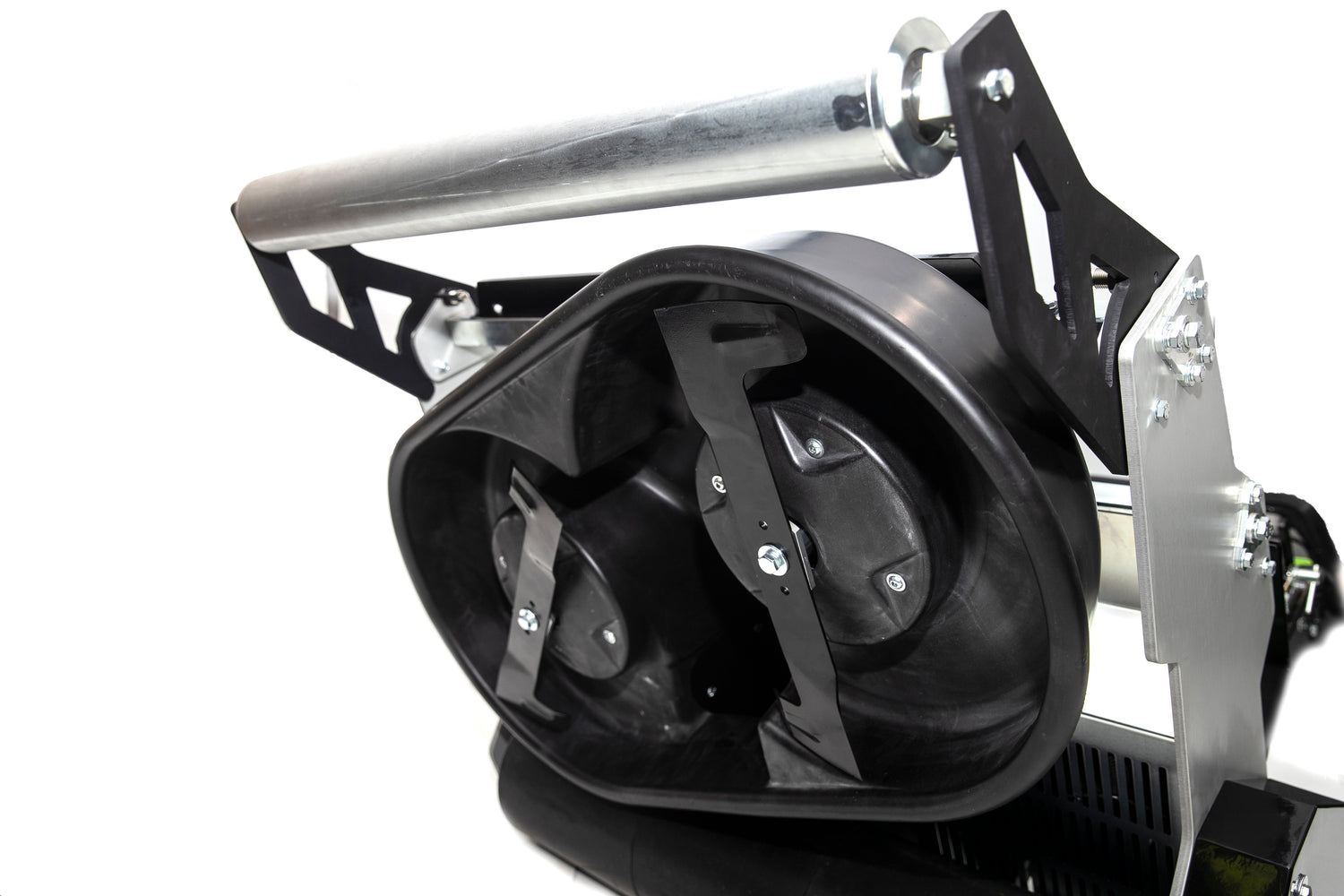

Cut and vacuum

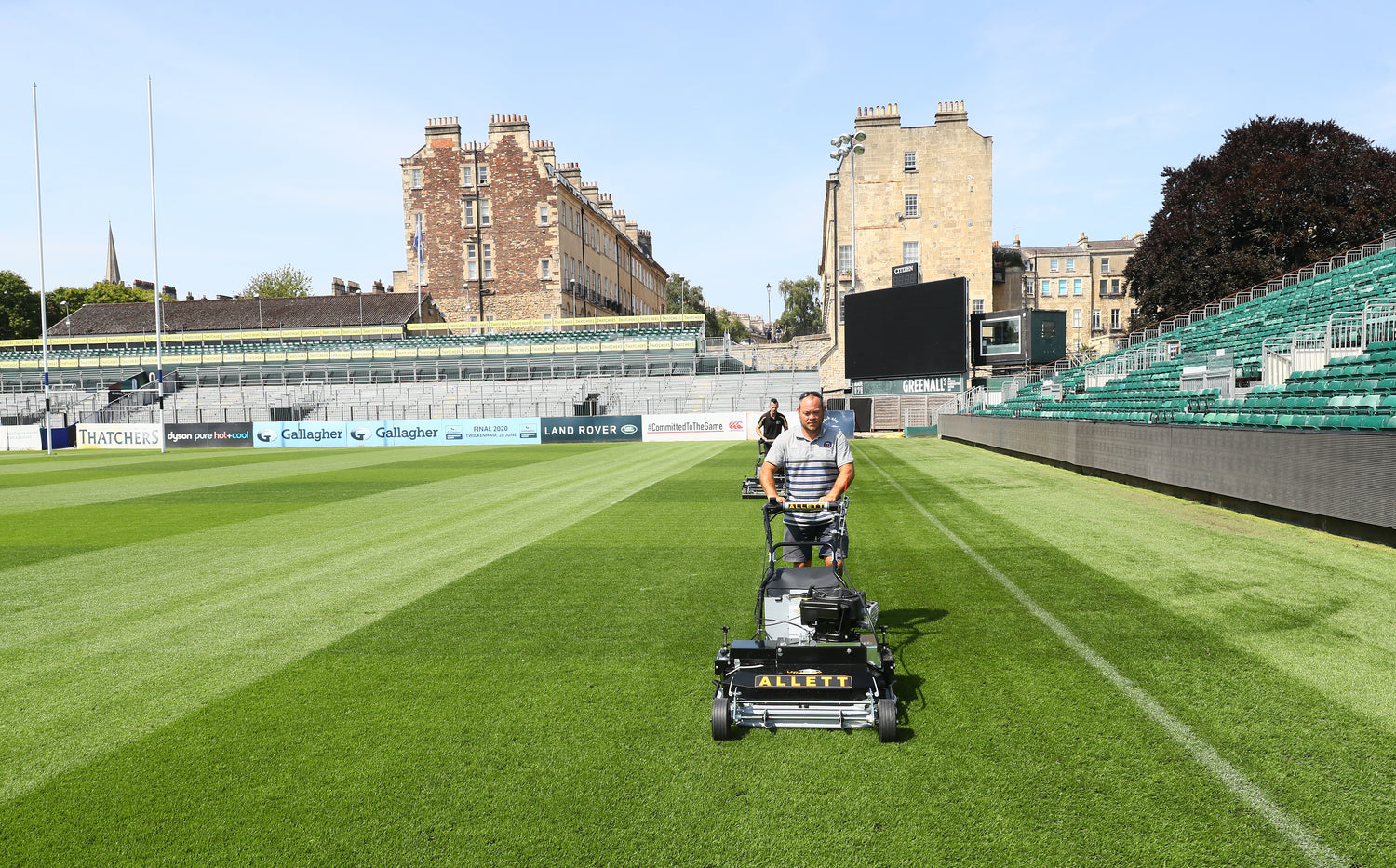

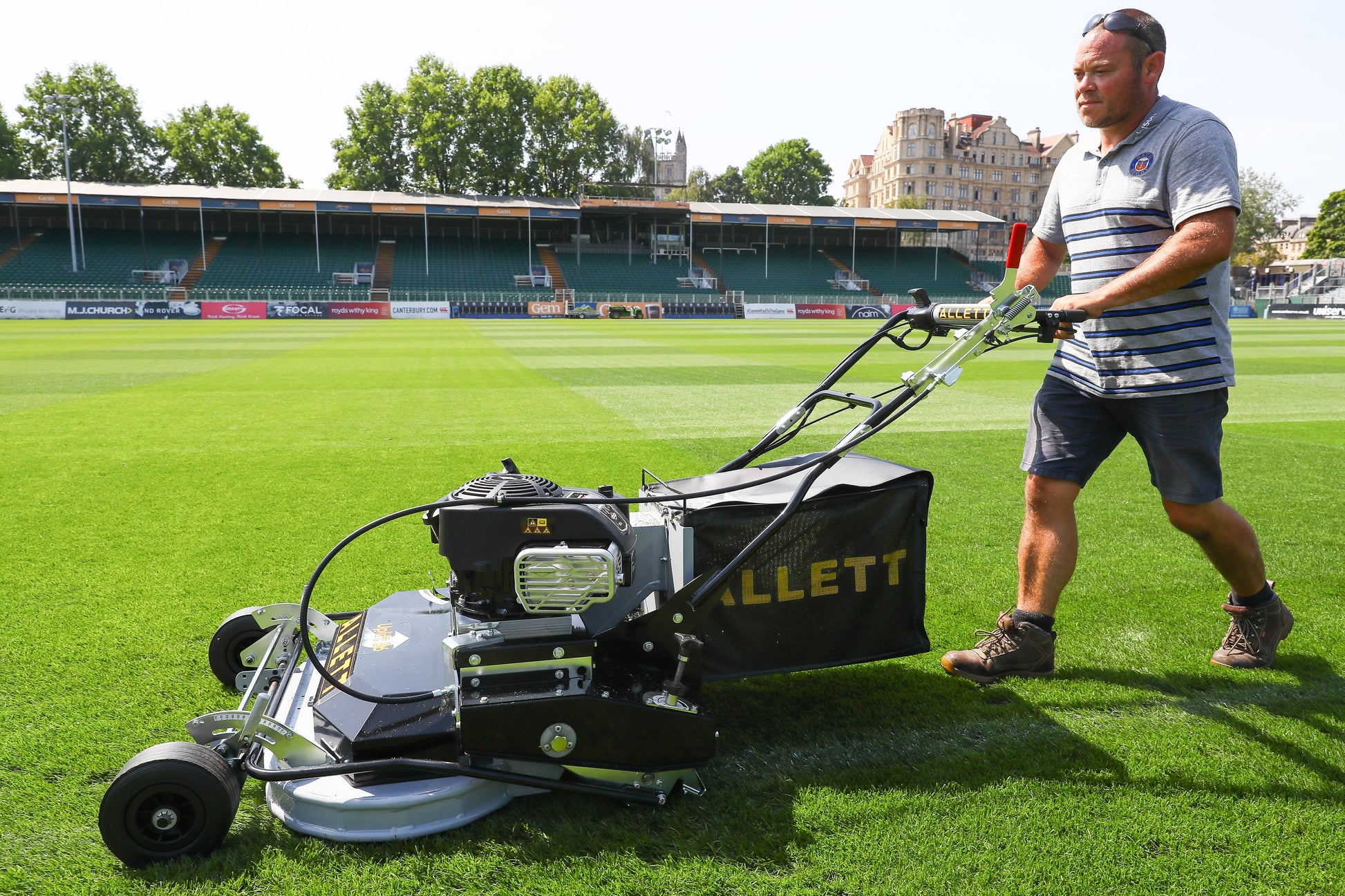

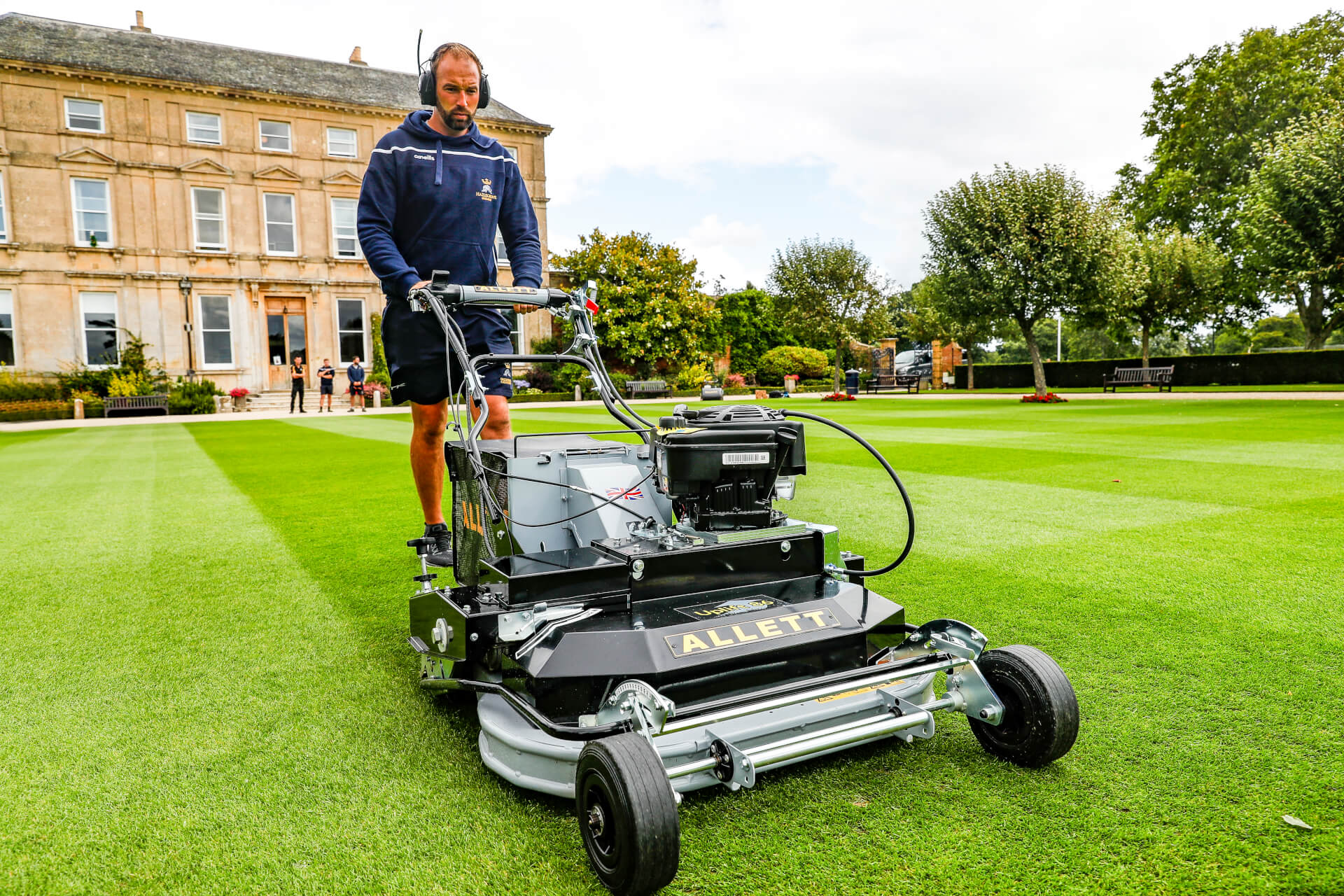

Twin contrarotating blades produce a high lift cut and vacuum for increased efficiency while a full width rear roller produces the most perfect stripes.

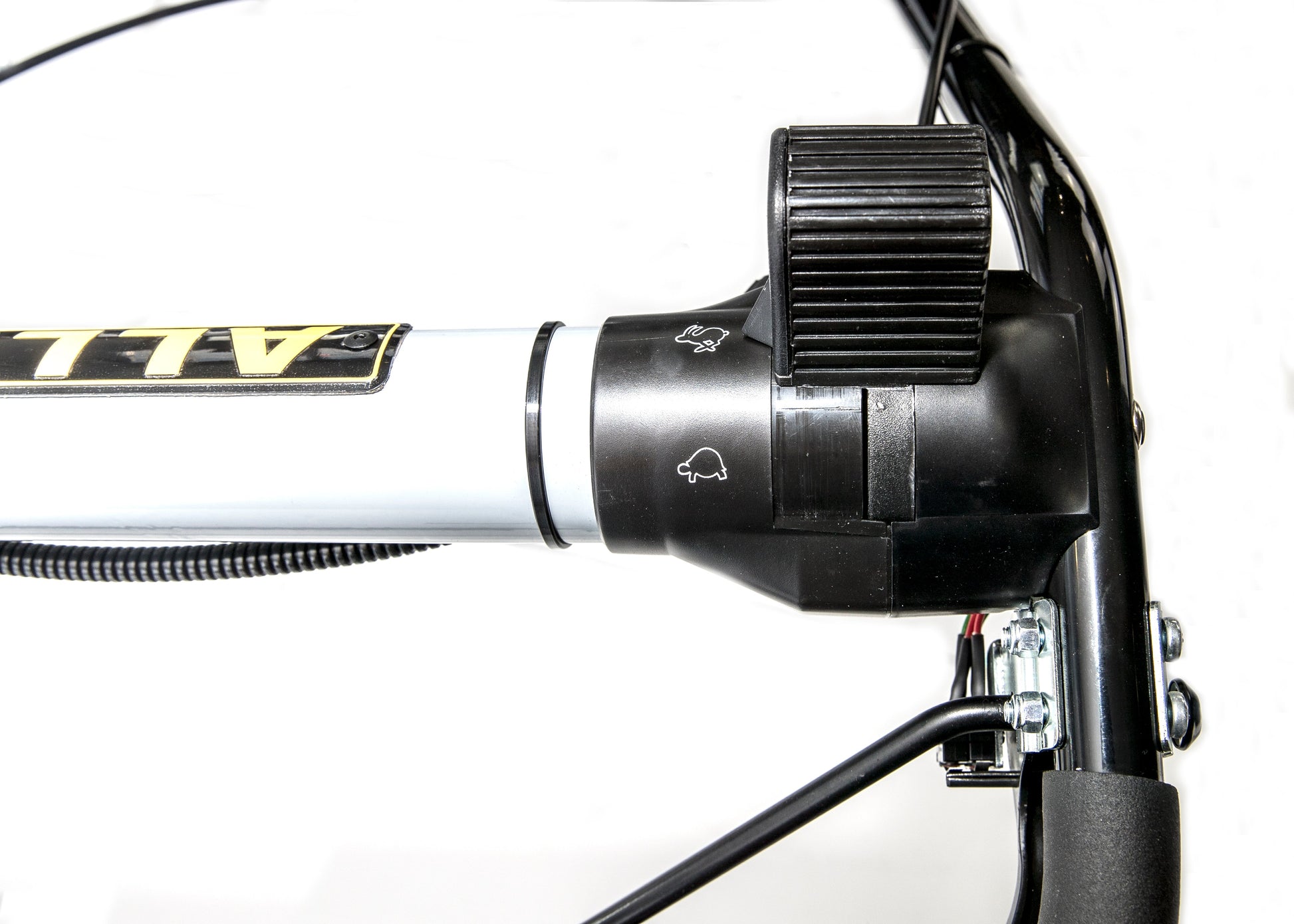

Comfortable forward speed with greater control

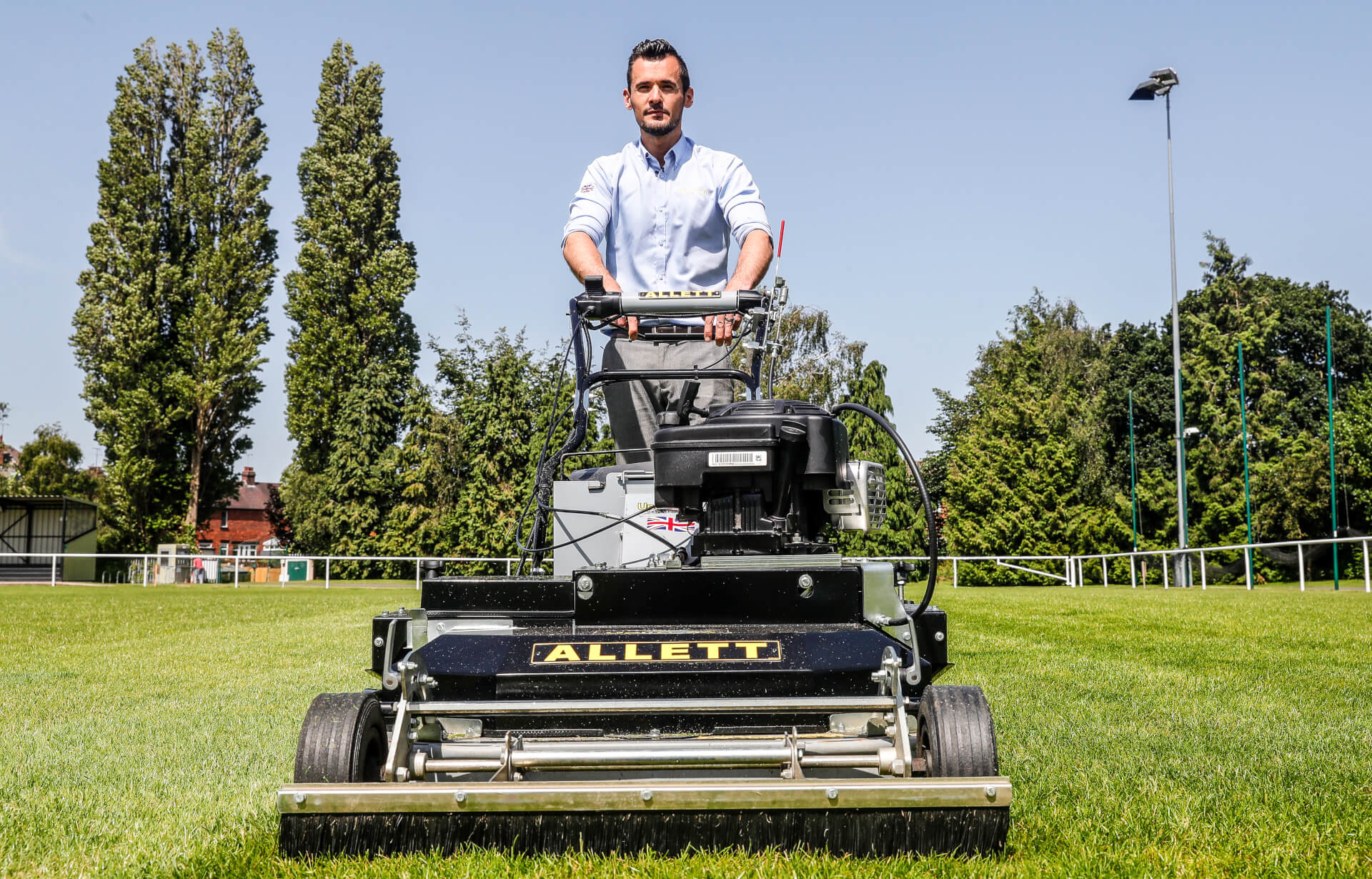

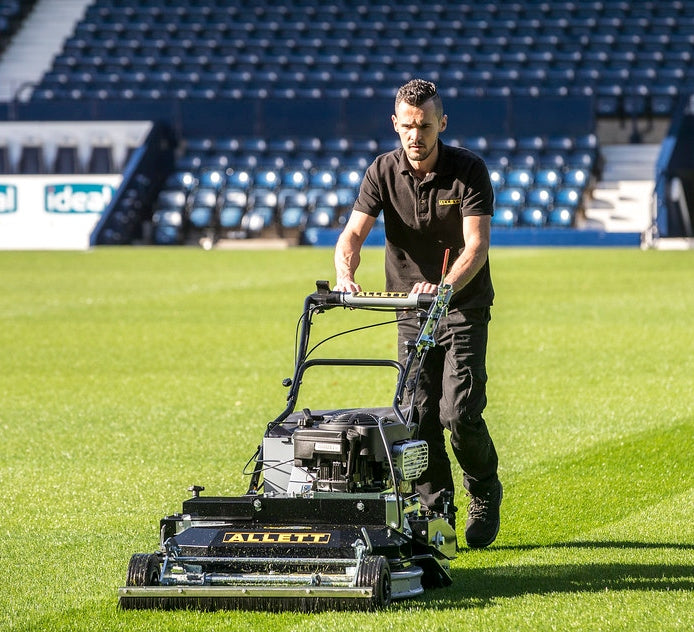

Ideal for debris collection after matches, the Uplift 86 features a five speed heavy-duty gearbox which allows the operator to select a comfortable forward speed with greater control in small, intricate areas. Higher speed selection, up to 6.7km/h (4.2mph) , quickly covers large areas for increased efficiency.
Reliability and durability are inbuilt

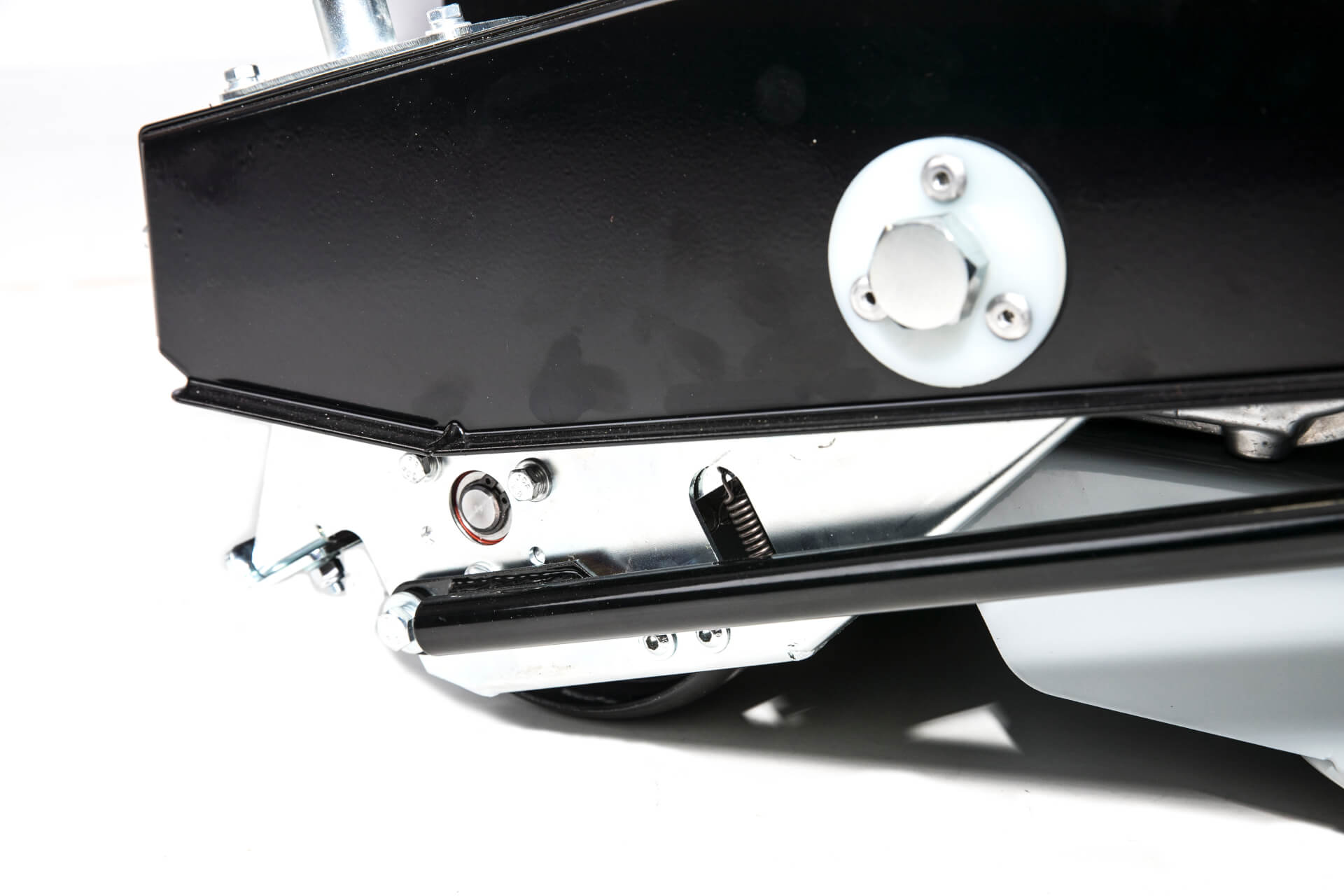

Reliability and durability are inbuilt in the Uplift 86 with chain self-tensioning, bearing protection and solid front tyres running on bronze bushes.
A tough, robust and versatile mower

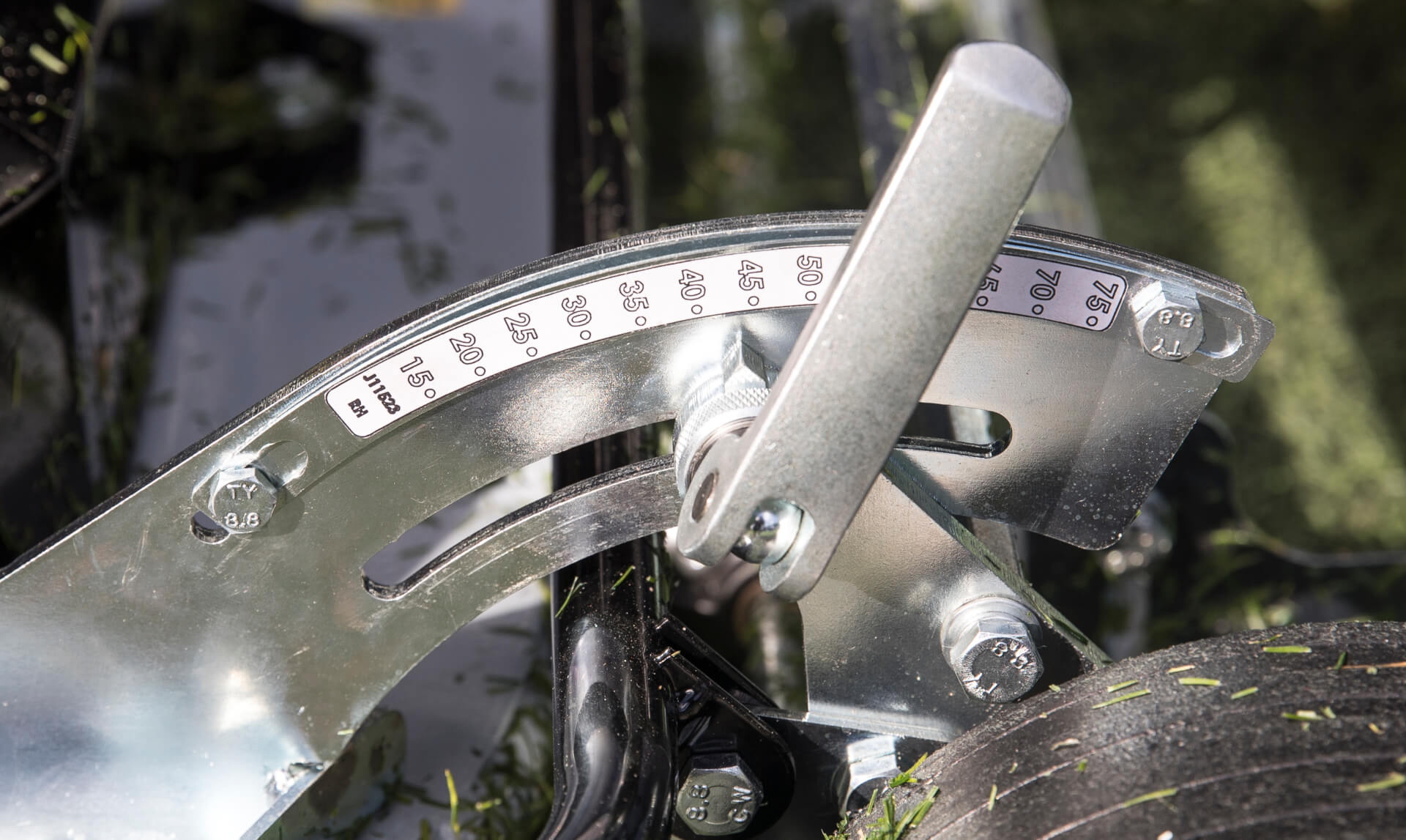

The cutting height is completely
variable from 1.5cm to 7.5cm (0.59" - 2.3") with a steel fabricated cutter deck and three piece, full width, steel rear roller making this a tough, robust and versatile mower.
Uplift 86 Owner Stories & Info
Uplift Accessories
-

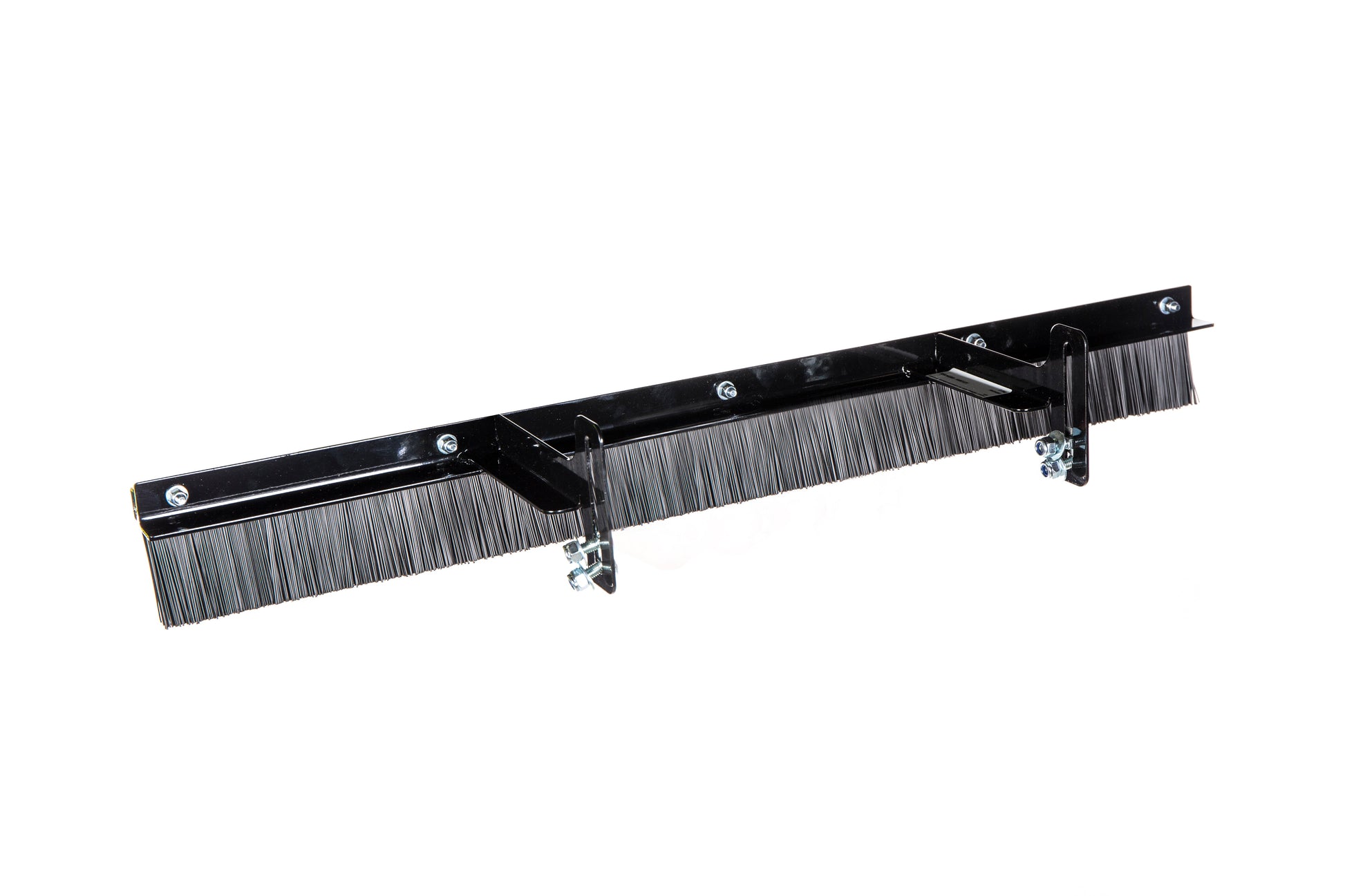

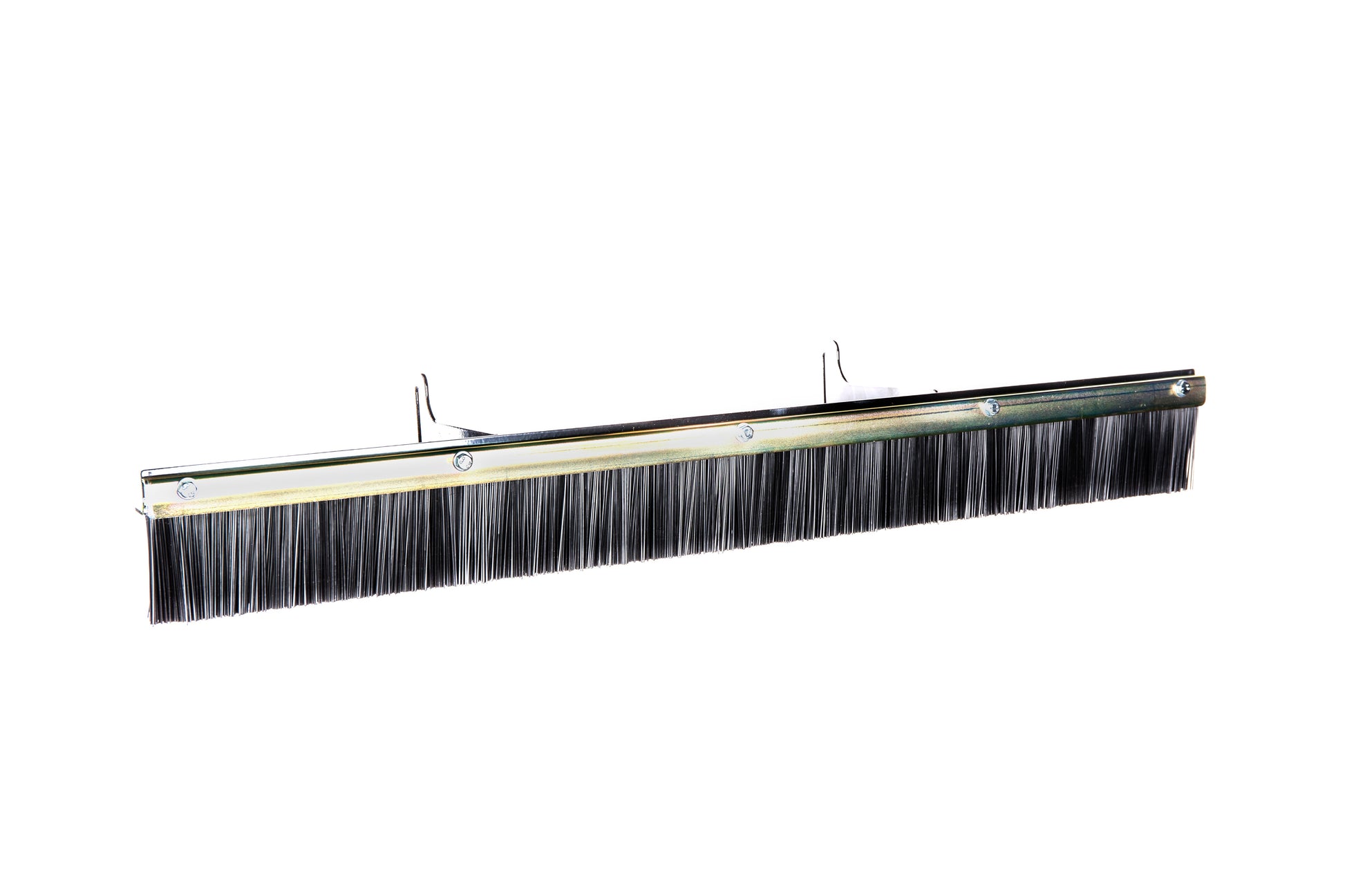

Allett Uplift 86 Petrol Front Brush (Uplift86B)
Regular price £486.00Regular priceUnit price per
Want to try the Uplift 86?
If you would like to see this mower in action and try it for yourself, we can arrange for you and your groundscare team to have a no-obligations demonstration at your club or institution.
