TOURNAMENT
24

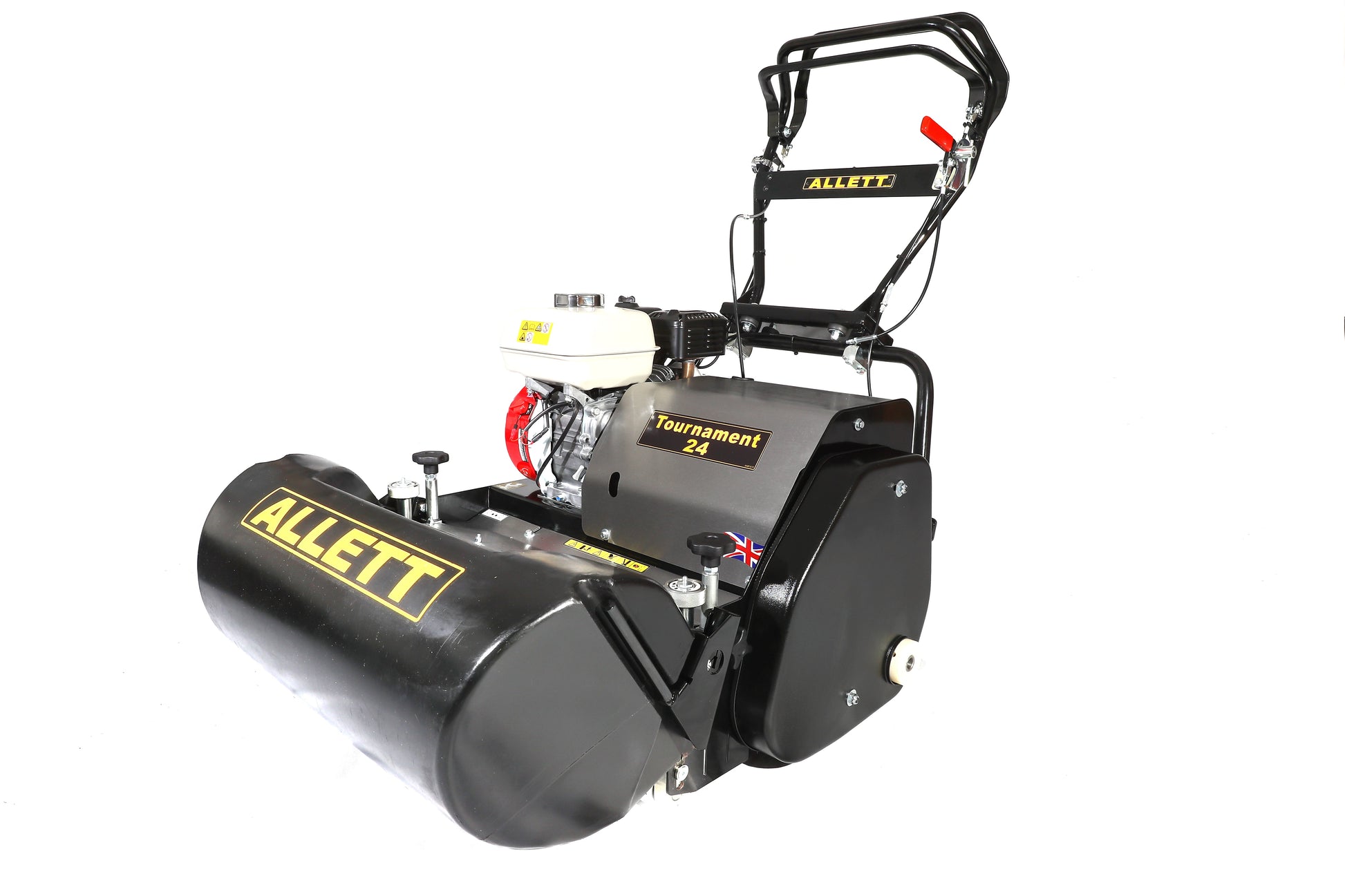

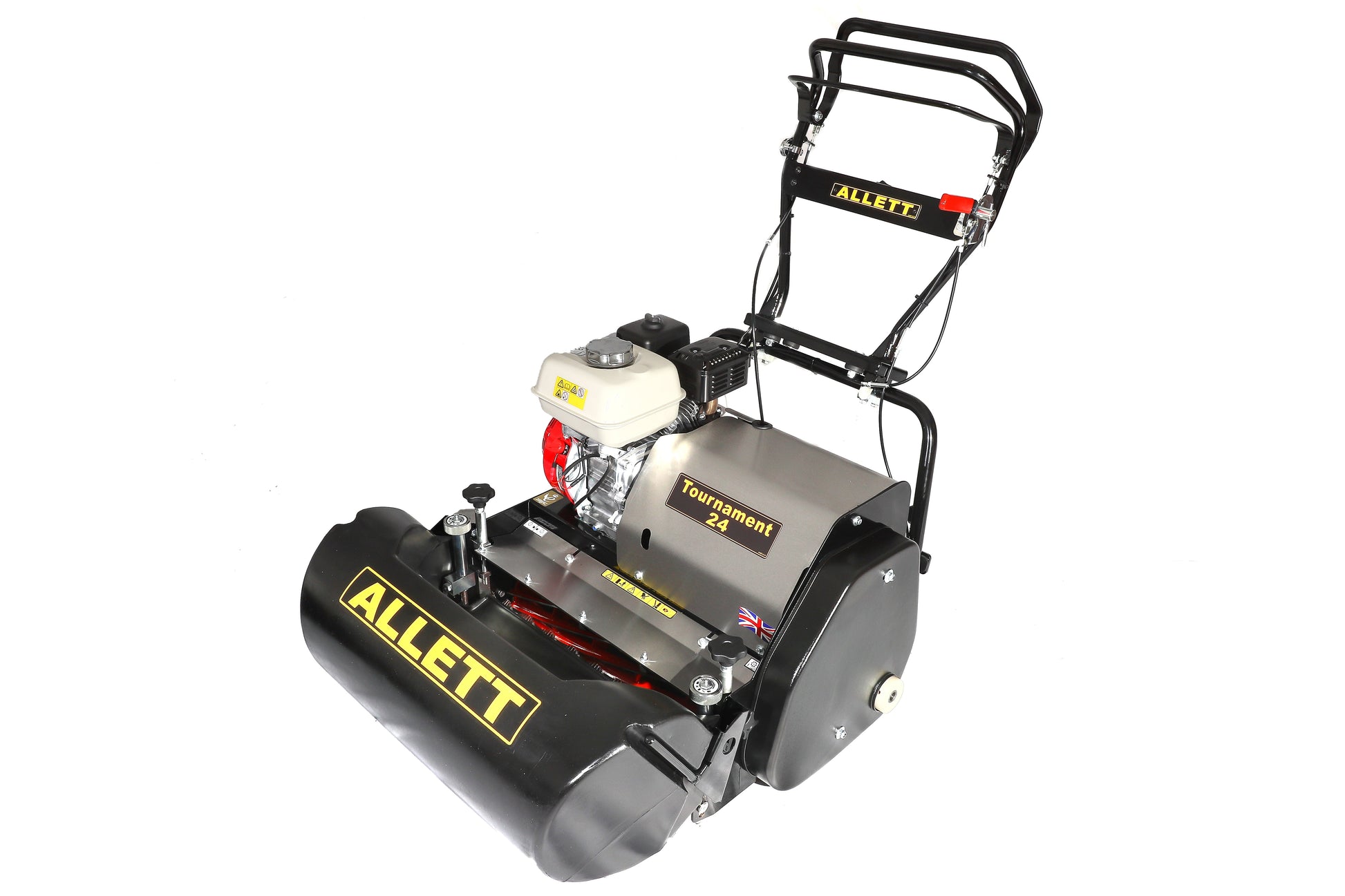

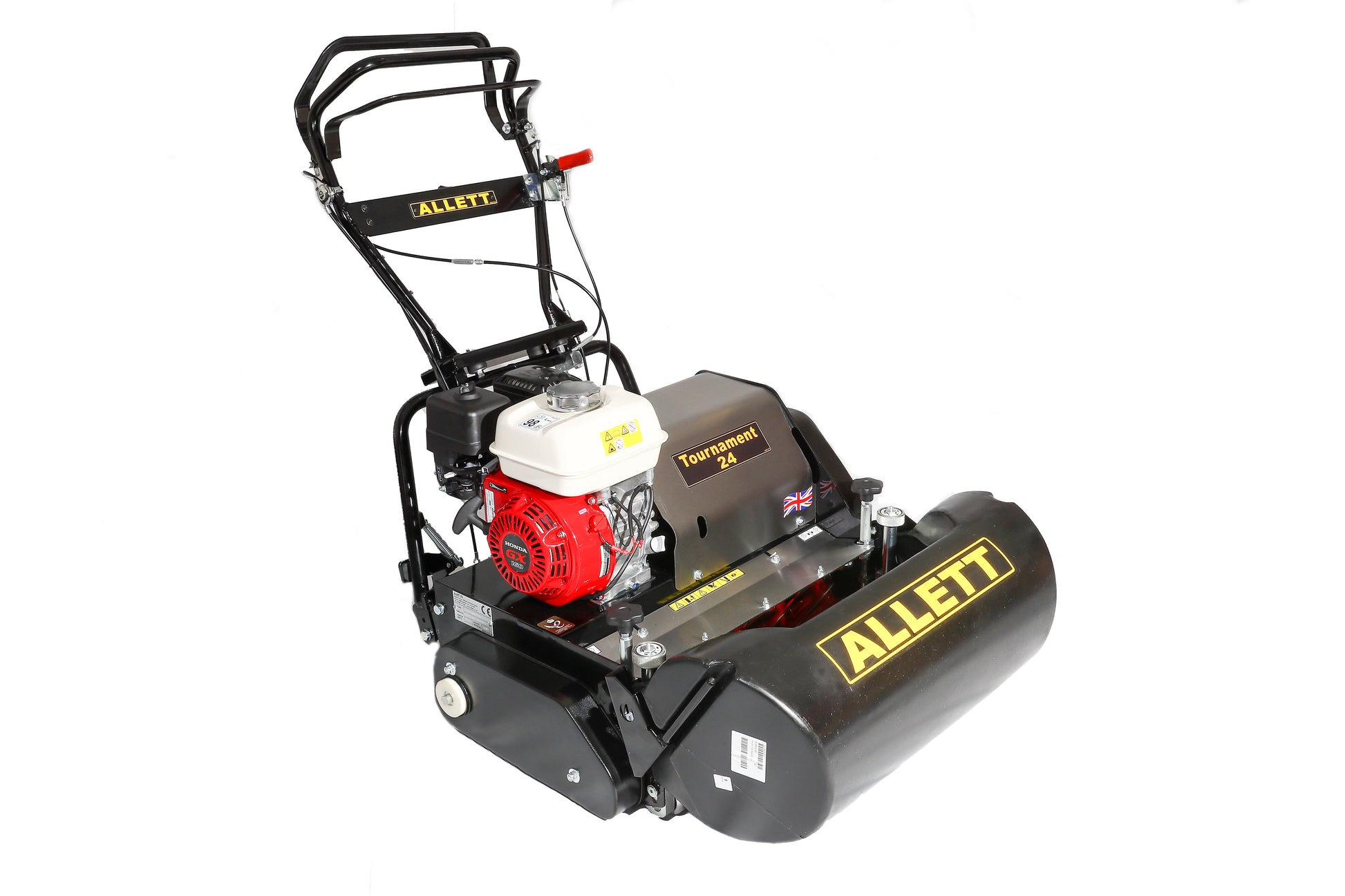

Fine Turf Precision Cylinder Mower With Powered Groomer.
Book Demo • Specialist Advice • Delivered By Local Dealer

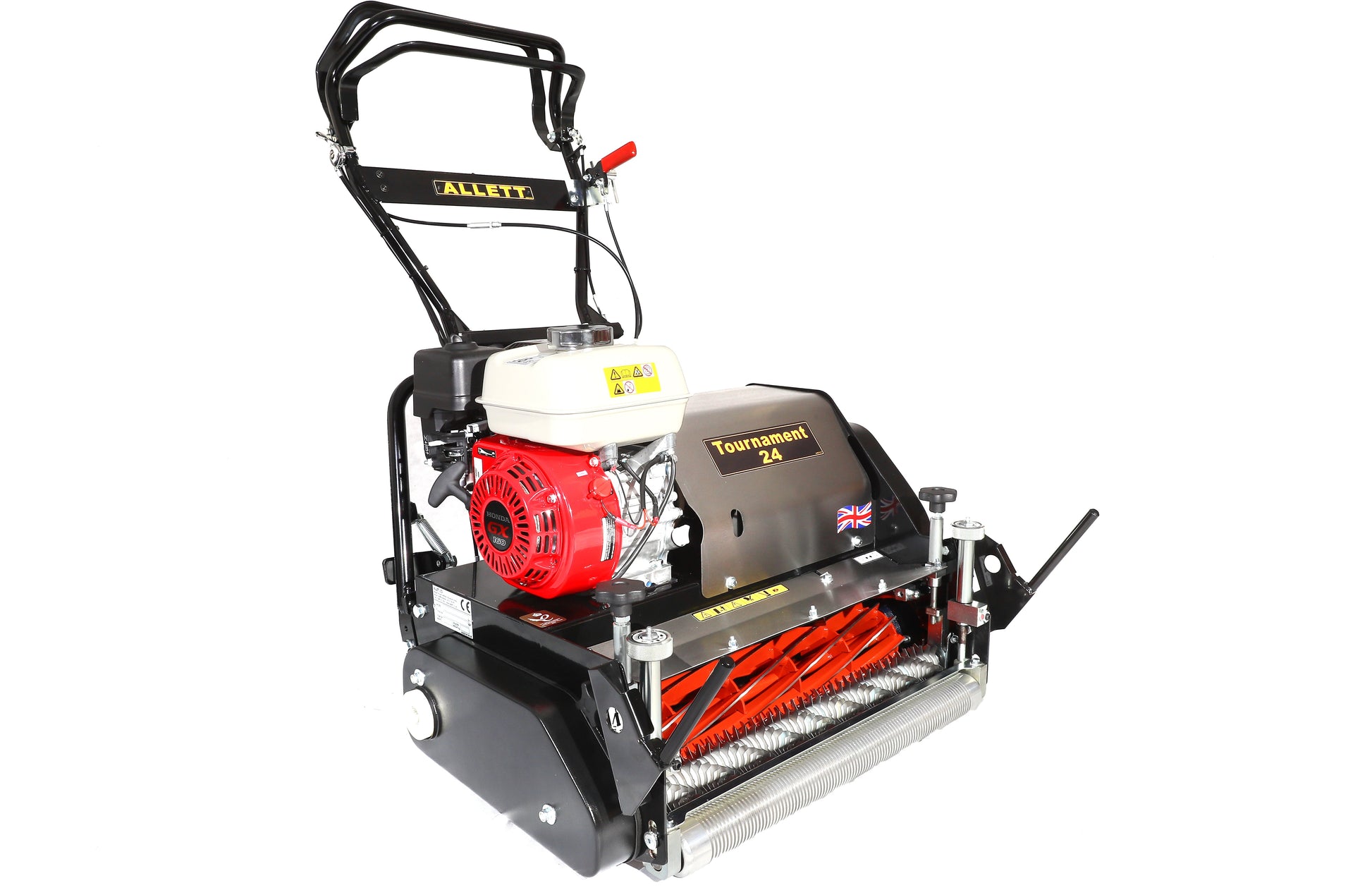

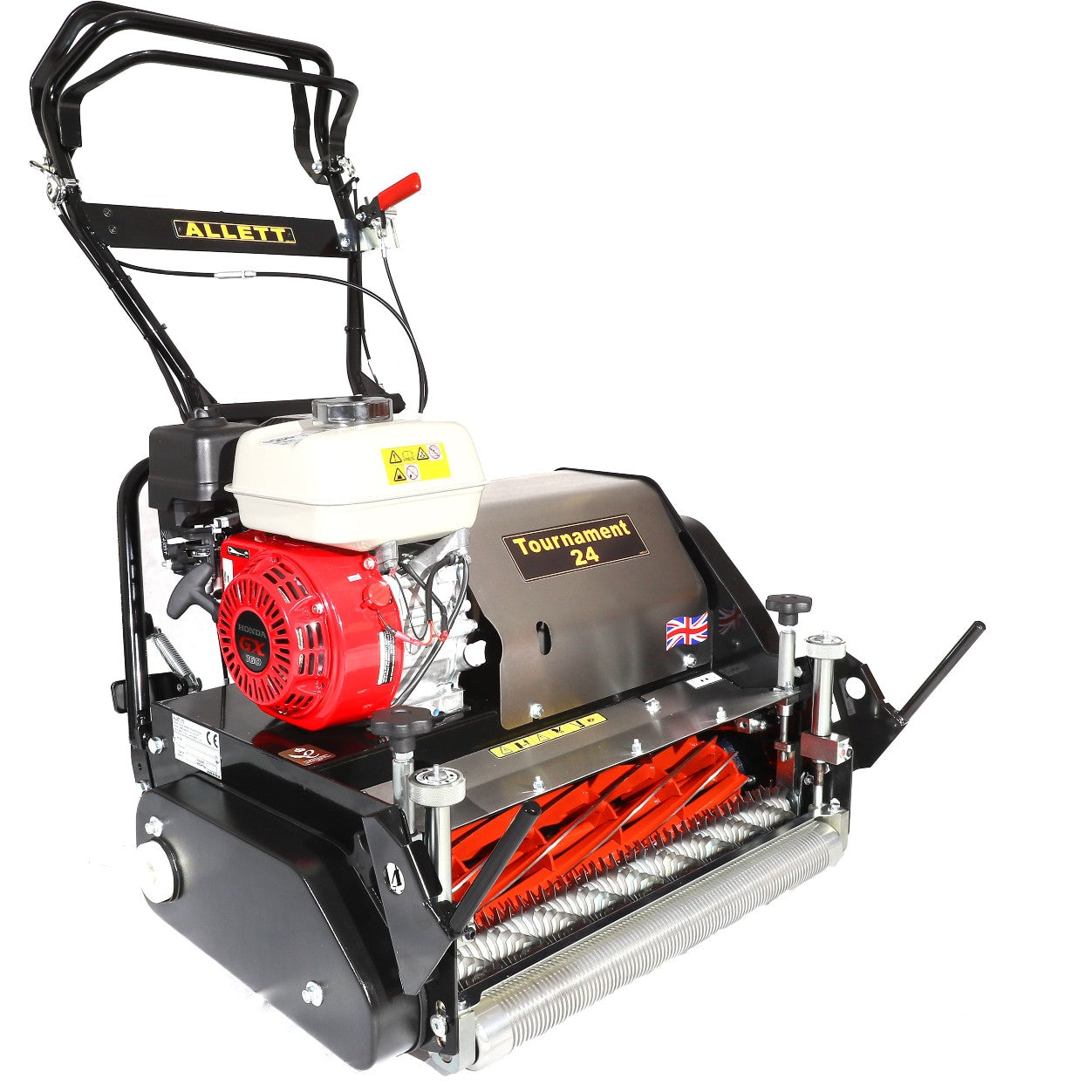

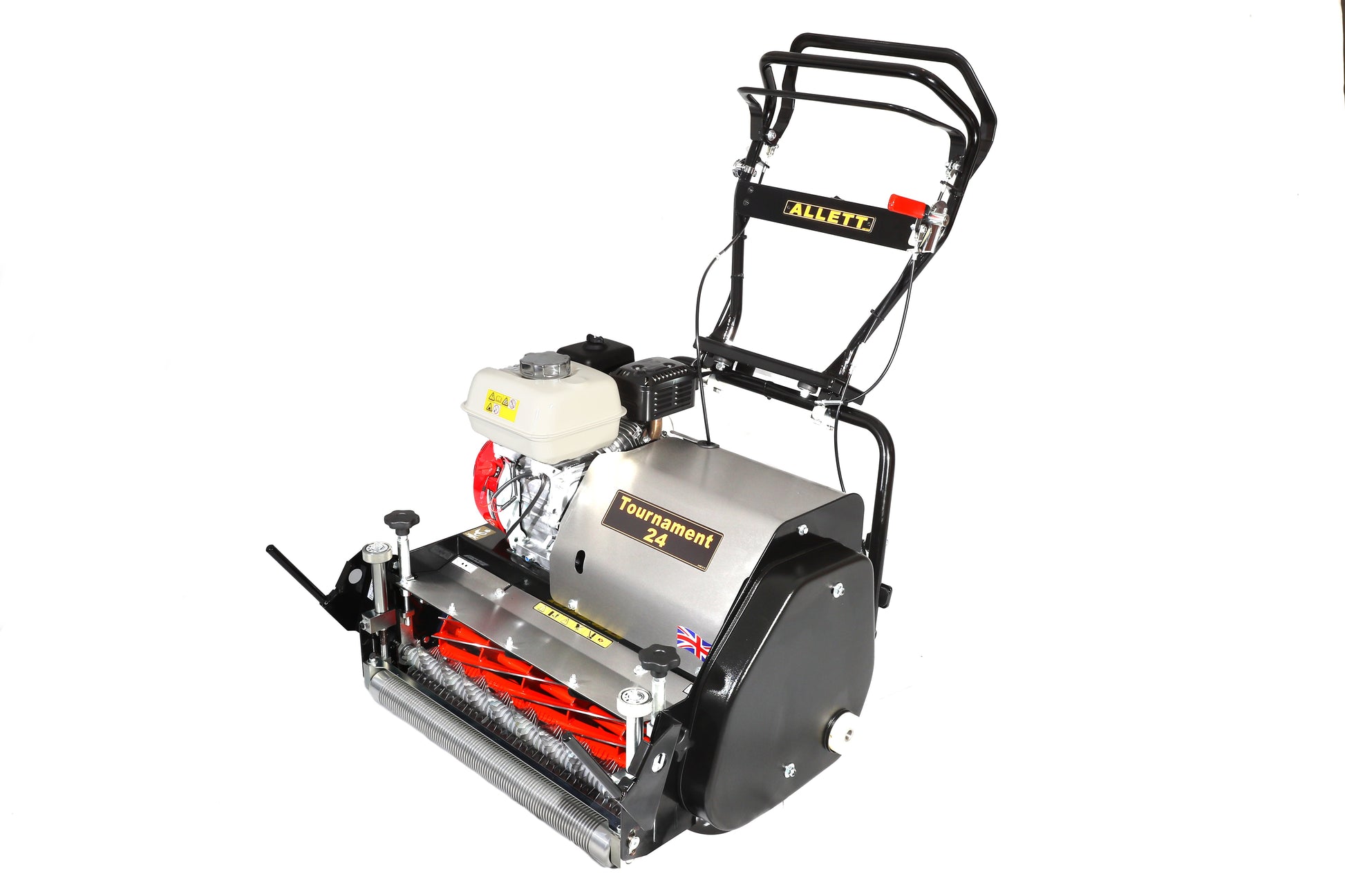

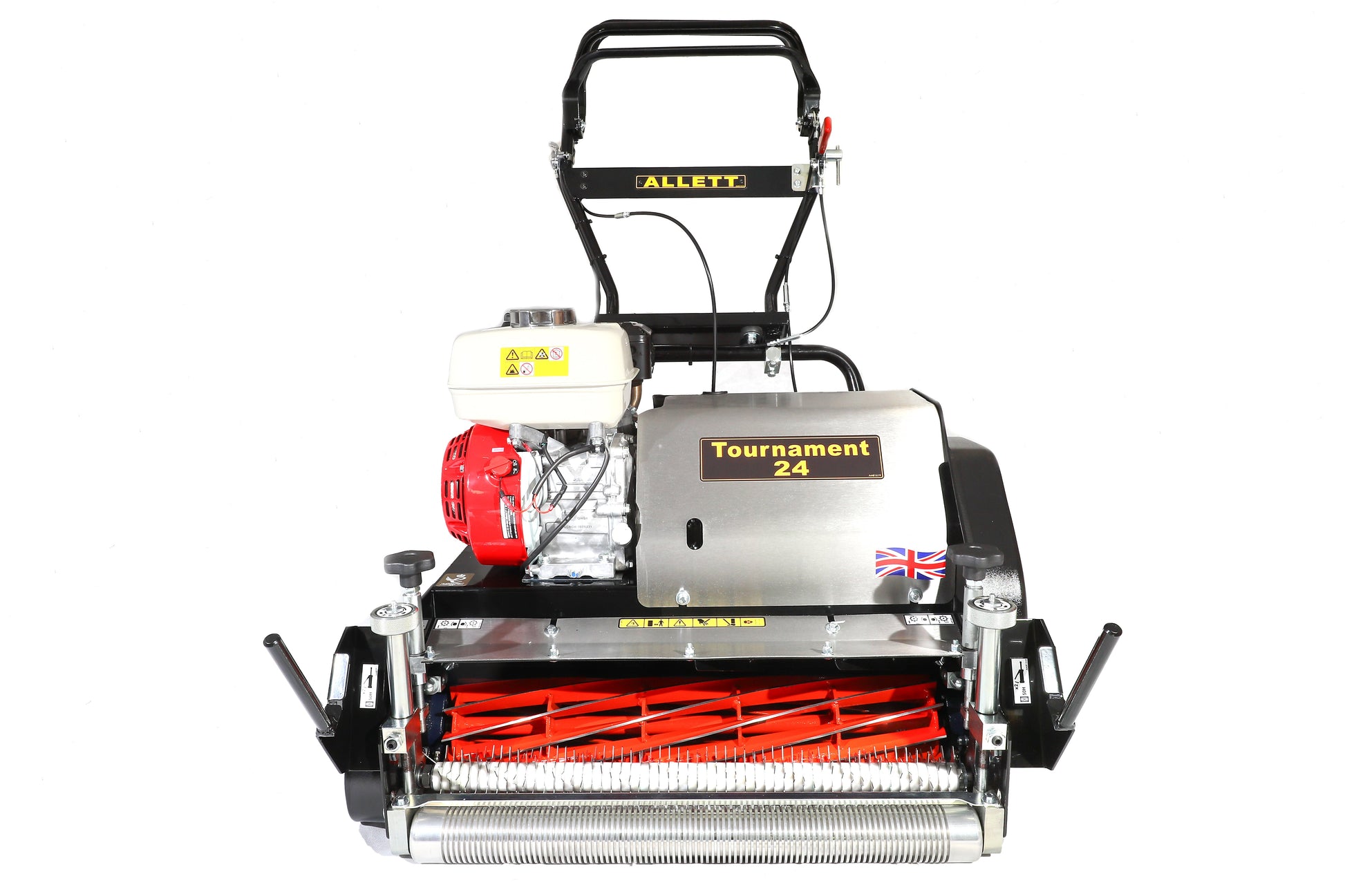

Tournament 24 Technical Data
| TOURNAMENT 24 | |
|---|---|
| Working width | 610mm (24in) |
| Overall width | 788mm (31in) / 1003mm* (39.5in) |

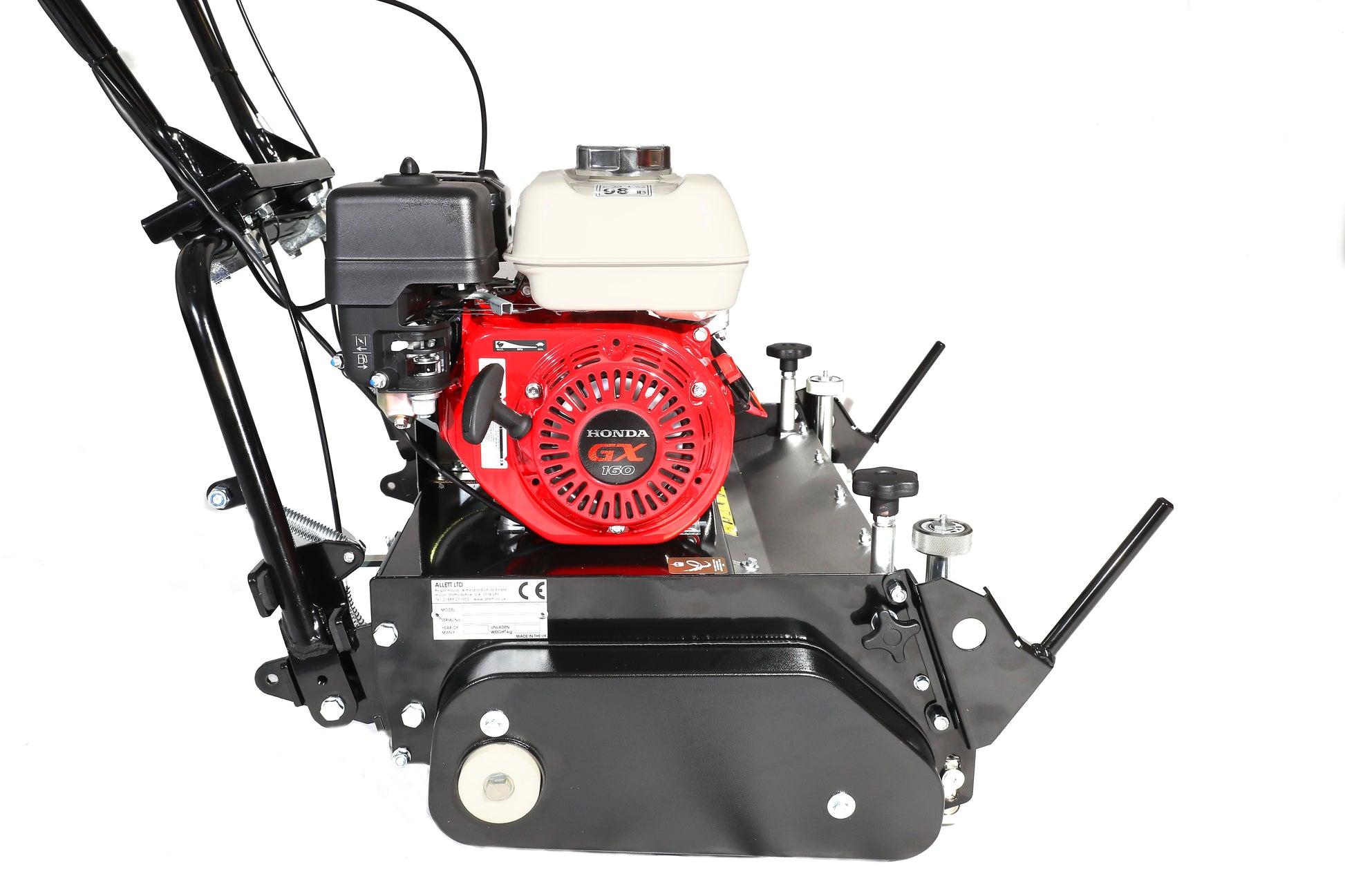

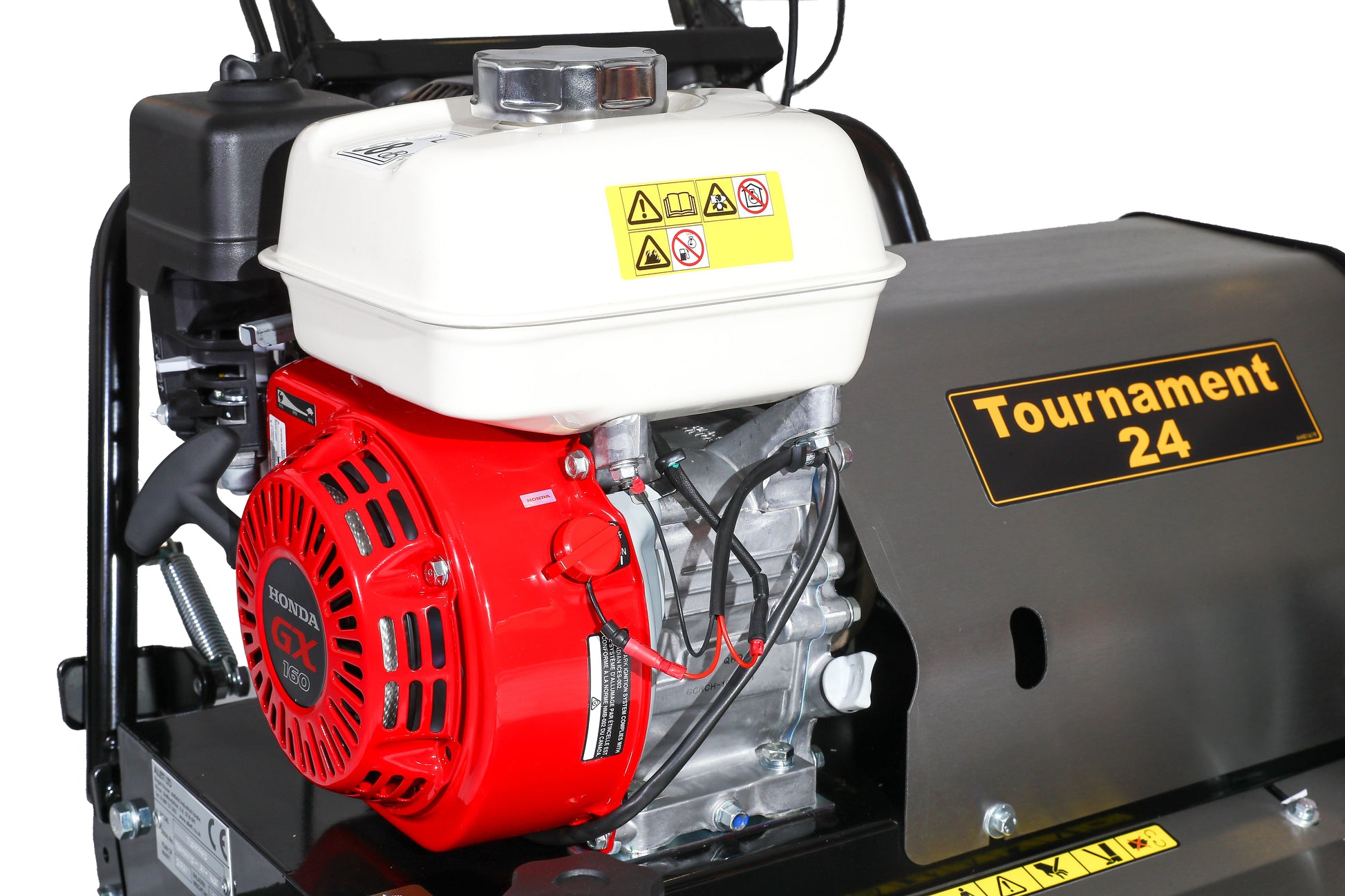

| Power Source | Honda GX160 |
| Power output (net) | 3.6kW (4.8hp) @ 3,600 rpm |

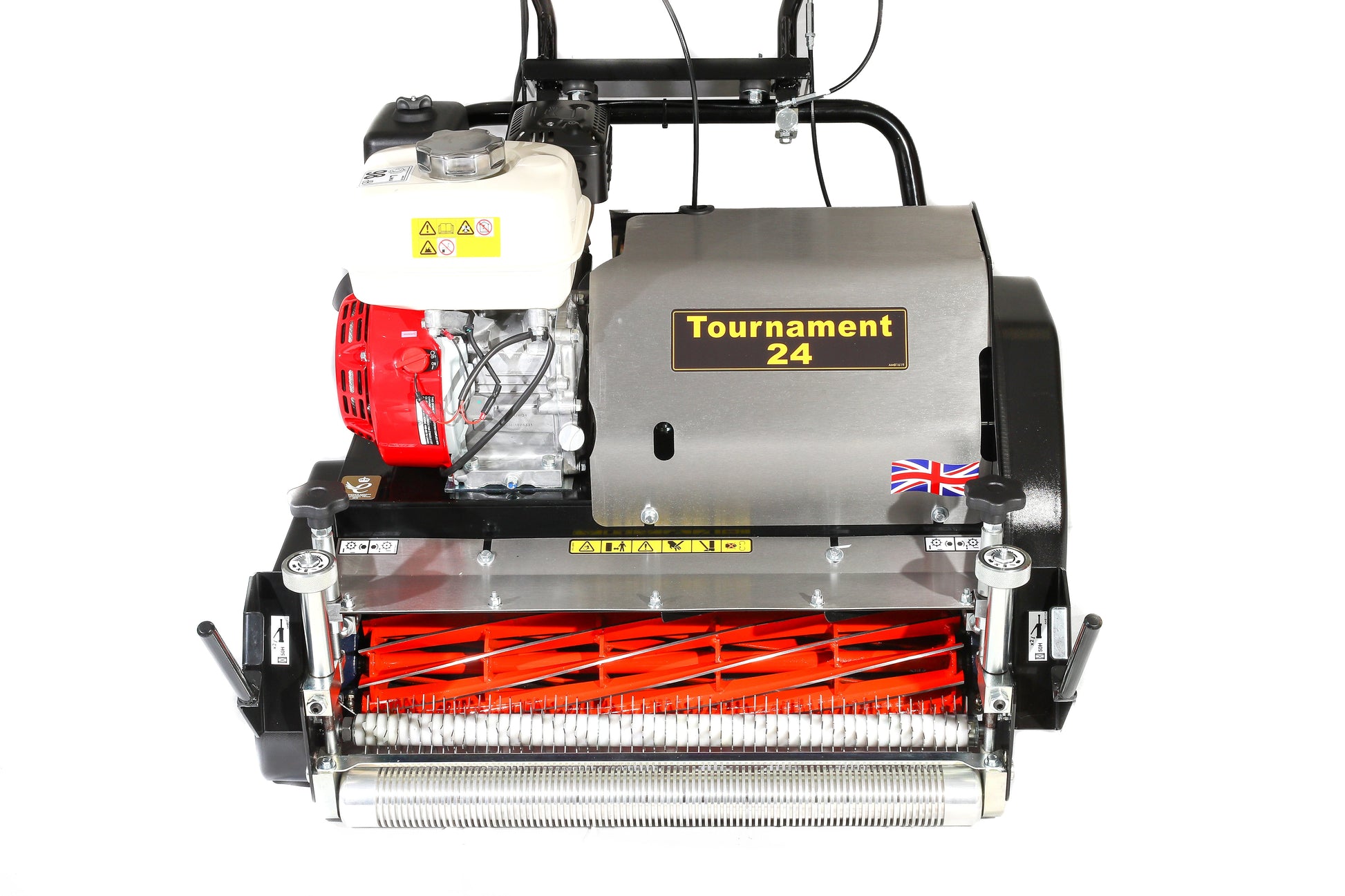

| Cutting cylinder | 120mm (4.7in) diameter with 10 blades. All-welded construction. |
| Bottom blade | 2.4mm (0.1in) as standard 4mm (0.16in) bottom blade available on request |
| Grooming reel | 54 blades @ 10mm spacing |
| Clip rate | 246 clips/metre (225 clips/yd) irrespective of forward speed |

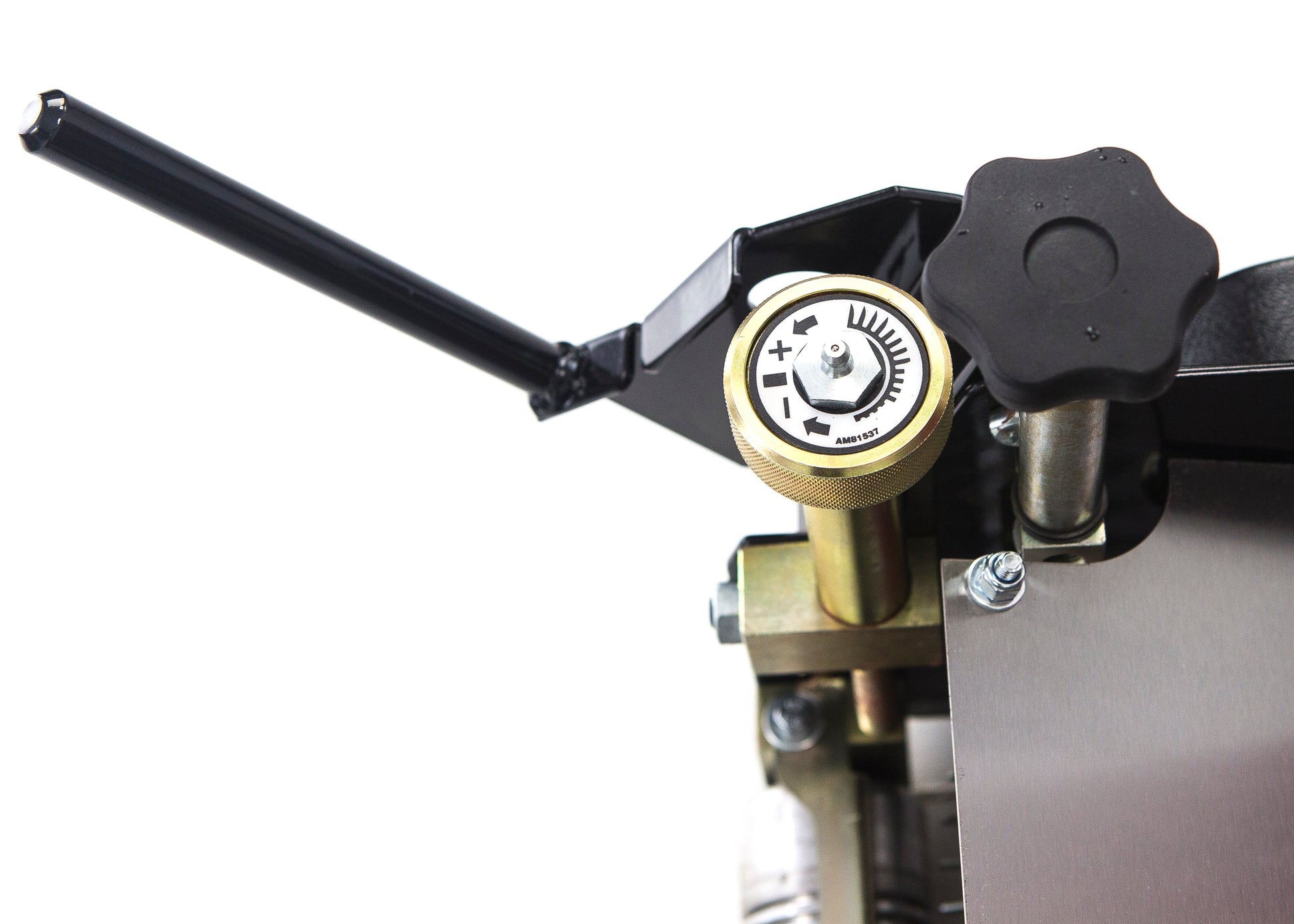

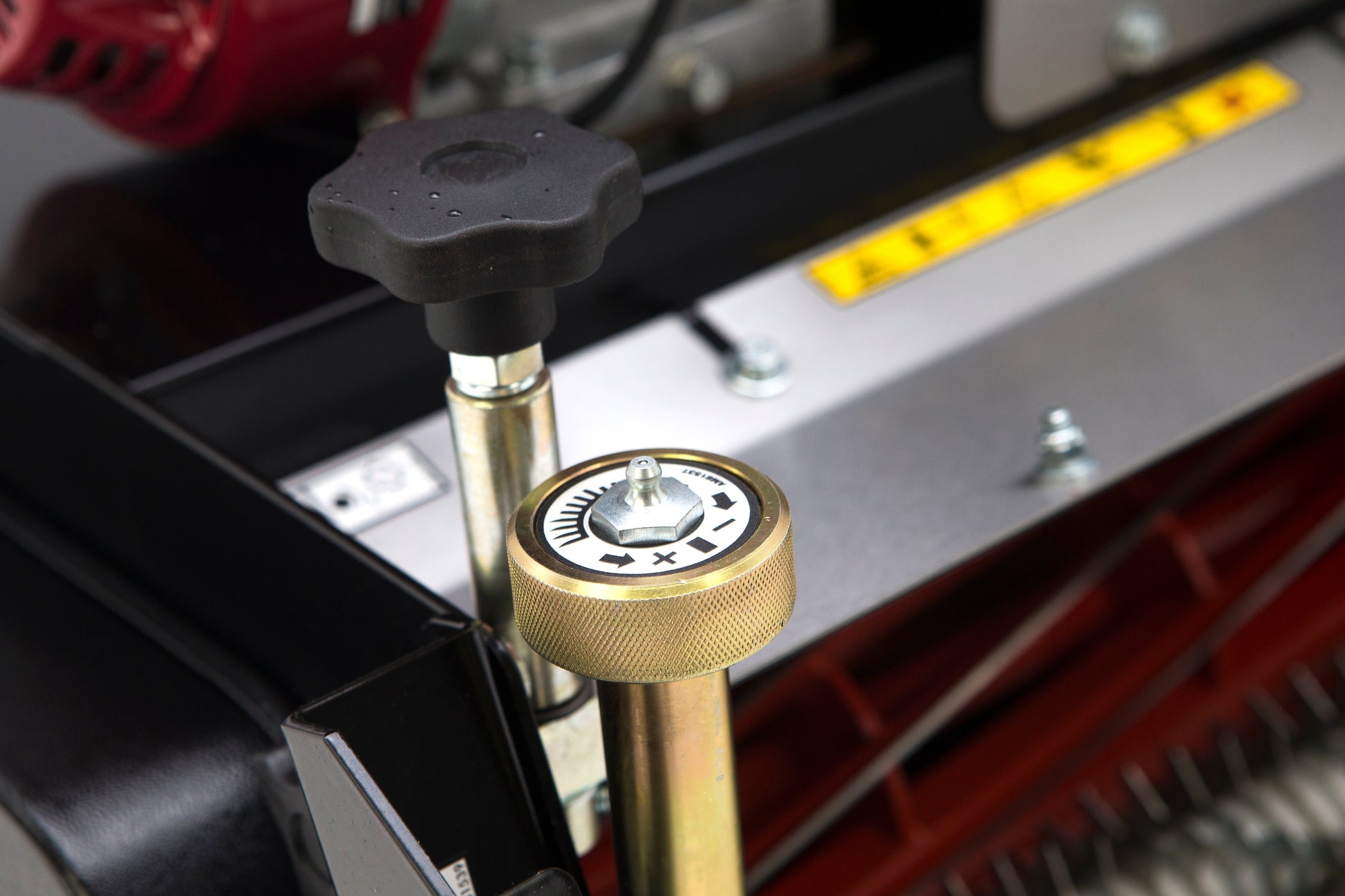

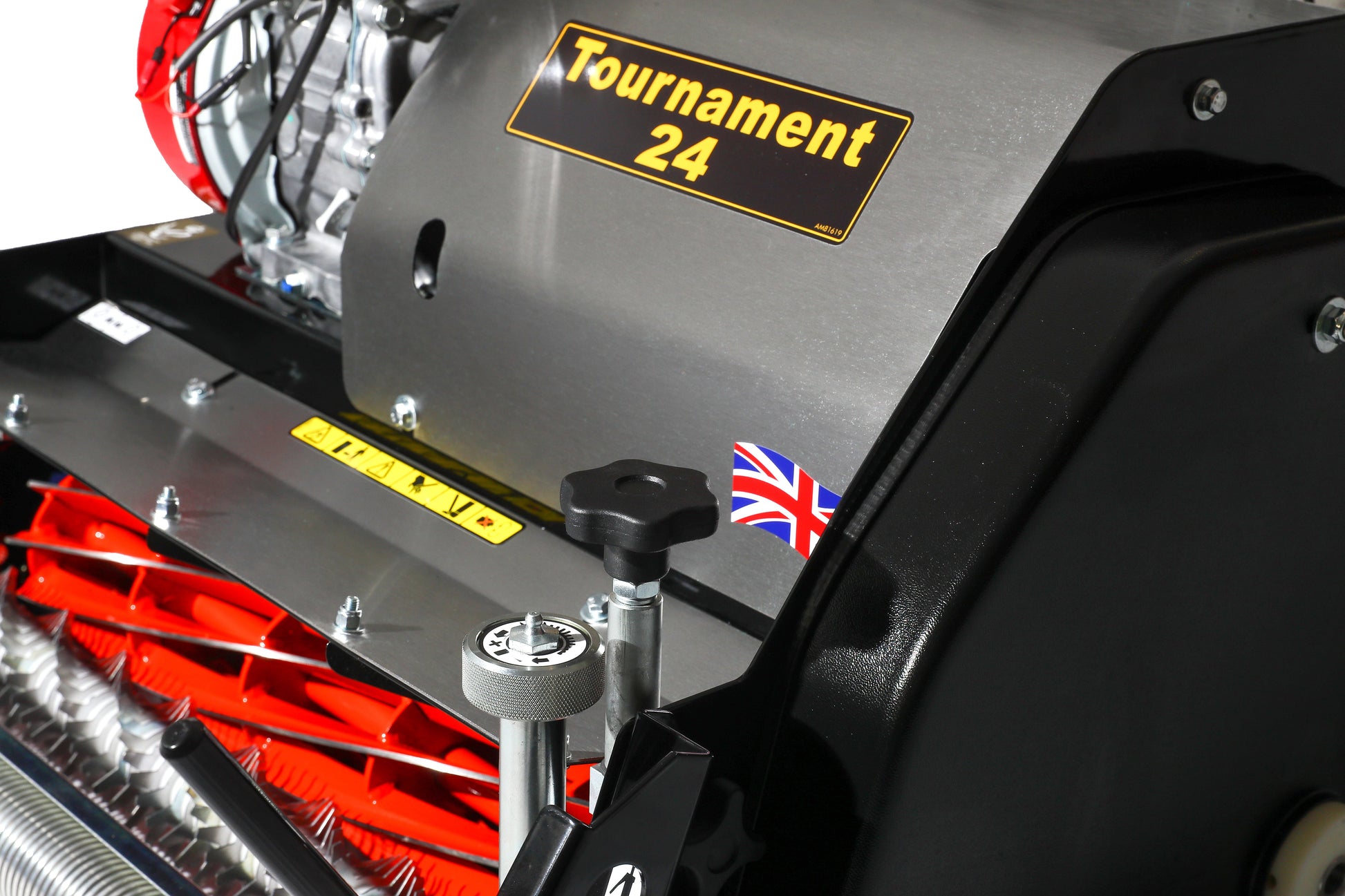

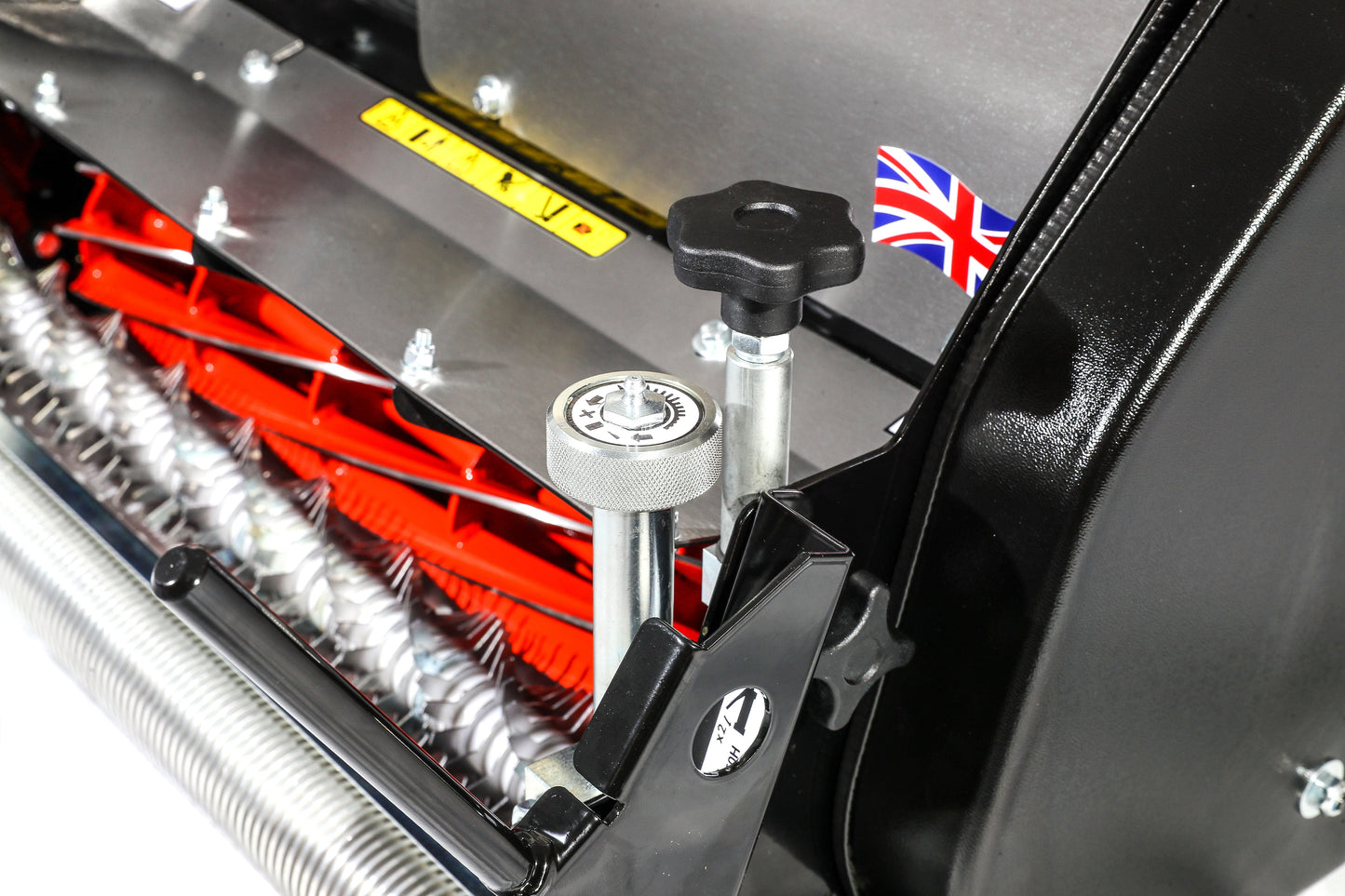

| Height of cut | Hand adjustable from 2.4mm-19mm (0.1in-0.75in) |

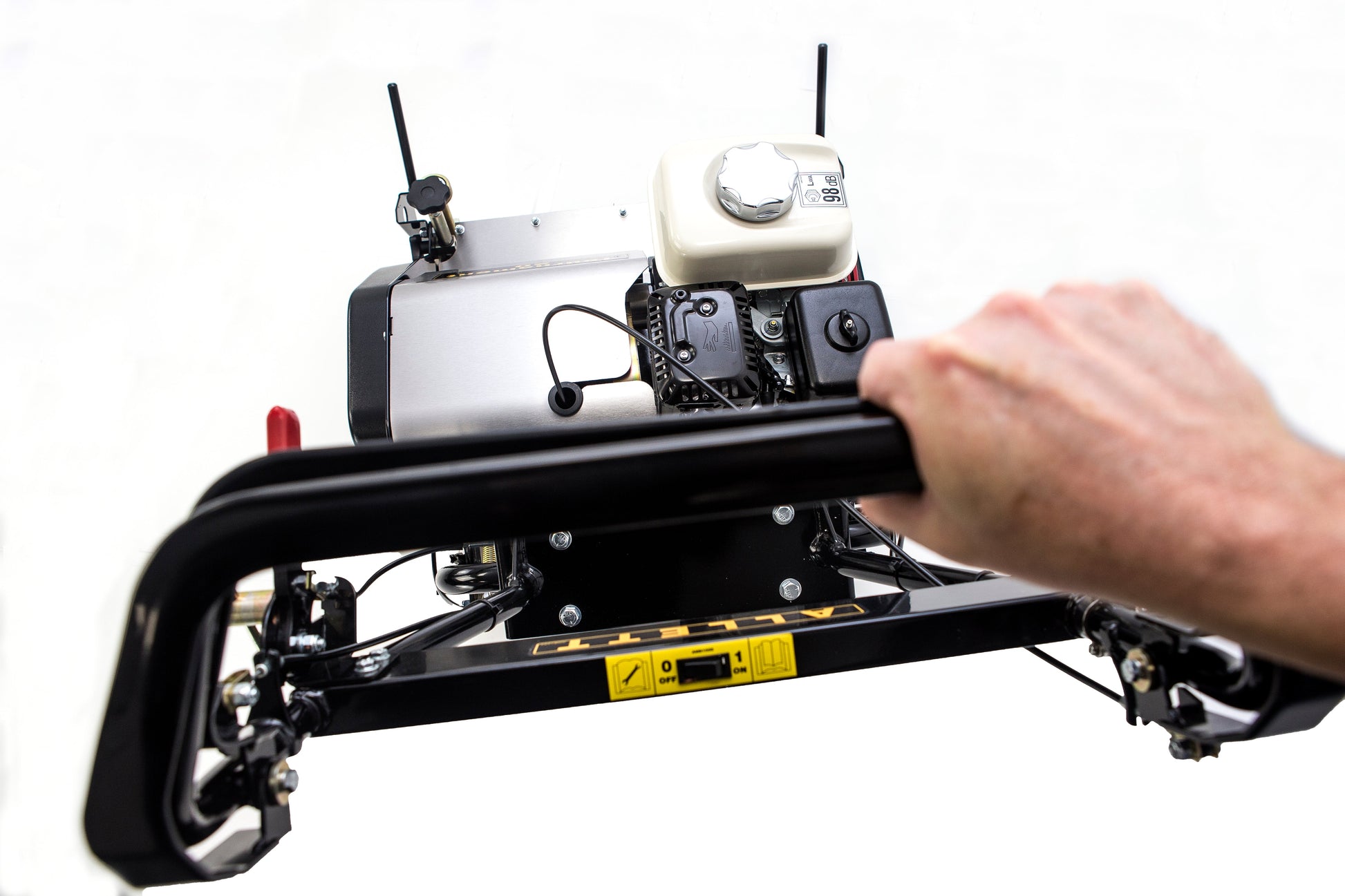

| Handlebar | Adjustable with anti-vibration mounting |

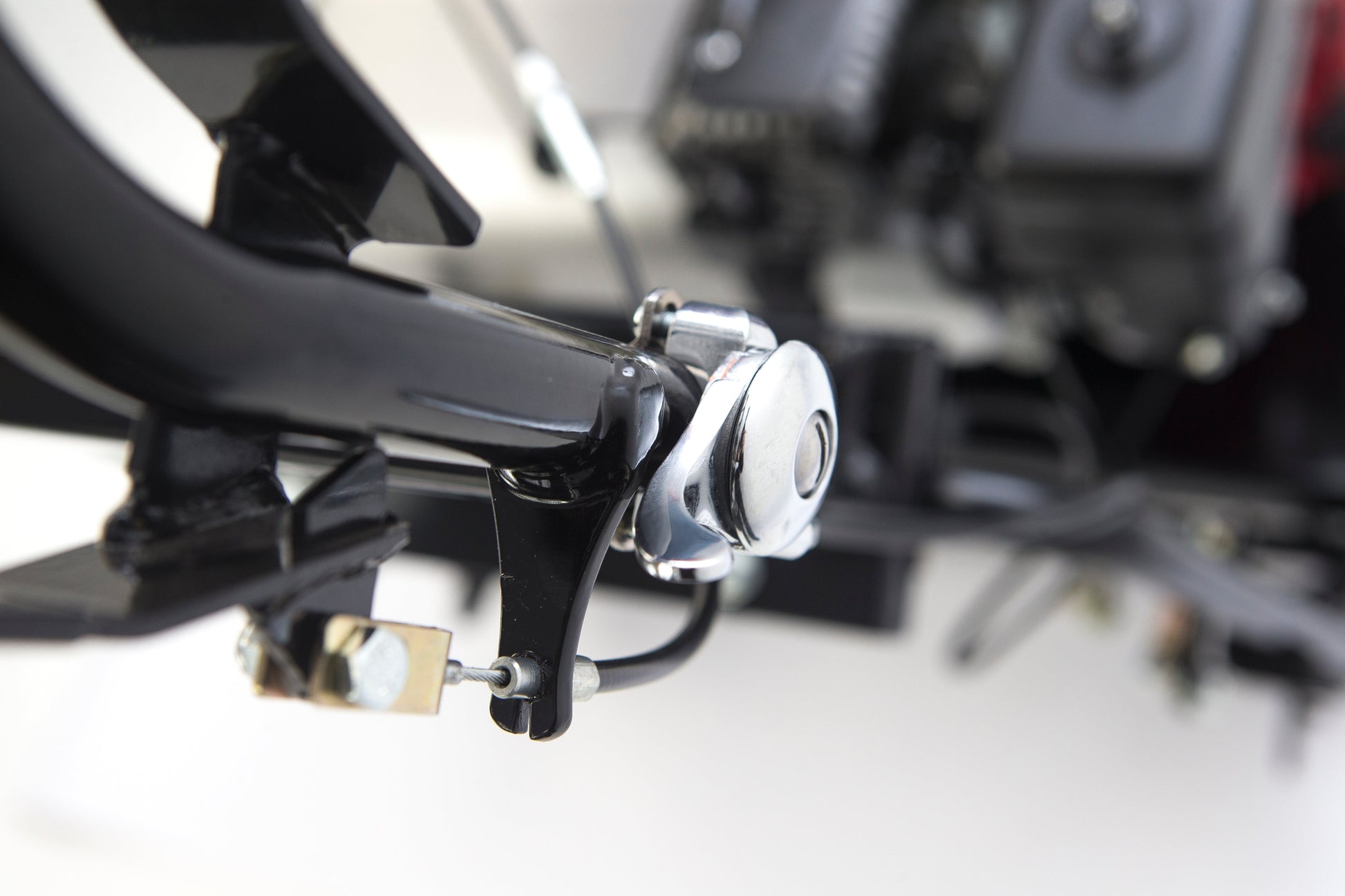

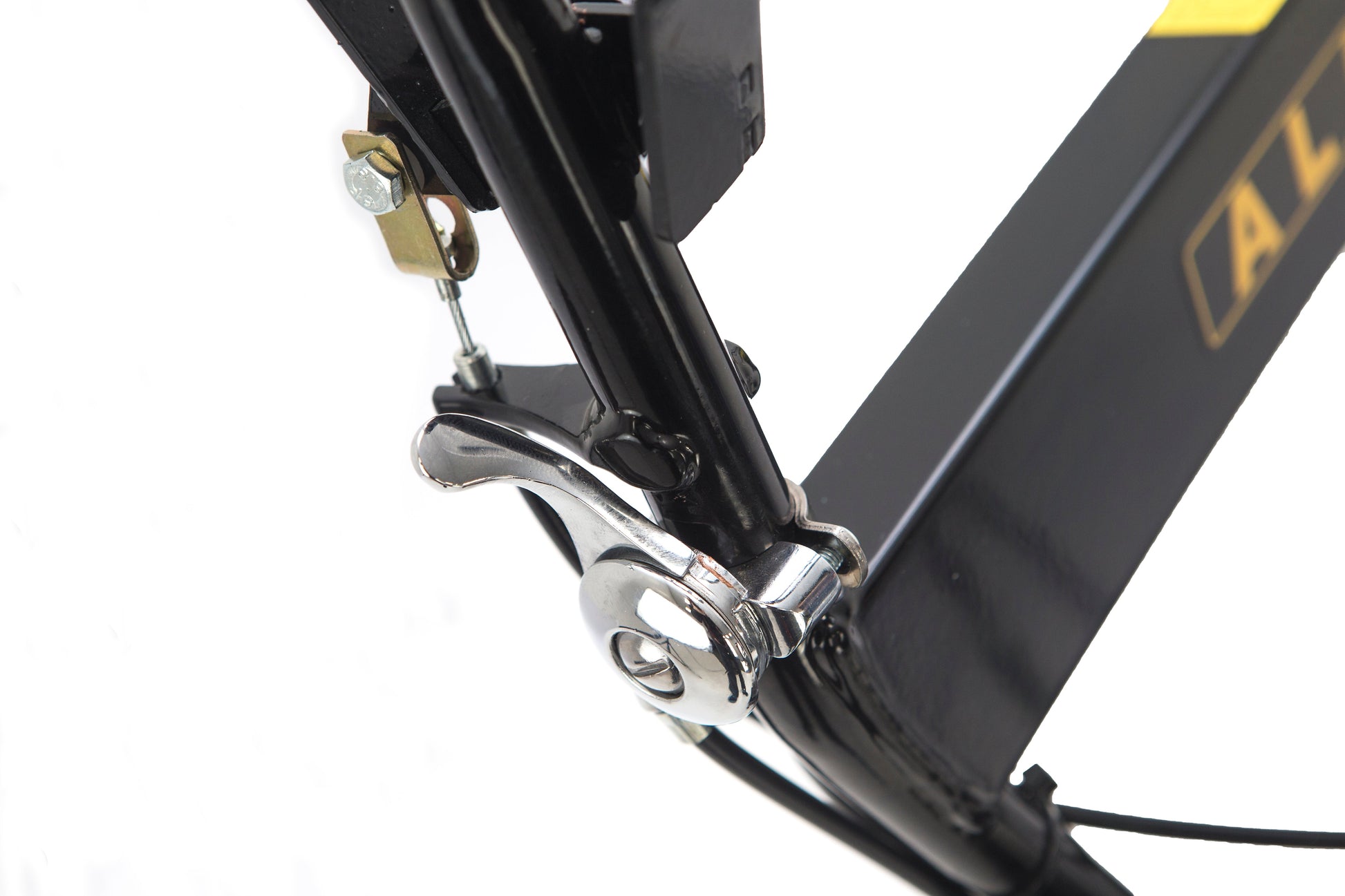

| Drive engagement | Handle-mounted lever engaging V belt drive via cable |
| Cylinder engagement | Handle-mounted lever engaging twin V belt drive via cable |

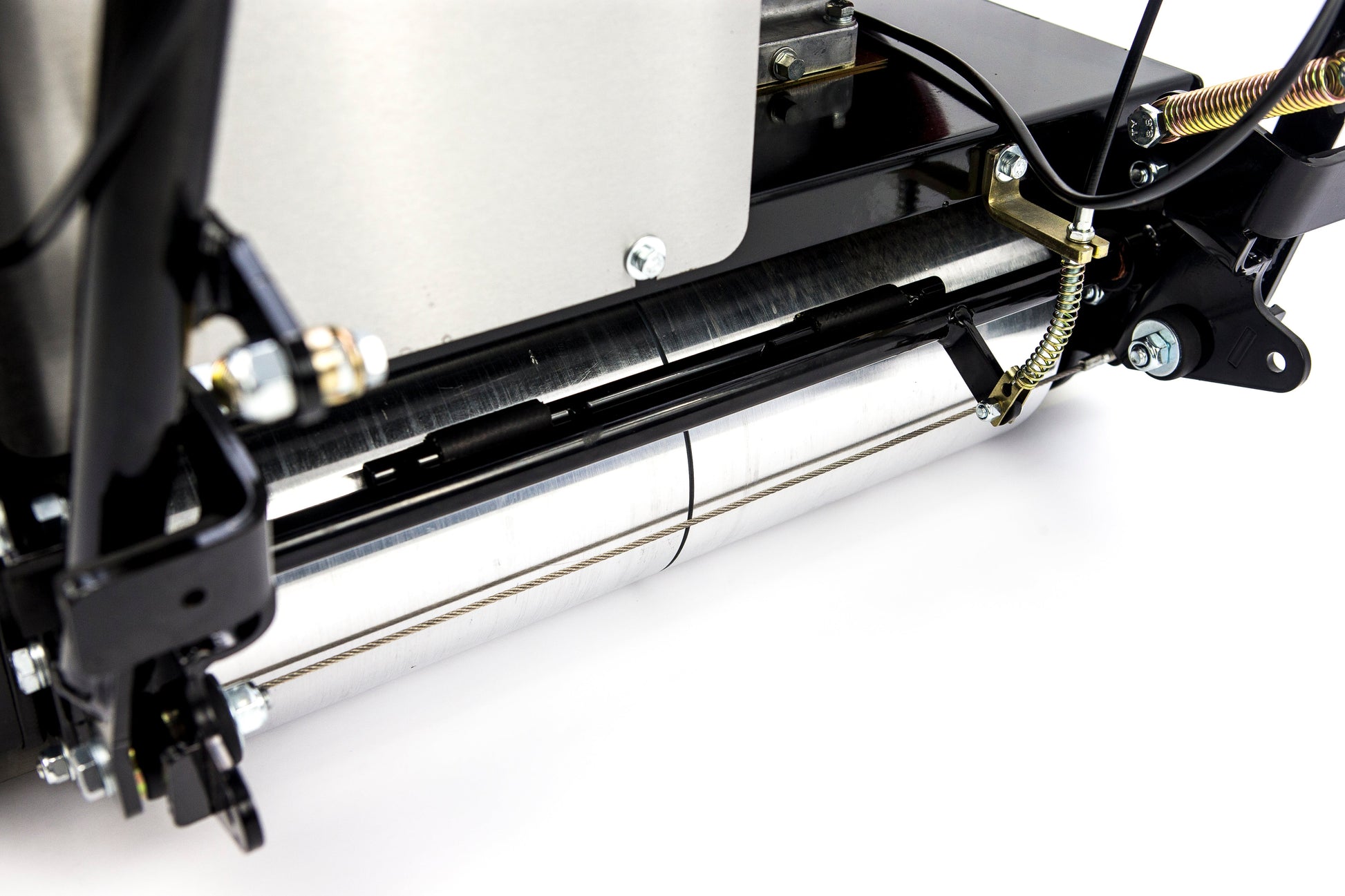

| Rear roller | Two-piece aluminium with steel bevel gear differential |
| Front roller | Grooved aluminium with scraper and sealed end-bearings |
| Grassbox | Moulded plastic with steel reinforcing strip |
| Weight | 105kg (452lbs) |
| Overall height | 1,016mm (40in) |
| Overall length | 1,270mm (50in) |
| Optional accessories | Smooth front roller in place of grooved roller TS030 Pneumatic transport wheels and stand |
* overall width with optional transport wheels fitted
Behind the Tournament

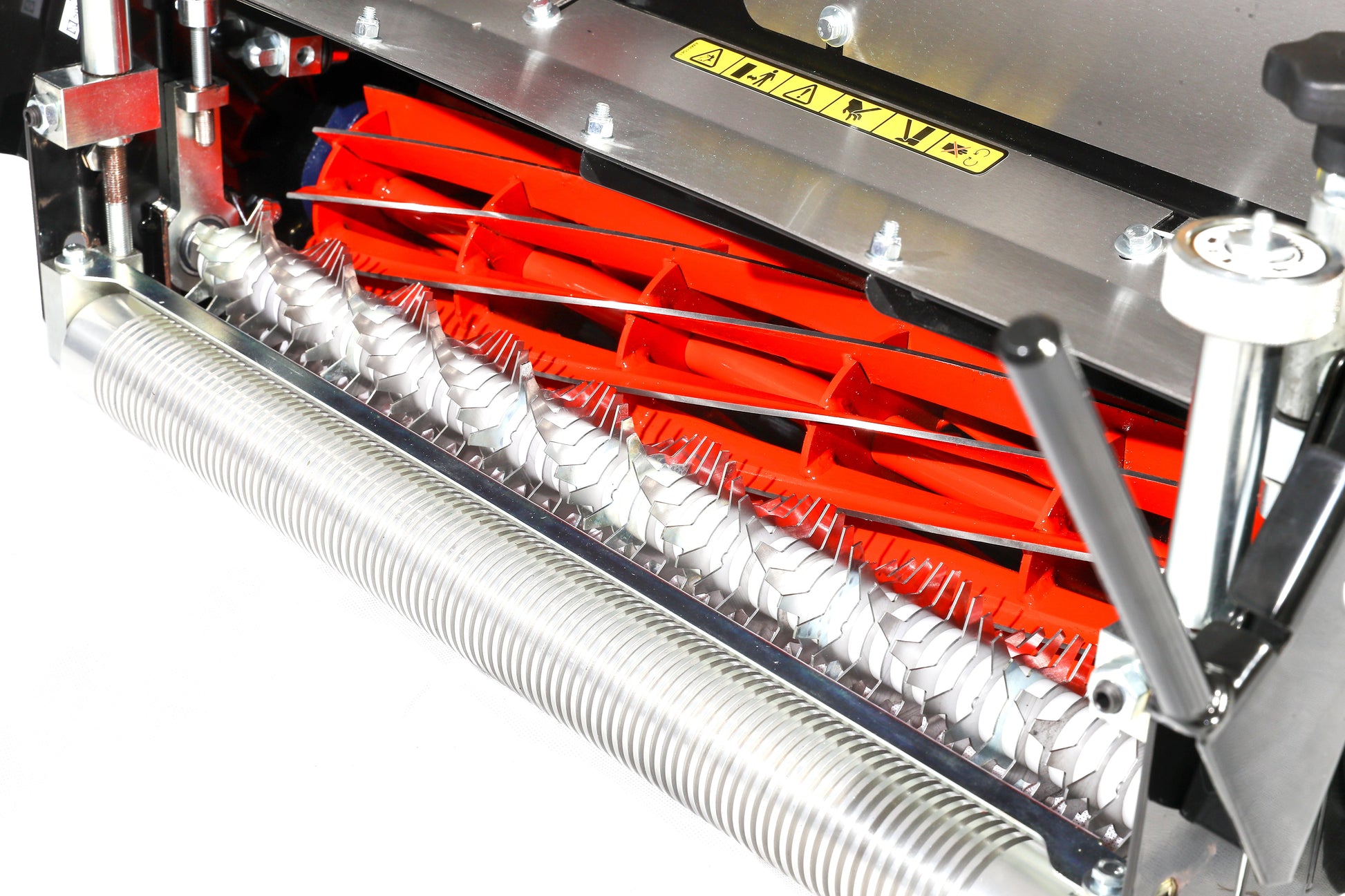

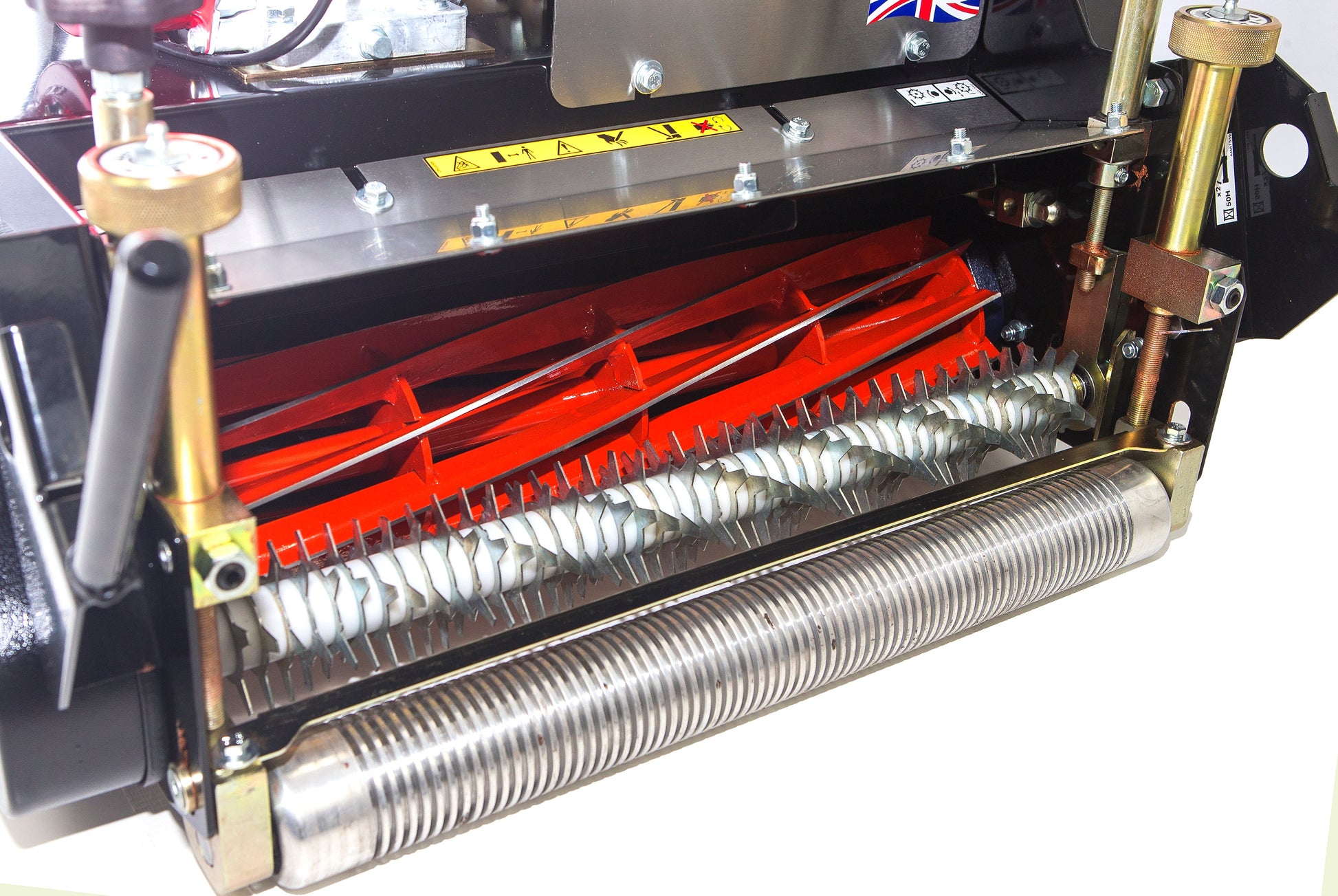

Powered turf groomer

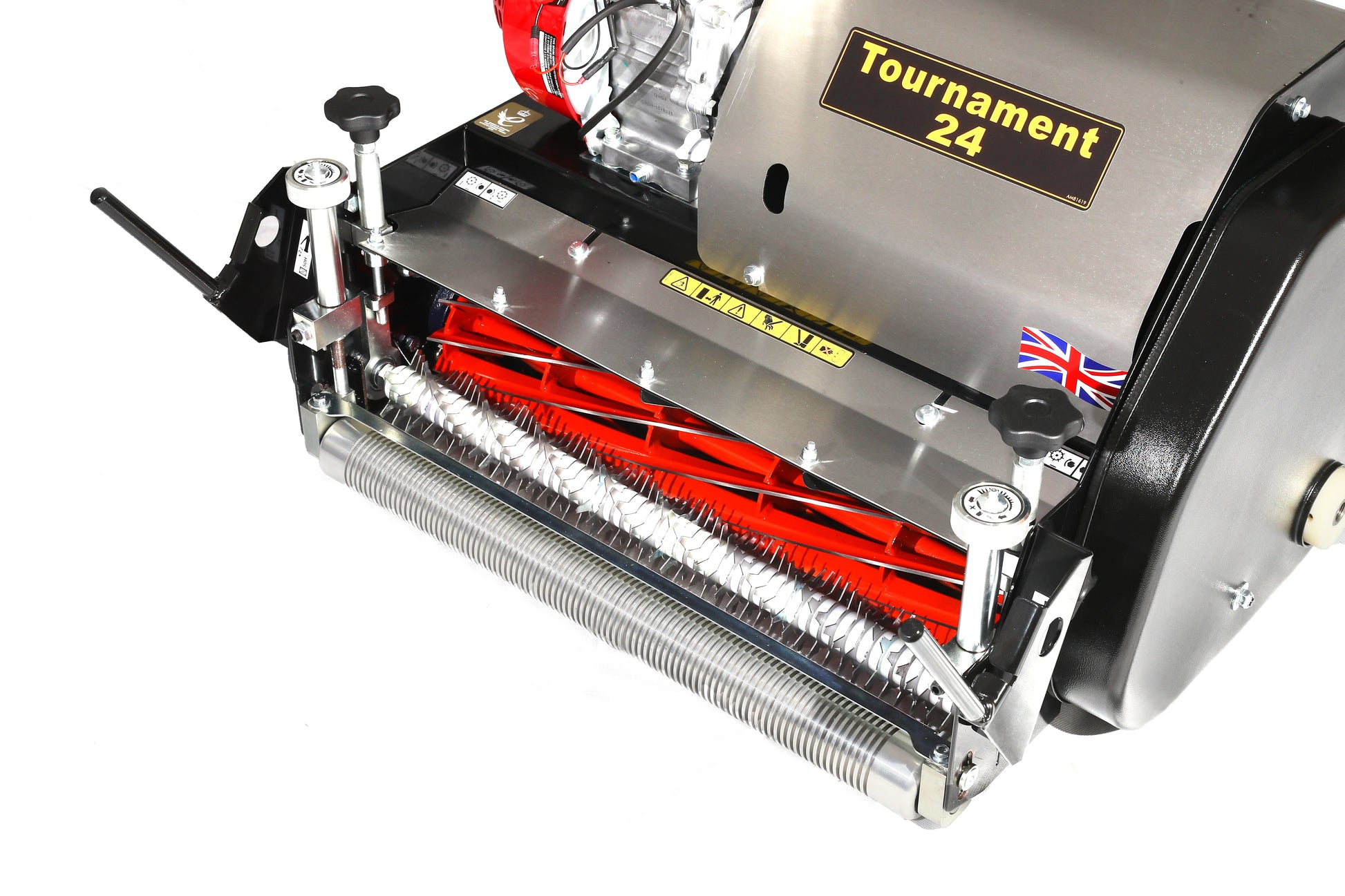

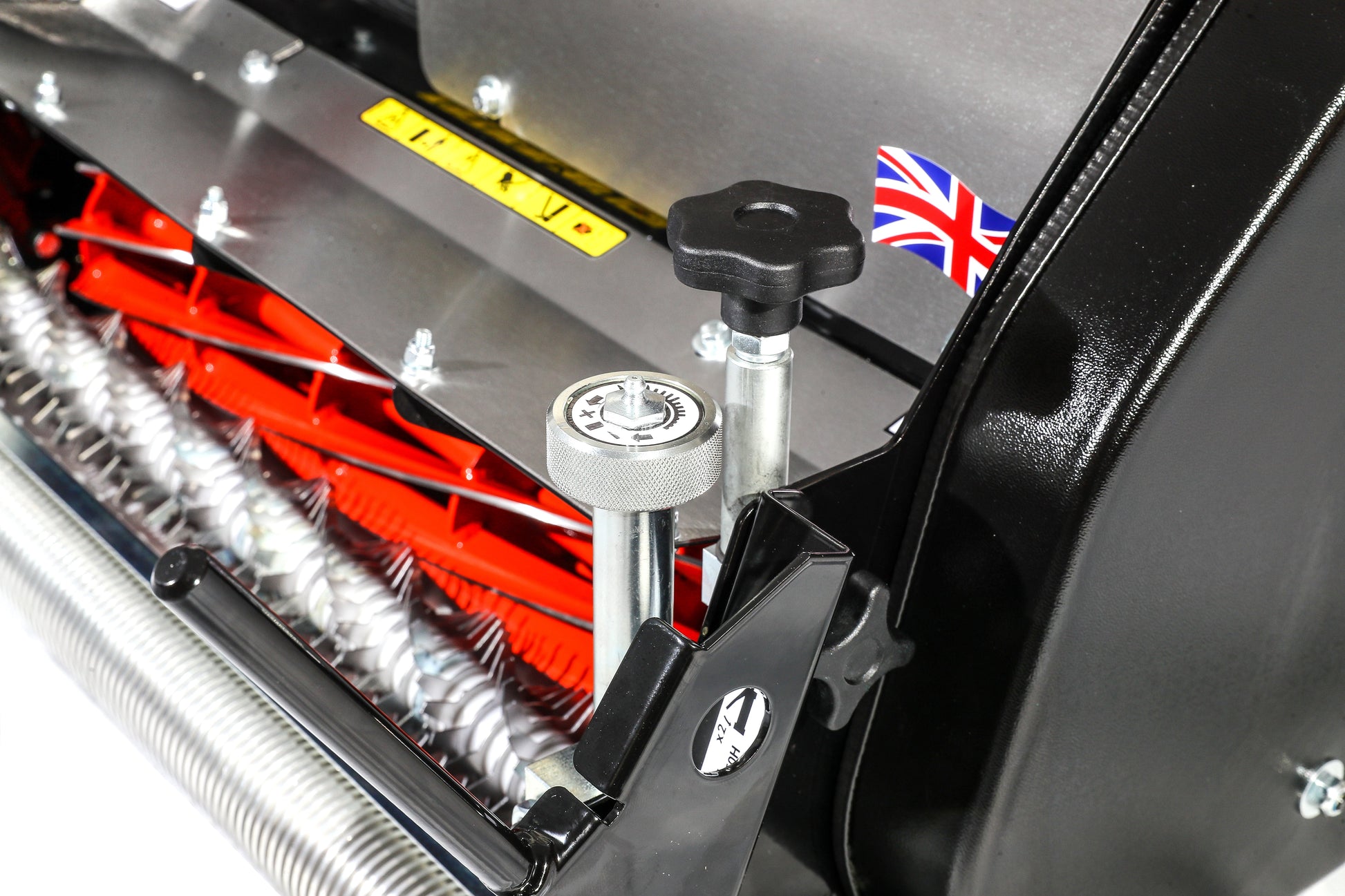

Easy to set and operate, the Tournament is equipped with an integral powered turf groomer that uses thin, closely spaced vertical blades to lift lateral grasses and “runners” immediately in front of the 10-bladed cutting cylinder.
Meeting exacting requirements

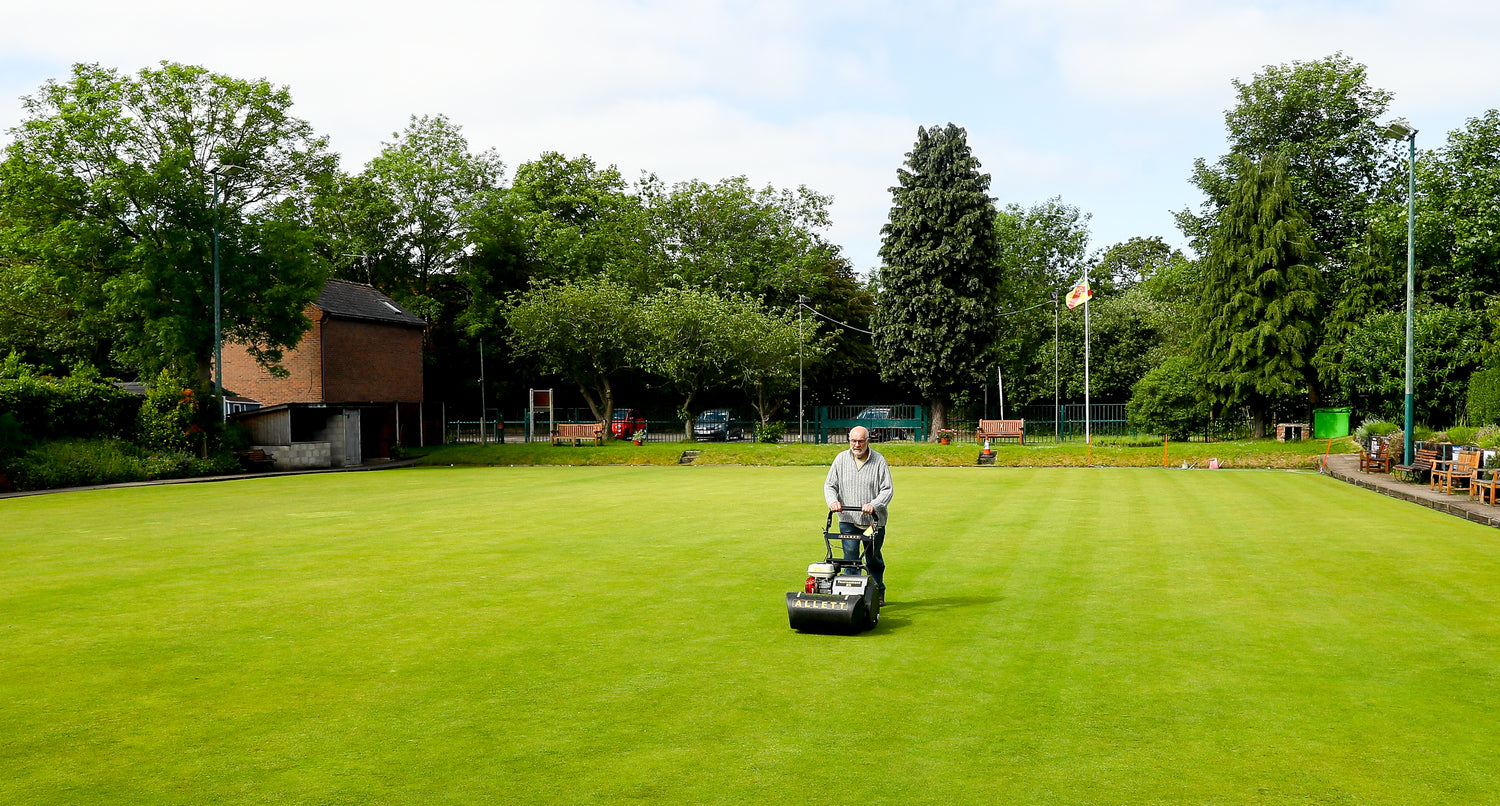

The result is a consistent level, true and even finish, meeting the exacting requirements of sports such as bowls, cricket and golf where speed and run of the ball are key.
Low fuel consumption

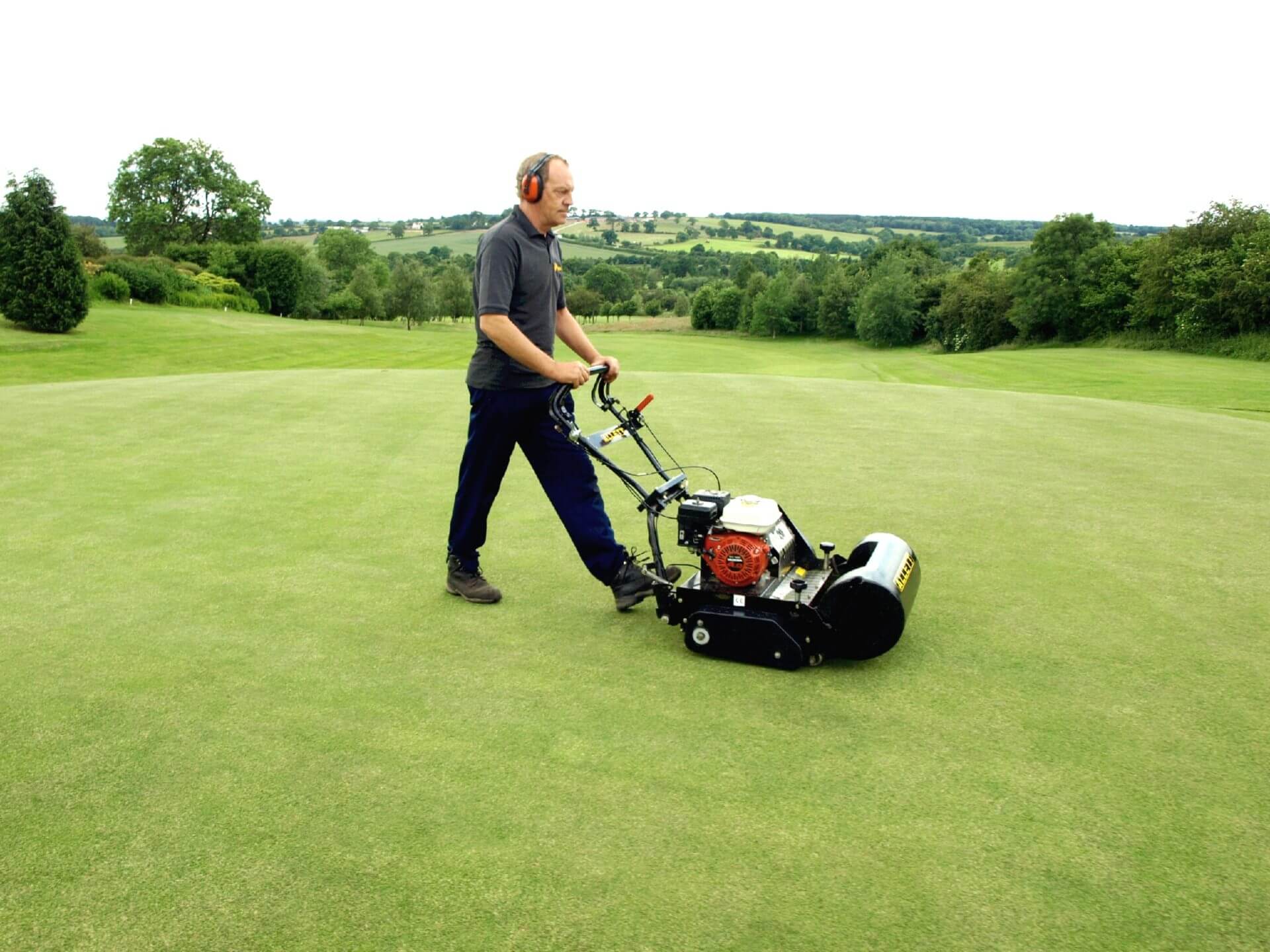

Engineered to operate effectively at low engine speeds the Tournament delivers low fuel consumption, noise levels and vibration. This is the perfect machine for cricket wickets, golf and bowling greens.

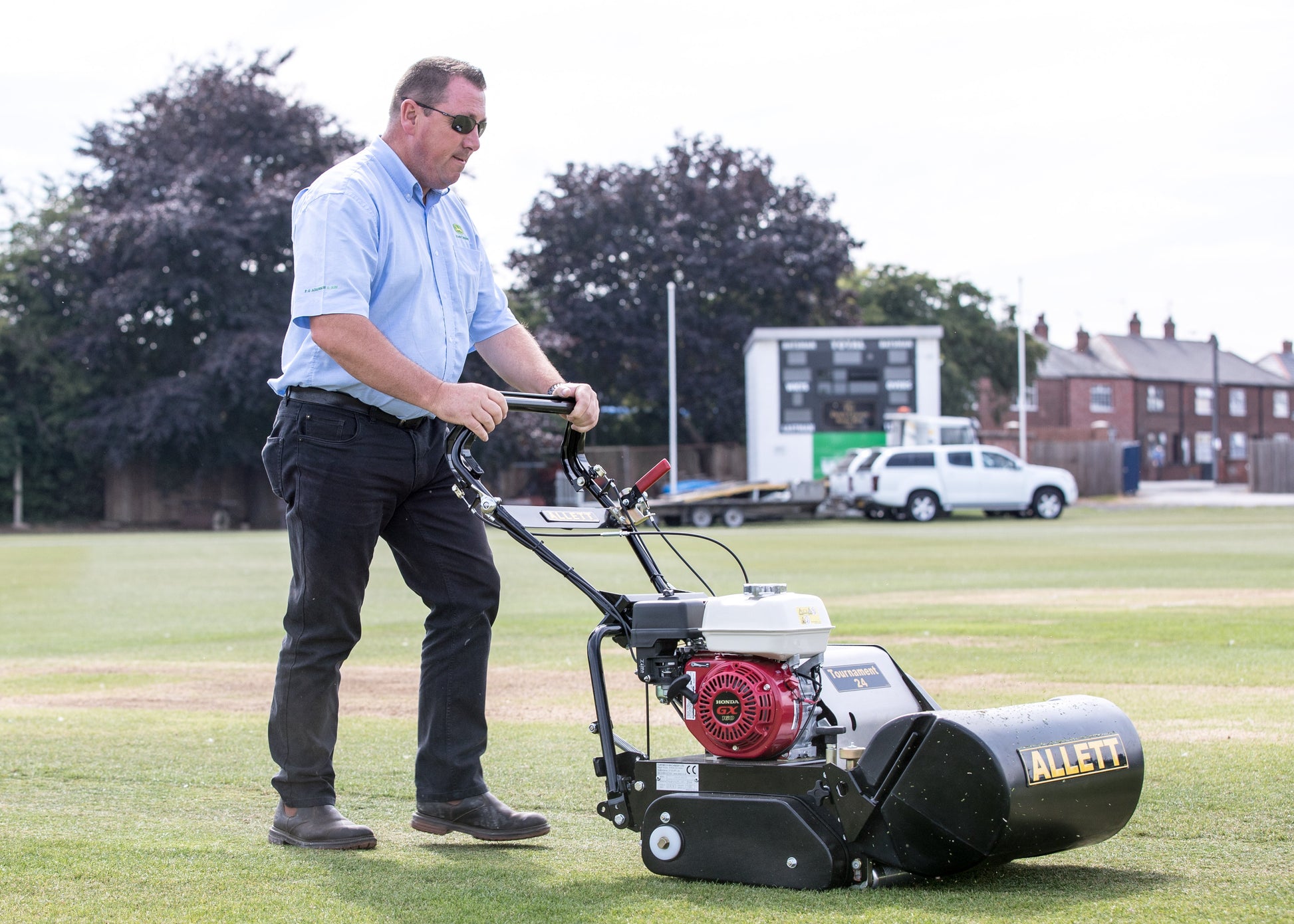

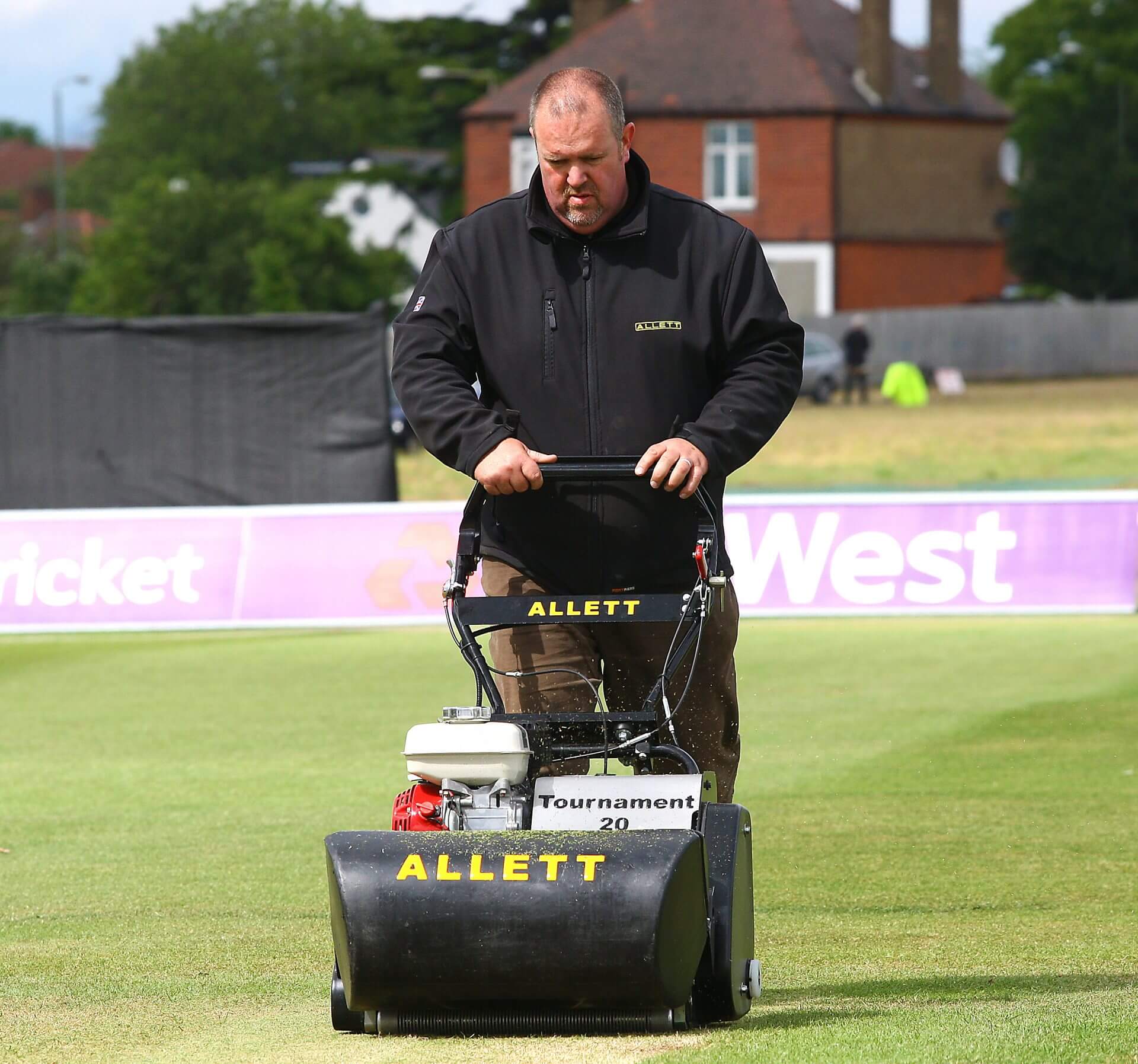

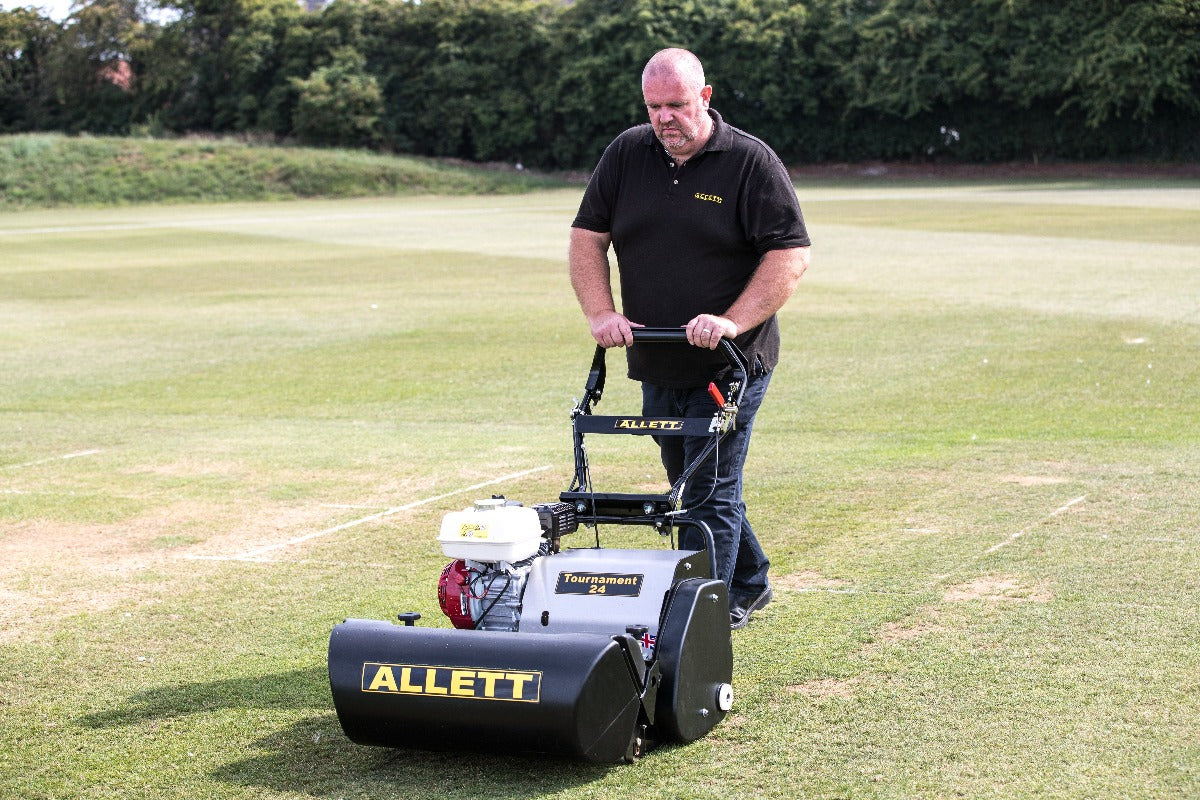

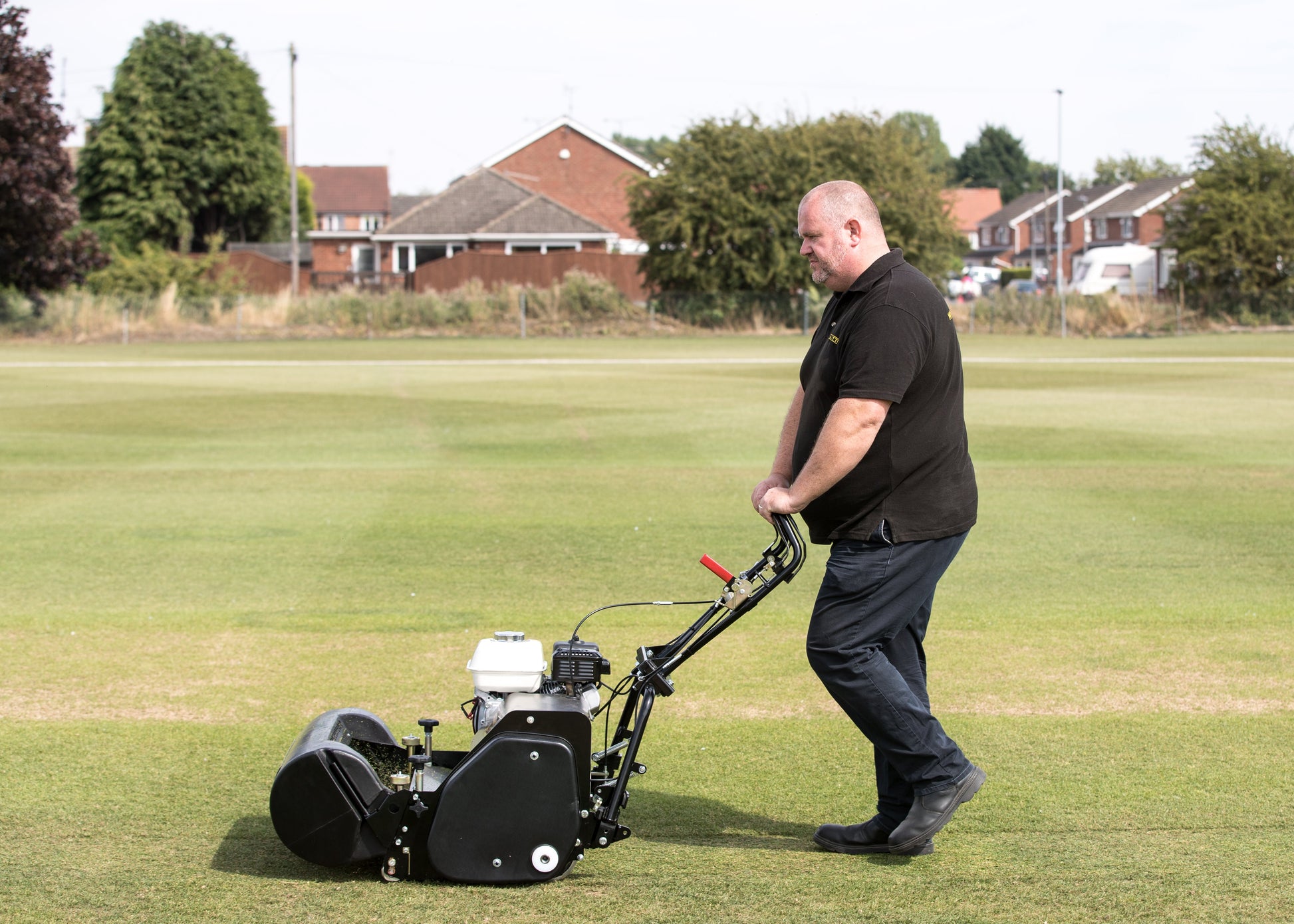

Tournament - The perfect machine for preparing a cricket wicket
Want to try the Tournament 24?
If you would like to see this mower in action and try it for yourself, we can arrange for you and your groundscare team to have a no-obligations demonstration at your club or institution.
